パワーアンプ（DC電源）
RF-LAMBDA社のDCソリッドステートパワーアンプ（PA）は、様々な用途で使用されており、高出力、広帯域動作、優れた直線性を提供します。
ご要望に応じて、密閉型オプションもご用意しております。
製品ラインナップ
Power Amplifier（DC Powered）
| Model | Description | Frequency Range | Gain(dB) | Saturated Power （Watts） |
Psat （dBm） |
Power Supply （VDC） |
Packaging | Datasheet |
|---|---|---|---|---|---|---|---|---|
| R00G08GSPG | Wide Band PA | 0.004～8GHz | 17dB | 1.3Watts | 31dBm | 11 | SMA | Datasheet |
| R00G20GSPMBEH-H | Hermetically Sealed Power Amplifier | 0.01～20GHz | 10dB | 0.9Watts | 29.5dBm | 10 | SMA | Datasheet |
| R00G22GSPA | Wide Band PA | 0.1～22GHz | 11dB | 4Watts | 36dBm | (28V,～5V) | SMA | Datasheet |
| R00G22GSPB | Wide Band PA | 0.1～22GHz | 12dB | 4Watts | 36dBm | 28 | SMA | Datasheet |

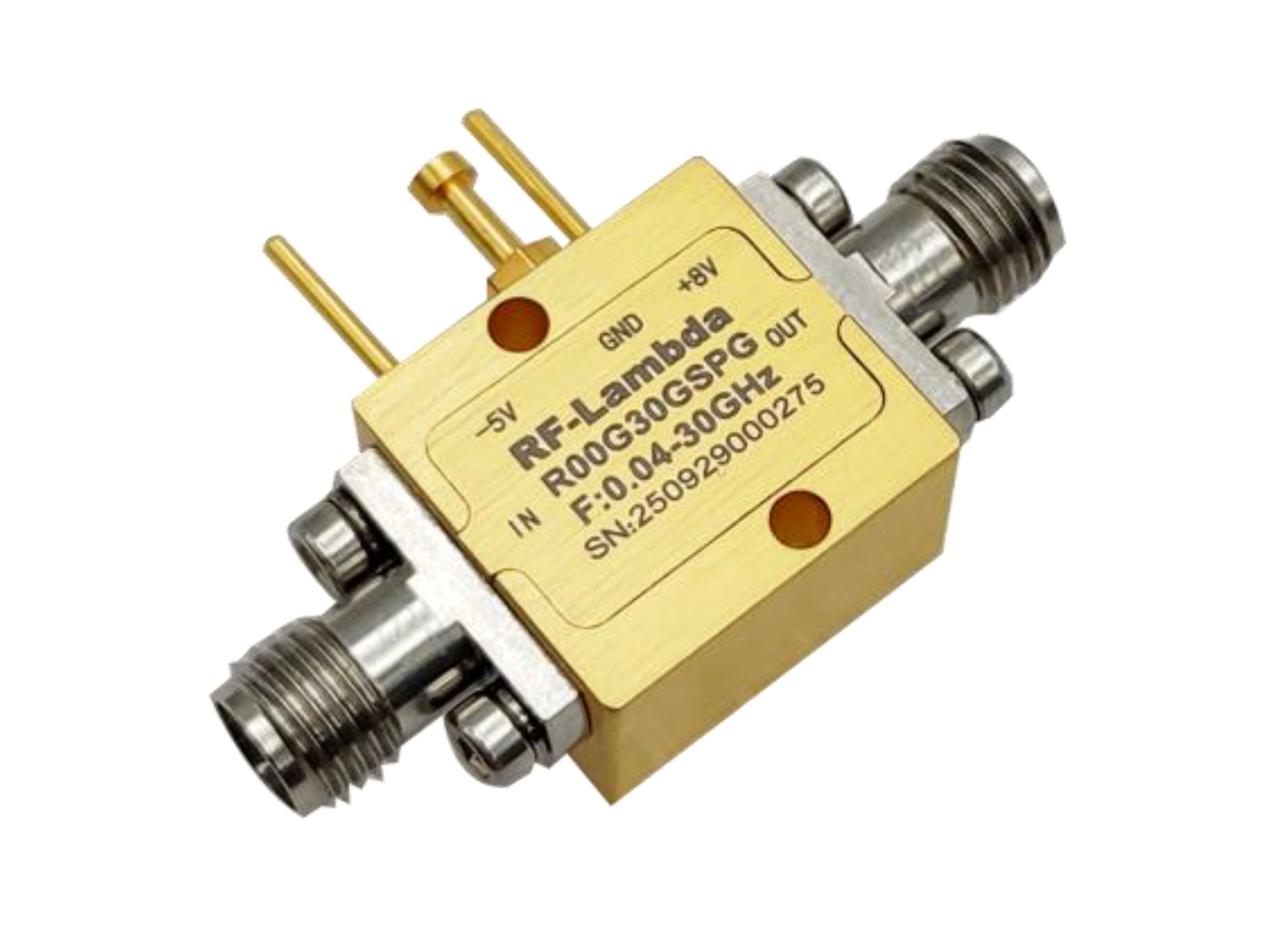

| R00G30GSPG | Wide Band PA | 0.004～30GHz | 16dB | 0.4Watts | 26dBm | 8 | 2.92mm | Datasheet |
| R01G20GSPG | Wide Band PA | 1～20GHz | 12dB | 1Watts | 30dBm | 11 | SMA | Datasheet |
| R02G20GSPA | Wide Band PA | 2～22GHz | 9dB | 5Watts | 37dBm | 28 | SMA | Datasheet |
| R05M20GSPM | Discontinued, replaced by R00G22GSPA R00G22GSPB | 0.5～20GHz | 13dB | 4Watts | 36dBm | 24～28 | SMA | Datasheet |
| R06G18GSPG | Wide Band PA | 6～18GHz | 17dB | 0.4Watts | 26dBm | 12 | SMA | Datasheet |
| R14G18GSPM | Single Stage PA | 14～18GHz | 14.5dB | 5.6Watts | 37.5dBm | 24～28 | SMA | Datasheet |
| R26G28GSPM | Single Stage PA | 26～28GHz | 26dB | 6.3Watts | 38dBm | 24～28 | 2.92mm (K) | Datasheet |
| RFLNPA01475 | Narrow Band PA | 1.475～1.525GHz | 49dB | 199.5Watts | 53dBm | 27 | N | Datasheet |
| RFLNPA06G18GA | Wide Band PA | 6～18GHz | 37dB | 2Watts | 33dBm | 12 | SMA | Datasheet |
| RFLNPA1415A | Narrow Band PA | 1.42～1.56GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLNPA1720A | Narrow Band PA | 1.71～2.03GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLNPA2123A | Narrow Band PA | 2.11～2.36GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLNPA2527A | Narrow Band PA | 2.5～2.7GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLNPA3436A | Narrow Band PA | 3.4～3.6GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLNPA4547A | Narrow Band PA | 0.45～0.47GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLNPA535W20 | Wide Band PA | 0.02～0.54GHz | 45dB | 31.6Watts | 45dBm | 24 | SMA | Datasheet |
| RFLNPA6996A | Narrow Band PA | 0.69～0.96GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLUPA0001GK | Wide Band PA | 0.02～1GHz | 50dB | 100Watts | 50dBm | 28 | SMA | Datasheet |
| RFLUPA0001GK2 | Wide Band PA | 0.02～1GHz | 50dB | 100Watts | 50dBm | 28 | SMA | Datasheet |
| RFLUPA0001GK2-H | Hermetically Sealed Wide Band PA | 0.02～1GHz | 50dB | 100Watts | 50dBm | 28 | SMA | Datasheet |
| RFLUPA0001GK2-R | Wide Band PA (With inverted enable) | 0.02～1GHz | 50dB | 100Watts | 50dBm | 28 | SMA | Datasheet |
| RFLUPA0010G200B | Wide Band PA | 0.03～1GHz | 56dB | 199.5Watts | 53dBm | 48 | SMA,N | Datasheet |
| RFLUPA0025GA | Wide Band PA | 0.03～2.5GHz | 38dB | 6.3Watts | 38dBm | 28 | SMA | Datasheet |

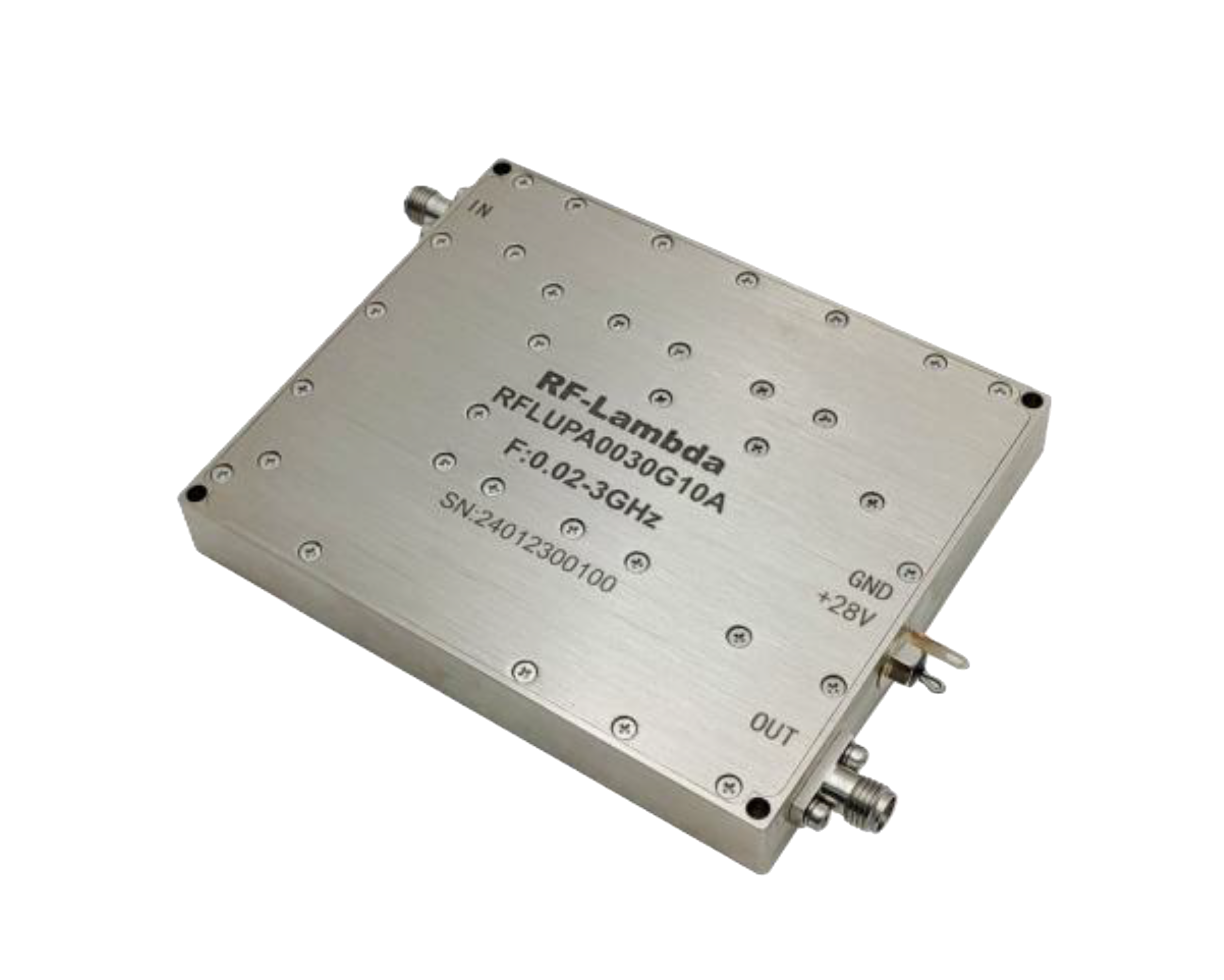

| RFLUPA0030G10A | Wide Band PA | 0.02～3GHz | 40dB | 10Watts | 41dBm | 28 | SMA | Datasheet |
| RFLUPA0030G10A-H | Hermetically Sealed Wide Band PA | 0.02～3GHz | 40dB | 10Watts | 40dBm | 28 | SMA | Datasheet |
| RFLUPA0030G10A-N | Wide Band Power Amplfier | 0.2～3GHz | 40dB | 10Watts | 40dBm | 28 | N | Datasheet |
| RFLUPA0030G20A | Wide Band PA | 0.02～3GHz | 43dB | 20Watts | 43dBm | 48 | SMA | Datasheet |
| RFLUPA0052G100A | Wide Band PA | 0.02～0.52GHz | 50dB | 140Watts | 51.5dBm | 28 | SMA | Datasheet |

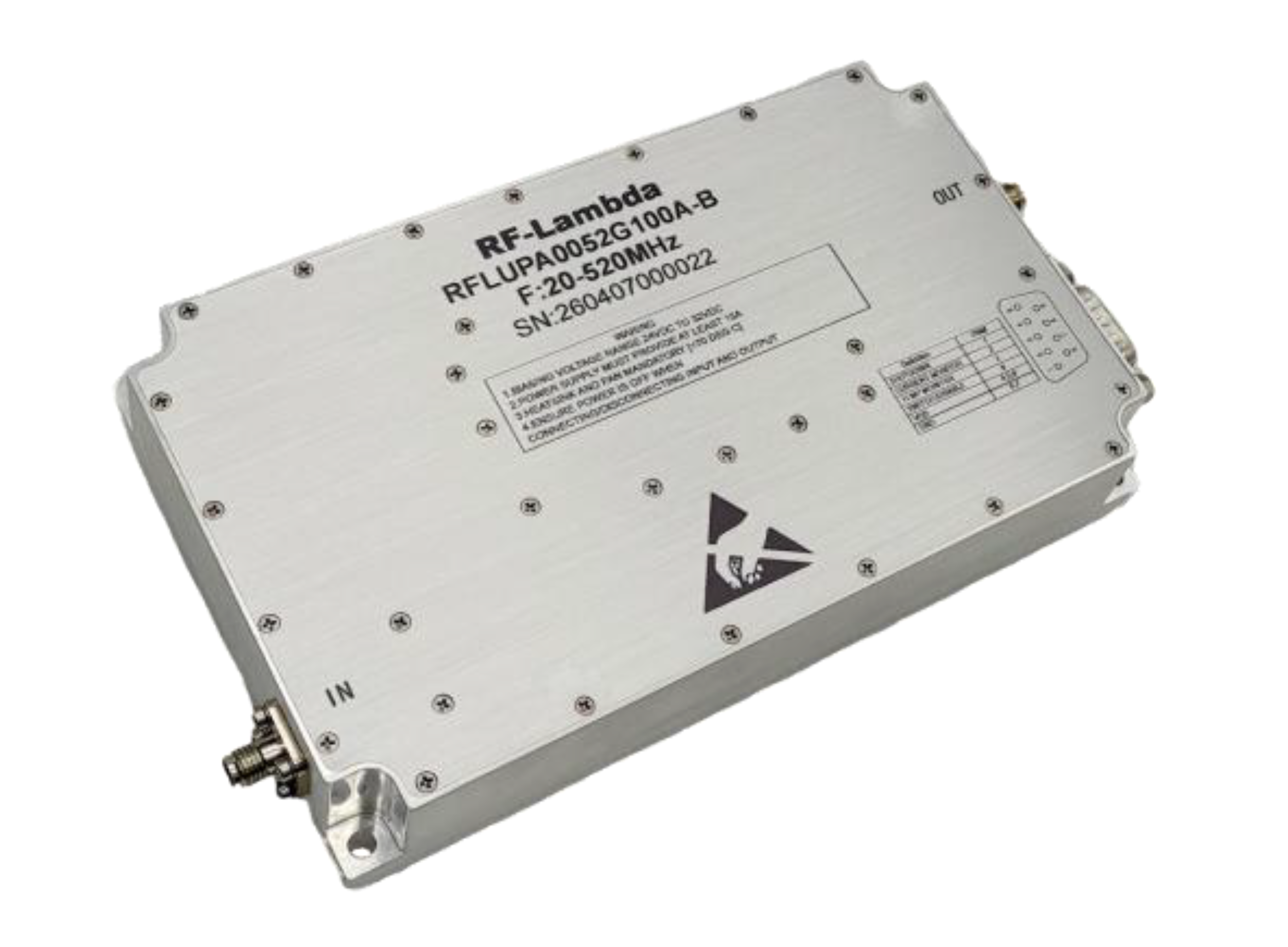

| RFLUPA0052G100A-B | Wide Band PA (With fast blanking) | 0.02～0.52GHz | 50dB | 140Watts | 51.5dBm | 28 | SMA | Datasheet |
| RFLUPA0052G200A | Wide Band PA | 0.02～0.52GHz | 53dB | 200Watts | 53dBm | 48 | SMA | Datasheet |
| RFLUPA0052G200A-B | Wide Band PA (With Fast Blanking) | 0.02～0.52GHz | 53dB | 200Watts | 53dBm | 48 | SMA | Datasheet |
| RFLUPA0052G50A | Wide Band PA | 0.02～0.52GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLUPA00G06G2 | 25W CW Wide Band PA | 0.02～6GHz | 50dB | 31.6Watts | 45dBm | 48 | SMA | Datasheet |

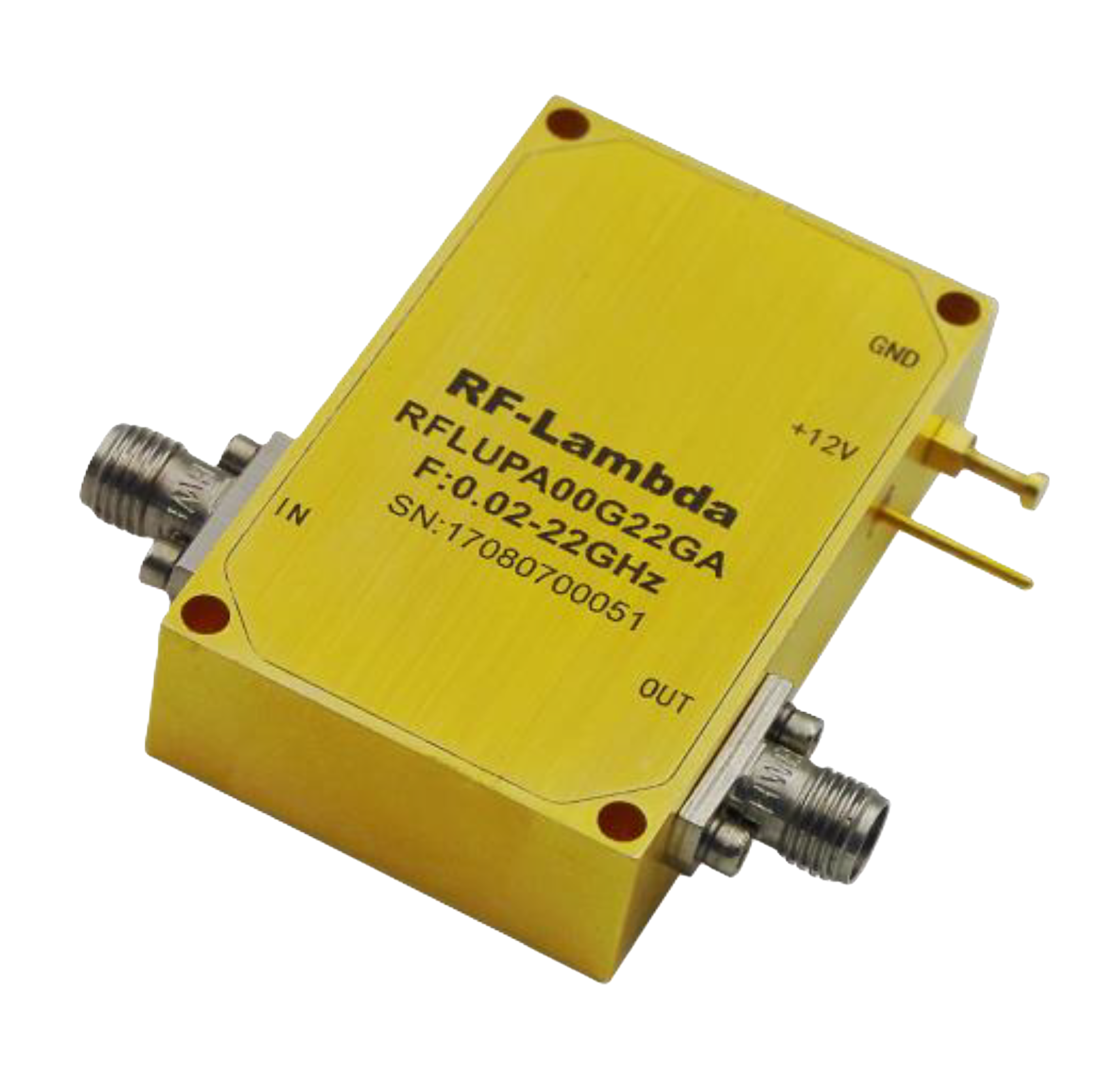

| RFLUPA00G22GA | Wide Band PA | 0.01～22GHz | 28dB | 1Watts | 30dBm | 12 | SMA | Datasheet |
| RFLUPA00G22GA-H | Hermetically Sealed PA | 0.01～22GHz | 30dB | 1Watts | 30dBm | 12 | SMA | Datasheet |
| RFLUPA00G30GA | Wide Band PA | 0.01～33GHz | 41dB | 1Watts | 30dBm | 12 | 2.92mm | Datasheet |
| RFLUPA00M03GD | Power Amplifier | 0.005～3GHz | 32dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M03GE | Power Amplifier | 0.005～3GHz | 44.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M04GC | Power Amplifier | 0.005～4GHz | 35.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M04GD | Power Amplifier | 0.005～4GHz | 50dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M04GF | Power Amplifier | 0.005～4.5GHz | 48.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M05GA | Power Amplifier | 0.005～5GHz | 33.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M06GA | Power Amplifier | 0～6GHz | 20.34dB | 0.7Watts | 28.34dBm | 15 | SMA | Datasheet |
| RFLUPA00M06GB | Power Amplifier | 0.005～6GHz | 45dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M06GC | Power Amplifier | 0.005～6GHz | 57.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M10GB | Power Amplifier | 0.005～10GHz | 31.5dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA00M14GA | Power Amplifier | 0.005～14GHz | 28dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA00M14GB | Power Amplifier | 0.005～14GHz | 46.5dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA00M15GA | Power Amplifier | 0.005～15GHz | 32.5dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA00M15GB | Power Amplifier | 0.005～15GHz | 32.5dB | 2.2Watts | 33.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M16GA | Power Amplifier | 0.005～16GHz | 28dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA00M16GB | Power Amplifier | 0.005～16GHz | 47dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA00M18GA | Power Amplifier | 0.005～18GHz | 30dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA00M18GB | Power Amplifier | 0.005～18GHz | 30.5dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA00M20GA | Power Amplifier | 0.005～20GHz | 33dB | 2.2Watts | 33.5dBm | 28 | SMA | Datasheet |
| RFLUPA00M40GA | Wide Band PA | 0～40GHz | 14.8dB | 0.3Watts | 25.3dBm | 12V | 2.92mm | Datasheet |
| RFLUPA0103GA | Wide Band PA | 0.1～3GHz | 41dB | 12.6Watts | 41dBm | 48 | SMA | Datasheet |
| RFLUPA0103GA-WP | Wide band PA (With Protection) | 0.03～3GHz | 47dB | 11Watts | 40.5dBm | 36 | SMA | Datasheet |
| RFLUPA01050 | Wide Band PA | 0.001～1GHz | 25dB | 4Watts | 36dBm | 12 | SMA | Datasheet |
| RFLUPA01G04GA | Power Amplifier | 1.4～4GHz | 32dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA01G06GD | Wide Band PA | 0.75～6.8GHz | 56dB | 112.2Watts | 50.5dBm | 48 | N | Datasheet |
| RFLUPA01G08GB | DC Power Amplifier | 1～8GHz | 67.5dB | 63.1Watts | 48dBm | 36 | SMA | Datasheet |
| RFLUPA01G08GC | DC Power Amplifier | 1～8GHz | 54dB | 39.8Watts | 46dBm | 28 | SMA | Datasheet |
| RFLUPA01G09GA | Wide Band PA | 1～9GHz | 50dB | 10Watts | 40dBm | 36 | SMA | Datasheet |
| RFLUPA01G09GA-D9 | Wide Band PA (D9 Connector) | 1～9GHz | 50dB | 10Watts | 40dBm | 36 | SMA | |
| RFLUPA01G10GD | Power Amplifier | 1～10GHz | 18.26dB | 0.1Watts | 20.26dBm | 15 | SMA | Datasheet |
| RFLUPA01G11GA | Power Amplifier | 1～11GHz | 30.5dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA01G11GC | Power Amplifier | 1～11GHz | 49.5dB | 2.2Watts | 33.5dBm | 28 | SMA | Datasheet |
| RFLUPA01G18GA | Power Amplifier | 1～18GHz | 11.64dB | 0.1Watts | 19.14dBm | 15 | SMA | Datasheet |
| RFLUPA01G18GC | Power Amplifier | 1～18GHz | 50dB | 35.5Watts | 45.5dBm | 28 | SMA | Datasheet |
| RFLUPA01G22GA | Wide Band PA | 1～22GHz | 44dB | 6.3Watts | 38dBm | 24, 36 | SMA | Datasheet |
| RFLUPA01G22GA2 | Wide Band PA | 2～22GHz | 44dB | 20Watts | 43dBm | 36 | SMA | Datasheet |
| RFLUPA01G22GA-NP | Wide Band PA | 1～22GHz | 44dB | 6.3Watts | 38dBm | 24 | SMA | Datasheet |
| RFLUPA01G22GA-S | Wide Band PA | 1～22GHz | 42dB | 7.9Watts | 39dBm | 36 | SMA | |
| RFLUPA01G22GA-WP | Wide Band PA | 1～22GHz | 44dB | 6.3Watts | 38dBm | 36 | SMA | Datasheet |
| RFLUPA01G24GA | DC Power Amplifier | 1～24GHz | 33.5dB | 1Watts | 30dBm | 28 | 2.92mm | Datasheet |
| RFLUPA01G24GB | DC Power Amplifier | 1～24GHz | 46.5dB | 2Watts | 33dBm | 36 | 2.92mm | Datasheet |
| RFLUPA01G30GB | Wide Band PA | 0.2～35GHz | 35dB | 2Watts | 33dBm | 12 | 2.92mm | |
| RFLUPA01G31GB | Wide Band PA | 0.2～35GHz | 35dB | 2.5Watts | 34dBm | 12 | 2.92mm | Datasheet |
| RFLUPA01G31GD | Wide Band PA | 0.2～35GHz | 35dB | 4.5Watts | 36.5dBm | 24 | 2.92mm (K) | Datasheet |
| RFLUPA01G31GE | Wide Band PA | 0.2～31GHz | 52dB | 10Watts | 40dBm | 36 | WR28 | |
| RFLUPA01G45GA | Wide Band PA | 5～45GHz | 33dB | 1.6Watts | 32dBm | 15 | 2.92mm (K) | Datasheet |
| RFLUPA01M01GA | Power Amplifier | 0.01～1GHz | 34dB | 11.2Watts | 40.5dBm | 36 | SMA | Datasheet |
| RFLUPA01M01GH | Power Amplifier | 0.01～1.1GHz | 50dB | 11.2Watts | 40.5dBm | 36 | SMA | Datasheet |
| RFLUPA01M03GD | Power Amplifier | 0.01～3GHz | 55dB | 1.3Watts | 31dBm | 28 | SMA | Datasheet |
| RFLUPA01M04GA | Power Amplifier | 0.01～3.5GHz | 45dB | 1.3Watts | 31dBm | 28 | SMA | Datasheet |
| RFLUPA01M04GB | Power Amplifier | 0.01～4GHz | 32.5dB | 1.3Watts | 31dBm | 28 | SMA | Datasheet |
| RFLUPA01M04GC | Power Amplifier | 0.01～4GHz | 50dB | 1.3Watts | 31dBm | 28 | SMA | Datasheet |
| RFLUPA01M06GA | Power Amplifier | 0.01～6GHz | 34dB | 1.3Watts | 31dBm | 28 | SMA | Datasheet |
| RFLUPA01M06GB | Power Amplifier | 0.01～6GHz | 53.5dB | 1.3Watts | 31dBm | 28 | SMA | Datasheet |
| RFLUPA01M08GA | Power Amplifier | 0.01～8GHz | 27dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA01M09GA | Power Amplifier | 0.01～9GHz | 33.5dB | 2.2Watts | 33.5dBm | 28 | SMA | Datasheet |
| RFLUPA01M09GB | Power Amplifier | 0.01～9GHz | 34dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA01M10GA | Power Amplifier | 0.01～10GHz | 33.5dB | 2.2Watts | 33.5dBm | 28 | SMA | Datasheet |
| RFLUPA01M10GB | Power Amplifier | 0.01～10GHz | 34dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA01M12GA | Power Amplifier | 0.01～12GHz | 48.5dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA01M12GB | Power Amplifier | 0.01～12GHz | 49dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA01M15GA | Power Amplifier | 0.01～15GHz | 31dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA01M20GA | Power Amplifier | 0.01～20GHz | 29dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA01M22GA-NP | Wide Band PA | 0.1～22GHz | 35dB | 4Watts | 36dBm | 24 | SMA | Datasheet |
| RFLUPA01M22GA-S | Wide Band PA | 0.1～22GHz | 37dB | 5Watts | 37dBm | 24 | Coaxial | Datasheet |
| RFLUPA01M22GA-WP | Wide Band PA | 0.1～22GHz | 37dB | 5Watts | 37dBm | 36 | SMA | Datasheet |
| RFLUPA01M30M | Wide Band PA | 0.001～0.03GHz | 58dB | 177.8Watts | 52.5dBm | 28 | SMA | Datasheet |
| RFLUPA0206G100QS | Power Amplifier | 2～6GHz | 55dB | 100Watts | 50dBm | 28 | N | Datasheet |
| RFLUPA0206G175QD | Power Amplifier | 2～6GHz | 62dB | 199.5Watts | 53dBm | 48 | N | Datasheet |
| RFLUPA0206G20A | Wide Band PA | 2～6GHz | 43dB | 20Watts | 43dBm | 36 | SMA | Datasheet |
| RFLUPA0206G35B | Discontinued and Replaced by RFLUPA02G06GA RFLUPA02G06G | 2～6GHz | 45dB | 31.6Watts | 45dBm | 28 | SMA | Datasheet |
| RFLUPA0206G50C | Wide Band PA | 2～6GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLUPA0218G5 | Wide Band PA | 2～18GHz | 36dB | 5Watts | 37dBm | 24 | SMA | Datasheet |
| RFLUPA0218GA-NP | Wide Band PA | 1～18GHz | 52dB | 7.9Watts | 39dBm | 24 | SMA | Datasheet |
| RFLUPA0218GA-WP | Wide Band PA | 1～18GHz | 52dB | 7.9Watts | 39dBm | 36 | SMA | Datasheet |
| RFLUPA0218GC | Wide Band Solid State PA | 2～18GHz | 50dB | 28.2Watts | 44.5dBm | 28 | SMA | Datasheet |
| RFLUPA0220GA | Wide Band SSPA | 2～20GHz | 43dB | 10Watts | 40dBm | 36 | SMA | Datasheet |
| RFLUPA0220GA2 | Wide Band PA | 2～22GHz | 47dB | 25Watts | 43.5dBm | 36 | SMA | Datasheet |
| RFLUPA0220GA2-28V | Wide band PA | 2～22GHz | 47dB | 25Watts | 43.5dBm | 28 | SMA | |
| RFLUPA0220GB | Wide Band SSPA | 2～20GHz | 45dB | 20Watts | 43dBm | 28 | SMA | Datasheet |
| RFLUPA0220GB2 | Wide Band PA | 2～20GHz | 49dB | 31.6Watts | 45dBm | 36 | SMA | Datasheet |
| RFLUPA0220GD | Wide Band PA | 2～20GHz | 50dB | 63.1Watts | 48dBm | 48 | N | Datasheet |

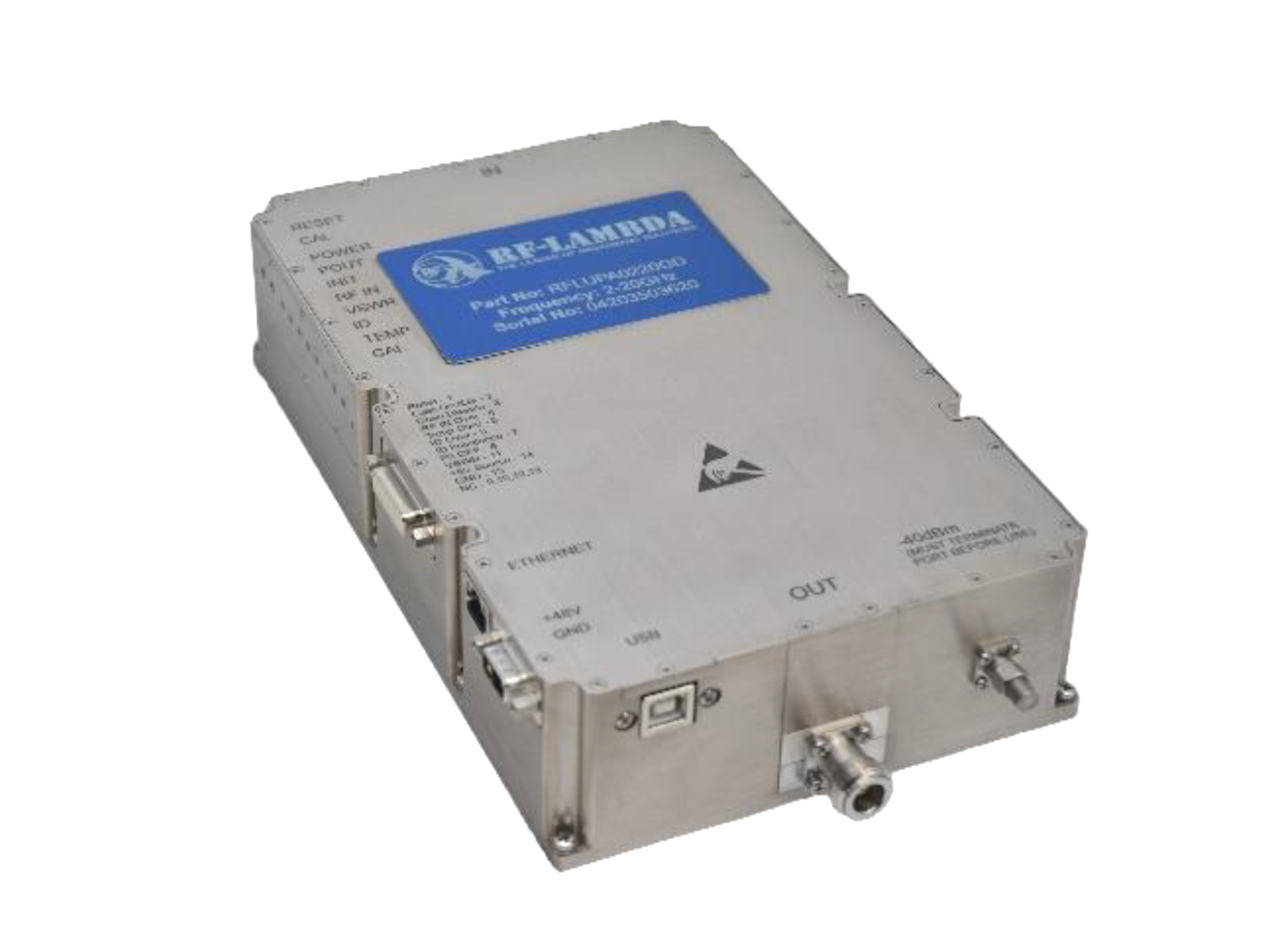

| RFLUPA0220GD-B | Wide Band PA (With Fast Blanking) | 2～20GHz | 50dB | 65Watts | 48dBm | 48 | N | Datasheet |
| RFLUPA0225G100A | Wide Band PA | 0.2～2.5GHz | 55dB | 80Watts | 49dBm | 36 | SMA | Datasheet |
| RFLUPA0225G100B | Wide Band PA | 0.2～2.5GHz | 55dB | 125Watts | 51dBm | 36 | SMA | Datasheet |
| RFLUPA0225G100C | Wide Band PA | 0.2～2.5GHz | 55dB | 250Watts | 54dBm | 48 | SMA | Datasheet |
| RFLUPA02G02GA | Power Amplifier | 1.5～2.3GHz | 39dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA02G02GE | Power Amplifier | 1.5～2.3GHz | 60dB | 22.4Watts | 43.5dBm | 48 | SMA | Datasheet |
| RFLUPA02G02GF | Power Amplifier | 1.5～2.3GHz | 64.5dB | 11.2Watts | 40.5dBm | 48 | SMA | Datasheet |
| RFLUPA02G02GG | Power Amplifier | 1.7～2.5GHz | 34dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA02G02GK | Power Amplifier | 1.7～2.5GHz | 55dB | 22.4Watts | 43.5dBm | 48 | SMA | Datasheet |
| RFLUPA02G03GA | Power Amplifier | 1.7～2.5GHz | 43dB | 11.2Watts | 40.5dBm | 48 | SMA | Datasheet |
| RFLUPA02G03GE | Power Amplifier | 1.7～2.5GHz | 64dB | 22.4Watts | 43.5dBm | 48 | SMA | Datasheet |
| RFLUPA02G04GA | Power Amplifier | 2.3～3.8GHz | 34.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA02G04GB | Power Amplifier | 2.3～3.8GHz | 69dB | 25.1Watts | 44dBm | 36 | SMA | Datasheet |
| RFLUPA02G06G | Wide Band PA | 2～6GHz | 45dB | 31.6Watts | 45dBm | 36 | SMA | Datasheet |
| RFLUPA02G06GA | Wide Band PA | 2～6GHz | 50dB | 31.6Watts | 45dBm | 28 | SMA | Datasheet |
| RFLUPA02G06GB | 50W Solid State Power Amplifier | 2～6GHz | 47dB | 50.1Watts | 47dBm | 30 | SMA | Datasheet |

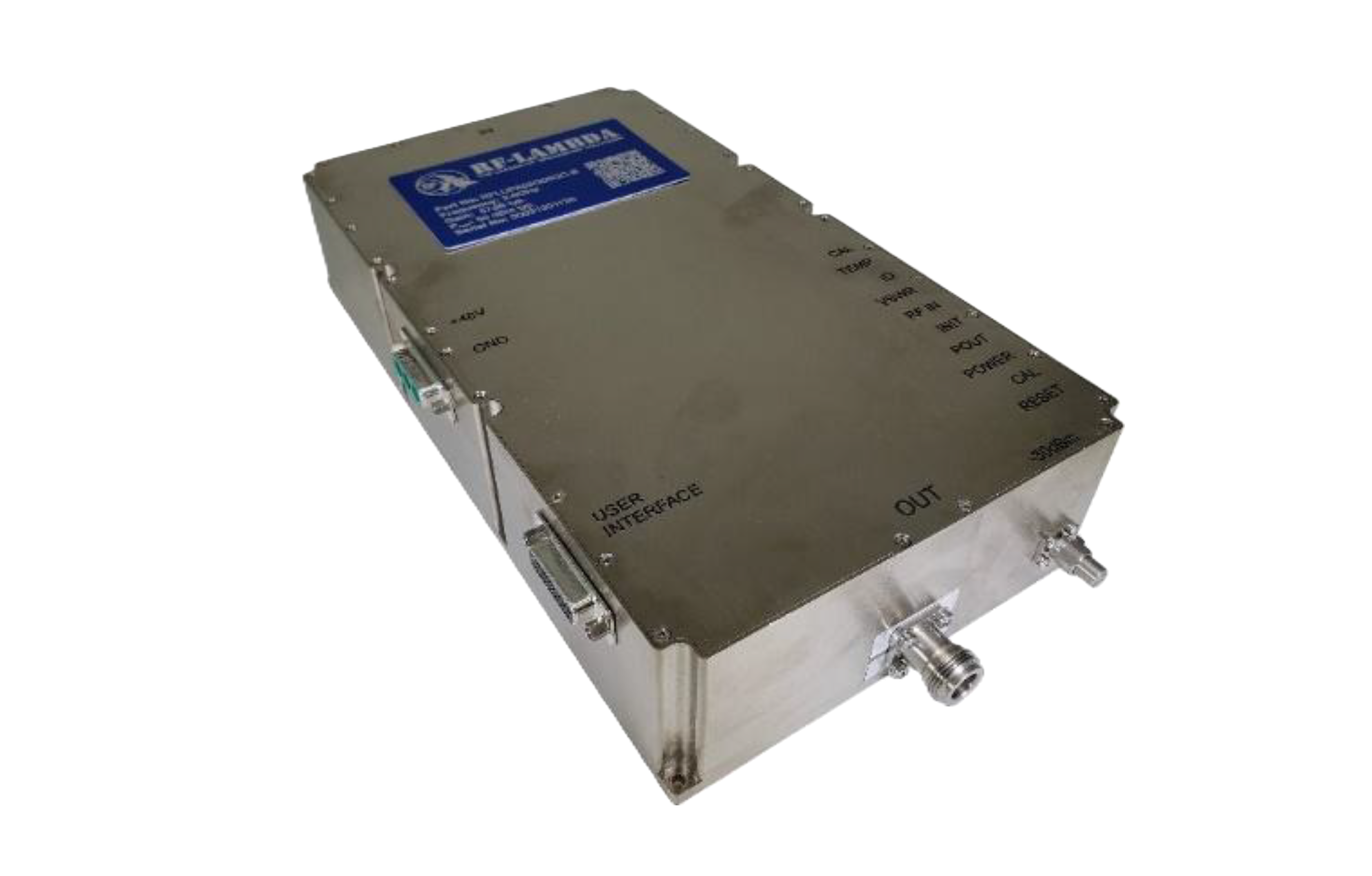

| RFLUPA02G06GC-B | 100W Solid State Power Amplifier with Blanking | 2～6GHz | 55dB | 125Watts | 51dBm | 48 | N | Datasheet |
| RFLUPA02G06GD | Wide Band PA | 2～6GHz | 60dB | 316.2Watts | 55dBm | 48 | N | Datasheet |
| RFLUPA02G06GE | Power Amplifier | 2～6GHz | 22.31dB | 0.3Watts | 25.31dBm | 15 | SMA | Datasheet |
| RFLUPA02G06GF | DC Power Amplifier | 2～6.5GHz | 69.5dB | 89.1Watts | 49.5dBm | 48 | SMA | Datasheet |
| RFLUPA02G06GM34 | Power Amplifier | 2～6GHz | 30dB | 15.8Watts | 42dBm | 28 | SMA | Datasheet |
| RFLUPA02G06GN | Hermetically Sealed MIL-883-STD Power Amplifier | 3.3～5GHz | 50dB | 31.6Watts | 45dBm | 28 | SMA | Datasheet |
| RFLUPA02G06GNC | Laser sealed SSPA (Protection Monitoring & Control) | 3.3～5GHz | 45dB | 31.6Watts | 45dBm | 28 | Coaxial | Datasheet |
| RFLUPA02G06GNL | Laser sealed SSPA (Protection Monitoring & Control) | 2～6GHz | 50dB | 31.6Watts | 45dBm | 28 | SMA | Datasheet |
| RFLUPA02G06GNM | Power Amplifier | 1.5～6GHz | 39dB | 35.5Watts | 45.5dBm | 48 | SMA | Datasheet |
| RFLUPA02G08GA | Power Amplifier | 2～8GHz | 55dB | 28Watts | 44.5dBm | 36 | SMA | Datasheet |
| RFLUPA02G08GC | DC Power Amplifier | 2～8GHz | 60dB | 50Watts | 47dBm | 48 | SMA | Datasheet |
| RFLUPA02G08GD | DC Power Amplifier | 2～8GHz | 65dB | 100Watts | 50dBm | 36 | SMA | Datasheet |
| RFLUPA02G09GB | Power Amplifier | 2～9GHz | 29.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA02G18GA | Power Amplifier | 2～18GHz | 12.12dB | 0.1Watts | 20.12dBm | 15 | SMA | Datasheet |
| RFLUPA02G20GA | Power Amplifier | 2～20GHz | 19dB | 0.2Watts | 22dBm | 12 | SMA | Datasheet |
| RFLUPA02G28GA | DC Power Amplifier | 2～28GHz | 36dB | 1Watts | 30dBm | 28 | 2.92mm | Datasheet |
| RFLUPA02G30GA | DC Power Amplifier | 2～30GHz | 41dB | 1Watts | 30dBm | 36 | 2.92mm | Datasheet |
| RFLUPA02G50GA | DC Power Amplifier | 2～50GHz | 27dB | 0.2Watts | 22dBm | 15 | 2.4mm | Datasheet |
| RFLUPA02M01GA | Power Amplifier | 0.02～1.4GHz | 35dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA02M02GA | Power Amplifier | 0.02～1.7GHz | 29.5dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA02M03G2 | Wide Band PA | 0.02～3GHz | 35dB | 2.5Watts | 34dBm | 12 | SMA | Datasheet |
| RFLUPA02M03G2-SMA | Wide Band PA | 0.02～3GHz | 35dB | 2.5Watts | 34dBm | 12 | SMA | Datasheet |
| RFLUPA02M06GA | Wide Band PA | 0.2～6GHz | 35dB | 2.5Watts | 34dBm | 12 | SMA,N | Datasheet |
| RFLUPA02M12GA | Power Amplifier | 0.02500～12GHz | 30.5dB | 2.2Watts | 33.5dBm | 28 | SMA | Datasheet |
| RFLUPA02M12GB | Power Amplifier | 0.02500～12GHz | 30.5dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA02M20MH | Wide Band PA | 0.02～3GHz | 55dB | 50.1Watts | 47dBm | 48 | SMA | Datasheet |
| RFLUPA02M30MB | Wide Band Power Amplifier | 0.002～0.03GHz | 55dB | 316.2Watts | 55dBm | 48 | N | Datasheet |
| RFLUPA0306GE | Wide Band PA | 3～6GHz | 36dB | 3.2Watts | 35dBm | 24 | SMA | Datasheet |
| RFLUPA0306GE-T | Wide Band PA | 3～6GHz | 40dB | 7.9Watts | 39dBm | 28 | SMA | Datasheet |
| RFLUPA0311GAD | Dual Band Power Amplifier 3.1-3.5GHz & 9-11GHz |
3.1～11GHz | 50dB | 22.4Watts | 43.5dBm | 36 | SMA | Datasheet |
| RFLUPA03G04GA | Power Amplifier | 2.6～3.8GHz | 70dB | 35.5Watts | 45.5dBm | 48 | SMA | Datasheet |
| RFLUPA03G04GC | Power Amplifier | 3.3～4GHz | 44.5dB | 39.8Watts | 46dBm | 48 | SMA | Datasheet |
| RFLUPA03G04GD | Power Amplifier | 3.3～4.2GHz | 69.5dB | 39.8Watts | 46dBm | 36 | SMA | Datasheet |
| RFLUPA03G04GE | DC Power Amplifier | 2.7～3.7GHz | 64dB | 79.4Watts | 49dBm | 36 | SMA | Datasheet |
| RFLUPA03G04GF | DC Power Amplifier | 2.7～3.8GHz | 65.5dB | 79.4Watts | 49dBm | 36 | SMA | Datasheet |
| RFLUPA03G04GG | DC Power Amplifier | 3.3～3.8GHz | 62.5dB | 158.5Watts | 52dBm | 48 | N | Datasheet |
| RFLUPA03G04GH | DC Power Amplifier | 3.3～4GHz | 60dB | 79.4Watts | 49dBm | 48 | SMA | Datasheet |
| RFLUPA03G04GJ | DC Power Amplifier | 2.7～3.7GHz | 67dB | 158.5Watts | 52dBm | 36 | N | Datasheet |
| RFLUPA03G04GK | DC Power Amplifier | 2.7～3.8GHz | 68.5dB | 158.5Watts | 52dBm | 36 | N | Datasheet |
| RFLUPA03G04GL | DC Power Amplifier | 3.3～4GHz | 66dB | 158.5Watts | 52dBm | 48 | N | Datasheet |
| RFLUPA03G04GM | DC Power Amplifier | 2.7～3.5GHz | 77dB | 707.9Watts | 58.5dBm | 48 | N | Datasheet |
| RFLUPA03G04GN | DC Power Amplifier | 2.7～3.7GHz | 70dB | 316.2Watts | 55dBm | 36 | N | Datasheet |
| RFLUPA03G04GO | DC Power Amplifier | 2.7～3.8GHz | 72dB | 316.2Watts | 55dBm | 36 | N | Datasheet |
| RFLUPA03G04GP | DC Power Amplifier | 3.3～4GHz | 73dB | 316.2Watts | 55dBm | 48 | N | Datasheet |
| RFLUPA03G05GA | Power Amplifier | 3.3～5GHz | 69.5dB | 39.8Watts | 46dBm | 36 | SMA | Datasheet |
| RFLUPA03G20GA | Power Amplifier | 3～20GHz | 24.57dB | 0.1Watts | 21.57dBm | 15 | SMA | Datasheet |
| RFLUPA03M02GC | Power Amplifier | 0.03～2.5GHz | 64dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA03M60MA | Power Amplifier | 0.03～0.6GHz | 49dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA04G06GA | Power Amplifier | 4～5.9GHz | 46.5dB | 39.8Watts | 46dBm | 36 | SMA | Datasheet |
| RFLUPA04G06GD | DC Power Amplifier | 4～5.9GHz | 66dB | 158.5Watts | 52dBm | 48 | N | Datasheet |
| RFLUPA04G07GA | Power Amplifier | 3.5～7GHz | 46dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA04G07GC | DC Power Amplifier | 3.5～7GHz | 49dB | 17.8Watts | 42.5dBm | 36 | SMA | Datasheet |
| RFLUPA04G08GB | Power Amplifier | 4～8GHz | 69.5dB | 17.8Watts | 42.5dBm | 36 | SMA | Datasheet |
| RFLUPA04G08GC | Power Amplifier | 4～8GHz | 66.5dB | 70.8Watts | 48.5dBm | 48 | SMA | Datasheet |
| RFLUPA04G14GC | Power Amplifier | 4～14GHz | 35.5dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA04G20GC | Power Amplifier | 4～20GHz | 38.5dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA04G27GA | Power Amplifier | 4～27GHz | 14dB | 0.1Watts | 21dBm | 12 | SMA | Datasheet |
| RFLUPA04M01GC | Power Amplifier | 0.045～1.218GHz | 60.5dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA0506GE | Wide Band PA | 0.5～6GHz | 35dB | 7.9Watts | 39dBm | 28 | SMA | Datasheet |
| RFLUPA0506GE-B | Wide Band PA | 0.5～6GHz | 35dB | 7.9Watts | 39dBm | 28 | SMA | Datasheet |
| RFLUPA0506GF | Wide Band PA | 0.6～6GHz | 65dB | 200Watts | 53dBm | 48 | N | Datasheet |
| RFLUPA05G06GA | Power Amplifier | 4.8～6GHz | 58.5dB | 39.8Watts | 46dBm | 36 | SMA | Datasheet |
| RFLUPA05G06GB | DC Power Amplifier | 4.8～6GHz | 61.5dB | 79.4Watts | 49dBm | 36 | SMA | Datasheet |
| RFLUPA05G06GC | DC Power Amplifier | 4.8～6GHz | 64.5dB | 158.5Watts | 52dBm | 36 | N | Datasheet |
| RFLUPA05G08GA2 | Wide Band PA | 5.5～7.5GHz | 54dB | 80Watts | 49dBm | 24～36 | SMA | Datasheet |
| RFLUPA05G08GC | Wide Band PA | 5～8GHz | 24dB | 1Watts | 30dBm | 24 | SMA | Datasheet |
| RFLUPA05G18GA | Power Amplifier | 5～18GHz | 10.07dB | 0.1Watts | 20.57dBm | 15 | SMA | Datasheet |
| RFLUPA05G21GA | Power Amplifier | 5～21GHz | 28.5dB | 1.1Watts | 30.5dBm | 15 | 2.92mm | Datasheet |
| RFLUPA05G21GB | Power Amplifier | 5～21GHz | 46.5dB | 2.2Watts | 33.5dBm | 28 | 2.92mm | Datasheet |
| RFLUPA05M02GF | Power Amplifier | 0.05～2GHz | 34dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA05M03GB | Wide Band PA | 0.5～3GHz | 50dB | 100Watts | 50dBm | 36 | N | Datasheet |
| RFLUPA05M03GE | Power Amplifier | 0.05～2.7GHz | 52dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RFLUPA05M03GF | Power Amplifier | 0.05～3GHz | 33.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA05M03GG | Power Amplifier | 0.05～3GHz | 46dB | 12.6Watts | 41dBm | 48 | SMA | Datasheet |
| RFLUPA05M04GA | Power Amplifier | 0.05～4GHz | 36.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA05M06G | Wide Band PA | 0.5～6GHz | 33dB | 1Watts | 30dBm | 12 | SMA | Datasheet |
| RFLUPA05M06GA | Power Amplifier | 0.05～6GHz | 34.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA0618GA | Wide Band PA | 6～18GHz | 58dB | 12.6Watts | 41dBm | 36 | SMA | Datasheet |
| RFLUPA0618GA2 | Wide Band PA | 6～18GHz | 45dB | 10Watts | 40dBm | 36 | SMA | Datasheet |
| RFLUPA0618GA3 | Wide Band PA | 6～18GHz | 53dB | 20Watts | 43dBm | 28 | SMA | Datasheet |
| RFLUPA0618GB2 | Wide Band PA | 6～18GHz | 50dB | 31Watts | 45dBm | 36 | SMA | Datasheet |
| RFLUPA0618GB3 | Wide Band PA | 6～18GHz | 50dB | 35.5Watts | 45.5dBm | 36 | SMA | Datasheet |
| RFLUPA0618GC | Wide Band PA | 6～18GHz | 75dB | 39.8Watts | 46dBm | 48 | SMA | Datasheet |
| RFLUPA0618GC3 | Wide Band PA | 6～18GHz | 53dB | 63.1Watts | 48dBm | 36 | SMA | Datasheet |
| RFLUPA0618GD | Wide Band PA | 6～18GHz | 80dB | 63.1Watts | 48dBm | 48 | SMA,N | Datasheet |
| RFLUPA0618GE | Wide Band PA | 6～18GHz | 85dB | 150Watts | 51.75dBm | 40 | N | Datasheet |
| RFLUPA0618GF | Ultra High Power Amplifier with Air Cooling (AC Model Available REMC06G18GF) | 6～18GHz | 80dB | 158.5Watts | 52dBm | 48 | N | Datasheet |
| RFLUPA0618GG | Ultra High Power Amplifier (AC Model Available REMC06G18GG) | 6～18GHz | 90dB | 316.2Watts | 55dBm | 48 | N | Datasheet |
| RFLUPA06G10G2 | Wide Band PA | 6～10GHz | 36dB | 2Watts | 33dBm | 28 | SMA | Datasheet |
| RFLUPA06G10GB | DC Power Amplifier | 6～10GHz | 67.5dB | 199.5Watts | 53dBm | 28 | N | Datasheet |
| RFLUPA06G12GA | Wide Band PA | 6～12GHz | 25dB | 1Watts | 30dBm | 28 | SMA | Datasheet |
| RFLUPA06G12GB | Wide Band PA | 6～12GHz | 60dB | 50Watts | 47dBm | 36 | SMA | Datasheet |
| RFLUPA06G12GC | Wide Band PA | 6～12GHz | 59dB | 80Watts | 49dBm | 36 | SMA | Datasheet |
| RFLUPA06G12GD | Wide Band PA | 6～12GHz | 70dB | 125.9Watts | 51dBm | 48 | SMA | Datasheet |
| RFLUPA06G12GE | Wide Band PA | 6～12GHz | 68dB | 250Watts | 54dBm | 48 | N | Datasheet |
| RFLUPA06G12GG | DC Power Amplifier | 6～12GHz | 68dB | 199.5Watts | 53dBm | 28 | N | Datasheet |
| RFLUPA06G18GA | DC Power Amplifier | 6～18GHz | 68dB | 140Watts | 51.5dBm | 48 | N | Datasheet |
| RFLUPA06G18GB | Power Amplifier | 6～18GHz | 27dB | 22.4Watts | 43.5dBm | 28 | SMA | Datasheet |
| RFLUPA06G18GD | Power Amplifier | 6～18GHz | 19.06dB | 0.2Watts | 22.06dBm | 15 | SMA | Datasheet |
| RFLUPA06G18GE | Power Amplifier | 6～18GHz | 24.06dB | 0.6Watts | 27.56dBm | 15 | SMA | Datasheet |
| RFLUPA06G22GA | Power Amplifier | 6～22GHz | 11.99dB | 0.1Watts | 19.99dBm | 15 | 2.92mm | Datasheet |
| RFLUPA0703GE | Wide Band PA | 0.7～3GHz | 42dB | 6.3Watts | 38dBm | 24 | SMA | Datasheet |
| RFLUPA0703GE-SMD | Discontinued (Replaced with RFLUPA0703GE) | 0.7～3GHz | 35dB | 10Watts | 40dBm | 40 | SMA | Datasheet |
| RFLUPA0703GETSC | High Linearity Low ACPR PA | 0.7～3GHz | 42dB | 6.3Watts | 38dBm | 24 | SMA | Datasheet |
| RFLUPA0706G16A | Wide Band PA | 0.7～6GHz | 42dB | 15.8Watts | 42dBm | 28 | SMA | Datasheet |
| RFLUPA0706G25B | Wide Band PA | 0.7～6GHz | 44dB | 25.1Watts | 44dBm | 28 | SMA | Datasheet |
| RFLUPA0706G40C | Wide Band PA | 0.7～6GHz | 46dB | 39.8Watts | 46dBm | 28 | SMA | Datasheet |
| RFLUPA0706G40C-H | Hermetically Sealed PA | 0.7～6GHz | 46dB | 39.8Watts | 46dBm | 28 | SMA | Datasheet |
| RFLUPA0706GBS | High Linearity Low ACPR PA | 0.7～6GHz | 40dB | 10Watts | 40dBm | 24 | SMA | Datasheet |
| RFLUPA0706GD | Wide Band PA | 0.7～6GHz | 45dB | 20Watts | 43dBm | 28 | SMA | Datasheet |
| RFLUPA0706GE | Wide Band PA | 0.7～6GHz | 40dB | 7.1Watts | 38.5dBm | 28 | SMA | Datasheet |
| RFLUPA0706GG2 | Wide Band PA | 0.7～6GHz | 55dB | 63.1Watts | 48dBm | 28 | SMA | Datasheet |
| RFLUPA0706GH | Wide Band PA | 0.7～6GHz | 53dB | 79.4Watts | 49dBm | 36 | SMA | Datasheet |
| RFLUPA0727GA | Wide Band PA | 0.7～2.7GHz | 50dB | 100Watts | 50dBm | 28 | SMA | Datasheet |
| RFLUPA0727GB | Wide Band PA | 0.7～2.7GHz | 57dB | 200Watts | 53dBm | 36 | SMA | Datasheet |
| RFLUPA0727GB-H | Laser Sealed Wide Band PA | 0.7～2.7GHz | 57dB | 200Watts | 53dBm | 36 | SMA | Datasheet |
| RFLUPA07G11GA | DC Power Amplifier | 7～11GHz | 64.5dB | 100Watts | 50dBm | 36 | N | Datasheet |
| RFLUPA07G13GA | DC Power Amplifier | 7～13GHz | 63.5dB | 79.4Watts | 49dBm | 48 | SMA | Datasheet |
| RFLUPA07G21GA | Power Amplifier | 7～21GHz | 23.49dB | 0.1Watts | 17.99dBm | 15 | 2.92mm | Datasheet |
| RFLUPA0823GMA | Driver Amplifier | 0.8～2.3GHz | 32dB | 1.6Watts | 32dBm | 15 | SMA | Datasheet |
| RFLUPA0830GK | Wide Band PA | 0.8～3GHz | 45dB | 31.6Watts | 45dBm | 28 | SMA | Datasheet |
| RFLUPA0830GK-H | Hermetically Sealed PA | 0.8～3GHz | 45dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLUPA0830GQ | Wide Band PA | 0.8～3GHz | 55dB | 63.1Watts | 48dBm | 28 | SMA | Datasheet |
| RFLUPA0830GQ-H | Hermetically Sealed PA | 0.8～3GHz | 52dB | 63.1Watts | 48dBm | 28 | SMA | Datasheet |
| RFLUPA08G11GA | Wide Band PA | 8～11GHz | 47dB | 50.1Watts | 47dBm | 36 | SMA | Datasheet |
| RFLUPA08G11GC | Wide Band PA | 8～11GHz | 48dB | 100Watts | 50dBm | 48 | SMA,N | Datasheet |
| RFLUPA08G11GD | Wide Band PA | 8～11GHz | 52dB | 177.8Watts | 52.5dBm | 48 | SMA | Datasheet |
| RFLUPA08G11GE | Wide Band PA | 8～11GHz | 60dB | 398.1Watts | 56dBm | 48 | N | Datasheet |
| RFLUPA08G12GA | Wide Band PA | 8～12GHz | 45dB | 15.8Watts | 42dBm | 36 | SMA | Datasheet |
| RFLUPA08G12GA2 | Power Amplifier | 8～12GHz | 50dB | 50.1Watts | 47dBm | 36 | N | Datasheet |
| RFLUPA08G12GB | Power Amplifier | 8～12GHz | 50dB | 100Watts | 50dBm | 36 | N | Datasheet |
| RFLUPA08G12GC | Power Amplifier | 8～12GHz | 63dB | 199.5Watts | 53dBm | 36 | N | Datasheet |
| RFLUPA08G15GA | DC Power Amplifier | 8～15GHz | 58dB | 50.1Watts | 47dBm | 48 | SMA | Datasheet |
| RFLUPA08G15GB | DC Power Amplifier | 8～15GHz | 64dB | 100Watts | 50dBm | 48 | N | Datasheet |
| RFLUPA08G18GA | DC Power Amplifier | 8～18GHz | 57.5dB | 50.1Watts | 47dBm | 48 | SMA | Datasheet |
| RFLUPA08G18GB | DC Power Amplifier | 8～18GHz | 64dB | 100Watts | 50dBm | 48 | N | Datasheet |
| RFLUPA09250 | Wide Band PA | 0.9～2.5GHz | 27dB | 2Watts | 33dBm | 12～15 | SMA | Datasheet |
| RFLUPA09G20GC | Power Amplifier | 9～20GHz | 39.5dB | 1Watts | 30dBm | 15 | SMA | Datasheet |
| RFLUPA10G12GA | Power Amplifier | 9.5～11.5GHz | 69.5dB | 17.8Watts | 42.5dBm | 28 | SMA | Datasheet |
| RFLUPA10G12GB | DC Power Amplifier | 10～12GHz | 70dB | 316.2Watts | 55dBm | 48 | N | Datasheet |
| RFLUPA10G13GA | Power Amplifier | 10～13.3GHz | 44.5dB | 17.8Watts | 42.5dBm | 28 | SMA | Datasheet |
| RFLUPA10G13GB | Power Amplifier | 10～13.3GHz | 29.5dB | 6.3Watts | 38dBm | 48 | SMA | Datasheet |
| RFLUPA10G13GC | Power Amplifier | 10～13.3GHz | 49dB | 2.8Watts | 34.5dBm | 15 | SMA | Datasheet |
| RFLUPA10G15GA | Power Amplifier | 10～15.35GHz | 54.5dB | 17.8Watts | 42.5dBm | 28 | SMA | Datasheet |
| RFLUPA10G16GA | Power Amplifier | 10～16GHz | 48.5dB | 17.8Watts | 42.5dBm | 28 | SMA | Datasheet |
| RFLUPA10G16GB | Power Amplifier | 10～16GHz | 69.5dB | 28.2Watts | 44.5dBm | 36 | SMA | Datasheet |
| RFLUPA10G18GA | Power Amplifier | 10～18GHz | 45.5dB | 15.8Watts | 42dBm | 28 | SMA | Datasheet |
| RFLUPA10G18GB | Power Amplifier | 10～18GHz | 64dB | 25.1Watts | 44dBm | 36 | SMA | Datasheet |
| RFLUPA10G21GA | Power Amplifier | 10～21GHz | 31.5dB | 1Watts | 30dBm | 15 | 2.92mm | Datasheet |
| RFLUPA10G21GB | Power Amplifier | 10～21GHz | 48.5dB | 1.8Watts | 32.5dBm | 28 | 2.92mm | Datasheet |
| RFLUPA10G40GA | DC Power Amplifier | 10～40GHz | 37dB | 0.6Watts | 27.5dBm | 28 | 2.92mm | Datasheet |
| RFLUPA10M06GA | Power Amplifier | 0.1～6GHz | 33.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RFLUPA10M25GA | Power Amplifier | 0.1～25GHz | 15.04dB | 0.4Watts | 26.04dBm | 28 | 2.92mm | Datasheet |
| RFLUPA1260G51A | Narrow Band PA | 1.2～1.32GHz | 51dB | 125.9Watts | 51dBm | 28 | N | Datasheet |
| RFLUPA12G17GA | Wide Band PA | 12～17GHz | 58dB | 25.1Watts | 44dBm | 36 | SMA | Datasheet |
| RFLUPA12G17GD | Wide Band PA | 12～17GHz | 54dB | 79.4Watts | 49dBm | 36 | N | Datasheet |
| RFLUPA12G17GE | Wide Band PA | 12～17GHz | 54dB | 158.5Watts | 52dBm | 48 | N | Datasheet |
| RFLUPA13G16GA2 | Wide Band PA | 13～16GHz | 55dB | 63.1Watts | 48dBm | 36 | SMA | Datasheet |
| RFLUPA13G16GB | Wide Band PA | 12.5～16GHz | 47dB | 63.1Watts | 48dBm | 36 | SMA | Datasheet |
| RFLUPA13G16GD | Wide Band PA | 12.5～16GHz | 50dB | 100Watts | 50dBm | 48 | N | Datasheet |
| RFLUPA13G17GA | Wide Band PA | 12.5～16.5GHz | 46dB | 39.8Watts | 46dBm | 28 | SMA | Datasheet |
| RFLUPA14G17GA | DC Power Amplifier | 14.2～16.8GHz | 61.5dB | 112.2Watts | 50.5dBm | 48 | N | Datasheet |
| RFLUPA14G17GB | DC Power Amplifier | 14.2～16.8GHz | 68dB | 223.9Watts | 53.5dBm | 48 | N | Datasheet |
| RFLUPA14G18GA | DC Power Amplifier | 14～18GHz | 62dB | 63.1Watts | 48dBm | 48 | SMA | Datasheet |
| RFLUPA15G20GA | Power Amplifier | 15～20GHz | 42.5dB | 4Watts | 36dBm | 28 | SMA | Datasheet |
| RFLUPA15G20GB | Power Amplifier | 15～20GHz | 62dB | 5.6Watts | 37.5dBm | 48 | SMA | Datasheet |
| RFLUPA15G22GA | Power Amplifier | 15～22GHz | 28dB | 1.8Watts | 32.5dBm | 28 | 2.92mm | Datasheet |
| RFLUPA15G22GB | Power Amplifier | 15～22GHz | 28.5dB | 1Watts | 30dBm | 15 | 2.92mm | Datasheet |
| RFLUPA15G27GA | DC Power Amplifier | 15～27GHz | 34dB | 1Watts | 30dBm | 28 | 2.92mm | Datasheet |
| RFLUPA15G27GB | DC Power Amplifier | 15～27GHz | 44dB | 1.8Watts | 32.5dBm | 36 | 2.92mm | Datasheet |
| RFLUPA15G27GC | DC Power Amplifier | 15～27GHz | 49.5dB | 3.5Watts | 35.5dBm | 36 | 2.92mm | Datasheet |
| RFLUPA15G43GA | DC Power Amplifier | 15～43GHz | 39dB | 1.4Watts | 31.5dBm | 15 | 2.92mm | Datasheet |
| RFLUPA15G43GB | DC Power Amplifier | 15～43GHz | 43dB | 2.8Watts | 34.5dBm | 15 | 2.92mm | Datasheet |
| RFLUPA15G45GA | Power Amplifier | 15～45GHz | 21.48dB | 0.1Watts | 17.48dBm | 15 | 2.4mm | Datasheet |
| RFLUPA15G45GB | Power Amplifier | 15～45GHz | 19.48dB | 0.2Watts | 21.98dBm | 15 | 2.4mm | Datasheet |
| RFLUPA15G50GA | DC Power Amplifier | 15～50GHz | 34dB | 0.2Watts | 22dBm | 15 | 2.4mm | Datasheet |
| RFLUPA15M96MD | Power Amplifier | 0.15～0.96GHz | 45dB | 14.1Watts | 41.5dBm | 48 | SMA | Datasheet |
| RFLUPA15M96ME | Power Amplifier | 0.15～0.96GHz | 58.5dB | 8.9Watts | 39.5dBm | 48 | SMA | Datasheet |
| RFLUPA16G18GA | DC Power Amplifier | 16～18GHz | 70dB | 177.8Watts | 52.5dBm | 48 | N | Datasheet |
| RFLUPA16G21G01BBK | Wide Band PA | 16～21GHz | 45dB | 10Watts | 40dBm | 36 | 2.92mm | Datasheet |
| RFLUPA16G21G02CBK | Wide Band PA | 16～21GHz | 44dB | 15.8Watts | 42dBm | 36 | 2.92mm | Datasheet |
| RFLUPA16G21G04DBK | Wide Band PA | 16～21GHz | 43dB | 31.6Watts | 45dBm | 36 | 2.92mm | Datasheet |
| RFLUPA16G21G04DBKN | Power Amplifier | 16～21GHz | 50dB | 50.1Watts | 47dBm | 28～40 | SMA | Datasheet |
| RFLUPA16G22GA | Wide Band Power Amplifier | 16～22GHz | 55dB | 31.6Watts | 45dBm | 36 | SMA | |
| RFLUPA16G22GD | Wide Band Power Amplifier | 16～22GHz | 60dB | 100Watts | 50dBm | 48 | N | Datasheet |
| RFLUPA16G25GA | Power Amplifier | 16～25GHz | 27.78dB | 0.3Watts | 25.28dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G21GA | DC Power Amplifier | 17.3～21.2GHz | 51dB | 31.6Watts | 45dBm | 28 | 2.92mm | Datasheet |
| RFLUPA17G21GB | DC Power Amplifier | 17.3～21.2GHz | 64dB | 63.1Watts | 48dBm | 36 | 2.92mm | Datasheet |
| RFLUPA17G21GC | Power Amplifier | 17～21GHz | 21.33dB | 0.7Watts | 28.33dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G22GA | DC Power Amplifier | 17～22GHz | 48dB | 4Watts | 36dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G23GA | Power Amplifier | 17～23GHz | 67.5dB | 1.3Watts | 31dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G24GA | Power Amplifier | 17～24GHz | 43dB | 2Watts | 33dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G24GB | DC Power Amplifier | 17～24GHz | 45dB | 4Watts | 36dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G24GC | DC Power Amplifier | 17～23.6GHz | 49.5dB | 7.9Watts | 39dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G24GD | DC Power Amplifier | 17～24GHz | 54dB | 8.9Watts | 39.5dBm | 15 | 2.92mm | Datasheet |
| RFLUPA17G44GA | DC Power Amplifier | 17～44GHz | 36.5dB | 0.6Watts | 28dBm | 15 | 2.4mm | Datasheet |
| RFLUPA18G26GA | Wide Band Solid State PA | 18～26.5GHz | 45dB | 14.1Watts | 41.5dBm | 28 | SMA | Datasheet |
| RFLUPA18G26GB | Wide Band Solid State PA | 18～26.5GHz | 43dB | 25.1Watts | 44dBm | 28 | SMA WR42 |
Datasheet |
| RFLUPA18G26GC | Wide Band Solid State PA | 18～26.5GHz | 50dB | 63.1Watts | 48dBm | 28 | SMA WR42 |
Datasheet |
| RFLUPA18G26GD | Wide Band Solid State PA | 18～26.5GHz | 60dB | 125.9Watts | 51dBm | 36 | SMA WR42 |
Datasheet |
| RFLUPA18G26GF | Wide Band Solid State Power Amplifier | 18～26.5GHz | 60dB | 251.2Watts | 54dBm | 48 | SMA WR42 |
Datasheet |
| RFLUPA18G27GA | Power Amplifier | 18～27GHz | 18.72dB | 0.1Watts | 17.22dBm | 15 | 2.92mm | Datasheet |
| RFLUPA18G28GA | Wide Band PA | 18～28GHz | 40dB | 1.6Watts | 32dBm | 24 | 2.92mm | Datasheet |
| RFLUPA18G28GB | Wide Band PA | 18～28GHz | 36dB | 4Watts | 36dBm | 24 | 2.92mm | Datasheet |
| RFLUPA18G40GA | Wide Band PA | 18～40GHz | 35dB | 0.8Watts | 29dBm | 9 | 2.92mm (K) | Datasheet |
| RFLUPA18G40GA2 | Wide Band Solid State PA | 18～40GHz | 45dB | 7.9Watts | 39dBm | 28 | 2.92mm (K) | Datasheet |
| RFLUPA18G40GB | Wide Band Solid State PA | 18～40GHz | 50dB | 12.6Watts | 41dBm | 28 | 2.92mm (K) | Datasheet |
| RFLUPA18G40GC | Wide Band Solid State PA | 18～40GHz | 50dB | 25.1Watts | 44dBm | 28 | 2.92mm (K) | Datasheet |
| RFLUPA18G40GC2 | Wide Band Solid State PA | 18～40GHz | 67dB | 28.2Watts | 44.5dBm | 48 | 2.92mm (K) | Datasheet |
| RFLUPA18G40GD | Wide Band Solid State PA | 18～40GHz | 55dB | 63.1Watts | 48dBm | 36 | 2.92mm (K) | Datasheet |
| RFLUPA18G40GN | Wide Band Solid State PA | 18～40GHz | 55dB | 125.9Watts | 51dBm | 48 | 2.92mm (K) | Datasheet |
| RFLUPA18G40GQ | Wide Band Solid State PA | 18～40GHz | 70dB | 199.5Watts | 53dBm | 48 | 2.92mm (K) | Datasheet |
| RFLUPA18G42GA | Power Amplifier | 18～42GHz | 19.48dB | 0.1Watts | 21.48dBm | 15 | 2.92mm | Datasheet |
| RFLUPA18G44GC | Power Amplifier | 18～44GHz | 17.95dB | 0Watts | 15.45dBm | 15 | 2.4mm | Datasheet |
| RFLUPA18G45G04ADE | Broadband Power Amplifier | 18～45GHz | 43dB | 3.2Watts | 35dBm | 24 | 2.4mm | Datasheet |
| RFLUPA18G45G04ADK | Broadband Power Amplifier | 18～45GHz | 43dB | 2.5Watts | 34dBm | 15 | 2.92mm | Datasheet |
| RFLUPA18G45G16BDE | Broadband Power Amplifier | 18～45GHz | 59dB | 6.3Watts | 38dBm | 12 | 2.4mm | Datasheet |
| RFLUPA18G45G16BDK | Broadband Power Amplifier | 18～45GHz | 40dB | 7.9Watts | 39dBm | 15 | 2.92mm | Datasheet |
| RFLUPA18G45G32CDE | Broadband Solid State Power Amplifier | 18～45GHz | 40dB | 15.8Watts | 42dBm | 24 | 2.4mm | Datasheet |
| RFLUPA18G45G32CDK | Broadband Solid State Power Amplifier | 18～45GHz | 40dB | 15.8Watts | 42dBm | 24 | 2.92mm | Datasheet |
| RFLUPA18G45GA1 | Wide Band PA | 18～45GHz | 60dB | 1Watts | 30dBm | 12 | 2.92mm | Datasheet |
| RFLUPA18G45GA2B | Wide Band PA | 18～45GHz | 40dB | 1.5Watts | 31dBm | 12 | 2.92mm | Datasheet |
| RFLUPA18G45GCK | Wide Band PA | 18～45GHz | 40dB | 0.8Watts | 29dBm | 12 | 2.92mm | Datasheet |
| RFLUPA18G47GC | Wide Band PA | 18～47GHz | 35dB | 1Watts | 30dBm | 12 | 2.4mm | Datasheet |
| RFLUPA18G47GCK | Wide Band PA | 18～45GHz | 35dB | 1Watts | 30dBm | 12 | 2.92mm | Datasheet |
| RFLUPA18G47GD | Wide Band PA | 18～47GHz | 32dB | 1.8Watts | 32.5dBm | 12 | 2.4mm | Datasheet |
| RFLUPA18G47GDK | Wide Band PA | 18～45GHz | 32dB | 1.8Watts | 32.5dBm | 12 | 2.92mm | Datasheet |
| RFLUPA18G47GEK | Wide Band PA | 18～45GHz | 55dB | 3.2Watts | 35dBm | 12 | 2.92mm | Datasheet |
| RFLUPA20G44GA | DC Power Amplifier | 20～44GHz | 38.5dB | 2.2Watts | 33.5dBm | 15 | 2.4mm | Datasheet |
| RFLUPA20G45GA | Power Amplifier | 20～45GHz | 29.4dB | 0.1Watts | 20.4dBm | 15 | 2.4mm | Datasheet |
| RFLUPA20G47GA | Wide Band PA | 20～47GHz | 35dB | 0.4Watts | 26dBm | 12 | 2.4mm / Waveguide | Datasheet |
| RFLUPA20G54GA | Wide Band PA | 20～54GHz | 53dB | 1Watts | 30dBm | 24 | 2.4mm | Datasheet |
| RFLUPA20G54GB | Wide Band PA | 20～54GHz | 50dB | 3.2Watts | 35dBm | 36 | 2.4mm | Datasheet |
| RFLUPA20G54GD | Wide Band PA | 20～54GHz | 50dB | 5.6Watts | 37.5dBm | 36 | 2.4mm | Datasheet |
| RFLUPA20M03GB | Power Amplifier | 0.2～3GHz | 62dB | 1.3Watts | 31dBm | 28 | SMA | Datasheet |
| RFLUPA20M22GA | Power Amplifier | 0.2～22GHz | 26.5dB | 2Watts | 33dBm | 28 | 2.92mm | Datasheet |
| RFLUPA20M22GB | Power Amplifier | 0.2～22GHz | 27dB | 1.1Watts | 30.5dBm | 15 | 2.92mm | Datasheet |
| RFLUPA20M22GC | DC Power Amplifier | 0.2～22GHz | 47dB | 4Watts | 36dBm | 28 | 2.92mm | Datasheet |
| RFLUPA20M22GD | Wide Band PA | 0.2～22GHz | 15.08dB | 0.5Watts | 27.08dBm | 12V | 2.92mm | Datasheet |
| RFLUPA20M24GA | DC Power Amplifier | 0.2～24GHz | 33.5dB | 1Watts | 30dBm | 28 | 2.92mm | Datasheet |
| RFLUPA21G28GA | Power Amplifier | 21～27.5GHz | 69dB | 1.6Watts | 32dBm | 15 | 2.92mm | Datasheet |
| RFLUPA22M03GC | Power Amplifier | 0.225～2.6GHz | 34dB | 22.4Watts | 43.5dBm | 48 | SMA | Datasheet |
| RFLUPA23G28GA | Power Amplifier | 23～28GHz | 45dB | 10Watts | 40dBm | 36 | 2.92mm (K) | Datasheet |
| RFLUPA23G28GD | Power Amplifier | 23～28GHz | 50dB | 31.6Watts | 45dBm | 28～40 | 2.92mm (K) | Datasheet |
| RFLUPA24G28GA | Power Amplifier | 24～28GHz | 69.5dB | 2Watts | 33dBm | 15 | 2.92mm | Datasheet |
| RFLUPA25M04GA | DC Power Amplifier | 0.3～4GHz | 53dB | 7.1Watts | 38.5dBm | 36 | SMA | Datasheet |
| RFLUPA26G34GQ | Wide Band Power Amplifier | 26～34GHz | 45dB | 0.8Watts | 29dBm | 12 | 2.92mm (K) | Datasheet |
| RFLUPA26G40GA | Wide Band SSPA | 26～40GHz | 45dB | 10Watts | 40dBm | 28 | 2.92mm | Datasheet |
| RFLUPA26G40GB | Wide Band SSPA | 26～40GHz | 45dB | 15.8Watts | 42dBm | 28 | 2.92mm | Datasheet |
| RFLUPA26G40GD | Wide Band SSPA | 26～40GHz | 45dB | 31.6Watts | 45dBm | 28 | 2.92mm / Waveguide | Datasheet |
| RFLUPA26G40GE | Wide Band SSPA | 26～40GHz | 55dB | 79.4Watts | 49dBm | 36 | 2.92mm / Waveguide | Datasheet |
| RFLUPA26G40GG | Wide Band High Power SSPA | 26～40GHz | 60dB | 180Watts | 52.5dBm | 48 | WR28 | Datasheet |
| RFLUPA26G40GG-L | Wide Band High Power SSPA -Liquid Cooled | 26～40GHz | 60dB | 180Watts | 52.5dBm | 48 | WR28 | Datasheet |
| RFLUPA27G31GA2 | Solid State Power Amplifier | 27～32GHz | 42dB | 20Watts | 43dBm | 36 | 2.92mm | Datasheet |
| RFLUPA27G31GC4 | Solid State Power Amplifier | 26.5～32GHz | 60dB | 44.7Watts | 46.5dBm | 36 | WR28 | Datasheet |
| RFLUPA27G32GA | Power Amplifier | 27～32GHz | 45dB | 18Watts | 42.6dBm | 28 | 2.92mm (K) | Datasheet |
| RFLUPA27G32GA2 | Wide Band PA | 27～32GHz | 40dB | 15.8Watts | 42dBm | 28 | 2.92mm | Datasheet |
| RFLUPA27G32GAW28 | WR28 Waveguide Power Amplifier | 27～31GHz | 45dB | 20Watts | 43dBm | 28～40 | WR28 | Datasheet |
| RFLUPA27G32GDW28 | WR28 Waveguide Power Amplifier | 27～31GHz | 72dB | 55Watts | 47.5dBm | 48 | WR28 | Datasheet |
| RFLUPA27G32GF | Wide Band PA | 27～32GHz | 60dB | 63.1Watts | 48dBm | 48 | 2.92mm | Datasheet |
| RFLUPA27G32GN | Wide Band PA | 27～31GHz | 55dB | 39.8Watts | 46dBm | 36 | 2.92mm | Datasheet |
| RFLUPA28G42GA | Wide Band PA | 28～42GHz | 31dB | 2Watts | 33dBm | 36 | 2.92mm (K) | Datasheet |
| RFLUPA28G42GB | Wide Band PA | 28～42GHz | 38dB | 6.3Watts | 38dBm | 24 | 2.4mm / Waveguide | Datasheet |
| RFLUPA30G65GC | Wide Band PA | 30～65GHz | 50dB | 0.3Watts | 25dBm | 28 | 1.85mm | Datasheet |
| RFLUPA30G65GD | Wide Band PA | 30～65GHz | 45dB | 0.6Watts | 27.5dBm | 28 | 1.85mm | Datasheet |
| RFLUPA32G36GA | Wide Band PA | 32～36GHz | 65dB | 50.1Watts | 47dBm | 28 | 2.92mm | Datasheet |
| RFLUPA32G38GA | Solid State Power Amplifier | 32～38GHz | 35dB | 3.2Watts | 35dBm | 24 | 2.92mm / Waveguide | Datasheet |
| RFLUPA32G38GA2 | Solid State Power Amplifier | 32～38GHz | 47dB | 5Watts | 37dBm | 36 | 2.92mm | Datasheet |
| RFLUPA32G38GA3 | Solid State Power Amplifier | 32～38GHz | 40dB | 7.9Watts | 39dBm | 36 | 2.92mm | Datasheet |
| RFLUPA32G38GA3-WR28 | WR28 Waveguide Power Amplifier | 32～38GHz | 40dB | 7.9Watts | 39dBm | 36 | WR28 | Datasheet |
| RFLUPA32G38GB2 | Solid State Power Amplifier | 32～38GHz | 55dB | 15.8Watts | 42dBm | 48 | 2.92mm | Datasheet |
| RFLUPA32G38GB2-WR28 | WR28 Waveguide Power Amplifier | 32～38GHz | 55dB | 20Watts | 43dBm | 48 | WR28 | Datasheet |
| RFLUPA32G38GB3 | Wide Band Power Amplifier | 32～38GHz | 54dB | 31.6Watts | 45dBm | 48 | 2.92mm | Datasheet |
| RFLUPA32G38GB3-WR28 | WR28 Waveguide Power Amplifier | 32～38GHz | 54dB | 31.6Watts | 45dBm | 48 | WR28 | Datasheet |
| RFLUPA32G50GA | Power Amplifier | 32～50GHz | 28.13dB | 0Watts | 12.13dBm | 15 | 2.4mm | Datasheet |
| RFLUPA33G37GA | 150W RF Power Amplifier | 33～37GHz | 69dB | 141.3Watts | 51.5dBm | 48 | 2.92mm | Datasheet |
| RFLUPA33G37GAS | 18W Pulse Power Amplifier | 33～37GHz | 50dB | 18Watts | 42.5dBm | 28 | 2.92mm | Datasheet |
| RFLUPA33G37GBS | 30W Pulse Power Amplifier | 33～37GHz | 52dB | 30Watts | 45dBm | 36 | 2.92mm | Datasheet |
| RFLUPA33G37GDS | 60W Pulse Power Amplifier | 33～37GHz | 55dB | 60Watts | 47dBm | 28 | 2.92mm | Datasheet |
| RFLUPA350M07GA | Wide Band PA | 0.35～7GHz | 55dB | 35Watts | 45dBm | 36 | SMA | Datasheet |
| RFLUPA35G65GA | DC Power Amplifier | 35～65GHz | 40.5dB | 0.2Watts | 22.5dBm | 15 | 1.85mm | Datasheet |
| RFLUPA35G70GA | DC Power Amplifier | 35～70GHz | 28.5dB | 0.2Watts | 22.5dBm | 15 | 1.85mm | Datasheet |
| RFLUPA35G70GB | DC Power Amplifier | 35～70GHz | 40.5dB | 0.5Watts | 27dBm | 15 | 1.85mm | Datasheet |
| RFLUPA36G42GA | DC Power Amplifier | 36～42GHz | 57dB | 25.1Watts | 44dBm | 36 | 2.92mm | Datasheet |
| RFLUPA36G44GA | DC Power Amplifier | 36～43.5GHz | 39.5dB | 1.8Watts | 32.5dBm | 15 | 2.92mm | Datasheet |
| RFLUPA36G44GB | DC Power Amplifier | 36～43.5GHz | 49dB | 4Watts | 36dBm | 28 | 2.92mm | Datasheet |
| RFLUPA37G43GAS | Wide Band PA | 37～43GHz | 45dB | 7.1Watts | 38.5dBm | 28 | 2.92mm | Datasheet |
| RFLUPA37G43GBS | Wide Band PA | 37～43GHz | 47dB | 12.6Watts | 41dBm | 48 | 2.92mm | Datasheet |
| RFLUPA37G43GDS | Wide Band PA | 37～43GHz | 50dB | 20Watts | 43dBm | 48 | 2.92mm | Datasheet |
| RFLUPA37G44GA | Narrow Band PA | 37～44GHz | 50dB | 7.9Watts | 39dBm | 24 | 2.4mm | Datasheet |
| RFLUPA37G44GA-W22 | Narrow Band PA | 37～44GHz | 50dB | 8.9Watts | 39.5dBm | 24 | WR22 | Datasheet |
| RFLUPA37G44GB-W22 | Narrow Band PA | 37～44GHz | 50dB | 28.2Watts | 44.5dBm | 48 | WR22 | Datasheet |
| RFLUPA37G44GB-W28 | Wide Band PA | 37～40GHz | 53dB | 31.6Watts | 45dBm | 48 | WR28 | |
| RFLUPA37G44GCW22 | Wide Band PA | 37～44GHz | 47dB | 15.8Watts | 42dBm | 48 | WR22 | |
| RFLUPA37G45GA | DC Power Amplifier | 37～45GHz | 38.5dB | 1.8Watts | 32.5dBm | 15 | 2.4mm | Datasheet |
| RFLUPA39G48GA | Narrow Band PA | 39～48GHz | 35dB | 1Watts | 30dBm | 36 | 2.4mm / Waveguide | Datasheet |
| RFLUPA39G48GB | Wide Band PA | 39～48GHz | 38dB | 6.3Watts | 38dBm | 36 | 2.4mm | Datasheet |
| RFLUPA39G48GB-WG | WR22 Waveguide Power Amplifier | 39～48GHz | 38dB | 6.3Watts | 38dBm | 36 | WR22 | Datasheet |
| RFLUPA39G48GC | Narrow Band PA | 39～48GHz | 45dB | 10Watts | 40dBm | 24 | 2.4mm / Waveguide | Datasheet |
| RFLUPA39G48GD | Narrow Band PA | 39～48GHz | 40dB | 25.1Watts | 44dBm | 48 | 2.4mm / Waveguide | Datasheet |
| RFLUPA40G60GA | Power Amplifier | 40～67GHz | 41dB | 6.3Watts | 38dBm | 36 | 1.85mm | Datasheet |
| RFLUPA40G60GB | Power Amplifier | 40～60GHz | 50dB | 20Watts | 43dBm | 36 | 1.85mm | Datasheet |
| RFLUPA40G60GC | Power Amplifier | 40～67GHz | 56dB | 17.8Watts | 42.5dBm | 36 | 1.85mm | Datasheet |
| RFLUPA40G60GD | Wide Band Solid State PA | 40～60GHz | 60dB | 1.3Watts | 31dBm | 28 | WR19 | Datasheet |
| RFLUPA40G60GF | Wide Band Solid State PA | 40～60GHz | 45dB | 2Watts | 33dBm | 28 | WR19 | Datasheet |
| RFLUPA40G60GG | Wide Band Solid State PA | 40～60GHz | 45dB | 5Watts | 37dBm | 28 | WR19 | Datasheet |
| RFLUPA40G67GA | Power Amplifier | 40～67GHz | 50dB | 3.5Watts | 36dBm | 28 | 1.85mm | Datasheet |
| RFLUPA40G80GA | DC Power Amplifier | 40～80GHz | 27.5dB | 0.3Watts | 25dBm | 15 | 1.00mm | Datasheet |
| RFLUPA40G80GB | DC Power Amplifier | 40～80GHz | 38.5dB | 0.8Watts | 29dBm | 15 | 1.00mm | Datasheet |
| RFLUPA46G53GA | DC Power Amplifier | 46～53GHz | 50dB | 39.8Watts | 46dBm | 28 | 1.85mm | Datasheet |
| RFLUPA46G53GB | DC Power Amplifier | 46～53GHz | 55dB | 100Watts | 50dBm | 28 | 1.85mm | Datasheet |
| RFLUPA47G53GA2 | Wide Band Solid State Amplifier | 47～53GHz | 45dB | 10Watts | 40dBm | 36 | 2.4mm | Datasheet |
| RFLUPA5075G16W | Wide Band PA | 50～75GHz | 55dB | 15.8Watts | 42dBm | 28 | WR15 | Datasheet |
| RFLUPA50M500M | Wide Band Solid State Amplifier | 0.05～0.5GHz | 50dB | 199.5Watts | 53dBm | 48 | SMA | Datasheet |
| RFLUPA5264G40W | Wide Band PA | 52～64GHz | 55dB | 39.8Watts | 46dBm | 28 | WR15 | Datasheet |
| RFLUPA5M25MK | Wide Band PA | 0.5～2.5GHz | 47dB | 50.1Watts | 47dBm | 28 | SMA | Datasheet |
| RFLUPA6090G04W | Wide Band PA | 60～90GHz | 50dB | 5Watts | 37dBm | 28 | WR12 | Datasheet |
| RFLUPA60M01GB | Power Amplifier | 0.6～1GHz | 43.5dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA70M03GA | Power Amplifier | 0.7～2.7GHz | 24dB | 12.6Watts | 41dBm | 48 | SMA | Datasheet |
| RFLUPA7176GA | Wide Band PA | 71～76GHz | 35dB | 0.8Watts | 29dBm | 5 | WR12 | Datasheet |
| RFLUPA71G76GA | DC Power Amplifier | 71～76GHz | 49dB | 5Watts | 37dBm | 28 | 1.00mm | Datasheet |
| RFLUPA75110G02W | Wide Band PA | 75～110GHz | 49dB | 2Watts | 33dBm | 28 | 1.00mm | Datasheet |
| RFLUPA80M18GB | Power Amplifier | 0.8～18GHz | 30dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RFLUPA80M20GC | Power Amplifier | 0.8～20GHz | 14.11dB | 0.7Watts | 28.61dBm | 15 | SMA | Datasheet |
| RFLUPA80M22GA | Power Amplifier | 0.8～22GHz | 17.08dB | 0.4Watts | 25.58dBm | 15 | 2.92mm | Datasheet |
| RFLUPA8186GA | Wide Band PA | 81～86GHz | 35dB | 0.5Watts | 27dBm | 12 | WR12 | Datasheet |
| RFLUPA81G86GA | DC Power Amplifier | 81～86GHz | 48dB | 4Watts | 36dBm | 28 | 1.00mm | Datasheet |
| RFLUPA88G100GA | DC Power Amplifier | 88～100GHz | 25.5dB | 0.2Watts | 22dBm | 15 | 1.00mm | Datasheet |
| RFLUPA8M04GK | Wide Band PA | 0.8～4.2GHz | 50dB | 39.8Watts | 46dBm | 28 | SMA | Datasheet |
| RFLUPA90G98GA | DC Power Amplifier | 88～100GHz | 50dB | 10Watts | 40dBm | 48 | 1.00mm | Datasheet |
| RFLUPA90G98GB | DC Power Amplifier | 90～98GHz | 35dB | 1.6Watts | 32dBm | 24 | 1.00mm | Datasheet |
| RFLUPA90M02GA | Power Amplifier | 0.9～1.5GHz | 69.5dB | 11.2Watts | 40.5dBm | 48 | SMA | Datasheet |
| RFLUPA90M02GD | Power Amplifier | 0.9～1.6GHz | 68dB | 35.5Watts | 45.5dBm | 48 | SMA | Datasheet |
| RLNA01M04GD | Driver Amplifier | 0.1～4GHz | 32dB | 5Watts | 37dBm | 12 | SMA | Datasheet |
| RLNA02G08GA | Wide Band PA | 0.5～8GHz | 35dB | 1Watts | 30dBm | 15 | SMA | Datasheet |
| RLNA02M03G | Driver Amplifier | 2.5～3.5GHz | 42dB | 1.4Watts | 31.5dBm | 12 | SMA | Datasheet |
| RP00M08GSPA | Power Amplifier | 0～8GHz | 16dB | 15Watts | 23dBm | 15 | SMA | Datasheet |
| RP00M10GSPA | Power Amplifier | 0.005～10GHz | 14.5dB | 1.1Watts | 30.5dBm | 28 | SMA | Datasheet |
| RP00M20GSPA | Power Amplifier | 0.005～20GHz | 12dB | 1.1Watts | 30.5dBm | 15 | SMA | Datasheet |
| RP00M22GSPA | Power Amplifier | 0.005～22GHz | 14dB | 2.2Watts | 33.5dBm | 28 | 2.92mm | Datasheet |
| RP00M22GSPB | Power Amplifier | 0.005～22GHz | 14dB | 1.1Watts | 30.5dBm | 12 | 2.92mm | Datasheet |
| RP01G06GSPA | Wide Band PA | 0.75～6GHz | 30dB | 31.6Watts | 47dBm | 28 | SMA | Datasheet |
| RP01G48GSPA | Solid State Power Amplifier | 0.1～48GHz | 10dB | 0.1Watts | 21dBm | 12 | 2.92mm (K) | Datasheet |
| RP01G9GSPA | Wide Band PA | 1～9GHz | 30dB | 10Watts | 40dBm | 28 | SMA | Datasheet |
| RP01M03GSPA | Power Amplifier | 0.01～2.8GHz | 14dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RP02G04GSPA | Power Amplifier | 1.8～3.6GHz | 16dB | 22.4Watts | 43.5dBm | 48 | SMA | Datasheet |
| RP02G06GSPA | Wide Band Power Amplifier | 1.5～6.5GHz | 30dB | 31.6Watts | 45dBm | 28 | SMA | Datasheet |
| RP02G06GSPB | Power Amplifier | 2.5～6.2GHz | 16dB | 28.2Watts | 44.5dBm | 36 | SMA | Datasheet |
| RP02G06GSPC | Wide Band Power Amplifier | 2～6GHz | 25dB | 10Watts | 40dBm | 28 | SMA | Datasheet |
| RP02G06GSPCA | Power Amplifier | 2～6GHz | 23dB | 20Watts | 46dBm | 36 | SMA | Datasheet |
| RP02G06GSPD | Pulse Power Broadband Power Amplifier | 2～6.5GHz | 28dB | 30Watts | 45dBm | 28 | SMA | Datasheet |
| RP02G06GSPE | Wide Band Power Amplifier | 2～6GHz | 23dB | 30Watts | 45dBm | 28 | SMA | Datasheet |
| RP02G06GSPF | Power Amplifier | 2～6GHz | 22dB | 36Watts | 45dBm | 36 | SMA | Datasheet |
| RP02G06GSPG | Power Amplifier | 2～6GHz | 29dB | 36Watts | 39dBm | 36 | SMA | Datasheet |
| RP02G07GSPAA | Power Amplifier | 2～7GHz | 25dB | 0.6Watts | 28dBm | 15 | SMA | Datasheet |
| RP02G08GSPA | Power Amplifier | 2～8GHz | 17.5dB | 5Watts | 37dBm | 15 | SMA | Datasheet |
| RP02G08GSPB | Power Amplifier | 2～8GHz | 27dB | 31.6Watts | 45dBm | 28 | SMA | Datasheet |
| RP02G12GSPAA | Power Amplifier | 2～12GHz | 23dB | 10Watts | 40dBm | 36 | SMA | Datasheet |
| RP02G18G5SPA | Wide Band PA | 2～18GHz | 24dB | 6.3Watts | 38dBm | 22 | SMA | Datasheet |
| RP02G18GSPB | Power Amplifier | 2～18GHz | 9.12dB | 0.1Watts | 20dBm | 15 | SMA | Datasheet |
| RP02G20GSPA | Wide Band PA | 2～20GHz | 17dB | 15.8Watts | 42dBm | 28 | SMA | Datasheet |
| RP03G04GSPA | Power Amplifier | 2.7～3.5GHz | 24dB | 89.1Watts | 49.5dBm | 36 | SMA | Datasheet |
| RP03G04GSPB | Power Amplifier | 3.3～3.8GHz | 14dB | 79.4Watts | 49dBm | 48 | SMA | Datasheet |
| RP03G04GSPC | Power Amplifier | 3.3～3.8GHz | 15.5dB | 44.7Watts | 46.5dBm | 48 | SMA | Datasheet |
| RP03M02GSPA | Power Amplifier | 0.03～2.5GHz | 18dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RP03M04GSPA | Power Amplifier | 0.03～3.5GHz | 12dB | 12.6Watts | 41dBm | 48 | SMA | Datasheet |
| RP03M06GSPA | Power Amplifier | 0.03～6GHz | 29dB | 28Watts | 40dBm | 28 | SMA | Datasheet |
| RP03M06GSPAA | Power Amplifier | 0.03～6GHz | 29dB | 10Watts | 40dBm | 28 | SMA | Datasheet |
| RP04G08GSPA | Power Amplifier | 4～8GHz | 21dB | 15Watts | 24dBm | 15 | SMA | Datasheet |
| RP05G06GSPA | Wide Band PA | 5～6GHz | 28dB | 79.4Watts | 49dBm | 65 | SMA | Datasheet |
| RP05G06GSPB | Wide Band PA | 5～6GHz | 29dB | 125.9Watts | 51dBm | 65 | SMA | Datasheet |
| RP05G08GSPA | Wide Band PA | 5.5～7.5GHz | 28dB | 50.1Watts | 47dBm | 36 | SMA | Datasheet |
| RP05G08GSPB | Wide Band PA | 5.5～7.5GHz | 25dB | 100Watts | 50dBm | 36 | SMA | Datasheet |
| RP05G08GSPCA | Power Amplifier | 5～8GHz | 22dB | 0.8Watts | 29dBm | 15 | SMA | Datasheet |
| RP06G12GSPAA | Power Amplifier | 6～12GHz | 21dB | 0.1Watts | 19dBm | 15 | SMA | Datasheet |
| RP06G18GBSPA | Wide Band PA | 6～19GHz | 30dB | 12.6Watts | 41dBm | 20 | SMA | Datasheet |
| RP06G18GSPA | Wide Band PA | 6～19GHz | 30dB | 25.1Watts | 44dBm | 22 | SMA | Datasheet |
| RP06G18GSPA2 | Wide Band PA | 6～18GHz | 30dB | 25.1Watts | 44dBm | 22 | SMA | Datasheet |
| RP06G18GSPB | Power Amplifier | 6～18GHz | 27dB | 36Watts | 42.5dBm | 36 | SMA | Datasheet |
| RP06G20GSPA | Power Amplifier | 6～20GHz | 28dB | 0.1Watts | 22dBm | 15 | SMA | Datasheet |
| RP06G25GSPA | Power Amplifier | 6～25GHz | 21.5dB | 15Watts | 18.5dBm | 15 | 2.92mm | Datasheet |
| RP07G12GSPA | Power Amplifier | 7～12GHz | 28dB | 15Watts | 27.5dBm | 15 | SMA | Datasheet |
| RP07G24GSPAA | Power Amplifier | 7～24GHz | 21dB | 0.12Watts | 21dBm | 15 | SMA | Datasheet |
| RP08G11GSPA | Narrow Band PA | 8～11GHz | 30dB | 65Watts | 48dBm | 28 | SMA | Datasheet |
| RP08G12GSPA | Power Amplifier | 8～12GHz | 29.12dB | 0.63Watts | 28dBm | 15 | SMA | Datasheet |
| RP08G12GSPBA | Power Amplifier | 8～12GHz | 38dB | 12Watts | 41dBm | 36 | SMA | Datasheet |
| RP08G12GSPCA | Power Amplifier | 8～12GHz | 35dB | 6Watts | 38dBm | 36 | SMA | Datasheet |
| RP08G12GSPDA | Power Amplifier | 8～12GHz | 22dB | 16Watts | 42dBm | 36 | SMA | Datasheet |
| RP08G12GSPEA | Power Amplifier | 8～12GHz | 38dB | 12Watts | 41dBm | 36 | SMA | Datasheet |
| RP10G12GSPB | Narrow Band PA | 10～12GHz | 26dB | 125.9Watts | 51dBm | 48 | SMA | Datasheet |
| RP10G32GSPA | Power Amplifier | 10～32GHz | 17dB | 15Watts | 16dBm | 15 | 2.92mm | Datasheet |
| RP11G13GSPA | Power Amplifier | 10.7～12.7GHz | 16dB | 35.5Watts | 45.5dBm | 28 | SMA | Datasheet |
| RP11G17GSPA | Power Amplifier | 11～17GHz | 31.5dB | 15Watts | 24.5dBm | 15 | SMA | Datasheet |
| RP12G16GSPA | Power Amplifier | 12～16GHz | 22.5dB | 15Watts | 30.5dBm | 15 | SMA | Datasheet |
| RP12G19GSPA | Power Amplifier | 12～19GHz | 30.5dB | 15Watts | 23dBm | 15 | SMA | Datasheet |
| RP13G16GB | Wide Band PA | 13～16GHz | 30dB | 63.1Watts | 48dBm | 36 | SMA | Datasheet |
| RP13G16GSPA | Power Amplifier | 13～16GHz | 27.5dB | 36Watts | 45.5dBm | 36 | SMA | Datasheet |
| RP13G17GSPA | Narrow Band PA | 13～16GHz | 35dB | 31.5Watts | 45dBm | 28 | SMA | Datasheet |
| RP13G17GSPB | Power Amplifier | 13～17GHz | 30.5dB | 36Watts | 41.5dBm | 36 | SMA | Datasheet |
| RP14G44GSPAA | Power Amplifier | 14～44GHz | 13dB | 0.05Watts | 16.5dBm | 15 | 2.4mm | Datasheet |
| RP15G20GSPA | Power Amplifier | 15～20GHz | 24.5dB | 2.2Watts | 33.5dBm | 15 | SMA | Datasheet |
| RP16G21GSPA | Narrow Band PA | 16～21GHz | 30dB | 10Watts | 40dBm | 28 | SMA | Datasheet |
| RP16G22GSPA | Wide Band Power Amplifier | 16～22GHz | 30dB | 31.6Watts | 45dBm | 24 | SMA | |
| RP16G23GSPAA | Power Amplifier | 16～23GHz | 31dB | 8Watts | 39dBm | 36 | SMA | Datasheet |
| RP16G44GSPA | Wide Band Power Amplifier | 16～44GHz | 23dB | 0.2Watts | 23dBm | 5 | 2.92mm | Datasheet |
| RP17G21GSPA | Power Amplifier | 17.3～21.2GHz | 23.5dB | 15.8Watts | 42dBm | 28 | 2.92mm | Datasheet |
| RP17G21GSPBA | Power Amplifier | 17～21GHz | 29dB | 4Watts | 36dBm | 28 | SMA | Datasheet |
| RP17G24GSPA | Power Amplifier | 17～23.6GHz | 20.5dB | 2Watts | 33dBm | 15 | 2.92mm | Datasheet |
| RP17G24GSPB | Power Amplifier | 17～24GHz | 20.5dB | 1.3Watts | 31dBm | 15 | 2.92mm | Datasheet |
| RP18G34GSPAA | Power Amplifier | 18～34GHz | 22dB | 0.2Watts | 23dBm | 15 | 2.92mm | Datasheet |
| RP18G40GSPA | Wide Band Amplifier | 18～40GHz | 21dB | 7.9Watts | 39dBm | 20 | 2.92mm (K) | Datasheet |
| RP18G40GSPA2 | Wide Band Solid State PA | 18～40GHz | 21dB | 7.9Watts | 39dBm | 20 | 2.92mm (K) | Datasheet |
| RP20G34GSPAA | Power Amplifier | 20～34GHz | 14dB | 0.1Watts | 20dBm | 15 | 2.92mm | Datasheet |
| RP20G42GSPA | Wide Band PA | 20～42GHz | 14dB | 0.4Watts | 26dBm | 28 | 2.92mm (K) | |
| RP20G44GSPA | Wide Band Driver Amplifier | 18～44GHz | 20dB | 0.8Watts | 29dBm | 12 | 2.92mm | Datasheet |
| RP20G54GSPA | Wide Band PA | 20～54GHz | 16dB | 1Watts | 30dBm | 5 | 2.4mm | Datasheet |
| RP22M03GSPA | Power Amplifier | 0.225～2.6GHz | 21dB | 8.9Watts | 39.5dBm | 36 | SMA | Datasheet |
| RP23G28GSPA | Power Amplifier | 23～28GHz | 19dB | 10Watts | 40dBm | 28～40 | 2.92mm (K) | Datasheet |
| RP26G32GSPAA | Power Amplifier | 26～32GHz | 30.5dB | 4Watts | 36dBm | 36 | 2.92mm | Datasheet |
| RP26G32GSPBA | Power Amplifier | 26～32GHz | 30.5dB | 7Watts | 38.5dBm | 36 | 2.92mm | Datasheet |
| RP27G32GSPA | Power Amplifier | 27～31GHz | 17dB | 20Watts | 43dBm | 28～40 | 2.92mm (K) | Datasheet |
| RP27G34GSPA | Narrow Band PA | 27～34GHz | 31dB | 6.3Watts | 38dBm | 20 | 2.92mm / Waveguide | Datasheet |
| RP28G42GSPA | Wide Band PA | 28～42GHz | 15dB | 2Watts | 33dBm | 6 | 2.4mm / Waveguide | Datasheet |
| RP28G42GSPA-DB | Discontinued Replaced with RP28G42GSPA | 30～40GHz | 15dB | 2Watts | 33dBm | 6 | 2.4mm / Waveguide | Datasheet |
| RP32G38GSPB | Solid State Power Amplifier | 32～38GHz | 25dB | 10Watts | 40dBm | 26 | 2.92mm | Datasheet |
| RP350M07GSPA | Wide Band PA | 0.35～7GHz | 22dB | 35Watts | 45dBm | 55 | SMA | Datasheet |
| RP35G48GSPA | Power Amplifier | 35～48GHz | 19dB | 15Watts | 12.5dBm | 15 | 2.4mm | Datasheet |
| RP36G42GSPA | Power Amplifier | 36～42GHz | 20dB | 7.9Watts | 39dBm | 28 | 2.92mm | Datasheet |
| RP37G44GSPA | Power Amplifier 2.4mm | 37～44GHz | 18dB | 7.9Watts | 39dBm | 12 | 2.4mm | Datasheet |
| RP37G44GSPAW22 | Narrow Band PA | 37～44GHz | 18.5dB | 6.3Watts | 38dBm | 12 | WR22 | Datasheet |
| RP39G48GSPA | Narrow Band PA | 39～48GHz | 15dB | 1.5Watts | 31.8dBm | 6 | 2.4mm / Waveguide | Datasheet |
| RP46G53GSPA | Power Amplifier | 46～53GHz | 15.5dB | 10Watts | 40dBm | 28 | 1.85mm | Datasheet |
| RP50M04GSPA | Power Amplifier | 0.5～3.5GHz | 29dB | 15Watts | 27.5dBm | 15 | SMA | Datasheet |
| RP71G76GSPA | Power Amplifier | 71～76GHz | 17dB | 1.8Watts | 32.5dBm | 28 | 1.0mm | Datasheet |
| RP81G86GSPA | Power Amplifier | 81～86GHz | 16.5dB | 1.4Watts | 31.5dBm | 28 | 1.0mm | Datasheet |
| RP90G98GSPA | Power Amplifier | 90～98GHz | 16dB | 1.6Watts | 32dBm | 28 | 1.0mm | Datasheet |
| RP90M02GSPA | Power Amplifier | 0.9～1.6GHz | 33.5dB | 35.5Watts | 45.5dBm | 48 | SMA | Datasheet |
