Virginia Diodes 【VDI】
概要
VDIのVNAエクステンダーは、テラヘルツ帯域への高性能ネットワークアナライザー周波数拡張を提供します。
モデルは50 GHz〜1,100 GHzをカバーし、追加の帯域が開発中です。

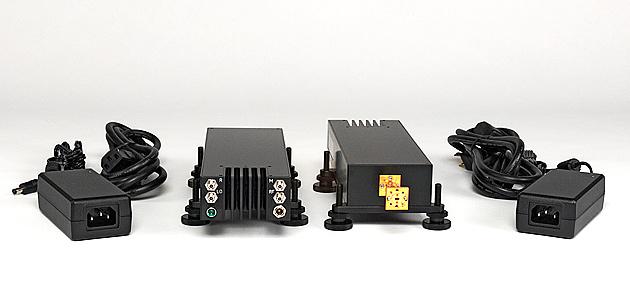

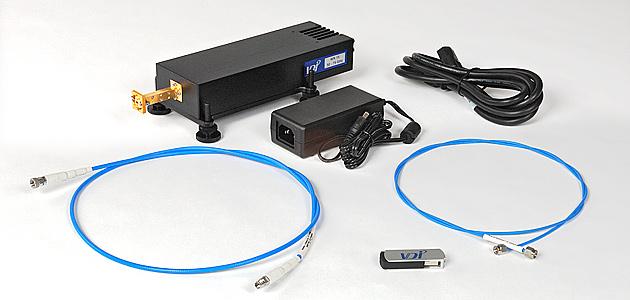

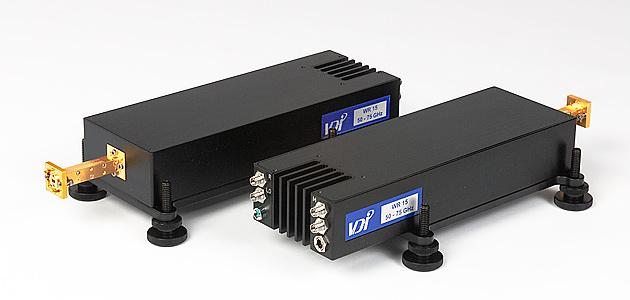

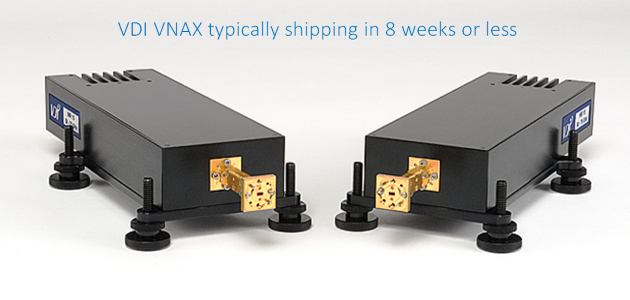

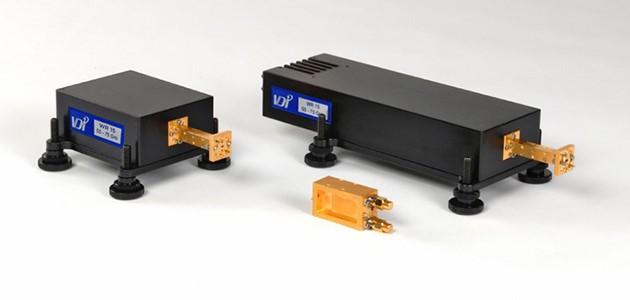

トランシーバー（TxRx）モジュールに加えてVDI社は特定のアプリケーションに最適化されたパフォーマンスを提供する送信（TxRef）モジュールと受信（Rx）モジュールも提供します。
これらのモジュールは高いテストポートパワーと卓越したダイナミックレンジを組み合わせて、業界をリードするパフォーマンスを提供します。
ほとんどのネットワークアナライザーと互換性がありプローブステーションやアンテナチャンバーに統合できます。パワーレベリングとスイープは、VDI社のPM5パワーメーターと併用するとでサポートされます。
オプション
- 増加したテストポートパワー（特定のバンド用）
- マイクロメーター駆動の可変減衰器（〜0-30dB）
- 1.2mから5mのケーブルで構成（標準構成は1.2m、5mオプション）
- ウェーブガイド校正キット
- 高損失環境向けの拡張ダイナミックレンジモジュール
ダウンロード
VNAX-AM (Streamline VNA to VNAX Adapter Module) Product Manual
VNAX Dual Source Option Datasheet
仕様
WR28 ～ WR2.2
VNA Extension Modules General Specifications (WR28 to WR2.2)
| Description | Specification | Connector |
|---|---|---|
| RF Input Typical / Damage, -20 Option (Default) |
10 dBm ± 3 dB / 16 dBm | 2.9mm (f) |
| RF Input Typical / Damage, -20 Option (Default) with -5m option |
2 dBm ± 3 dB / 8 dBm | 2.9mm (f) |
| RF Input Typical / Damage, -40 Option |
0 dBm ± 3 dB / 6 dBm | 2.9mm (f) |
| LO Input Typical / Damage (Default) |
10 dBm ± 3 dB / 16 dBm | 2.9mm (f) |
| Typical / Damage, -5M Option | 2 dBm ± 3 dB / 8 dBm | 2.9mm (f) |
| IF Outputs (Reference and Measurement) Maximum, Direct Connection (279 MHz) |
-9 dBm | 2.9mm (f) |
| IF Outputs (Reference and Measurement) Maximum, Controller (7.6 MHz) |
-27 dBm | 2.9mm (f) |
| Test Port VDI Precision Flange |
See Flange Diagram | UG-387/UM |
| Power Supply AC Input |
100-240VAC, <3.5A, 50-60 Hz | U.S. or E.U. |
| Power Supply DC Output |
9V / 4A | 2.1mm ID x 5.5mm OD x 9.5mm (f) |
| Operating Temperature Typical / Recommended |
25°C / 20-30°C | - |
| Typical Enclosure Dimensions TxRx & TxRef Modules (in.) WR28 to WR19 |
9.5 x 3.0 x 1.5 | - |
| Typical Enclosure Dimensions TxRx & TxRef Modules (in.) WR15 to WR2.2 |
8.5 x 3.0 x 1.5 | - |
| Typical Enclosure Dimensions TxRx & TxRef Modules (in.) WR28 to WR19, -Atten Option |
問合せください | - |
| Typical Enclosure Dimensions TxRx & TxRef Modules (in.) WR28 to WR19, -Atten Option |
8.5 x 3.0 x 1.5 | - |
| Typical Enclosure Dimensions Rx Modules (in.) |
3.75 x 3.0 x 1.5 | - |
| Typical Weight TxRx & TxRef Modules (lbs.) |
4 | - |
| Typical Weight Rx Modules (lbs.) |
2 | - |
WR1.5 ～ WR0.65
VNA Extension Modules General Specifications (WR1.5 to WR0.65)
| Description | Specification | Connector |
|---|---|---|
| RF Input Standard Frequency Input (Typical / Damage) |
10 dBm ± 3 dB / 16 dBm | 2.9mm (f) |
| RF Input Standard Frequency Input (Typical / Damage) with -5m option |
2 dBm ± 3 dB / 8 dBm | 2.9mm (f) |
| RF Input High Frequency Input (Typical / Damage) |
0 dBm ± 3 dB / 6 dBm | 2.9mm (f) |
| LO Input Typical / Damage (Default) |
10 dBm ± 3 dB / 16 dBm | 2.9mm (f) |
| LO Input Typical / Damage, -5M Option |
2 dBm ± 3 dB / 8 dBm | 2.9mm (f) |
| IF Outputs (Reference and Measurement) Maximum, Direct Connection (279 MHz) |
-9 dBm | 2.9mm (f) |
| IF Outputs (Reference and Measurement) Maximum, Controller (7.6 MHz) |
-27 dBm | 2.9mm (f) |
| Test Port VDI Precision Flange |
See Flange Diagram | UG-387/UM |
| Power Supply AC Input |
100-240VAC, <3.5A, 50-60 Hz | U.S. or E.U. |
| Power Supply DC Output |
See VDI-175 Datasheet | U.S. or E.U. |
| Operating Temperature Typical / Recommended |
25°C / 20-30°C | - |
| Typical Enclosure Dimensions TxRx & TxRef Modules (in.) |
11 x 5 x 3 | - |
| Typical Enclosure Dimensions Rx Modules (in.) |
8 x 5 x 3 | - |
| Typical Weight TxRx & TxRef Modules (lbs.) |
9 | - |
| Typical Weight Rx Modules (lbs.) |
4 | - |
仕様一覧
Vector Network Analyzer (VNA) Extenders - Summary of Specifications
| Waveguide Band | Frequency Coverage (GHz) Standard |
Frequency Coverage (GHz) Extended‡ |
Dynamic Range (BW=10Hz,dB) Typical |
Dynamic Range (BW=10Hz,dB) Minimum |
Test Port Power (dBm typical) | Stability Magnitude (±dB) |
Stability Phase (±deg) |
Test Port Input Limit (estimate, dBm, damage) TxRx, TxRef † | Directivity (dB) |
|---|---|---|---|---|---|---|---|---|---|
| WR28 | 26-40 | - | 120 | 110 | 13 | 0.15 | 2 | 33 | 30 |
| WR19 | 40-60 | - | 120 | 105 | 13 | 0.15 | 2 | 31 | 30 | WR15 | 50-75 | 47-77 | 120 | 110 | 13 | 0.15 | 2 | 30 | 30 | WR12 | 60-90 | 55-95 | 120 | 110 | 13 | 0.15 | 2 | 30 | 30 | WR12 SE Option | 60-90 | 55-90 | 120 | 110 | 13 | 0.15 | 2 | 30 | 30 | WR10 SE Option | 75-110 | 67-110 | 120 | 110 | -1 | 0.15 | 2 | 20 | 30 | WR8.0 | 90-140 | - | 120 | 110 | 6 | 0.15 | 2 | 30 | 30 | WR6.5 | 110-170 | - | 120 | 110 | 13 | 0.25 | 4 | 30 | 30 | WR5.1 | 140-220 | - | 120 | 110 | 6 | 0.25 | 4 | 30 | 30 | WR4.3 | 170-260 | - | 115 | 110 | -2 | 0.3 | 4 | 28 | 30 | WR3.4 | 220-330 | - | 115 | 105 | 1 | 0.3 | 6 | 26 | 30 | WM-710 (WR2.8) |
260-400 | - | 100 | 80 | -10 | 0.5 | 6 | 16 | 30 | WM-570 (WR2.2) |
330-500 | 325-500 | 110 | 100 | -3 | 0.5 | 6 | 10 | 30 | WM-380 (WR1.5) |
500-750 | - | 100 | 80 | -25 | 0.4 | 4 | -3 | 30 | WM-250 (WR1.0) |
750-1100 | - | 65 | 45 | -30 | 0.5 | 6 | -3 | 30 | WM-164 (WR0.65*) |
1100-1500 | - | 60 | 40 | -45 | 1 | 20 | -3 | 30 |
*WM164 (WR0.65) performance is specified for a TxRx-Rx configuration using external synthesizers. Performance of a TxRx-TxRx configuration is estimated to have a ~15 dB degradation of dynamic range and may additionally require the use of a mmWave controller.
†Test Port Input Powers exceeding the peak Test Port Power of the TxRx or TxRef module will compress the module.
General Notes:
Extension modules are compatible with all modern VNAs. Please consult with VDI to discuss VNA and module configurations that will yield the best performance for your application.
Technical Notes:
1. Test Port Power is typical, reduced power is possible at band edges. Range is measured on PNA/PNAX front-panel with internal synthesizers, using a controller can reduce DR by ~5-10 dB.
2. Stability is specified for 1 hour after system warm-up, in stable environment with ideal cables.
3. Specifications assume a through measurement with two TxRx heads.
4. Specifications are measured on a Keysight PNA/PNAX with front panel connection at 25°C typical.
5. The dynamic range (RBW 10 Hz) is measured by first connecting two TxRx heads together and normalizing the un-calibrated S21 & S12. The heads are then disconnected and terminated with a waveguide short. The rms of the measured S21 & S12 give the system dynamic range.
6. Typical Module Dimensions exclude testport (2" standard testport for all modules except WM250 (WR1.0), where a 1" testport is used)
‡Where noted, Extended Frequency Coverage applies; module performance within the standard band conforms to standard specifications while performance in the extended regions can be degraded as follows:
-The minimum and typical dynamic range is degraded by 10dB or less, compared to the specification for the standard band.
-The test port power typical across the extended band is degraded by 5 dB or less compared to the specification for the standard band.
