導波管 パワーアンプ・ローノイズアンプ
ミリ波 パワーアンプ、ローノイズアンプ
パワーアンプ

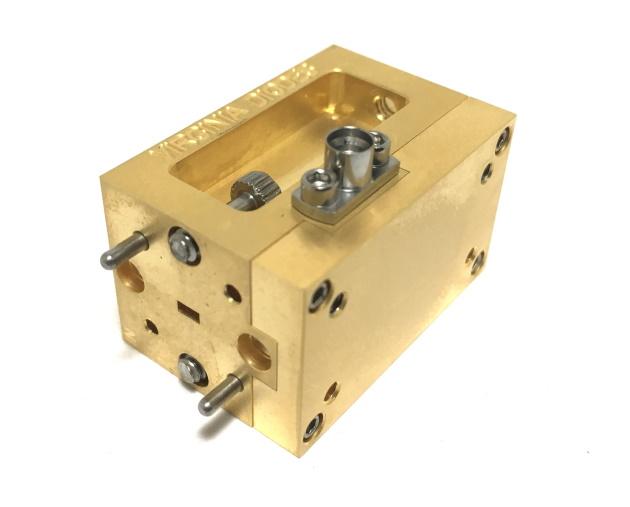

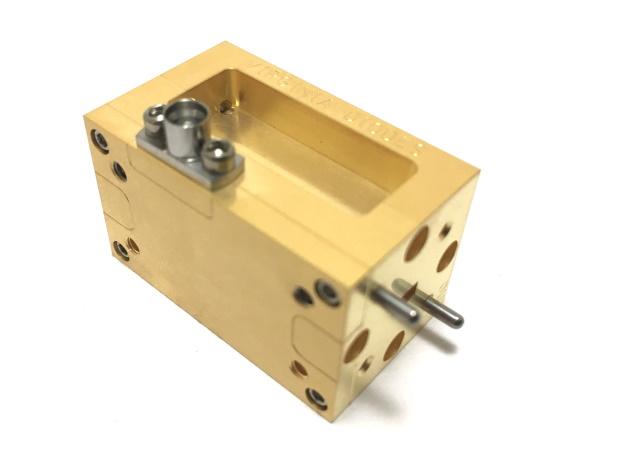

VDIは様々な用途に導波管アンプを提供しています。導波管アンプは小さな入力RF信号を大きな出力RF信号に昇圧することができます。VDIは最大260GHzまでのアンプを提供し、さらに開発中のアンプもあります。より高い周波数や狭帯域の高出力アンプもご要望に応じて提供可能です。
ローノイズアンプ
VDIのローノイズアンプは、小さな入力RF信号を大きな出力RF信号に昇圧することができ、低雑音指数で最適化されています。VDIは最大220GHzの低雑音アンプを提供しており、現在開発中のアンプもあります。
ダウンロード
Waveguide Amplifier Product Manual
Waveguide Amplifier Specifications
Low Noise Amplifier Product Manual
DOWNLOAD
概要
ブロードバンドアンプ
VDI Broadband Power Amplifier Specifications |
||||||||
| VDI Part Number |
WR19AMP | WR15AMP |
WR12AMP |
WR10AMP |
WR8.0AMP | WR6.5AMP |
WR4.3AMP |
WR3.4AMP** |
| Amplifier Band (GHz) | 40-60 | 50-75 | 60-90 | 75-110 | 90-140 | 110-170 | 170-260 | 220-330 |
| Waveguide Interface | WR-19 | WR-15 | WR-12 | WR-10 | WR-8.0 | WR-6.5 | WR-4.3 | WR-3.4 |
| Gain S21 (dB, typical) | 16 | 20 | 18 | 17 | 21 | 20 | 24 | - |
| Saturated Output Power (dBm, typical) | 20 | 19 | 20 | 20 | 19 | 18 | 16 | - |
| Output P1dB (dBm, typical)† | 17 | 11 | 16 | 16 | 13 | 11 | 9 | - |
| Input Reflection, S11 (dB, typical) | -10 | -10 | -10 | -10 | -7 | -9 | -9 | - |
| Output Reflection, S22 (dB, typical) | -10 | -10 | -10 | -8 | -10 | -10 | -3 | - |
| Maximum RF Input Power (dBm) | +10 | +10 | +10 | +10 | +10 | +10 | +6 | - |
| Bias Connector* | SMP(m) | SMP(m) | SMP(m) | SMP(m) | SMP(m) | SMP(m) | SMP(m) | SMP(m) |
| Current Draw (Typical / Maximum, mA) | 400 / 500 | 450 / 1200 | 150 / 500 | 150 / 500 | 300 / 800 | 200 / 600 | 300 / 800 | ~200 / - |
†All amplifiers will meet P1dB specification listed above. P1dB data will not be provided with each amplifier.
*Amplifiers with SMP(m) bias connectors include SMP(f) to LEMO and SMP(f) to SMA(m) bias cables. The SMP to LEMO 00 cable is for use with an SAX-UP or CCU module. The SMP to SMA cable is for general use.
**WR-3.4 amplifiers are under development.
*Amplifiers with SMP(m) bias connectors include SMP(f) to LEMO and SMP(f) to SMA(m) bias cables. The SMP to LEMO 00 cable is for use with an SAX-UP or CCU module. The SMP to SMA cable is for general use.
**WR-3.4 amplifiers are under development.
ナローバンド（ハイパワー）アンプ
VDI Narrowband Power† Amplifier Specifications |
|||||
|
VDI Part Number |
130AMPS |
160AMPS |
195AMPS |
130AMPMP |
160AMPMP |
| Amplifier Band (GHz) | 120-140 | 150-180 | 180-200 | 120-140 | 150-180 |
| Input / Output Flange (UG-387/U-M) |
WR-6.5 | WR-5.1 | WR-5.1 | WR-6.5 | WR-5.1 |
| Gain S21 (dB, typical) | 24 | 23 | 18 | 24 | 22 |
| Saturated Output Power (dBm, typical) |
21.5 | 21 | 19 | 24.5 | 24 |
| Output P1dB (dBm, typical)†† | 15 | 14 | 13 (est.) | - | 16 (est.) |
| Input Reflection, S11 (dB, typical) | -5 | -5 | -6 | -5 | -10 |
| Output Reflection, S22 (dB, typical) |
-5 | -10 | -6 | -5 | -10 |
| Bias Connector* | SMP(m) | SMP(m) | SMP(m) | SMP(m) | SMP(m) |
| Maximum RF Input Power (dBm) | +10 | +13 | +13 | +13 | +16 |
| Current Draw (Typical / Maximum, mA) |
500 / 1000 | 600 / 1200 | 700 / 1300 | 1000 / 2000 | 1200 / 2400 |
| Heatsink + Fan Assembly | Yes | Yes | Yes | Yes | Yes |
†Higher power versions are under development.
††All amplifiers will meet P1dB specification listed above. P1dB data will not be provided with each amplifier.
*Amplifiers with SMP(m) bias connectors include SMP(f) to LEMO and SMP(f) to SMA(m) bias cables. The SMP to LEMO 00
cable is for use with an SAX-UP or CCU module. The SMP to SMA cable is for general use.
††All amplifiers will meet P1dB specification listed above. P1dB data will not be provided with each amplifier.
*Amplifiers with SMP(m) bias connectors include SMP(f) to LEMO and SMP(f) to SMA(m) bias cables. The SMP to LEMO 00
cable is for use with an SAX-UP or CCU module. The SMP to SMA cable is for general use.
VDI Narrowband Power† Amplifier Specifications |
||
| VDI Part Number |
VDI15.0AMP- 0055/0067- 15-20 |
VDI12.0AMP- 0067/0087- 20-20 |
| Amplifier Band (GHz) | 55-67 | 67-87 |
| Input / Output Flange (UG-387/U-M) | WR-15 | WR-12 |
| Gain S21 (dB, typical) | 17 | 20 |
| Saturated Output Power (dBm, typical) | 20 | 19 |
| Output P1dB (dBm, typical)†† | 17 | 15 |
| Input Reflection, S11 (dB, typical) | -7 | -10 |
| Output Reflection, S22 (dB, typical) | -10 | -10 |
| Bias Connector* | SMP(m) | SMP(m) |
| Maximum RF Input Power (dBm) | +10 | +10 |
| Current Draw (Typical / Maximum, mA) | 150 / 500 | 150 / 500 |
