GaAs/GaN高速PINスイッチ（RFDPDT/RFSPシリーズ）
- カテゴリー
-
- RF、ミリ波、テラヘルツ
- GaAs/GaN高速PINスイッチ（RFDPDT/RFSPシリーズ）
RF-LAMBDA
GaAs（ゲルマニウムヒ素）/GaN（ゲルマニウム窒素）高速PINスイッチ（RFDPDT/RFSPシリーズ）
RF Lambda社のPIN、GaAs、Ganスイッチは、最大160Tまでの様々な周波数と構成で提供されています。
高アイソレーション、低挿入損失、高速スイッチングが特長です。
ご要望に応じて、気密シール仕様のオプションもご用意できます。
DPDT（2極双投）

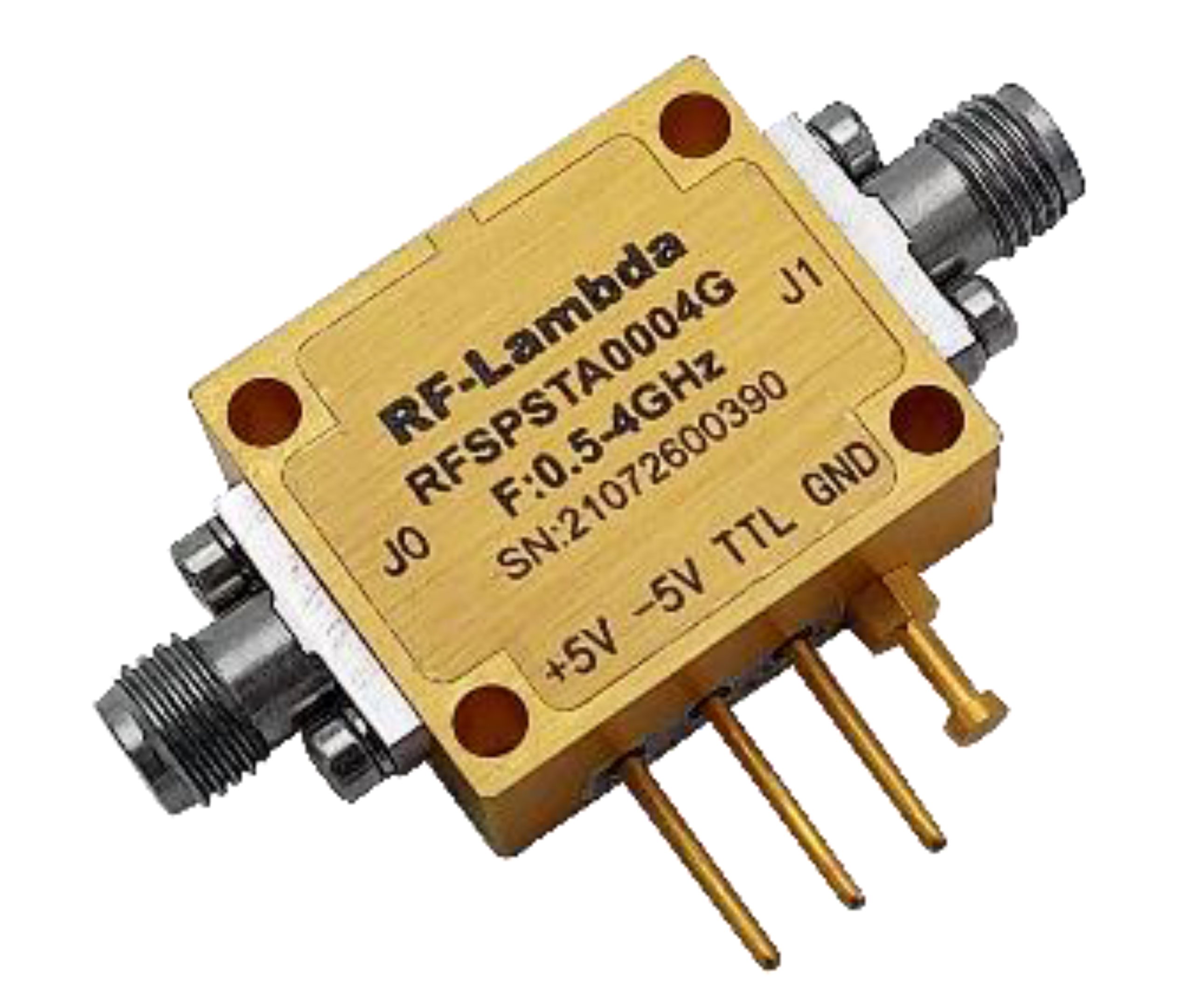

SPST（単極単投）
SP2T（単極双投）

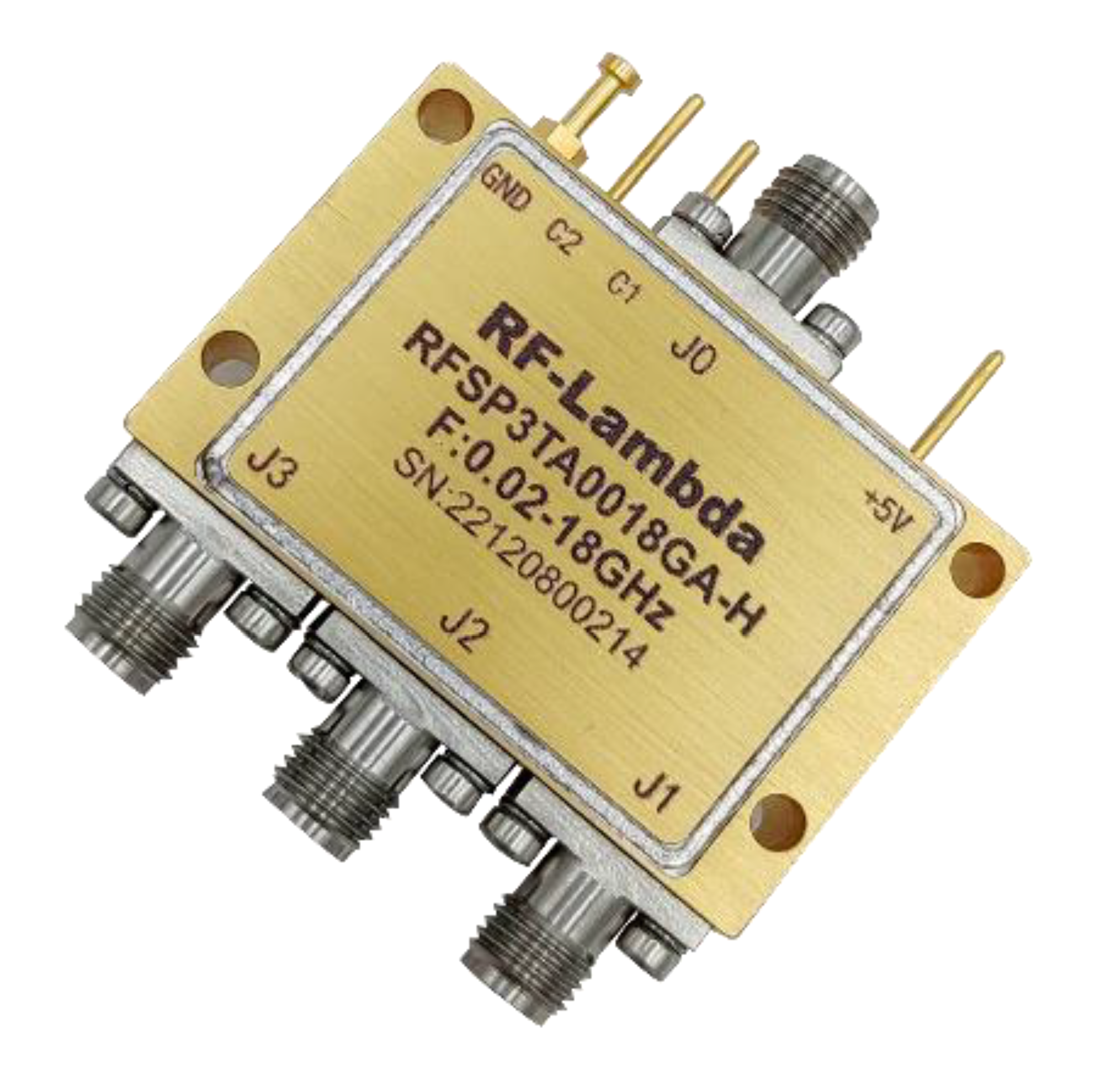

SP3T（単極3投）

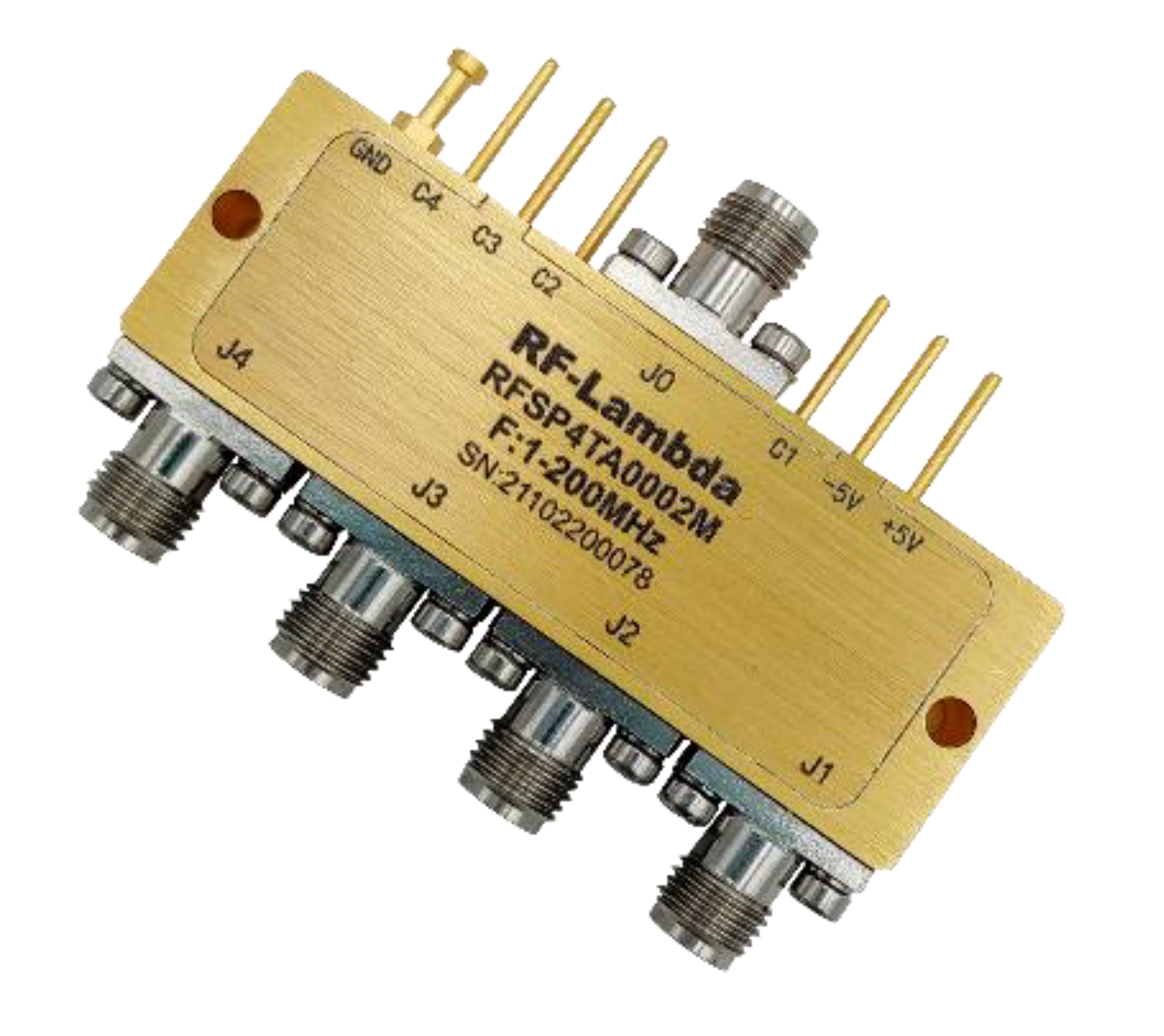

SP4T（単極4投）

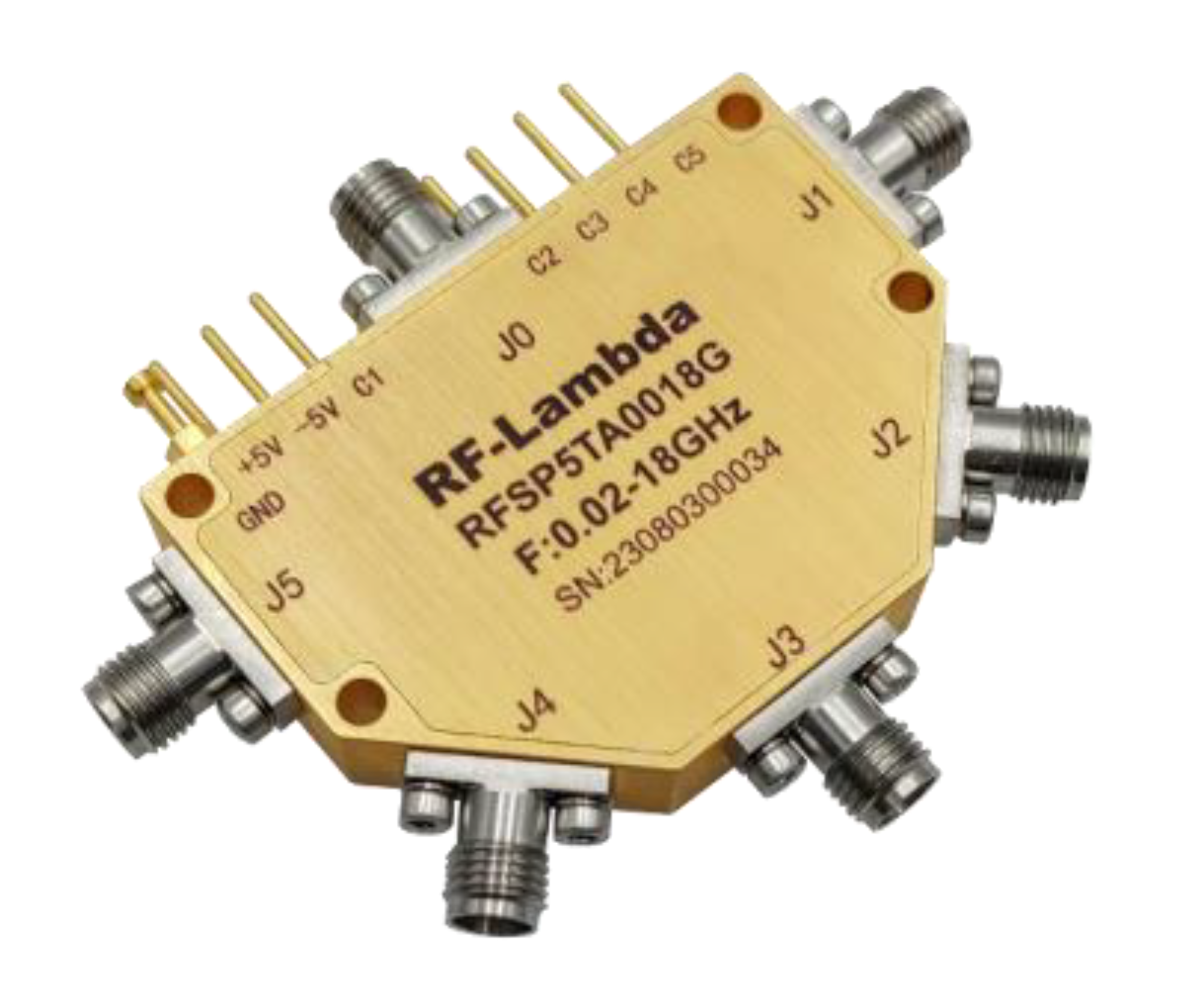

SP5T（単極5投）

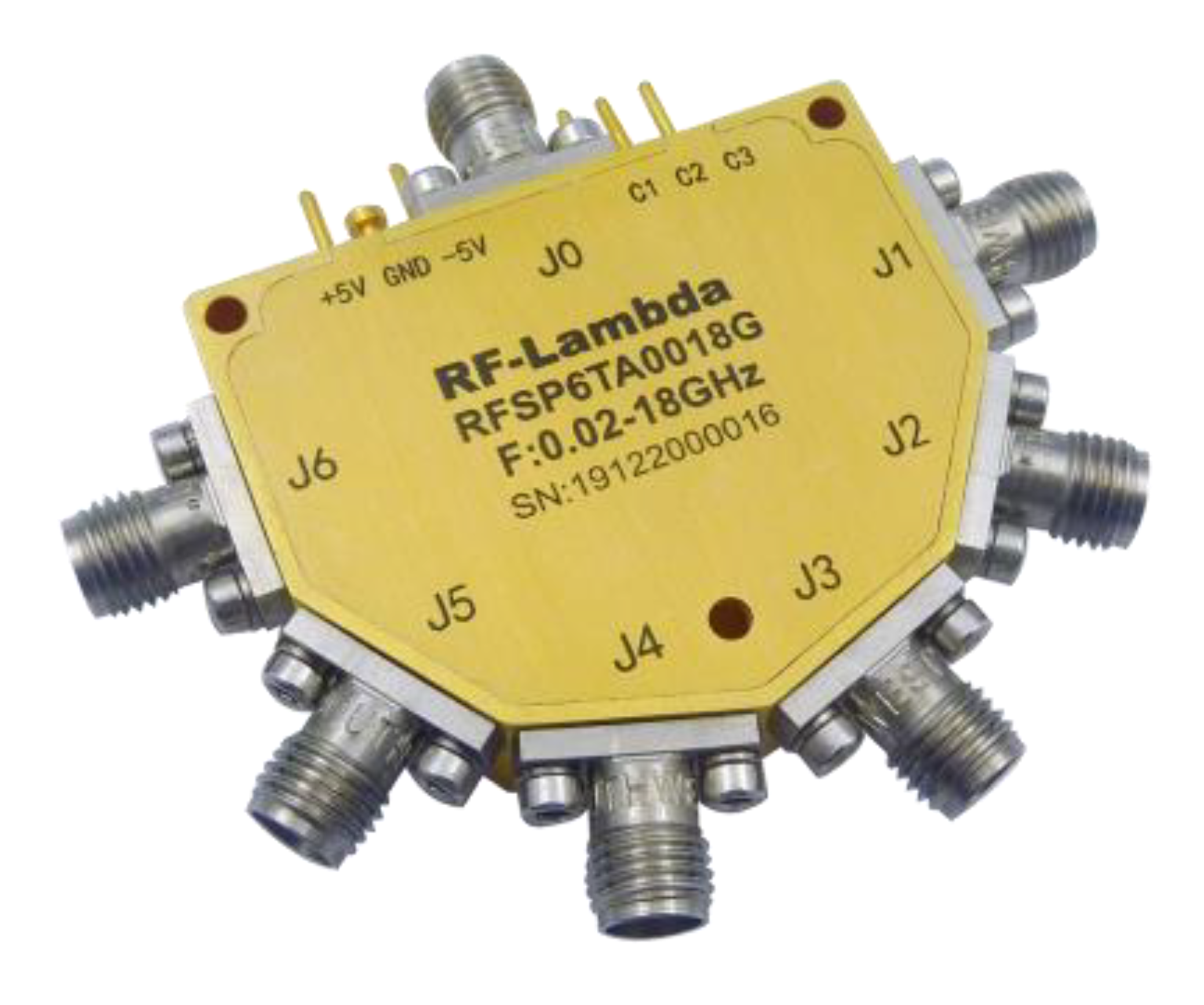

SP6T（単極6投）

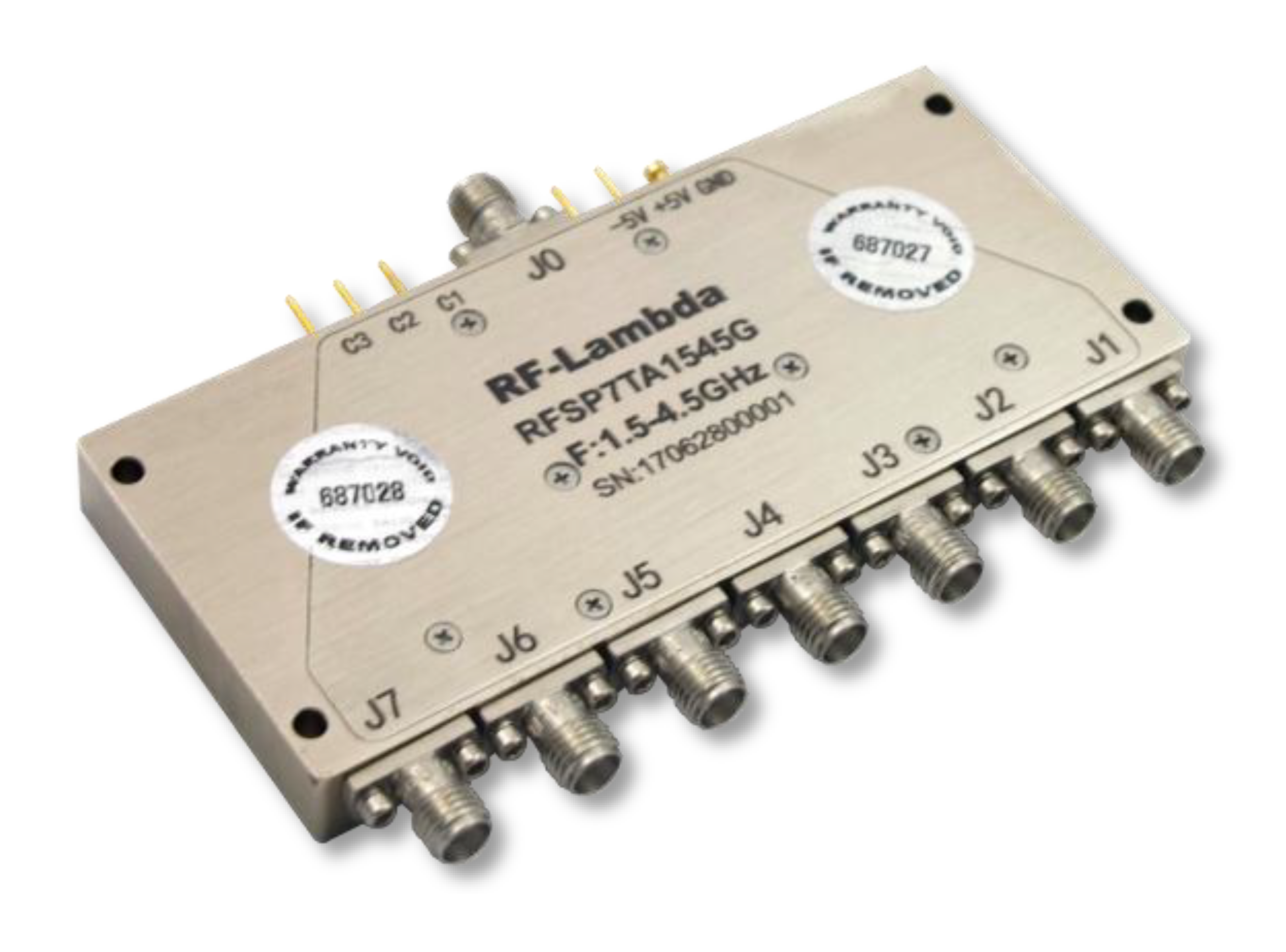

SP7T（単極7投）

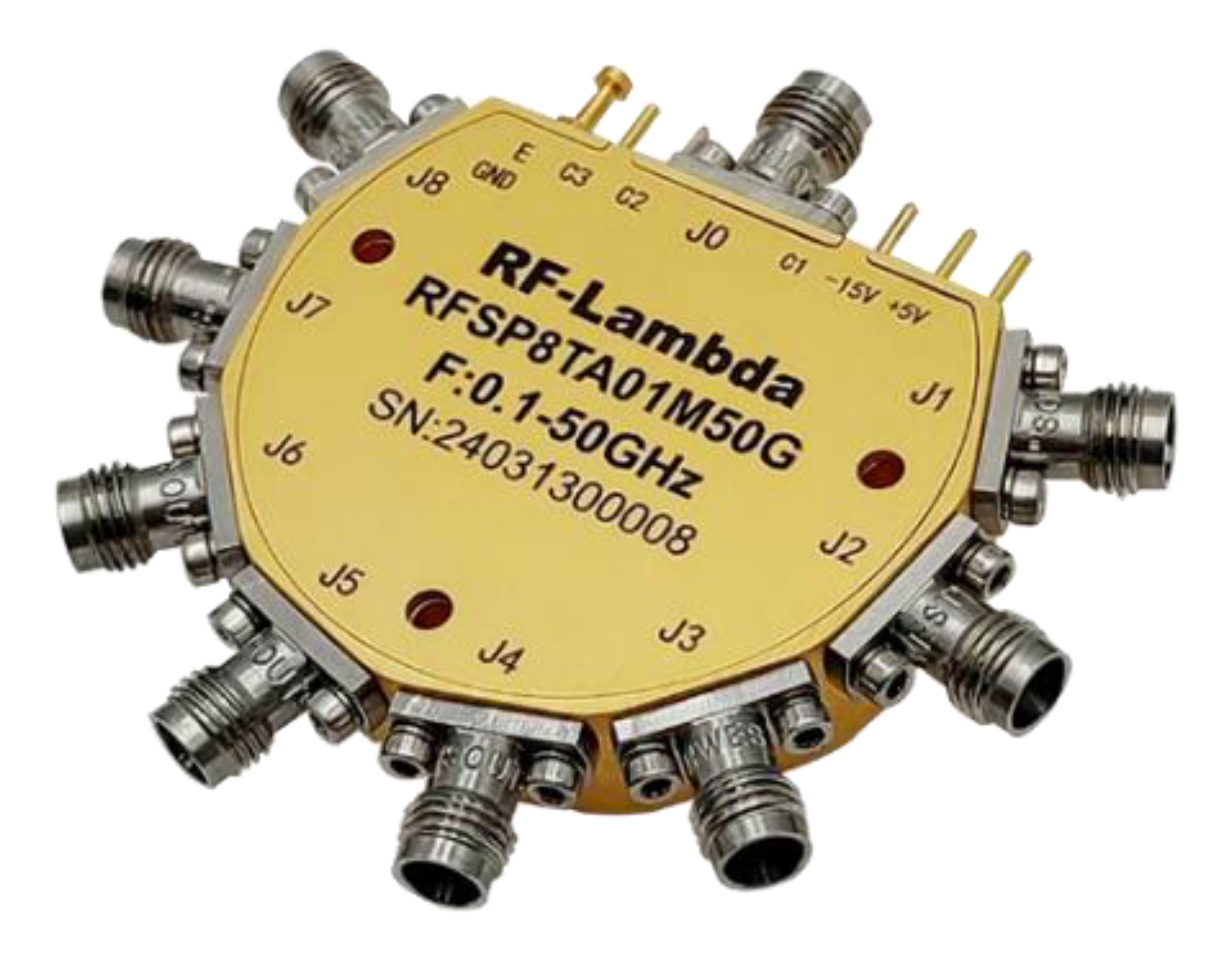

SP8T（単極8投）
SP10T（単極10投）
SP12T（単極12投）
SP16T（単極16投）
SP160T（単極160投）
製品ラインナップ
PIN, GaAs and GaN Switch（High Speed）（RFDPDT/RFSP Series）
| Model | Description | Switch Type | Frequency Range | Insertion Loss | Isolation | Average Power | Speed | Styles | Connector | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|
| RFDPDTA0018G | RF DPDT Switch Aborptive | DPDT | 0.02～18GHz | 8dB | 60dB | 1W | 200ns | Absorptive | SMA | |
| RFDPDTA0070G | RF DPDT Switch Aborptive | DPDT | 0.001～70GHz | 10.5dB | 40dB | 0.05W | 500ns | Absorptive | 1.85mm | |
| RFDPDTA0108G | RF DPDT Switch Aborptive | DPDT | 1～8GHz | 2.5dB | 60dB | 1W | 100ns | Absorptive | SMA | |
| RFDPDTA0840G | RF DPDT Switch Aborptive | DPDT | 8～40GHz | 7dB | 40dB | 0.2W | 100ns | Absorptive | 2.92mm (K) | |
| RFDPDTA5M26G | RF DPDT Switch Aborptive | DPDT | 0.5～26.5GHz | 6dB | 40dB | 0.2W | 100ns | Absorptive | 2.92mm (K) | Datasheet |

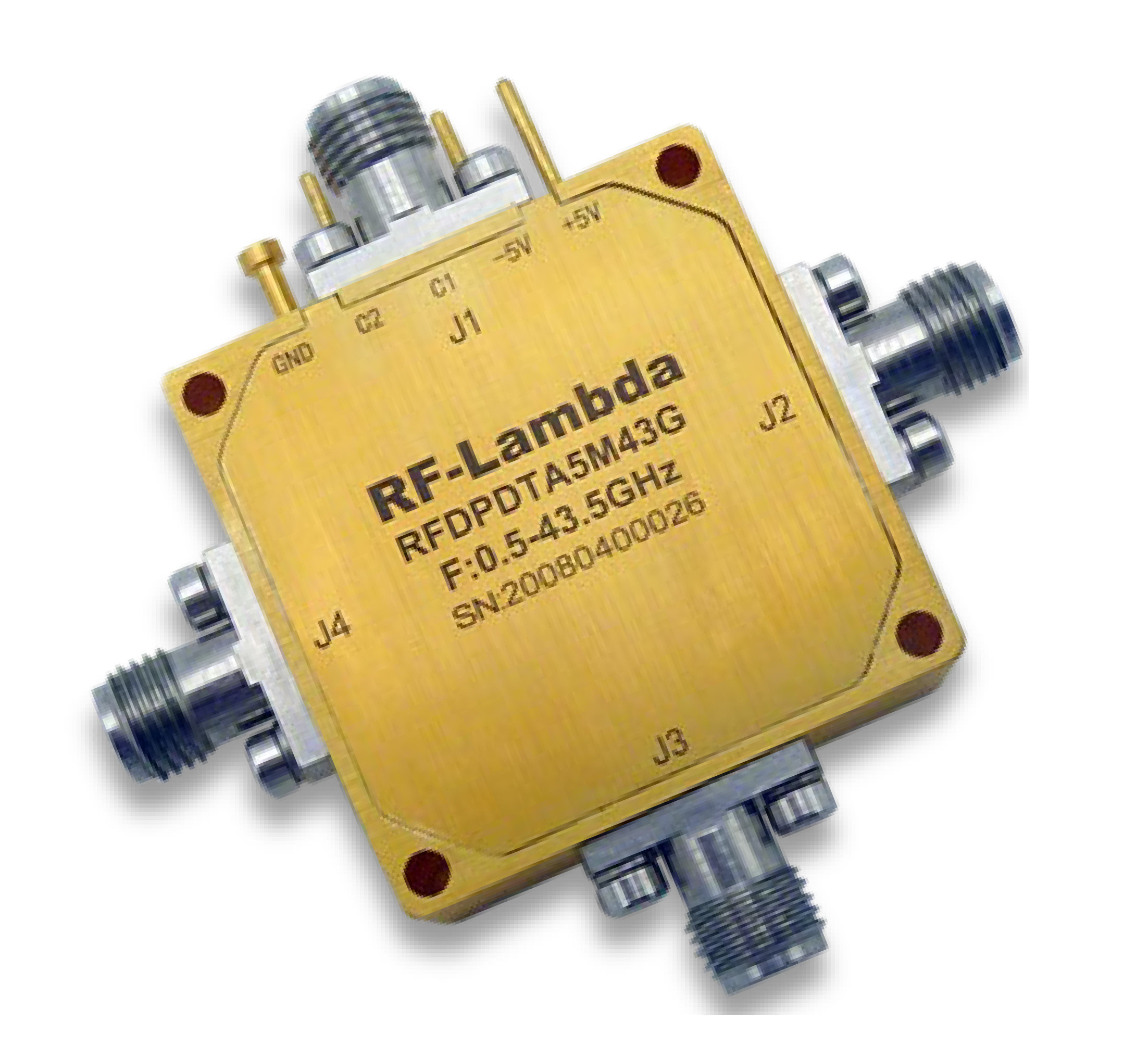

| RFDPDTA5M43G | RF DPDT Switch Aborptive | DPDT | 0.5～43.5GHz | 8dB | 40dB | 0.2W | 100ns | Absorptive | 2.92mm (K) | Datasheet |
| RFDPDTA5M50G | RF DPDT Switch Aborptive | DPDT | 0.1～50GHz | 11dB | 40dB | 0.2W | 100ns | Absorptive | 2.4mm | |
| RFDPDTADC06G | RF DPDT Switch Aborptive | DPDT | DC～6GHz | 4dB | 40dB | 40W | 150ns | Absorptive | SMA | Datasheet |
| RFDPDTADC12G | RF DPDT Switch Aborptive | DPDT | DC～12GHz | 4.5dB | 40dB | 20W | 150ns | Absorptive | SMA | Datasheet |
| RFDPDTADC18G | RF DPDT Switch Aborptive | DPDT | DC～18GHz | 4dB | 40dB | 10W | 150ns | Absorptive | SMA | Datasheet |

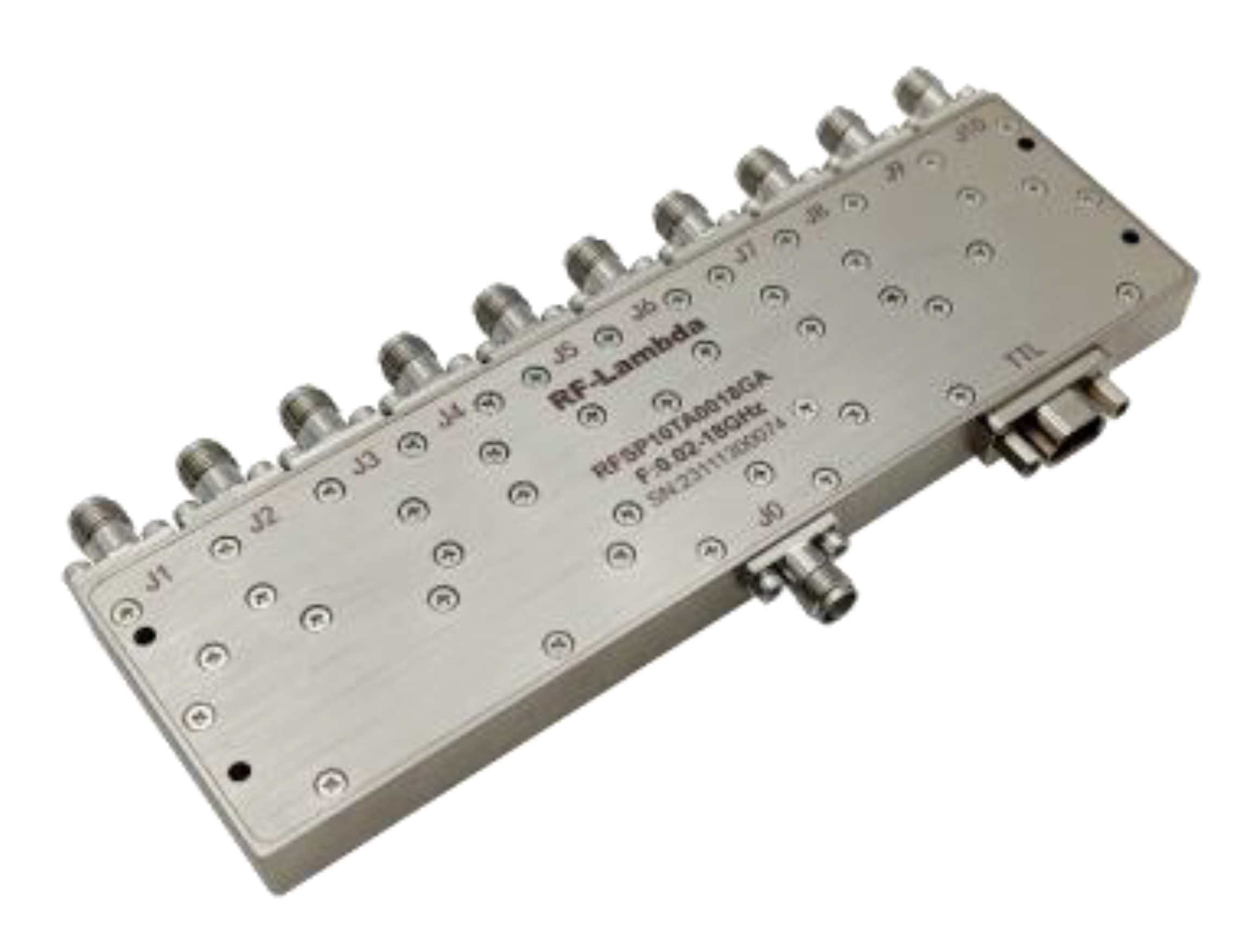

| RFSP10TA0018GA | RF Absorptive SwitchWith OFF state | SP10T | 0.02～18GHz | 6dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP10TA0206G | RF Absorptive Switch | SP10T | 2～6GHz | 3dB | 90dB | 2W | 150ns | Absorptive | SMA | |
| RFSP10TA0250G | RF Absorptive Switch | SP10T | 2～50GHz | 10dB | 50dB | 1W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSP10TA0812G | RF Absorptive Switch | SP10T | 8～12GHz | 5.5dB | 75dB | 1W | 100ns | SMA | Datasheet | |

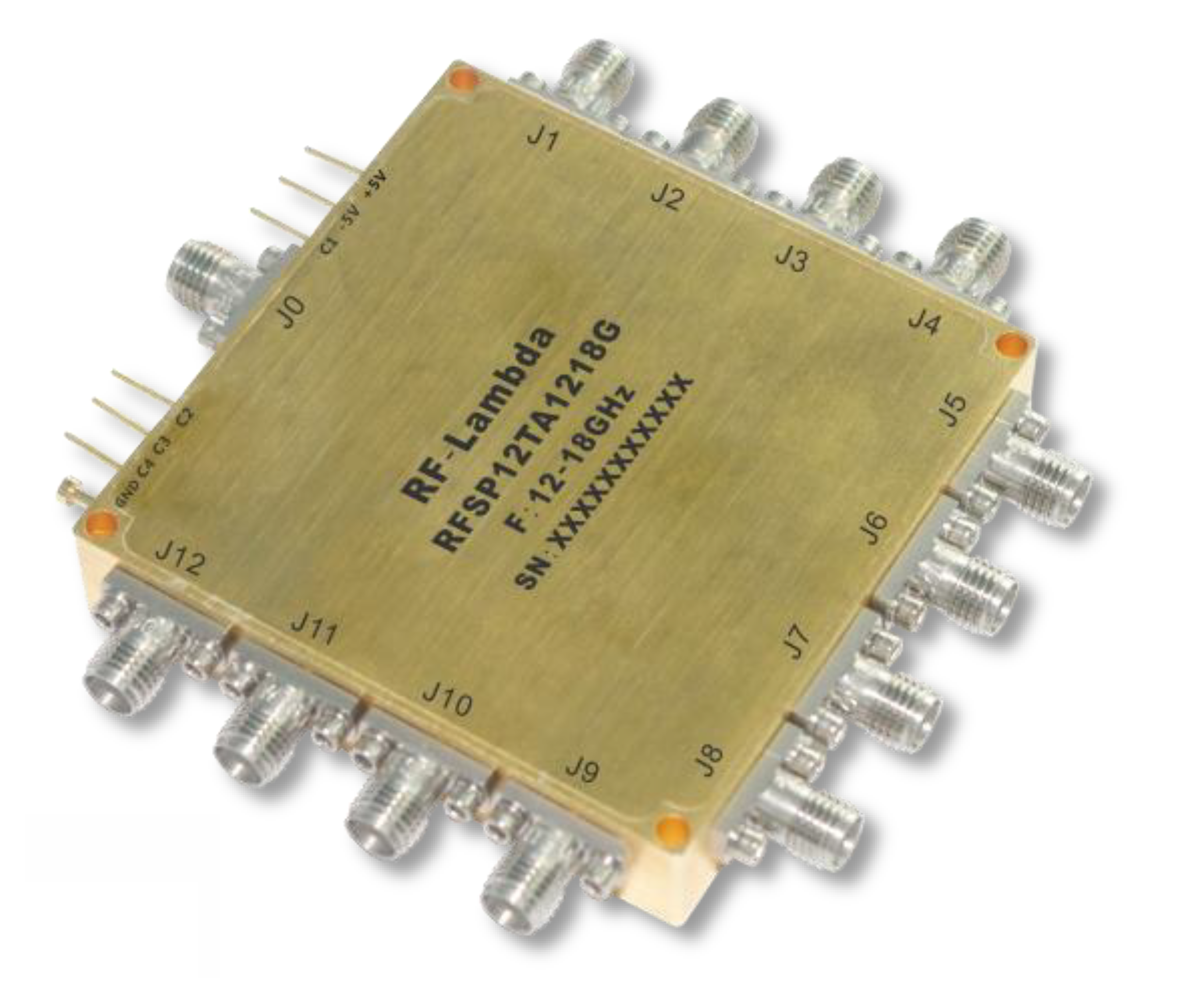

| RFSP12TA1218G | RF Absorptive Switch | SP12T | 12～18GHz | 4.5dB | 65dB | 0.3W | 50ns | Absorptive | SMA | Datasheet |
| RFSP12TA1545G | RF Absorptive Switch | SP12T | 1.5～4.5GHz | 2.5dB | 60dB | 1W | 150ns | Absorptive | SMA | Datasheet |

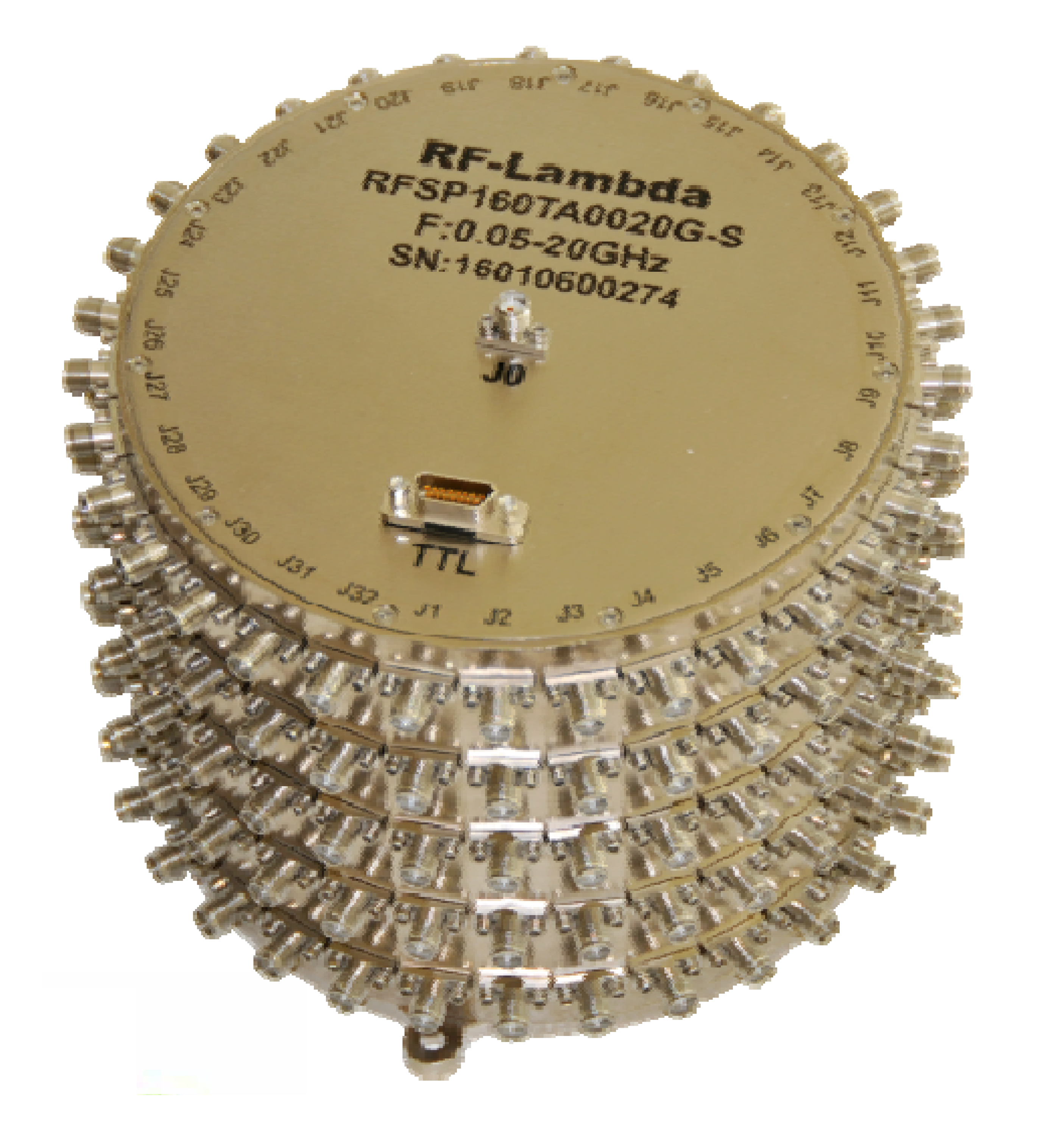

| RFSP160TA0020G | RF Absorptive Switch | SP160T | 0.05～20GHz | 28dB | 60dB | 0.5W | 200ns | Absorptive | SMA | Datasheet |

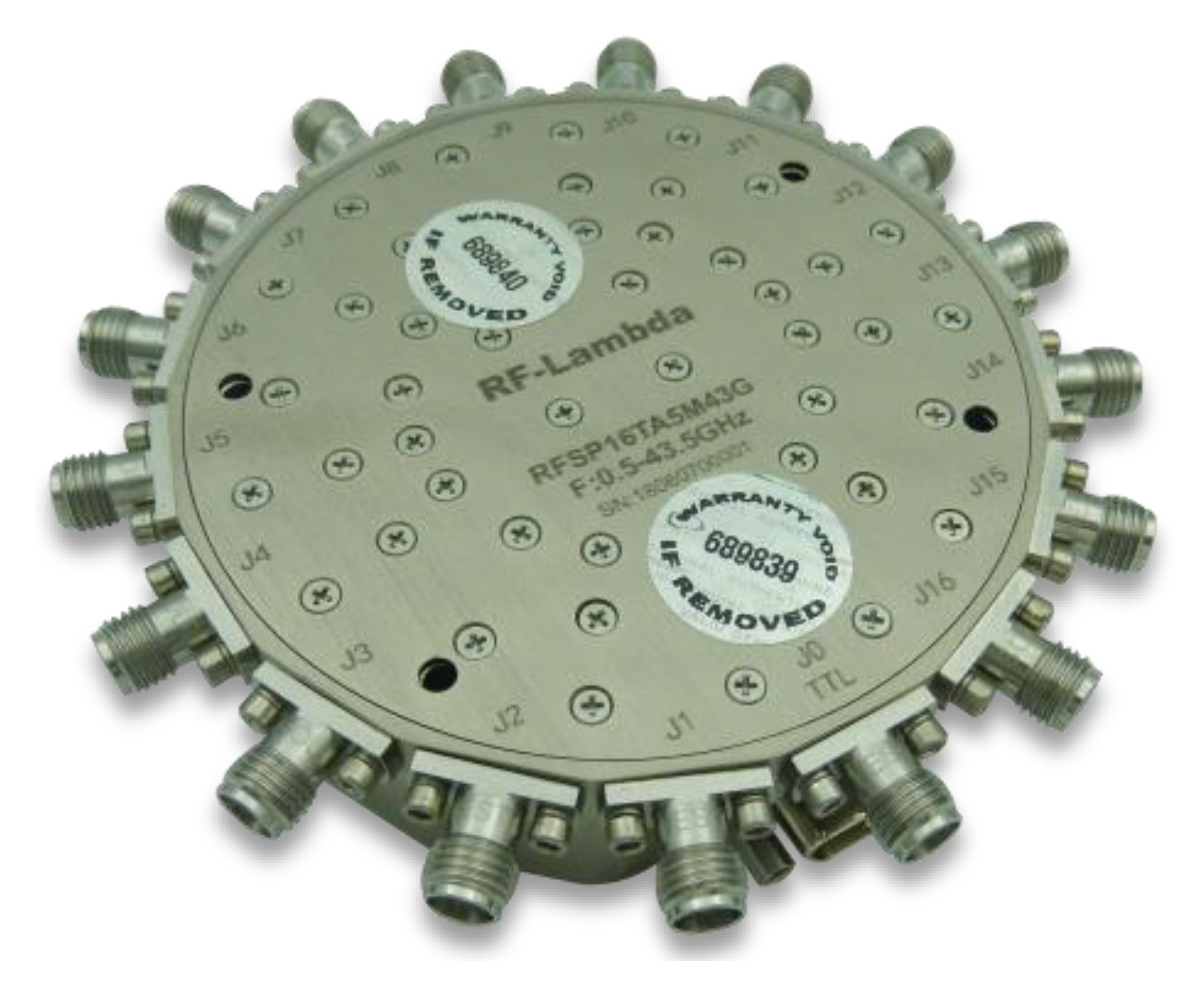

| RFSP16TA5M43G | RF Absorptive Switch | SP16T | 0.5～43.5GHz | 14dB | 60dB | 0.5W | 200ns | Absorptive | 2.92mm | Datasheet |
| RFSP16TA5M43G-RS422 | RF Absorptive Switch | SP16T | 0.5～43.5GHz | 14dB | 60dB | 0.5W | 200ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA0001GB | RF Absorptive Switch | SP2T | 0.01～1GHz | 1.5dB | 85dB | 1W | 10000ns | Absorptive | SMA | Datasheet |
| RFSP2TA0002M | RF Absorptive Switch | SP2T | 0.001～0.2GHz | 1.3dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0002M-C1 | RF Absorptive Switch | SP2T | 0.001～0.2GHz | 1.3dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0003G | RF Absorptive Switch | SP2T | 0.02～3GHz | 1.5dB | 80dB | 1W | 2500ns | Absorptive | SMA | Datasheet |
| RFSP2TA0003GBA | RF Absorptive Switch | SP2T | 0.02～3GHz | 1dB | 80dB | 1～5W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0004G | RF Absorptive Switch | SP2T | 0.5～4GHz | 1.6dB | 60dB | 1～5W | 200ns | Absorptive | SMA | Datasheet |
| RFSP2TA0004G5W | RF Absorptive Switch | SP2T | 0.5～4GHz | 1.5dB | 80dB | 5W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0004G5W-C1 | RF Absorptive Switch | SP2T | 0.5～4GHz | 1.5dB | 80dB | 5W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0005G | RF Absorptive Switch | SP2T | 0.001～4.5GHz | 2.5dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0005M | RF Absorptive Switch | SP2T | 0.02～0.5GHz | 1.3dB | 80dB | 1～5W | 250ns | Absorptive | SMA | |

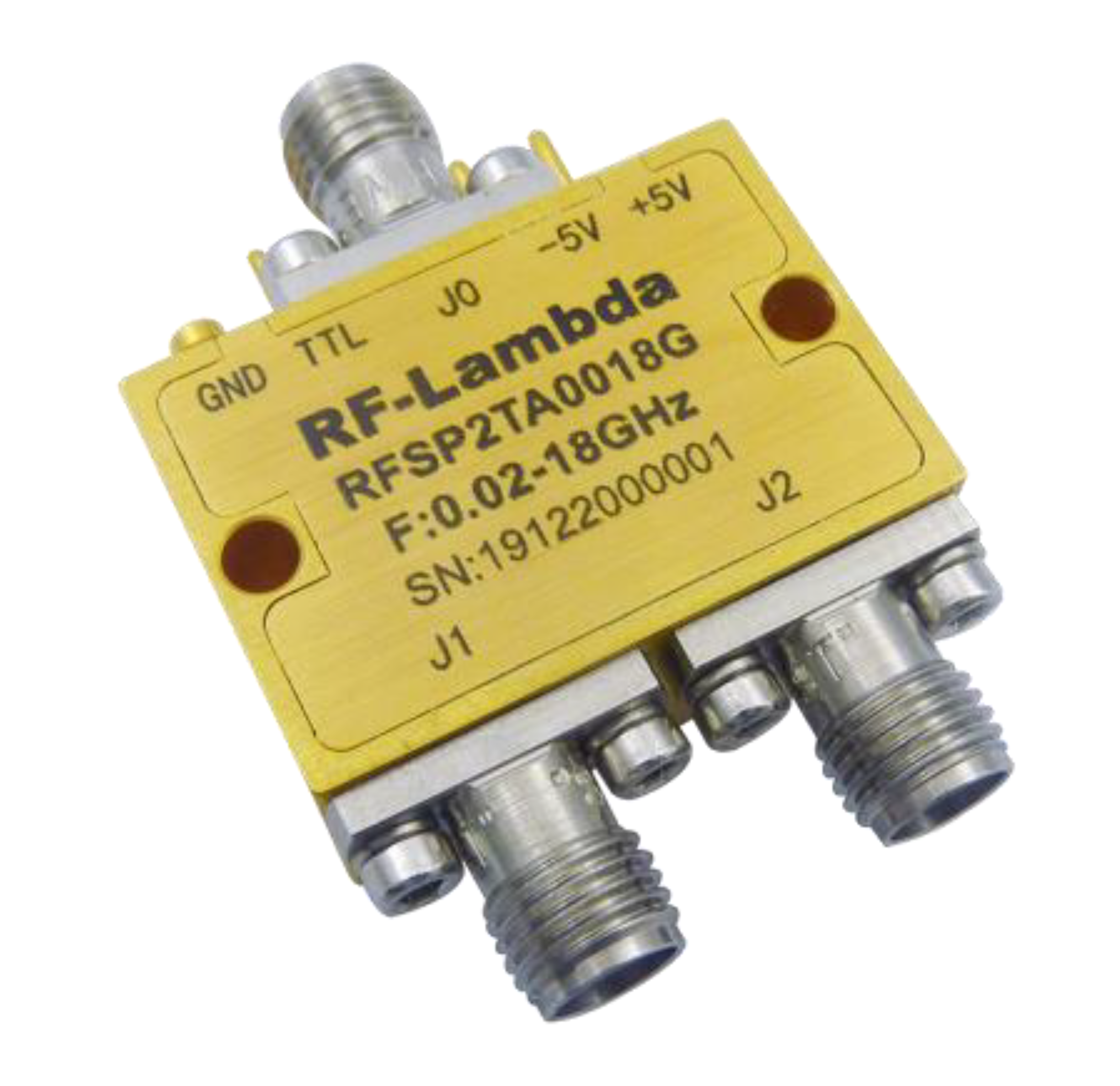

| RFSP2TA0018G | RF Absorptive Switch | SP2T | 0.02～18GHz | 3dB | 75dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018GA | SP2T High Isolation Switch | SP2T | 0.2～18GHz | 3dB | 75dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018GA-H | Hermetically Sealed Switch | SP2T | 0.02～18GHz | 3dB | 75dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018GAP | RF Absorptive Switch | SP2T | 0.02～18GHz | 3.8dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018GAP-H | Hermetically Sealed Switch | SP2T | 0.02～18GHz | 3.8dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018G-H | Hermetically Sealed Switch | SP2T | 0.02～18GHz | 3dB | 75dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018G-NH | RF Absorptive Switch | SP2T | 0.02～18GHz | 3dB | 75dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018GP | RF Absorptive Switch | SP2T | 0.02～18GHz | 2dB | 75dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP2TA0018GP-H | Hermetically Sealed Switch | SP2T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA0020G | RF Absorptive Switch | SP2T | 0.8～20GHz | 1.5dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0020G-C1 | RF Absorptive Switch | SP2T | 0.8～20GHz | 1.5dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0020GP | RF Absorptive Switch | SP2T | 0.8～20GHz | 2.2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0020GP-C1 | RF Absorptive Switch | SP2T | 0.8～20GHz | 1.7dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0102G | RF Absorptive Switch | SP2T | 1～2GHz | 1dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0102G-H | Hermetically Sealed Switch | SP2T | 1～2GHz | 1dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0118G | RF Absorptive Switch | SP2T | 1～18GHz | 2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0118G-H | Hermetically Sealed RF Absorptive Switch | SP2T | 1～18GHz | 2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0118GP | RF Absorptive Switch | SP2T | 1～18GHz | 1.8dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0118GP-H | Hermetically Sealed Switch | SP2T | 1～18GHz | 1.8dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0204G | RF Absorptive Switch | SP2T | 2～4GHz | 1dB | 80dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA0204G5W | RF Absorptive Switch | SP2T | 2～4GHz | 1dB | 80dB | 5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA0208G | RF Absorptive Switch | SP2T | 2～8GHz | 2dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA0218G | RF Absorptive Switch | SP2T | 2～18GHz | 2.2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0218G-H | Hermetically Sealed Switch | SP2T | 2～18GHz | 2.2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0218G-HB | Hermetically Sealed RF Switch | SP2T | 2～18GHz | 2.2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0218G-NH | RF Absorptive Switch | SP2T | 2～18GHz | 2.2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0218GP | RF Absorptive Switch | SP2T | 2～18GHz | 2dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0218GP-NH | Hermetically Sealed Switch | SP2T | 2～18GHz | 1.5dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0218G-X201 | RF Absorptive Switch | SP2T | 2～18GHz | 2.2dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0220G | RF Absorptive Switch | SP2T | 2～20GHz | 1.8dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA0220GP | RF Absorptive Switch | SP2T | 2～20GHz | 1.7dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0236G | RF Absorptive Switch | SP2T | 2～36GHz | 5dB | 50dB | 1W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA0408G | RF Absorptive Switch | SP2T | 4～8GHz | 1.5dB | 80dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA0408G5W | RF Absorptive Switch | SP2T | 4～8GHz | 1.3dB | 70dB | 5W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA04M05M | RF Absorptive Switch | SP2T | 0.4～0.5GHz | 1dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0612G | RF Absorptive Switch | SP2T | 6～12GHz | 1.5dB | 80dB | 0.2～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA0612G-D | RF Absorptive Switch | SP2T | 6～12GHz | 1.5dB | 80dB | 0.2-1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA0612GP | RF Absorptive Switch | SP2T | 6～12GHz | 2dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA0840G | RF Absorptive Switch | SP2T | 8～40GHz | 5dB | 50dB | 0.5W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA1518GAR | High Power RF Switch | SP2T | 6～18GHz | 2.2dB | 70dB | 10W | 1000ns | Absorptive | SMA | Datasheet |
| RFSP2TA1535M | RF Absorptive Switch | SP2T | 0.015～0.035GHz | 0.3dB | 80dB | 1～5W | 250ns | Absorptive | SMA | Datasheet |
| RFSP2TA1840G | RF Absorptive Switch | SP2T | 18～40GHz | 5dB | 50dB | 1W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA1840G-H | Hermetically Sealed Switch | SP2T | 18～40GHz | 5dB | 50dB | 1W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA1840G-H5V | Hermetically Sealed Switch (5V Only) | SP2T | 18～40GHz | 5dB | 50dB | 1W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA30110G | RF Absorptive Switch | SP2T | 30～110GHz | 11dB | 25dB | 0.025W | 350ns | Absorptive | 1.0mm | Datasheet |
| RFSP2TA3033G | RF Absorptive Switch | SP2T | 30～33GHz | 3.5dB | 25dB | 1W | 1000000ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA3090G | RF Absorptive Switch | SP2T | 30～90GHz | 10dB | 25dB | 0.01W | 250ns | Absorptive | 1.0mm | Datasheet |
| RFSP2TA5075G | RF Reflective Switch | SP2T | 50～75GHz | 5.5dB | 35dB | 0.1W | 100ns | Reflective | 1.85mm | Datasheet |
| RFSP2TA5075GW15 | WR15Waveguide Switch | SP2T | 50～75GHz | 4dB | 30dB | 0.25W | 100ns | Reflective | WR15 | |
| RFSP2TA5M12GA | RF Switch LVTTL | SP2T | 0.5～12GHz | 2dB | 80dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP2TA5M26G | RF Absorptive Switch | SP2T | 0.5～26.5GHz | 3.5dB | 45dB | 0.2W | 100ns | Absorptive | SMA | Datasheet |
| RFSP2TA5M43G | RF Absorptive Switch | SP2T | 0.5～43.5GHz | 4.5dB | 60dB | 0.2W | 100ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA5M43GA | SP2T High Isolation Switch | SP2T | 0.5～43.5GHz | 5dB | 80dB | 0.2W | 100ns | Absorptive | 2.92mm | Datasheet |
| RFSP2TA5M50G | RF Absorptive Switch | SP2T | 0.1～50GHz | 5.5dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSP2TA75110GW10 | WR10Waveguide Switch | SP2T | 75～110GHz | 13dB | 25dB | 0.025W | 350ns | Absorptive | WR10 | Datasheet |
| RFSP2TADC20G | RF Absorptive Switch | SP2T | DC～20GHz | 1.5dB | 55dB | 1W | 150ns | Absorptive | SMA | Datasheet |
| RFSP2TR0001G | RF Reflective Switch | SP2T | 0.001～1GHz | 1dB | 85dB | 1W | 10000ns | Reflective | SMA | Datasheet |
| RFSP2TR0001G5W | RF Reflective Switch | SP2T | 0.001～1GHz | 1dB | 60dB | 5W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR0001G-RS422 | RF Reflective Switch （RS422 Interface） |
SP2T | 0.001～1GHz | 1dB | dB | 1W | 10000ns | Reflective | SMA | Datasheet |
| RFSP2TR0002M | RF Reflective Switch | SP2T | 0.001～0.2GHz | 0.8dB | 70dB | 1W | 5500ns | Reflective | SMA | Datasheet |
| RFSP2TR0003G | RF Reflective Switch | SP2T | 0.02～3GHz | 2.1dB | 60dB | 1～30W | 100ns | Reflective | SMA | |
| RFSP2TR0003G5W | RF Reflective Switch | SP2T | 0.02～3GHz | 2.1dB | 60dB | 5W | 150ns | Reflective | SMA | Datasheet |
| RFSP2TR0003G5W-H | Hermetically Sealed RF Switch | SP2T | 0.02～3GHz | 2.1dB | 60dB | 5W | 150ns | Reflective | SMA | Datasheet |
| RFSP2TR0004G | RF Reflective Switch | SP2T | 0.5～4GHz | 1.4dB | 60dB | 1～50W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0005G | RF Reflective Switch | SP2T | 0.001～4.5GHz | 2dB | 70dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0005MK | RF Reflective Switch | SP2T | 0.02～0.5GHz | 1dB | 50dB | 5W CW 500W PkW |
2500ns | Reflective | SMA | Datasheet |
| RFSP2TR0018G | RF Reflective Switch | SP2T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | |
| RFSP2TR0020G | RF Reflective Switch | SP2T | 0.8～20GHz | 1.5dB | 60dB | 1W | 80ns | Reflective | SMA | Datasheet |
| RFSP2TR0060G | RF Reflective Switch | SP2T | 0.001～60GHz | 5.5dB | 35dB | 0.5W | 50ns | Reflective | 1.85mm | Datasheet |
| RFSP2TR0075G | RF Reflective Switch | SP2T | 0.001～75GHz | 6.5dB | 30dB | 0.1W | 250ns | Reflective | 1.85mm | Datasheet |
| RFSP2TR0102G | RF Reflective Switch | SP2T | 1～2GHz | 0.8dB | 80dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0102GH | High Power RF Switch | SP2T | 1～2GHz | 0.5dB | 45dB | 70W CW 600W PkW |
5000ns | Reflective | N | Datasheet |
| RFSP2TR0103M | High Power RF Switch | SP2T | 0.05～0.7GHz | 0.5dB | 80dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR0103M-C1 | High Power RF Switch Single TTL | SP2T | 0.05～0.7GHz | 0.5dB | 80dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR0103M-H | Hermetically Sealed High Power RF Switch Single TTL | SP2T | 0.05～0.7GHz | 0.5dB | 80dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR0118G | RF Reflective Switch | SP2T | 1～18GHz | 2dB | 50dB | 1W | 50ns | Reflective | SMA | Datasheet |
| RFSP2TR0118GP | RF Reflective Switch | SP2T | 1～18GHz | 1.8dB | 70dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0118GW20 | High Power RF Switch | SP2T | 1～18GHz | 2dB | 30dB | 20W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0125M | RF Reflective Switch | SP2T | 0.1～0.25GHz | 1dB | 60dB | 100W | 1200ns | Reflective | N | Datasheet |
| RFSP2TR0204G | RF Reflective Switch | SP2T | 2～4GHz | 1dB | 80dB | 1W | 500ns | Reflective | SMA | Datasheet |
| RFSP2TR0204GH | High Power RF Switch | SP2T | 1～6GHz | 0.7dB | 70dB | 50W CW 150W PkW |
400ns | Reflective | SMA | Datasheet |
| RFSP2TR0204GK | High Power RF Switch | SP2T | 2～4GHz | 1dB | 45dB | 50W CW 150W PkW |
2000ns | Reflective | N | Datasheet |
| RFSP2TR0205M | High Power RF Switch | SP2T | 0.2～0.5GHz | 0.5dB | 50dB | 200W | 8000ns | Reflective | N | Datasheet |
| RFSP2TR0208G | RF Reflective Switch | SP2T | 2～8GHz | 1.8dB | 60dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0209M | High Power RF Switch | SP2T | 0.2～0.975GHz | 0.5dB | 60dB | 50W | 3000ns | Reflective | SMA | Datasheet |
| RFSP2TR0218G | RF Reflective Switch | SP2T | 2～18GHz | 2dB | 80dB | 1W | 50ns | Reflective | SMA | Datasheet |
| RFSP2TR0218GP | RF Reflective Switch | SP2T | 2～18GHz | 2dB | 80dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0220G | RF Reflective Switch | SP2T | 2～20GHz | 1.8dB | 60dB | 0.5～5W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR0250G | RF Reflective Switch | SP2T | 2～50GHz | 2dB | 50dB | 0.5W | 50ns | Reflective | 2.4mm | Datasheet |
| RFSP2TR0408G | RF Reflective Switch | SP2T | 4～8GHz | 1.25dB | 80dB | 1W | 500ns | Reflective | SMA | Datasheet |
| RFSP2TR0408GH | High Power RF Switch | SP2T | 4～8GHz | 1dB | 50dB | 120W | 500ns | Reflective | SMA | Datasheet |
| RFSP2TR0408GH-H | Hermetically Sealed High Power RF Switch | SP2T | 4～8GHz | 1dB | 50dB | 120W | 500ns | SMA | Datasheet | |
| RFSP2TR0418M5W | RF Reflective Switch | SP2T | 0.4～1.8GHz | 0.6dB | 70dB | 5W CW 20W PkW |
1000ns | Reflective | SMA | Datasheet |
| RFSP2TR0512GW60 | RF Reflective Switch | SP2T | 5～12GHz | 1.5dB | 40dB | 60W | 150ns | Reflective | SMA | Datasheet |
| RFSP2TR05G19GH | High Power Switch | SP2T | 5～19GHz | 3dB | 50dB | 10W | 250ns | Reflective | SMA | Datasheet |
| RFSP2TR05M25G | High Power RF Switch | SP2T | 0.5～2.5GHz | 0.7dB | 40dB | 200W | 1000ns | Reflective | N | Datasheet |
| RFSP2TR05M25G-H | Hermetically Sealed High Power RF Switch | SP2T | 0.5～2.5GHz | 0.7dB | 40dB | 200W | 1000ns | Reflective | N | Datasheet |
| RFSP2TR0612G | RF Reflective Switch | SP2T | 6～12GHz | 1.5dB | 80dB | 1～5W | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR06G13G | RF Reflective Switch | SP2T | 6～13.5GHz | 1.7dB | 60dB | 20W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR0702G | High Power RF Switch | SP2T | 0.75～2.5GHz | 1dB | 50dB | 50W | 2000ns | Reflective | N | Datasheet |
| RFSP2TR07M27G | High Power RF Switch | SP2T | 0.7～2.7GHz | 0.7dB | 40dB | 200W | 1000ns | Reflective | Coaxial | Datasheet |
| RFSP2TR0818GH | RF Reflective Switch | SP2T | 8～18GHz | 3.5dB | 50dB | 9W CW 150W PkW |
1000ns | Reflective | SMA | Datasheet |
| RFSP2TR0825G | High Power RF Switch | SP2T | 0.75～2.5GHz | 0.7dB | 40dB | 50W CW 240W PkW |
4000ns | Reflective | SMA | Datasheet |
| RFSP2TR1006G | High Power RF Switch | SP2T | 0.01～6GHz | 1dB | 33dB | 40W | 200ns | Reflective | SMA | Datasheet |
| RFSP2TR1006GA | High Power RF Switch | SP2T | 0.01～6GHz | 1dB | 33dB | 40W | 200ns | Reflective | SMA | Datasheet |
| RFSP2TR1006GA-H | Hermetically Sealed High Power RF Switch (28V) | SP2T | 0.01～6GHz | 1dB | 33dB | 40W | 200ns | Reflective | SMA | Datasheet |
| RFSP2TR1006G-H | Hermetically Sealed High Power RF Switch | SP2T | 0.01～6GHz | 1dB | 33dB | 40W | 200ns | Reflective | SMA | Datasheet |
| RFSP2TR1006G-NH | High Power RF Switch | SP2T | 0.01～6GHz | 1dB | 33dB | 40W | 200ns | Reflective | SMA | Datasheet |
| RFSP2TR1350M | RF Reflective Switch | SP2T | 1.34～1.4GHz | 1dB | 80dB | 1W | 50ns | Reflective | SMA | Datasheet |
| RFSP2TR1503GH | High Power RF Switch | SP2T | 1.5～3GHz | 0.6dB | 30dB | 120W | 800ns | Reflective | N | |
| RFSP2TR1G26G | RF Reflective Switch | SP2T | 1～26GHz | 2.5dB | 60dB | 1W | 100ns | Reflective | 2.92mm | Datasheet |
| RFSP2TR1G26G-H | Hermetically Sealed Switch | SP2T | 1～26GHz | 2.5dB | 60dB | 1W | 100ns | Reflective | 2.92mm | Datasheet |
| RFSP2TR1M1G200W | RF Reflective Switch | SP2T | 0.001～1GHz | 0.5dB | 20dB | 200W | 100000ns | Reflective | N | Datasheet |
| RFSP2TR200M350M | RF Reflective Switch | SP2T | 0.1～0.35GHz | 0.7dB | 55dB | 80W | 1000ns | Reflective | N | Datasheet |
| RFSP2TR230M300M | RF Reflective Switch | SP2T | 0.23～0.3GHz | 0.4dB | 40dB | 125W PKW | 1200ns | Reflective | N | Datasheet |
| RFSP2TR24G37G | RF Reflective Switch | SP2T | 24～37GHz | 1.8dB | 28dB | 50W | 100ns | Reflective | 2.92mm | Datasheet |
| RFSP2TR2640GA | High Power RF Switch | SP2T | 26～40GHz | 1.5dB | 25dB | 20W | 100ns | Reflective | 2.92mm | Datasheet |
| RFSP2TR2640GA-H | Hermetically Sealed High Power RF Switch | SP2T | 26～40GHz | 1.5dB | 25dB | 20W | 100ns | 2.92mm | Datasheet | |
| RFSP2TR3M1G200W | High Power RF Switch | SP2T | 0.03～1GHz | 1dB | 35dB | 200W | 12000ns | Reflective | N | Datasheet |
| RFSP2TR3M4G100W | RF Reflective Switch | SP2T | 0.02～3.5GHz | 1.2dB | 30dB | 100W | 12000ns | Reflective | SMA | Datasheet |
| RFSP2TR3M4G100W-H | Hermetically Sealed Switch | SP2T | 0.02～3.5GHz | 1.2dB | 30dB | 100W | 12000ns | Reflective | SMA | Datasheet |
| RFSP2TR52G72G | RF Reflective Switch | SP2T | 52～72GHz | 3.5dB | 30dB | 0.03W | 100ns | Reflective | 1.85mm | Datasheet |
| RFSP2TR5M06G | High Power RF Switch | SP2T | DC～6GHz | 1.3dB | 40dB | 100W PulsedW | 100ns | Reflective | N | Datasheet |
| RFSP2TR5M06GA | High Power RF Switch | SP2T | 0.6～6GHz | 0.6dB | 65dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR5M06GA-28V | High Power RF Switch +28V | SP2T | 0.6～6GHz | 0.6dB | 65dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR5M06GA-H | Hermetically Sealed Switch | SP2T | 0.6～6GHz | 0.6dB | 65dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR5M06GA-NH | High Power RF Switch | SP2T | 0.6～6GHz | 0.6dB | 65dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP2TR5M06G-H | Hermetically Sealed Switch | SP2T | DC～6GHz | 1.3dB | 40dB | 100W PulsedW | 100ns | Reflective | N | |
| RFSP2TR5M06GS | High Power RF Switch | SP2T | 0.01～6GHz | 1.3dB | 40dB | 100W PulsedW | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR5M06GS-H | Hermetically Sealed High Power RF Switch | SP2T | 0.01～6GHz | 1.3dB | 40dB | 100W PulsedW | 100ns | Reflective | SMA | Datasheet |
| RFSP2TR6090GW12 | WR12Waveguide Switch | SP2T | 60～90GHz | 4.5dB | 35dB | 0.2W | 100ns | Reflective | WR12 | Datasheet |
| RFSP2TR65400M | RF Reflective Switch | SP2T | 0.07～0.4GHz | 0.55dB | 65dB | 150W CWW | 800ns | Reflective | SMA | Datasheet |
| RFSP2TRDC04G | RF Reflective Switch | SP2T | DC～4GHz | 0.8dB | 45dB | 1W | 150ns | Reflective | SMA | Datasheet |
| RFSP2TRDC04G-H | Hermetically Sealed Reflective Switch | SP2T | DC～4GHz | 0.8dB | 45dB | 1W | 150ns | Reflective | SMA | Datasheet |
| RFSP2TRDC06G | High Power RF Switch | SP2T | DC～6GHz | 1dB | 35dB | 40W | 150ns | Reflective | SMA | Datasheet |
| RFSP2TRDC12G | High Power RF Switch | SP2T | DC～12GHz | 1dB | 35dB | 20W | 150ns | Reflective | SMA | Datasheet |
| RFSP2TRDC18G | High Power RF Switch | SP2T | DC～18GHz | 1.5dB | 30dB | 10W | 250ns | Reflective | SMA | Datasheet |
| RFSP32TA5M43G | RF Absorptive Switch | SP32T | 0.5～43.5GHz | 28dB | 60dB | 0.5W | 200ns | Absorptive | 2.92mm | Datasheet |
| RFSP3TA0001G | RF Absorptive Switch | SP3T | 0.02～1GHz | 1.6dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0002M | RF Absorptive Switch | SP3T | 0.001～0.2GHz | 1.5dB | 70dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSP3TA0003G | RF Absorptive Switch | SP3T | 0.02～3GHz | 2.5dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0004G | RF Absorptive Switch | SP3T | 0.5～4GHz | 1.7dB | 60dB | 1～5W | 200ns | Absorptive | SMA | |
| RFSP3TA0006G | RF Absorptive Switch | SP3T | 0.8～6GHz | 1.5dB | 60dB | 0.5W | 200ns | Absorptive | SMA | Datasheet |
| RFSP3TA0018G | RF Absorptive Switch | SP3T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0018GA-H | Hermetically Sealed Switch | SP3T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0018GAP-H | Hermetically Sealed Switch | SP3T | 0.02～18GHz | 2.2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0018G-H | Hermetically Sealed Switch | SP3T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0018G-NH | RF Absorptive Switch | SP3T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0018GP | RF Absorptive Switch | SP3T | 0.02～18GHz | 4.5dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0018GP-H | Hermetically Sealed Switch | SP3T | 0.02～18GHz | 2.2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP3TA0102G | RF Absorptive Switch | SP3T | 1～2GHz | 1.4dB | 80dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0106M | RF Absorptive Switch | SP3T | 0.1～0.6GHz | 0.5dB | 70dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP3TA0118G | RF Absorptive Switch | SP3T | 1～18GHz | 3dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0118G-H | Hermetically Sealed RF Absorptive Switch | SP3T | 1～18GHz | 3dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0118G-NH | RF Absorptive Switch | SP3T | 1～18GHz | 3dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0204G | RF Absorptive Switch | SP3T | 2～4GHz | 1.8dB | 80dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0208G | RF Absorptive Switch | SP3T | 2～8GHz | 1.8dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP3TA0218B | RF Absorptive Switch | SP3T | 2～18GHz | 3.6dB | 60dB | 0.5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0220G | RF Absorptive Switch | SP3T | 2～20GHz | 3.6dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP3TA0612G | RF Absorptive Switch | SP3T | 6～12GHz | 2.7dB | 60dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0612G-D | RF Switch | SP3T | 6～12GHz | 2.7dB | 60dB | 1～5W | 50ns | Absorptive | Coaxial | Datasheet |
| RFSP3TA0612GP | RF Absorptive Switch | SP3T | 6～12GHz | 2.4dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP3TA0618G | RF Absorptive Switch | SP3T | 6～18GHz | 3.5dB | 60dB | 0.5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP3TA0843G | RF Absorptive Switch | SP3T | 8～43.5GHz | 3dB | 50dB | 1W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSP3TA1518GAR | High Power RF Switch | SP3T | 15～18GHz | 2.5dB | 70dB | 10W | 1000ns | Absorptive | SMA | Datasheet |
| RFSP3TA5M43G | RF Absorptive Switch | SP3T | 0.5～43.5GHz | 4.5dB | 60dB | 0.1W | 200ns | Absorptive | 2.92mm | Datasheet |
| RFSP3TA5M43G-H | Hermetically Sealed Switch | SP3T | 0.5～43.5GHz | 4.5dB | 60dB | 0.1W | 200ns | Absorptive | 2.92mm | Datasheet |
| RFSP3TA5M50G | RF Absorptive Switch | SP3T | 0.5～50GHz | 4.5dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSP3TR0001G | RF Reflective Switch | SP3T | 0.02～1GHz | 1.2dB | 70dB | 1～100W | 100ns | Reflective | SMA | |
| RFSP3TR0002M | RF Reflective Switch | SP3T | 0.001～0.2GHz | 1dB | 70dB | 1W | 5500ns | Reflective | SMA | |
| RFSP3TR0003G | RF Reflective Switch | SP3T | 0.02～3GHz | 2.2dB | 60dB | 1～30W | 100ns | Reflective | SMA | |
| RFSP3TR0004G | RF Reflective Switch | SP3T | 0.5～4GHz | 1.5dB | 70dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP3TR0018G | RF Reflective Switch | SP3T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | Datasheet |
| RFSP3TR0020G | RF Reflective Switch | SP3T | 0.8～20GHz | 3.5dB | 60dB | 0.5W | 200ns | Reflective | SMA | Datasheet |
| RFSP3TR0102G | RF Reflective Switch | SP3T | 1～2GHz | 1.2dB | 80dB | 1～60W | 50ns | Reflective | SMA | Datasheet |
| RFSP3TR0204GH | High Power RF Switch | SP3T | 2～4GHz | 1dB | 45dB | 50W CW 150W PkW |
2000ns | Reflective | SMA | Datasheet |
| RFSP3TR0204GK | High Power RF Switch | SP3T | 2～4GHz | 1dB | 45dB | 50W CW 150W PkW |
2000ns | Reflective | N | Datasheet |
| RFSP3TR0208G | RF Reflective Switch | SP3T | 2～8GHz | 2dB | 60dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP3TR0218G | RF Reflective Switch | SP3T | 2～18GHz | 3.2dB | 60dB | 0.5W | 50ns | Reflective | SMA | Datasheet |
| RFSP3TR0220G | RF Reflective Switch | SP3T | 2～20GHz | 3.2dB | 60dB | 0.5～5W | 100ns | Reflective | SMA | |
| RFSP3TR0350G | High Power RF Switch | SP3T | 0.2～0.5GHz | 1.2dB | 50dB | 70W | 2000ns | Reflective | N | Datasheet |
| RFSP3TR0361G | High Power RF Switch | SP3T | 0.142～0.58GHz | 1.2dB | 50dB | 50W | 4000ns | Reflective | N | Datasheet |
| RFSP3TR0612G | RF Reflective Switch | SP3T | 6～12GHz | 2.7dB | 60dB | 1W | 50ns | Reflective | SMA | Datasheet |
| RFSP3TR1314G | High Power RF Switch | SP3T | 13～14GHz | 2.5dB | 40dB | 10W | 500ns | Reflective | SMA | Datasheet |
| RFSP3TR5M01G | High Power RF Switch | SP3T | 0.03～1GHz | 0.8dB | 40dB | 200W | 50000ns | Reflective | N | Datasheet |
| RFSP3TR5M01G-H | Hermetically Sealed High Power Switch | SP3T | 0.03～1GHz | 0.8dB | 40dB | 200W | 50000ns | Reflective | N | Datasheet |
| RFSP3TR5M06GA-12VH | High Power RF Switch | SP3T | 0.6～6GHz | 1.5dB | 65dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP3TRDC06G | High Power RF Switch | SP3T | DC～6GHz | 1.6dB | 35dB | 40W | 70ns | Reflective | SMA | Datasheet |
| RFSP3TRDC18G | RF Reflective Switch | SP3T | DC～18GHz | 1.5dB | 50dB | 1W | 150ns | Reflective | SMA | Datasheet |
| RFSP4TA0000G | RF Absorptive Switch | SP4T | 0.02～0.5GHz | 1.6dB | 80dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSP4TA0001G | RF Absorptive Switch | SP4T | 0.02～1GHz | 1.7dB | 70dB | 1～5W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0002M | RF Absorptive Switch | SP4T | 0.001～0.2GHz | 1.6dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0002M2 | RF Absorptive Switch | SP4T | 0.001～0.2GHz | 1.6dB | 70dB | 1W | 250ns | SMA | Datasheet | |
| RFSP4TA0003G | RF Absorptive Switch | SP4T | 0.02～3GHz | 2.7dB | 60dB | 0.2～1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0004G | RF Absorptive Switch | SP4T | 0.5～4GHz | 2dB | 60dB | 0.2～1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA0006G | RF Absorptive Switch | SP4T | 0.016～6GHz | 2.7dB | 55dB | 0.2W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0006G-C2 | RF Absorptive Switch | SP4T | 0.016～6GHz | 2.7dB | 55dB | 1W | 250ns | Absorptive | Datasheet | |
| RFSP4TA0018G | RF Absorptive Switch | SP4T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0018GA | RF Absorptive Switch | SP4T | 0.02～18GHz | 4.5dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0018GA-H | Hermetically Sealed Switch | SP4T | 0.02～18GHz | 4.5dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0018GB | RF Absorptive Switch | SP4T | 0.02～18GHz | 4.5dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0018G-H | Hermetically Sealed Switch | SP4T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0018G-HN | Hermetically Sealed Switch | SP4T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0018GP | RF Absorptive Switch | SP4T | 0.02～18GHz | 2.5dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0018GP-H | Hermetically Sealed Switch | SP4T | 0.02～18GHz | 2.8dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP4TA0102G | RF Absorptive Switch | SP4T | 1～2GHz | 1.4dB | 80dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP4TA0118G | RF Absorptive Switch | SP4T | 1～18GHz | 3.5dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP4TA01M50G | RF Absorptive Switch | SP4T | 0.1～50GHz | 5dB | 50dB | 0.2W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSP4TA0204G | RF Absorptive Switch | SP4T | 2～4GHz | 1.1dB | 80dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA0218G | RF Absorptive Switch | SP4T | 2～18GHz | 3.5dB | 60dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA0218GB | RF Absorptive Switch | SP4T | 2～18GHz | 3dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP4TA0218GC | RF Absorptive Switch | SP4T | 2～18GHz | 3.6dB | 60dB | 0.5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP4TA0218GP | RF Absorptive Switch | SP4T | 2～18GHz | 3.5dB | 70dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA0220G | RF Absorptive Switch | SP4T | 2～20GHz | 3.6dB | 60dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA0220GP | RF Absorptive Switch | SP4T | 2～20GHz | 2dB | 70dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA0250G | RF Absorptive Switch | SP4T | 2～50GHz | 4dB | 50dB | 0.5W | 50ns | Absorptive | 2.4mm | Datasheet |
| RFSP4TA0612G | RF Absorptive Switch | SP4T | 6～12GHz | 3dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP4TA0618G | RF Absorptive Switch | SP4T | 6～18GHz | 3.8dB | 60dB | 0.5W | 50ns | Absorptive | SMA | |
| RFSP4TA0812G | RF Absorptive Switch | SP4T | 8～12GHz | 2.1dB | 60dB | 1～50W | 50ns | Absorptive | SMA | Datasheet |
| RFSP4TA30110G | RF Absorptive Switch | SP4T | 30～110GHz | 20dB | 25dB | 0.025W | 350ns | Absorptive | 1.0mm | Datasheet |
| RFSP4TA3033G | RF Absorptive Switch | SP4T | 30～33GHz | 5dB | 20dB | 0.2～1W | 1000000ns | Absorptive | 2.92mm | Datasheet |
| RFSP4TA3090G | RF Absorptive Switch | SP4T | 30～90GHz | 20dB | 25dB | 0.1W | 100ns | Absorptive | 1.0mm | Datasheet |
| RFSP4TA5M18G | RF Absorptive Switch | SP4T | 0.5～18GHz | 3.5dB | 60dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA5M18G-C2 | RF Absorptive Switch | SP4T | 0.5～18GHz | 3.5dB | 60dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP4TA5M18GP | RF Absorptive Switch | SP4T | 0.5～18GHz | 3.5dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP4TA5M18GP-C2 | RF Absorptive Switch | SP4T | 0.5～18GHz | 2dB | 70dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP4TA5M26G | RF Absorptive Switch | SP4T | 0.5～26.5GHz | 4dB | 45dB | 0.2W | 100ns | Absorptive | SMA | Datasheet |
| RFSP4TA5M43G | RF Absorptive Switch | SP4T | 0.5～43.5GHz | 4.5dB | 60dB | 0.2W | 80ns | Absorptive | 2.92mm | Datasheet |
| RFSP4TA5M43GA | High Isolation RF Switch | SP4T | 0.5～43.5GHz | 7dB | 80dB | 0.2W | 80ns | Absorptive | 2.92mm | Datasheet |
| RFSP4TA5M50G | RF Absorptive Switch | SP4T | 0.05～50GHz | 7dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSP4TA75110GW10 | WR10Waveguide Switch | SP4T | 75～110GHz | 25dB | 25dB | 0.025W | 350ns | Absorptive | WR10 | Datasheet |
| RFSP4TR0000G | RF Reflective Switch | SP4T | 0.02～0.5GHz | 1.5dB | 80dB | 1～200W | 500ns | Reflective | SMA | |
| RFSP4TR0001G | RF Reflective Switch | SP4T | 0.02～1GHz | 1.4dB | 70dB | 1～100W | 100ns | Reflective | SMA | Datasheet |
| RFSP4TR0002M | RF Reflective Switch | SP4T | 0.001～0.2GHz | 1.3dB | 70dB | 1W | 5500ns | Reflective | SMA | |
| RFSP4TR0003G | RF Reflective Switch | SP4T | 0.02～3GHz | 2.4dB | 60dB | 1～50W | 100ns | Reflective | SMA | |
| RFSP4TR0004G | RF Reflective Switch | SP4T | 0.5～4GHz | 1.8dB | 60dB | 1～30W | 50ns | Reflective | SMA | Datasheet |
| RFSP4TR0018G | RF Reflective Switch | SP4T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | Datasheet |
| RFSP4TR0060G | RF Reflective Switch | SP4T | 0.001～60GHz | 7.5dB | 35dB | 0.5W | 50ns | Reflective | 1.85mm | Datasheet |
| RFSP4TR0075G | RF Reflective Switch | SP4T | 0.001～75GHz | 9dB | 30dB | 0.1W | 500ns | Reflective | 1.85mm | Datasheet |
| RFSP4TR0075G-1.0MM | RF Reflective Switch | SP4T | 0.001～75GHz | 9dB | 30dB | 0.1W | 500ns | Reflective | 1.0mm | |
| RFSP4TR0102G | RF Reflective Switch | SP4T | 1～2GHz | 1.2dB | 80dB | 1～100W | 50ns | Reflective | SMA | Datasheet |
| RFSP4TR0102G10 | High Power RF Switch | SP4T | 1～6GHz | 2dB | 60dB | 10W | 400ns | Reflective | SMA | Datasheet |
| RFSP4TR0118GW20 | High Power RF Switch | SP4T | 1～18GHz | 3.5dB | 45dB | 20W | 800ns | reflective | SMA | Datasheet |
| RFSP4TR0125M | RF Reflective Switch | SP4T | 0.115～0.14GHz | 5.1dB | 90dB | 1W | 500ns | Reflective | SMA | Datasheet |
| RFSP4TR0204G | RF Reflective Switch | SP4T | 2～4GHz | 1.4dB | 80dB | 1～50W | 50ns | Reflective | SMA | Datasheet |
| RFSP4TR0206M | High Power RF Switch | SP4T | 0.225～0.6GHz | 0.5dB | 40dB | 10W | 2000ns | Reflective | SMA | Datasheet |
| RFSP4TR0208G | RF Reflective Switch | SP4T | 2～8GHz | 2.2dB | 60dB | 1～5W | 50ns | Reflective | SMA | Datasheet |
| RFSP4TR0218G | RF Reflective Switch | SP4T | 2～18GHz | 2.9dB | 80dB | 1～5W | 50ns | Reflective | SMA | Datasheet |
| RFSP4TR0220G | RF Reflective Switch | SP4T | 2～20GHz | 2.5dB | 80dB | 0.5～5W | 100ns | Reflective | SMA | Datasheet |
| RFSP4TR0220GBE | RF Reflective Switch | SP4T | 2～20GHz | 2.5dB | 80dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP4TR0512GW60 | RF Reflective Switch | SP4T | 5～12GHz | 2.5dB | 40dB | 50W | 150ns | Reflective | SMA | Datasheet |
| RFSP4TR0612G | RF Reflective Switch | SP4T | 6～12GHz | 2.9dB | 60dB | 1～5W | 50ns | Reflective | SMA | |
| RFSP4TR0618G | RF Reflective Switch | SP4T | 6～18GHz | 3.4dB | 50dB | 1～5W | 50ns | Reflective | SMA | Datasheet |
| RFSP4TR0812G | RF Reflective Switch | SP4T | 8～12GHz | 2dB | 60dB | 1W | 200ns | Reflective | SMA | Datasheet |
| RFSP4TR0812GP | RF Reflective Switch | SP4T | 8～12GHz | 2dB | 70dB | 1W | 200ns | Reflective | SMA | Datasheet |
| RFSP4TR1G26G | RF Reflective Switch | SP4T | 1～26GHz | 4.5dB | 55dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP4TR1G26G-H | Hermetically Sealed Switch | SP4T | 1～26GHz | 4.5dB | 55dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP4TR2640GA | High Power RF Switch | SP4T | 26～40GHz | 2.5dB | 25dB | 20W | 100ns | Reflective | 2.92mm | Datasheet |
| RFSP4TR3M1G200W | High Power RF Switch | SP4T | 0.03～1GHz | 1.5dB | 35dB | 200W | 35000ns | Reflective | N | Datasheet |
| RFSP4TR3M4G100W | RF Reflective Switch | SP4T | 0.02～3.5GHz | 2dB | 30dB | 100W | 12000ns | Reflective | SMA | Datasheet |
| RFSP4TR50G90G | RF Reflective Switch | SP4T | 50～90GHz | 11dB | 30dB | 0.1W | 100ns | Reflective | 1.0mm | Datasheet |
| RFSP4TR52G72G | RF Reflective Switch | SP4T | 52～72GHz | 7dB | 30dB | 0.03W | 100ns | Reflective | 1.85mm | Datasheet |
| RFSP4TR5M01G | High Power RF Switch | SP4T | 0.05～1GHz | 0.5dB | 50dB | 200W | 5000ns | Reflective | N | |
| RFSP4TR5M06G | High Power RF Switch | SP4T | 0.5～6GHz | 2.8dB | 40dB | 100W | 1200ns | Reflective | SMA | Datasheet |
| RFSP4TR5M06GA | High Power RF Switch | SP4T | 0.6～6GHz | 0.8dB | 65dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP4TR5M06G-H | Hermetically Sealed Switch | SP4T | 0.5～6GHz | 2.8dB | 40dB | 100W | 1200ns | Reflective | SMA | Datasheet |
| RFSP4TR6090GW12 | WR12Waveguide Switch | SP4T | 60～90GHz | 11dB | 30dB | 0.2W | 100ns | Reflective | WR12 | Datasheet |
| RFSP4TR950M1100M | High Peak Power Reflective Switch | SP4T | 0.95～1.1GHz | 0.5dB | 30dB | 3000W | Reflective | N | ||
| RFSP4TRDC06G | High Power RF Switch | SP4T | DC～6GHz | 0.85dB | 35dB | 40W | 250ns | Reflective | SMA | Datasheet |
| RFSP4TRDC06G-H | Hermetically Sealed Switch | SP4T | DC～6GHz | 0.85dB | 35dB | 40W | 250ns | Reflective | SMA | Datasheet |
| RFSP4TRDC12G | High Power RF Switch | SP4T | DC～12GHz | 2.5dB | 35dB | 20W | 250ns | Reflective | SMA | Datasheet |
| RFSP4TRDC18G | High Power RF Switch | SP4T | DC～18GHz | 2.5dB | 30dB | 10W | 500ns | Reflective | SMA | Datasheet |
| RFSP5TA0001G | RF Absorptive Switch | SP5T | 0.02～1GHz | 1.7dB | 70dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSP5TA0002M | RF Absorptive Switch | SP5T | 0.001～0.2GHz | 1.6dB | 70dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSP5TA0003G | RF Absorptive Switch | SP5T | 0.02～3GHz | 2.8dB | 60dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSP5TA0004G | RF Absorptive Switch | SP5T | 0.5～4GHz | 2dB | 60dB | 1～5W | 200ns | Absorptive | SMA | |
| RFSP5TA0005M | RF Absorptive Switch | SP5T | 0.02～0.5GHz | 1.6dB | 80dB | 1～5W | 250ns | Absorptive | SMA | Datasheet |
| RFSP5TA0018G | RF Absorptive Switch | SP5T | 0.02～18GHz | 3dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP5TA0018G-C3 | RF Absorptive Switch | SP5T | 0.02～18GHz | 3dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP5TA0018G-C3-H | RF Absorptive Switch | SP5T | 0.2～18GHz | 3dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP5TA0102G | RF Absorptive Switch | SP5T | 1～2GHz | 1.5dB | 80dB | 0.2～50W | 50ns | Absorptive | SMA | |
| RFSP5TA0118G | RF Absorptive Switch | SP5T | 1～18GHz | 3.5dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP5TA0204G | RF Absorptive Switch | SP5T | 2～4GHz | 1.9dB | 80dB | 0.2～50W | 50ns | Absorptive | SMA | |
| RFSP5TA0208G | RF Absorptive Switch | SP5T | 2～8GHz | 2.4dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP5TA0218B | RF Absorptive Switch | SP5T | 2～18GHz | 3.9dB | 60dB | 0.5W | 50ns | Absorptive | SMA | |
| RFSP5TA0220G | RF Absorptive Switch | SP5T | 2～20GHz | 3.9dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP5TA0501G | RF Absorptive Switch | SP5T | 0.5～1GHz | 1.7dB | 80dB | 1～5W | 200ns | Absorptive | SMA | |
| RFSP5TA0612G | RF Absorptive Switch | SP5T | 6～12GHz | 3dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP5TA0618G | RF Absorptive Switch | SP5T | 6～18GHz | 3.8dB | 60dB | 0.5W | 50ns | Absorptive | SMA | |
| RFSP5TA5M43G | RF Absorptive Switch | SP5T | 0.5～43.5GHz | 7dB | 60dB | 0.1W | 200ns | Absorptive | 2.92mm | Datasheet |
| RFSP5TA5M50G | RF Absorptive Switch | SP5T | 0.05～50GHz | 7dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSP5TADC18G | RF Absorptive Switch | SP5T | DC～18GHz | 2.5dB | 40dB | 0.5W | 100ns | Absorptive | SMA | Datasheet |
| RFSP5TR0001G | RF Reflective Switch | SP5T | 0.02～1GHz | 1.6dB | 70dB | 1～100W | 100ns | Reflective | SMA | |
| RFSP5TR0002M | RF Absorptive Switch | SP5T | 0.001～0.2GHz | 1.5dB | 70dB | 1W | 5500ns | Reflective | SMA | |
| RFSP5TR0003G | RF Reflective Switch | SP5T | 0.02～3GHz | 2.6dB | 60dB | 1～100W | 100ns | Reflective | SMA | |
| RFSP5TR0004G | RF Reflective Switch | SP5T | 0.5～4GHz | 2dB | 60dB | 1W | 200ns | Reflective | SMA | |
| RFSP5TR0005M | RF Reflective Switch | SP5T | 0.02～0.5GHz | 1.5dB | 80dB | 1～200W | 500ns | Reflective | SMA | |
| RFSP5TR0018G | RF Reflective Switch | SP5T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | |
| RFSP5TR0020G | RF Reflective Switch | SP5T | 0.8～20GHz | 4dB | 60dB | 0.5W | 200ns | Reflective | SMA | Datasheet |
| RFSP5TR0102G | RF Reflective Switch | SP5T | 1～2GHz | 1.3dB | 80dB | 0.2～200W | 50ns | Reflective | SMA | |
| RFSP5TR0204G | RF Reflective Switch | SP5T | 2～4GHz | 1.5dB | 80dB | 0.2～200W | 50ns | Reflective | SMA | |
| RFSP5TR0208G | RF Reflective Switch | SP5T | 2～8GHz | 2.4dB | 60dB | 5W | 50ns | Reflective | SMA | Datasheet |
| RFSP5TR0218G | RF Reflective Switch | SP5T | 2～18GHz | 3dB | 80dB | 0.5W | 50ns | Reflective | SMA | |
| RFSP5TR0220G | RF Reflective Switch | SP5T | 2～20GHz | 3dB | 80dB | 0.5～5W | 100ns | Reflective | SMA | |
| RFSP5TR0501G | RF Reflective Switch | SP5T | 0.5～1GHz | 1.6dB | 80dB | 1～200W | 100ns | Reflective | SMA | |
| RFSP5TR0612G | RF Reflective Switch | SP5T | 6～12GHz | 3dB | 60dB | 1W | 50ns | Reflective | SMA | Datasheet |
| RFSP5TR0618G | RF Reflective Switch | SP5T | 6～18GHz | 3.5dB | 60dB | 0.5W | 50ns | Reflective | SMA | Datasheet |
| RFSP5TR2M40G-H | Hermetically Sealed RF Reflective Switch | SP5T | 0.2～43.5GHz | 7dB | 50dB | 0.2W | 100ns | Reflective | 2.92mm | Datasheet |
| RFSP6TA0001G | RF Absorptive Switch | SP6T | 0.02～1GHz | 1.7dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP6TA0001GA | RF Absorptive Switch | SP6T | 0.02～1GHz | 1.7dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP6TA0001GAP | RF Absorptive Switch | SP6T | 0.001～1GHz | 1.8dB | 70dB | 1W | 10000ns | Absorptive | SMA | Datasheet |
| RFSP6TA0001GP | RF Absorptive Switch | SP6T | 0.001～1GHz | 1.8dB | 75dB | 1W | 10000ns | Absorptive | SMA | Datasheet |
| RFSP6TA0002M | RF Absorptive Switch | SP6T | 0.001～0.2GHz | 1.6dB | 70dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSP6TA0003G | RF Absorptive Switch | SP6T | 0.02～3GHz | 2.8dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP6TA0005M | RF Absorptive Switch | SP6T | 0.02～0.5GHz | 1.7dB | 80dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSP6TA0018G | RF Absorptive Switch | SP6T | 0.02～18GHz | 3dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP6TA0018GA | Absorptive RF Switch | SP6T | 0.02～18GHz | 3dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP6TA0102G | RF Absorptive Switch | SP6T | 1～2GHz | 1.6dB | 80dB | 1～5W | 50ns | Absorptive | SMA | |
| RFSP6TA0118G | RF Absorptive Switch | SP6T | 1～18GHz | 3.8dB | 60dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP6TA0118G-H | Hermetically Sealed RF Absorptive Switch | SP6T | 1～18GHz | 3.8dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP6TA0118G-NH | RF Absorptive Switch | SP6T | 1～18GHz | 3.8dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP6TA0118GP | RF Absorptive Switch | SP6T | 1～18GHz | 2.5dB | 60dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP6TA0204G | RF Absorptive Switch | SP6T | 2～4GHz | 2dB | 80dB | 1～5W | 50ns | Absorptive | SMA | |
| RFSP6TA0208G | RF Absorptive Switch | SP6T | 2～8GHz | 2.4dB | 60dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSP6TA0218B | RF Absorptive Switch | SP6T | 2～18GHz | 4.1dB | 60dB | 1～5W | 50ns | Absorptive | SMA | |
| RFSP6TA0220G | RF Absorptive Switch | SP6T | 2～20GHz | 4.1dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP6TA02M18G | RF Absorptive Switch | SP6T | 0.2～18GHz | 4.5dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP6TA0501G | RF Absorptive Switch | SP6T | 0.5～1GHz | 1.8dB | 80dB | 1～5W | 200ns | Absorptive | SMA | |
| RFSP6TA0612G | RF Absorptive Switch | SP6T | 6～12GHz | 3dB | 70dB | 1W | 200ns | Absorptive | SMA | Datasheet |
| RFSP6TA0618G | RF Absorptive Switch | SP6T | 6～18GHz | 3.8dB | 60dB | 1～5W | 50ns | Absorptive | SMA | |
| RFSP6TA5M04G | RF Absorptive Switch | SP6T | 0.5～4GHz | 2dB | 60dB | 1～5W | 200ns | Absorptive | SMA | Datasheet |
| RFSP6TA5M43G | RF Absorptive Switch | SP6T | 0.5～43.5GHz | 7dB | 60dB | 0.1W | 100ns | Absorptive | 2.92mm | Datasheet |
| RFSP6TA5M50G | RF Absorptive Switch | SP6T | 0.05～50GHz | 7dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | |
| RFSP6TADC18G | RF Absorptive Switch | SP6T | DC～18GHz | 3dB | 47dB | 0.5W | 100ns | Absorptive | SMA | Datasheet |
| RFSP6TR0001G | RF Reflective Switch | SP6T | 0.02～1GHz | 1.6dB | 70dB | 1～100W | 500ns | Reflective | SMA | Datasheet |
| RFSP6TR0002M | RF Reflective Switch | SP6T | 0.001～0.2GHz | 1.5dB | 70dB | 1W | 5500ns | Reflective | SMA | |
| RFSP6TR0003G | RF Reflective Switch | SP6T | 0.02～3GHz | 2.6dB | 60dB | 1～100W | 500ns | Reflective | SMA | Datasheet |
| RFSP6TR0004G | RF Reflective Switch | SP6T | 0.5～4GHz | 2dB | 60dB | 1～100W | 200ns | Reflective | SMA | |
| RFSP6TR0005M | RF Reflective Switch | SP6T | 0.02～0.5GHz | 1.6dB | 80dB | 1～200W | 500ns | Reflective | SMA | |
| RFSP6TR0018G | RF Reflective Switch | SP6T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | |
| RFSP6TR0102G | RF Reflective Switch | SP6T | 1～2GHz | 1.4dB | 80dB | 1～200W | 100ns | Reflective | SMA | |
| RFSP6TR0204G | RF Reflective Switch | SP6T | 2～4GHz | 1.6dB | 80dB | 1～100W | 100ns | Reflective | SMA | |
| RFSP6TR0208G | RF Reflective Switch | SP6T | 2～8GHz | 2.4dB | 60dB | 1～50W | 100ns | Reflective | SMA | |
| RFSP6TR0218G | RF Reflective Switch | SP6T | 2～18GHz | 3.2dB | 80dB | 1～10W | 100ns | Reflective | SMA | |
| RFSP6TR0220G | RF Reflective Switch | SP6T | 2～20GHz | 3.2dB | 80dB | 0.5～5W | 100ns | Reflective | SMA | Datasheet |
| RFSP6TR0501G | RF Reflective Switch | SP6T | 0.5～1GHz | 1.7dB | 80dB | 1～200W | 200ns | Reflective | SMA | |
| RFSP6TR0612G | RF Reflective Switch | SP6T | 6～12GHz | 3dB | 60dB | 1～30W | 100ns | Reflective | SMA | |
| RFSP6TR0618G | RF Reflective Switch | SP6T | 6～18GHz | 3.5dB | 60dB | 1～10W | 100ns | Reflective | SMA | |
| RFSP7TA0001G | RF Absorptive Switch | SP7T | 0.02～1GHz | 1.9dB | 70dB | 0.2～1W | 250ns | Absorptive | SMA | |
| RFSP7TA0002M | RF Absorptive Switch | SP7T | 0.001～0.2GHz | 1.8dB | 70dB | 0.2～1W | 250ns | Absorptive | SMA | |
| RFSP7TA0003G | RF Absorptive Switch | SP7T | 0.02～3GHz | 3dB | 60dB | 0.2～1W | 250ns | Absorptive | SMA | |
| RFSP7TA0004G | RF Absorptive Switch | SP7T | 0.5～4GHz | 2dB | 60dB | 0.2～1W | 200ns | Absorptive | SMA | |
| RFSP7TA0018G | RF Absorptive Switch | SP7T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | |
| RFSP7TA0102G | RF Absorptive Switch | SP7T | 1～2GHz | 1.6dB | 80dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP7TA0204G | RF Absorptive Switch | SP7T | 2～4GHz | 1.6dB | 80dB | 1～10W | 50ns | Absorptive | SMA | |
| RFSP7TA0208G | RF Absorptive Switch | SP7T | 2～8GHz | 2.4dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP7TA0218B | RF Absorptive Switch | SP7T | 2～18GHz | 4.4dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP7TA0220G | RF Absorptive Switch | SP7T | 2～20GHz | 4.4dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP7TA0612G | RF Absorptive Switch | SP7T | 6～12GHz | 3.6dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP7TA1545G | RF Absorptive Switch | SP7T | 1.5～4.5GHz | 2dB | 60dB | 1W | 150ns | Absorptive | SMA | Datasheet |
| RFSP7TA5M43G | RF Absorptive Switch | SP7T | 0.5～43.5GHz | 7dB | 60dB | 0.1W | 200ns | Absorptive | 2.92mm | |
| RFSP7TA5M50G | RF Absorptive Switch | SP7T | 0.05～50GHz | 7dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | |
| RFSP7TR0001G | RF Reflective Switch | SP7T | 0.02～1GHz | 1.8dB | 70dB | 1～200W | 500ns | Reflective | SMA | |
| RFSP7TR0002M | RF Reflective Switch | SP7T | 0.001～0.2GHz | 1.7dB | 70dB | 1W | 5500ns | Reflective | SMA | |
| RFSP7TR0003G | RF Reflective Switch | SP7T | 0.02～3GHz | 2.8dB | 60dB | 1～200W | 500ns | Reflective | SMA | |
| RFSP7TR0004G | RF Reflective Switch | SP7T | 0.5～4GHz | 2dB | 60dB | 1～100W | 200ns | Reflective | SMA | |
| RFSP7TR0018G | RF Reflective Switch | SP7T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | |
| RFSP7TR0102G | RF Reflective Switch | SP7T | 1～2GHz | 1.4dB | 80dB | 1～200W | 100ns | Reflective | SMA | |
| RFSP7TR0204G | RF Reflective Switch | SP7T | 2～4GHz | 1.6dB | 80dB | 1～100W | 100ns | Reflective | SMA | |
| RFSP7TR0208G | RF Reflective Switch | SP7T | 2～8GHz | 2.4dB | 60dB | 1～50W | 100ns | Reflective | SMA | |
| RFSP7TR0218G | RF Reflective Switch | SP7T | 2～18GHz | 3.5dB | 60dB | 1～10W | 100ns | Reflective | SMA | |
| RFSP7TR0220G | RF Reflective Switch | SP7T | 2～20GHz | 3.5dB | 60dB | 0.5～5W | 100ns | Reflective | SMA | |
| RFSP7TR0612G | RF Reflective Switch | SP7T | 6～12GHz | 3dB | 60dB | 1～30W | 100ns | Reflective | SMA | |
| RFSP8TA0001G | RF Absorptive Switch | SP8T | 0.02～1GHz | 2dB | 70dB | 0.2～1W | 250ns | Absorptive | SMA | |
| RFSP8TA0002M | RF Absorptive Switch | SP8T | 0.001～0.2GHz | 1.9dB | 70dB | 0.2～1W | 250ns | Absorptive | SMA | |
| RFSP8TA0003G | RF Absorptive Switch | SP8T | 0.02～3GHz | 3.2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0004G | RF Absorptive Switch | SP8T | 0.5～4GHz | 2.9dB | 60dB | 0.2～1W | 200ns | Absorptive | SMA | |
| RFSP8TA0006G | RF Absorptive Switch | SP8T | 0.05～6GHz | 3.2dB | 60dB | 0.2～1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0006G3D | 3D 360 Degree Rotating RF Switch | SP8T | 0.05～6GHz | 3.2dB | 60dB | 1W | 250ns | Absorptive | SMA | |
| RFSP8TA0006GA | Absorptive Switch | SP8T | 0.05～6GHz | 3.2dB | 60dB | 1W | 500ns | Absorptive | SMA | Datasheet |
| RFSP8TA0006G-H | Hermetically Sealed Switch | SP8T | 0.5～6GHz | 3.2dB | 60dB | 1W | 250ns | Absorptive | Coaxial | Datasheet |
| RFSP8TA0018G | RF Absorptive Switch | SP8T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0018G2 | RF Absorptive Switch | SP8T | 0.02～18GHz | 2dB | 60dB | 1W | 500ns | Absorptive | SMA | Datasheet |
| RFSP8TA0018G3D | 3D 360 Degree Rotating RF Switch | SP8T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | |
| RFSP8TA0018GA | RF Absorptive SwitchWith OFF state | SP8T | 0.02～18GHz | 4dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0018GP | RF Absorptive Switch | SP8T | 0.02～18GHz | 4.5dB | 75dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0018GP-RS422 | RF Absorptive Switch | SP8T | 0.02～18GHz | 4.5dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0018G-RS422 | RF Absorptive SwitchWith RS422 Logic | SP8T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0102G | RF Absorptive Switch | SP8T | 1～2GHz | 1.7dB | 80dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP8TA0118G | RF Absorptive Switch | SP8T | 1～18GHz | 4.5dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP8TA0118GP | RF Absorptive Switch | SP8T | 1～18GHz | 2.2dB | 60dB | 1W | 120ns | Absorptive | SMA | Datasheet |
| RFSP8TA01M40G | Absorptive Switch | SP8T | 0.1～40GHz | 11dB | 65dB | 0.2W | 100ns | Absorptive | 2.92mm (K) | Datasheet |
| RFSP8TA01M50G | RF Absorptive Switch | SP8T | 0.1～50GHz | 8dB | 50dB | 0.2W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSP8TA0204G | RF Absorptive Switch | SP8T | 2～4GHz | 2dB | 80dB | 0.2～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP8TA0208G | RF Absorptive Switch | SP8T | 2～8GHz | 3.3dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | |
| RFSP8TA0218G | RF Absorptive Switch | SP8T | 2～18GHz | 2.5dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP8TA0220G | RF Absorptive Switch | SP8T | 2～20GHz | 2.5dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSP8TA0245G | RF Absorptive Switch | SP8T | 2～45GHz | 6dB | 50dB | 0.5W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSP8TA0250G | RF Absorptive Switch | SP8T | 2～50GHz | 6dB | 50dB | 0.5W | 50ns | Absorptive | 2.4mm | Datasheet |
| RFSP8TA0250G3D | 3D 360 Degree Rotating RF Switch | SP8T | 2～50GHz | 6dB | 50dB | 0.5W | 100ns | Absorptive | 2.4mm | |
| RFSP8TA0253GA | RF Swtich | SP8T | 2～53GHz | 8.5dB | 50dB | 0.2W | 100ns | Absorptive | 1.85mm | Datasheet |
| RFSP8TA02M18G | RF Absorptive Switch | SP8T | 0.002～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSP8TA0408G | RF Absorptive Switch | SP8T | 4～8GHz | 2dB | 70dB | 0.2～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP8TA0612G | RF Absorptive Switch | SP8T | 6～12GHz | 3.9dB | 60dB | 0.2～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSP8TA2453GA | RF Swtich | SP8T | 24～53GHz | 8.5dB | 50dB | 0.2W | 100ns | Absorptive | 1.85mm | Datasheet |
| RFSP8TA3090G | RF Absorptive Switch | SP8T | 30～90GHz | 25dB | 25dB | 0.1W | 100ns | Absorptive | 1.0mm | Datasheet |
| RFSP8TA5M26G | RF Absorptive Switch | SP8T | 0.5～26.5GHz | 5.5dB | 45dB | 0.2W | 100ns | Absorptive | SMA | Datasheet |
| RFSP8TA5M43G | RF Absorptive Switch | SP8T | 0.5～43.5GHz | 7dB | 60dB | 0.1W | 200ns | Absorptive | 2.92mm | Datasheet |
| RFSP8TA5M43G3D | 3D 360 Degree Rotating RF Switch | SP8T | 0.5～43.5GHz | 7dB | 60dB | 0.5W | 250ns | Absorptive | 2.92mm | Datasheet |
| RFSP8TA5M43GA | RF Absorptive Switch | SP8T | 0.5～43.5GHz | 7dB | 60dB | 0.1W | 250ns | Absorptive | 2.92mm | Datasheet |
| RFSP8TA5M43GC | RF Absorptive Switch | SP8T | 0.5～43.5GHz | 7dB | 60dB | 0.5W | 200ns | Absorptive | 2.4mm | Datasheet |
| RFSP8TA5M50G | RF Switch (discontinued) | SP8T | 0.05～50GHz | 7dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | |
| RFSP8TR0001G | RF Reflective Switch | SP8T | 0.02～1GHz | 1.8dB | 70dB | 1～100W | 100ns | Reflective | SMA | |
| RFSP8TR0002M | RF Reflective Switch | SP8T | 0.001～0.2GHz | 1.7dB | 70dB | 1～200W | 1000ns | Reflective | SMA | |
| RFSP8TR0003G | RF Reflective Switch | SP8T | 0.02～3GHz | 3dB | 60dB | 1～30W | 100ns | Reflective | SMA | |
| RFSP8TR0004G | RF Reflective Switch | SP8T | 0.5～4GHz | 2dB | 60dB | 1～10W | 50ns | Reflective | SMA | |
| RFSP8TR0018G | RF Reflective Switch | SP8T | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | Datasheet |
| RFSP8TR0020G | RF Reflective Switch | SP8T | 0.8～20GHz | 5dB | 60dB | 0.5W | 200ns | Reflective | SMA | Datasheet |
| RFSP8TR0060G | RF Reflective Switch | SP8T | 0.001～60GHz | 11dB | 35dB | 0.5W | 50ns | Reflective | 1.85mm | Datasheet |
| RFSP8TR0075G | RF Reflective Switch | SP8T | 0.001～75GHz | 15dB | 30dB | 0.1W | 250ns | Reflective | 1.85mm | Datasheet |
| RFSP8TR0102G | RF Reflective Switch | SP8T | 1～2GHz | 1.4dB | 80dB | 1～30W | 5000ns | Reflective | SMA | |
| RFSP8TR0118GW20 | High Power RF Switch | SP8T | 1～18GHz | 6.5dB | 45dB | 20W | 800ns | reflective | SMA | Datasheet |
| RFSP8TR01M40G | RF Reflective Switch | SP8T | 0.1～40GHz | 5dB | 30dB | 1W | 100ns | Reflective | 2.92mm | Datasheet |
| RFSP8TR0204G | RF Reflective Switch | SP8T | 2～4GHz | 1.7dB | 80dB | 1～50W | 50ns | Reflective | SMA | Datasheet |
| RFSP8TR0208G | RF Reflective Switch | SP8T | 2～8GHz | 2.4dB | 60dB | 1～30W | 50ns | Reflective | SMA | |
| RFSP8TR0218G | RF Reflective Switch | SP8T | 2～18GHz | 2.5dB | 80dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP8TR0220G | RF Reflective Switch | SP8T | 2～20GHz | 2.5dB | 80dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSP8TR0408G | RF Reflective Switch | SP8T | 4～8GHz | 2dB | 70dB | 1～50W | 50ns | Reflective | SMA | Datasheet |
| RFSP8TR0612G | RF Reflective Switch | SP8T | 6～12GHz | 3dB | 60dB | 1～5W | 50ns | Reflective | SMA | Datasheet |
| RFSP8TR1030M1090M | RF Reflective Switch | SP8T | 1～1.1GHz | 1dB | 60dB | 100W CW 550W PkW |
1000ns | Reflective | SMA | Datasheet |
| RFSP8TR50G90G | RF Reflective Switch | SP8T | 50～90GHz | 15dB | 30dB | 0.1W | 100ns | Reflective | 1.0mm | Datasheet |
| RFSP8TR52G72G | RF Reflective Switch | SP8T | 52～72GHz | 8.5dB | 30dB | 0.03W | 100ns | Reflective | 1.85mm | Datasheet |
| RFSP8TR5M06G | High Power RF Switch 50W CW 100W Peak | SP8T | DC～6GHz | 3.5dB | 40dB | 50W | 250ns | Reflective | SMA | Datasheet |
| RFSP8TR5M06GA | High Power RF Switch 100W CW | SP8T | 0.6～6GHz | 1.5dB | 50dB | 100W | 1000ns | Reflective | SMA | Datasheet |
| RFSP8TR6090GW12 | WR12Waveguide Switch | SP8T | 60～90GHz | 13dB | 30dB | 0.2W | 100ns | Reflective | WR12 | Datasheet |
| RFSP8TRDC12G | High Power RF Switch | SP8T | DC～12GHz | 3dB | 35dB | 20W | 250ns | Reflective | SMA | Datasheet |
| RFSP8TRDC18G | High Power RF Switch | SP8T | DC～18GHz | 4dB | 40dB | 10W | 500ns | Reflective | SMA | Datasheet |
| RFSPSTA0000G | RF Absorptive Switch | SPST | 0.02～0.5GHz | 2.2dB | 80dB | 1～5W | 250ns | Absorptive | SMA | |
| RFSPSTA0001G | RF Absorptive Switch | SPST | 0.02～1GHz | 1.5dB | 70dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSPSTA0002M | RF Absorptive Switch | SPST | 0.001～0.2GHz | 1.3dB | 70dB | 1W | 5000ns | Absorptive | SMA | Datasheet |
| RFSPSTA0003G | RF Absorptive Switch | SPST | 0.02～3GHz | 2.4dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSPSTA0003G-H | RF Absorptive Switch (Hermetically Sealed) | SPST | 0.02～3GHz | 2.4dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSPSTA0003GR | RF Absorptive Switch | SPST | 0.02～12.5GHz | 1dB | 80dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSPSTA0004G | RF Absorptive Switch | SPST | 0.5～4GHz | 1dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSPSTA0004GV | RF Absorptive Switch | SPST | 0.5～4GHz | 1dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSPSTA0006G | RF Absorptive Switch | SPST | 0.09～5.7GHz | 2.2dB | 60dB | 1～5W | 250ns | Absorptive | SMA | Datasheet |
| RFSPSTA0006GR | RF Absorptive Switch | SPST | 0.09～5.7GHz | 2.5dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSPSTA0018G | RF Absorptive Switch | SPST | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Absorptive | SMA | Datasheet |
| RFSPSTA0102G | RF Absorptive Switch | SPST | 1～2GHz | 1dB | 80dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0118G | RF Absorptive Switch | SPST | 1～18GHz | 3dB | 60dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0118GP | RF Absorptive Switch | SPST | 1～18GHz | 1.5dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSPSTA0120G | RF Absorptive Switch | SPST | 1～20GHz | 3dB | 70dB | 0.2～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0204G | RF Absorptive Switch | SPST | 2～4GHz | 1.6dB | 80dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0208G | RF Absorptive Switch | SPST | 2～8GHz | 1.2dB | 80dB | 1～5W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0218G | RF Absorptive Switch | SPST | 2～18GHz | 2dB | 70dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0218G-12V | RF Absorptive Switch (+12V supply, TTL 5V) | SPST | 2～18GHz | 2dB | 70dB | 1W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0218GP | RF Absorptive Switch | SPST | 2～18GHz | 1.5dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSPSTA0218GP-12V | RF Absorptive Switch | SPST | 2～18GHz | 1.5dB | 80dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSPSTA0220G | RF Absorptive Switch | SPST | 2～20GHz | 2dB | 70dB | 0.2～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0250G | RF Absorptive Switch | SPST | 2～50GHz | 2dB | 50dB | 0.5W | 50ns | Absorptive | 2.4mm | |
| RFSPSTA0612G | RF Absorptive Switch | SPST | 6～12GHz | 2.5dB | 60dB | 0.5～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA0840G | RF Absorptive Switch | SPST | 8～40GHz | 4dB | 50dB | 0.5W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSPSTA1218G | RF Absorptive Switch | SPST | 12～18GHz | 3.2dB | 65dB | 0.5～1W | 50ns | Absorptive | SMA | Datasheet |
| RFSPSTA1840G | RF Absorptive Switch | SPST | 18～40GHz | 4dB | 50dB | 1W | 50ns | Absorptive | 2.92mm | Datasheet |
| RFSPSTA3033G | RF Absorptive Switch | SPST | 30～33GHz | 3dB | 25dB | 1W | 1000000ns | Absorptive | 2.92mm | Datasheet |
| RFSPSTA5M43G | RF Absorptive Switch | SPST | 0.5～43.5GHz | 4dB | 60dB | 0.1W | 100ns | Absorptive | 2.92mm | Datasheet |
| RFSPSTA5M50G | RF Absorptive Switch | SPST | 0.05～50GHz | 4dB | 60dB | 0.1W | 100ns | Absorptive | 2.4mm | Datasheet |
| RFSPSTADC20G | RF Absorptive Switch | SPST | DC～20GHz | 1.5dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSPSTADC20G-H | Hermetically Sealed Switch | SPST | DC～20GHz | 1.5dB | 60dB | 1W | 100ns | Absorptive | SMA | Datasheet |
| RFSPSTADC20G-I | RF Absorptive Switch | SPST | DC～20GHz | 1.5dB | 60dB | 1W | 100ns | SMA | ||
| RFSPSTR0000G | RF Reflective Switch | SPST | 0.02～0.5GHz | 2dB | 80dB | 1～200W | 100ns | Reflective | SMA | |
| RFSPSTR0001G | RF Reflective Switch | SPST | 0.02～1GHz | 0.9dB | 70dB | 1～100W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0002M | RF Reflective Switch | SPST | 0.001～0.2GHz | 0.7dB | 70dB | 1W | 1000ns | Reflective | SMA | Datasheet |
| RFSPSTR0003G | RF Reflective Switch | SPST | 0.02～3GHz | 2dB | 60dB | 1～50W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0004G | RF Reflective Switch | SPST | 0.5～4GHz | 1.2dB | 60dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0006G | RF Reflective Switch | SPST | 0.09～5.7GHz | 2.2dB | 80dB | 5～10W | 500ns | Reflective | SMA | Datasheet |
| RFSPSTR0018G | RF Reflective Switch | SPST | 0.02～18GHz | 2dB | 60dB | 1W | 250ns | Reflective | SMA | |
| RFSPSTR0102G | RF Reflective Switch | SPST | 1～2GHz | 0.8dB | 80dB | 1～50W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0106M | High Power RF Switch | SPST | 0.1～0.6GHz | 0.9dB | 45dB | 50W | 1000ns | Reflective | SMA | Datasheet |
| RFSPSTR0118GW20 | High Power RF Switch | SPST | 1～18GHz | 2.8dB | 30dB | 20W | 200ns | Reflective | SMA | Datasheet |
| RFSPSTR0120G | RF Reflective Switch | SPST | 1～20GHz | 2.6dB | 70dB | 0.5～5W | 50ns | Reflective | SMA | Datasheet |
| RFSPSTR0204G | RF Reflective Switch | SPST | 2～4GHz | 1.2dB | 80dB | 1～30W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0208G | RF Reflective Switch | SPST | 2～8GHz | 0.9dB | 80dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0218G | RF Reflective Switch | SPST | 2～18GHz | 2dB | 70dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0218GP | RF Reflective Switch | SPST | 2～18GHz | 1.5dB | 75dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0220G | RF Reflective Switch | SPST | 2～20GHz | 2dB | 70dB | 0.5～5W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0304G | High Power RF Switch | SPST | 3.5～4.5GHz | 0.8dB | 60dB | 25W | 500ns | Reflective | SMA | Datasheet |
| RFSPSTR0612G | RF Reflective Switch | SPST | 6～12GHz | 2.3dB | 60dB | 1～2W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR0815W50 | High Power RF Switch | SPST | 0.8～1.5GHz | 1dB | 50dB | 50W | 1000ns | Reflective | SMA | Datasheet |
| RFSPSTR1218G | RF Reflective Switch | SPST | 12～18GHz | 2.2dB | 65dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTR1218GP | RF Reflective Switch | SPST | 12～18GHz | 2.2dB | 65dB | 1W | 100ns | Reflective | SMA | Datasheet |
| RFSPSTRDC40G | RF Reflective Switch | SPST | DC～40GHz | 1.5dB | 30dB | 1W | 150ns | Reflective | 2.92mm | Datasheet |
