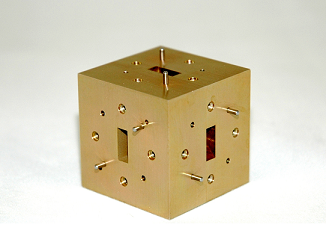

Magic Tee Hybrid Couplers（ミリ波)
Magic Tee Hybrid Couplers（ミリ波)
- カテゴリー
-
- RF、ミリ波、テラヘルツ
- Magic Tee Hybrid Couplers（ミリ波)
- データシート
- SWM
Features:
- Excellent port-to-port balance
- Low insertion loss
- Compact port arrangement
- Excellent matching/high isolation
Applications:
- General purpose power-splitters
- Power combining
- Phase-Frequency discriminators
FIgure 1. Port Configuration
