同軸型ディレクショナルカプラー（RFDC/RFDDCシリーズ）
RF-LAMBDA社のディレクショナルカプラーは、元の信号を損なうことなくRF信号をサンプリングするために使用されます。
単方向型と双方向型があり、様々な周波数と結合値に対応し、低挿入損失と優れた指向性を実現しています。
製品ラインナップ
Directional Coupler（RFDC/RFDDC Series）
| Model | Description | Frequency Range | Coupling | Insert. Loss | Directivity Min | Average Power Handling |
Connector | Datasheet |
|---|---|---|---|---|---|---|---|---|
| RFDC10M22M50 | Directional Coupler | 0.0158～0.0218GHz | 50dB | 0.3dB | 30dB | 20000W | IF110 | Datasheet |
| RFDC1350G30 | Directional Coupler | 1.25～1.35GHz | 30dB | 0.1dB | 20dB | 200W | N | Datasheet |
| RFDC18G50G20 | Directional Coupler | 18～50GHz | 20dB | 1.2dB | 8dB | 20W | 2.40mm | Datasheet |
| RFDC1G18G10 | Directional Coupler | 1～18GHz | 10dB | 0.9dB | 12dB | 50W | SMA | Datasheet |
| RFDC1G18G10N | Directional Coupler | 1～18GHz | 10dB | 1.2dB | 10dB | 50W | N | Datasheet |
| RFDC1G18G20 | Directional Coupler | 1～18GHz | 20dB | 0.9dB | 12dB | 50W | SMA | Datasheet |
| RFDC1G18G20N | Directional Coupler | 1～18GHz | 20dB | 1.2dB | 10dB | 50W | N | Datasheet |
| RFDC1G18G30 | Directional Coupler | 1～18GHz | 30dB | 0.8dB | 12dB | 50W | SMA | Datasheet |
| RFDC1G18G30N | Directional Coupler | 1～18GHz | 30dB | 1dB | 10dB | 50W | N | Datasheet |
| RFDC1G2G20 | Directional Coupler | 1～2GHz | 20dB | 0.2dB | 22dB | 500W | N | Datasheet |
| RFDC1G2G30 | Directional Coupler | 1～2GHz | 30dB | 0.2dB | 20dB | 500W | N | Datasheet |
| RFDC1G40G10 | Directional Coupler | 1～40GHz | 10dB | 2.5dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC1G40G20 | Directional Coupler | 1～40GHz | 20dB | 2.3dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC1G40G30 | Directional Coupler | 1～40GHz | 30dB | 2dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC1G4G06 | Directional Coupler | 1～4GHz | 6dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC1G4G06N | Directional Coupler | 1～4GHz | 6dB | 0.5dB | 20dB | 50W | N | Datasheet |
| RFDC1G4G10 | Directional Coupler | 1～4GHz | 10dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC1G4G10N | Directional Coupler | 1～4GHz | 10dB | 0.6dB | 20dB | 50W | N | Datasheet |
| RFDC1G4G15 | Directional Coupler | 1～4GHz | 15dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC1G4G20 | Directional Coupler | 1～4GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC1G4G20N | Directional Coupler | 1～4GHz | 20dB | 0.5dB | 20dB | 50W | N | Datasheet |
| RFDC1G4G20-RT | Directional Coupler | 1～4GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC1G4G30 | Directional Coupler | 1～4GHz | 30dB | 0.3dB | 20dB | 50W | SMA | Datasheet |
| RFDC1G4G30N | Directional Coupler | 1～4GHz | 30dB | 0.4dB | 18dB | 50W | N | Datasheet |
| RFDC1G5G20 | Directional Coupler | 1.5～4.5GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC1G70G10 | Directional Coupler | 1～70GHz | 10dB | 2dB | 10dB | 20W | 1.85mm | Datasheet |
| RFDC1G70G20 | Directional Coupler | 1～70GHz | 20dB | 2dB | 10dB | 20W | 1.85mm | Datasheet |
| RFDC1M06G10 | Directional Coupler | 0.1～18GHz | 10dB | 1.3dB | 20dB | 50W | SMA | Datasheet |
| RFDC1M06G10-HN | Hermetically Sealed Directional Coupler | 0.1～18GHz | 10dB | 1.3dB | 20dB | 50W | SMA | Datasheet |
| RFDC1M06G10-RT | Directional Coupler | 0.1～18GHz | 10dB | 1.3dB | 20dB | 50W | SMA | Datasheet |
| RFDC1M2G20 | Directional Coupler | 2～7GHz | 20dB | 0.7dB | 20dB | 100W | N | Datasheet |

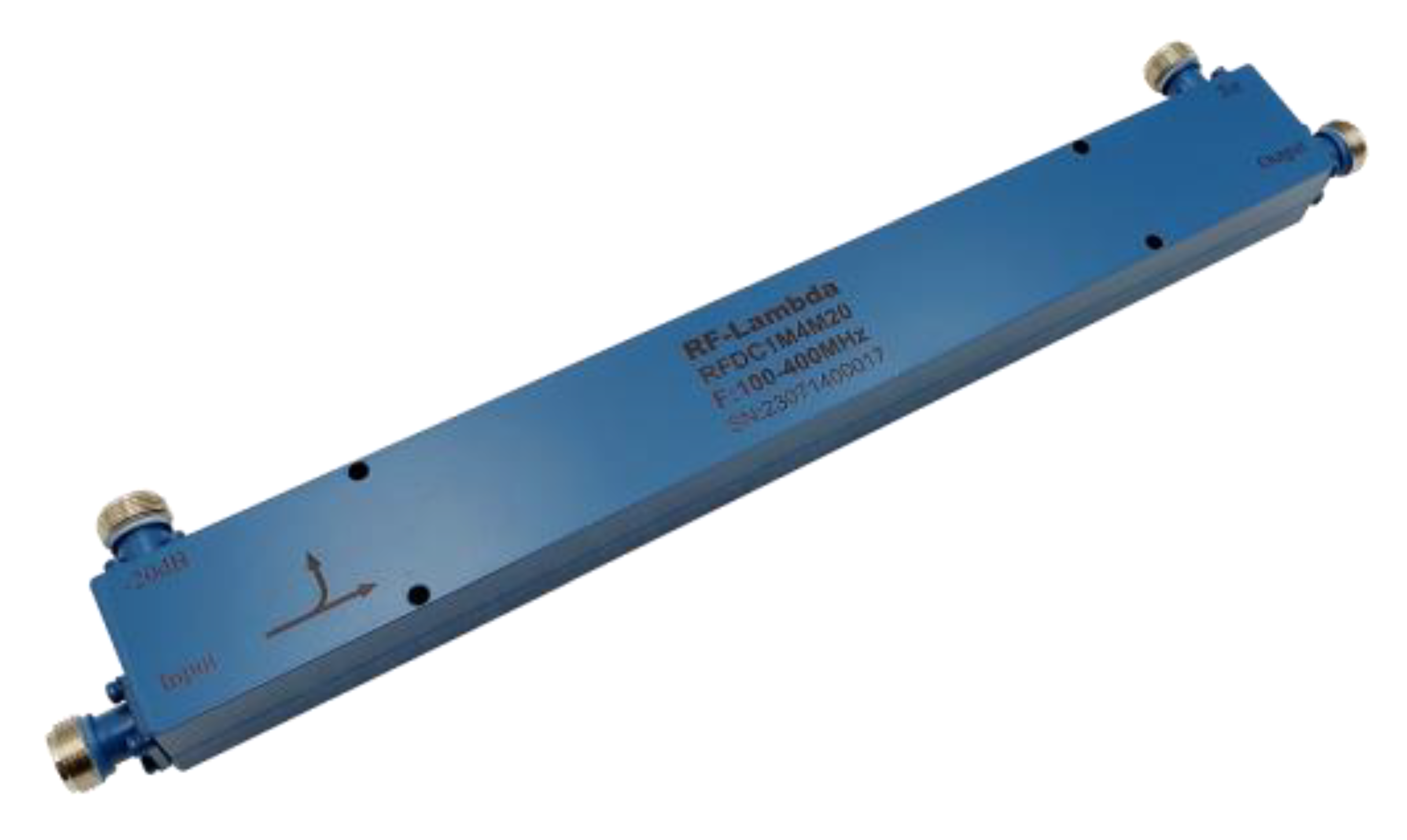

| RFDC1M4M20 | Directional Coupler | 0.1～0.4GHz | 20dB | 0.35dB | 22dB | 500W | N | Datasheet |
| RFDC1M4M30 | Directional Coupler | 0.1～0.4GHz | 30dB | 0.25dB | 20dB | 500W | N | Datasheet |
| RFDC1M4M40 | Directional Coupler | 0.1～0.4GHz | 40dB | 0.25dB | 20dB | 500W | N | Datasheet |
| RFDC1M8M20 | Directional Coupler | 0.1～0.8GHz | 20dB | 0.4dB | 20dB | 400W | N | Datasheet |
| RFDC1M8M30 | Directional Coupler | 0.1～0.8GHz | 30dB | 0.4dB | 20dB | 400W | N | Datasheet |
| RFDC2G18G10 | Directional Coupler | 2～18GHz | 10dB | 0.7dB | 12dB | 50W | SMA | Datasheet |
| RFDC2G18G10N | Directional Coupler | 2～18GHz | 10dB | 1dB | 12dB | 50W | N | Datasheet |
| RFDC2G18G15 | Directional Coupler | 2～18GHz | 16dB | 0.7dB | 12dB | 50W | SMA | Datasheet |
| RFDC2G18G16 | Directional Coupler | 2～18GHz | 16dB | 0.7dB | 12dB | 50W | SMA | Datasheet |
| RFDC2G18G20 | Directional Coupler | 2～18GHz | 20dB | 0.7dB | 10dB | 50W | SMA | Datasheet |
| RFDC2G18G20N | Directional Coupler | 2～18GHz | 20dB | 0.9dB | 12dB | 50W | N | Datasheet |
| RFDC2G18G30 | Directional Coupler | 2～18GHz | 30dB | 0.7dB | 10dB | 50W | SMA | Datasheet |
| RFDC2G18G30N | Directional Coupler | 2～18GHz | 30dB | 0.9dB | 10dB | 50W | N | Datasheet |
| RFDC2G40G10 | Directional Coupler | 2～40GHz | 10dB | 2dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC2G40G20 | Directional Coupler | 2～40GHz | 20dB | 1.7dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC2G40G30 | Directional Coupler | 2～40GHz | 30dB | 1.7dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC2G4G10S | Directional Coupler | 2～4GHz | 10dB | 0.8dB | 22dB | 50W | SMA | Datasheet |
| RFDC2G4G20 | Directional Coupler | 2～4GHz | 20dB | 0.4dB | 22dB | 500W | N | Datasheet |
| RFDC2G4G20S | Directional Coupler | 2～4GHz | 20dB | 0.2dB | 22dB | 50W | SMA | Datasheet |
| RFDC2G4G30 | Directional Coupler | 2～4GHz | 30dB | 0.3dB | 20dB | 500W | N | Datasheet |
| RFDC2G4G30S | Directional Coupler | 2～4GHz | 30dB | 0.2dB | 22dB | 50W | SMA | Datasheet |
| RFDC2G52G10 | Directional Coupler | 2～52GHz | 10dB | 2dB | 10dB | 20W | 2.40mm | Datasheet |
| RFDC2G52G20 | Directional Coupler | 2～52GHz | 20dB | 2dB | 10dB | 20W | 2.40mm | Datasheet |
| RFDC2G7G20 | Directional Coupler | 2～7GHz | 20dB | 1dB | 16dB | 100W | N | Datasheet |
| RFDC2G8G06 | Directional Coupler | 2～8GHz | 6dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC2G8G06N | Directional Coupler | 2～8GHz | 6dB | 0.8dB | 20dB | 50W | N | Datasheet |
| RFDC2G8G10 | Directional Coupler | 2～8GHz | 10dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC2G8G10N | Directional Coupler | 2～8GHz | 10dB | 0.6dB | 20dB | 50W | N | Datasheet |
| RFDC2G8G10-RTH | Hermetically Sealed Directional Coupler | 2～8GHz | 10dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC2G8G15 | Directional Coupler | 2～8GHz | 15dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC2G8G20 | Directional Coupler | 2～8GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC2G8G20N | Directional Coupler | 2～8GHz | 20dB | 0.5dB | 18dB | 50W | N | Datasheet |
| RFDC2G8G30 | Directional Coupler | 2～8GHz | 30dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC2G8G30N | Directional Coupler | 2～8GHz | 30dB | 0.4dB | 18dB | 50W | N | Datasheet |
| RFDC3G11G20 | Directional Coupler | 3～12GHz | 20dB | 0.3dB | 12dB | 250W | N | Datasheet |
| RFDC3G11G20B | Directional Coupler | 3～12GHz | 20dB | 0.2dB | 12dB | 400W | N | Datasheet |
| RFDC3G11G40 | Directional Coupler | 3～12GHz | 40dB | 0.3dB | 8dB | 300W | N | Datasheet |
| RFDC3G11G40B | Directional Coupler | 3～12GHz | 40dB | 0.25dB | 10dB | 400W | N | Datasheet |
| RFDC3G11G40C | Directional Coupler | 3～12GHz | 40dB | 0.25dB | 10dB | 400W | TNC | Datasheet |
| RFDC3G11G40-FM | Directional Coupler | 3～12GHz | 40dB | 0.6dB | 10dB | 300W | N | Datasheet |
| RFDC3M5M30 | Directional Coupler | 0.3～0.5GHz | 30dB | 0.3dB | 20dB | 300W | N | Datasheet |
| RFDC4G18G06 | Directional Coupler | 4～18GHz | 6dB | 1.35dB | 10dB | 50W | SMA | Datasheet |
| RFDC4G18G10 | Directional Coupler | 4～18GHz | 10dB | 0.6dB | 12dB | 50W | SMA | Datasheet |
| RFDC4G18G10N | Directional Coupler | 4～18GHz | 10dB | 0.9dB | 12dB | 50W | N | Datasheet |
| RFDC4G18G20 | Directional Coupler | 4～18GHz | 20dB | 0.6dB | 12dB | 50W | SMA | Datasheet |
| RFDC4G18G20N | Directional Coupler | 4～18GHz | 20dB | 0.8dB | 12dB | 50W | N | Datasheet |
| RFDC4G18G30 | Directional Coupler | 4～18GHz | 30dB | 0.6dB | 10dB | 50W | SMA | Datasheet |
| RFDC4G18G30N | Directional Coupler | 4～18GHz | 30dB | 0.8dB | 10dB | 50W | N | Datasheet |
| RFDC4M3G10 | Directional Coupler | 0.4～3GHz | 10dB | 0.5dB | 10dB | 50W | SMA | Datasheet |
| RFDC4M3G10N | Directional Coupler | 0.4～3GHz | 10dB | 0.5dB | 20dB | 100W | N | Datasheet |
| RFDC4M3G20 | Directional Coupler | 0.4～3GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC4M3G20N | Directional Coupler | 0.4～3GHz | 20dB | 0.5dB | 20dB | 100W | N | Datasheet |
| RFDC4M3G20-SFM | Directional Coupler | 0.4～3GHz | 20dB | 0.4dB | 20dB | 50W | SMA | |
| RFDC5G70G10 | Directional Coupler | 5～70GHz | 10dB | 2dB | 10dB | 20W | 1.85mm | Datasheet |
| RFDC5M06G10 | Directional Coupler | 0.5～6GHz | 10dB | 0.7dB | 18dB | 50W | SMA | Datasheet |
| RFDC5M06G15 | Directional Coupler | 0.5～6GHz | 15dB | 0.5dB | 18dB | 50W | SMA | Datasheet |
| RFDC5M06G20 | Directional Coupler | 0.5～6GHz | 20dB | 0.5dB | 18dB | 50W | SMA | Datasheet |
| RFDC5M06G20-H | Hermetically Sealed Directional Coupler | 0.5～6GHz | 20dB | 0.5dB | 18dB | 50W | SMA | Datasheet |
| RFDC5M18G10 | Directional Coupler | 0.5～18GHz | 10dB | 1.5dB | 10dB | 50W | SMA | Datasheet |
| RFDC5M18G10N | Directional Coupler | 0.5～18GHz | 10dB | 1.8dB | 10dB | 50W | N | Datasheet |
| RFDC5M18G20 | Directional Coupler | 0.5～18GHz | 20dB | 1.3dB | 10dB | 50W | SMA | Datasheet |
| RFDC5M18G20N | Directional Coupler | 0.5～18GHz | 20dB | 1.5dB | 10dB | 50W | N | Datasheet |
| RFDC5M18G30 | Directional Coupler | 0.5～18GHz | 30dB | 1dB | 10dB | 50W | SMA | Datasheet |
| RFDC5M18G30N | Directional Coupler | 0.5～18GHz | 30dB | 1.2dB | 10dB | 50W | N | Datasheet |
| RFDC5M1G20 | Directional Coupler | 0.5～1GHz | 20dB | 0.3dB | 22dB | 500W | N | Datasheet |
| RFDC5M1G30 | Directional Coupler | 0.5～1GHz | 30dB | 0.2dB | 20dB | 500W | N | Datasheet |
| RFDC5M2G06 | Directional Coupler | 0.5～2.5GHz | 6dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC5M2G10 | Directional Coupler | 0.5～2.5GHz | 10dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC5M2G10B | Directional Coupler | 0.5～2GHz | 10dB | 0.5dB | 20dB | 60W | N | Datasheet |
| RFDC5M2G15 | Directional Coupler | 0.5～2.5GHz | 15dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC5M2G20 | Directional Coupler | 0.5～2.5GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC5M2G20B | Directional Coupler | 0.5～2GHz | 20dB | 0.4dB | 20dB | 100W | N | Datasheet |
| RFDC5M2G30 | Directional Coupler | 0.5～2.5GHz | 30dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC5M2G30B | Directional Coupler | 0.5～2GHz | 30dB | 0.3dB | 20dB | 60W | N | Datasheet |
| RFDC5M40G10 | Directional Coupler | 0.5～40GHz | 10dB | 1.7dB | 10dB | 20W | 2.92mm | Datasheet |
| RFDC5M40G20 | Directional Coupler | 0.5～40GHz | 20dB | 1.6dB | 10dB | 20W | 2.92mm | Datasheet |
| RFDC5M40G30 | Directional Coupler | 0.5～40GHz | 30dB | 1.6dB | 10dB | 20W | 2.92mm | Datasheet |
| RFDC6G18G06 | Directional Coupler | 6～18GHz | 6dB | 0.7dB | 15dB | 50W | SMA | Datasheet |
| RFDC6G18G10 | Directional Coupler | 6～18GHz | 10dB | 0.6dB | 14dB | 50W | SMA | Datasheet |
| RFDC6G18G15 | Directional Coupler | 6～18GHz | 15dB | 1dB | 12dB | 50W | SMA | Datasheet |
| RFDC6G18G20 | Directional Coupler | 6～18GHz | 20dB | 0.6dB | 12dB | 50W | SMA | Datasheet |
| RFDC6G18G20-H | Hermetically Sealed Directional Coupler | 6～18GHz | 20dB | 0.8dB | 10dB | 50W | SMA | Datasheet |
| RFDC6G18G30 | Directional Coupler | 6～18GHz | 30dB | 0.5dB | 12dB | 250W | N | Datasheet |
| RFDC7M3G06N | Directional Coupler | 0.7～2.7GHz | 6dB | 1.9dB | 20dB | 100W | N | Datasheet |
| RFDC7M3G10N | Directional Coupler | 0.7～2.7GHz | 10dB | 0.9dB | 20dB | 100W | N | Datasheet |
| RFDC7M3G15N | Directional Coupler | 0.7～2.7GHz | 15dB | 0.55dB | 20dB | 100W | N | Datasheet |
| RFDC7M3G20N | Directional Coupler | 0.7～2.7GHz | 20dB | 0.45dB | 20dB | 100W | N | Datasheet |
| RFDC7M3G30N | Directional Coupler | 0.7～2.7GHz | 30dB | 0.4dB | 20dB | 100W | N | Datasheet |
| RFDC8G18G30 | Directional Coupler | 8～18GHz | 30dB | 0.4dB | 10dB | 250W | N | Datasheet |
| RFDC8G18G30B | Directional Coupler | 8～18GHz | 30dB | 0.2dB | 10dB | 300W | N | Datasheet |
| RFDC8G40G10 | Directional Coupler | 8～40GHz | 10dB | 1.6dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC8G40G12 | Directional Coupler | 8～40GHz | 12dB | 1.6dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC8G40G15 | Directional Coupler | 8～40GHz | 15dB | 1.2dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC8G40G20 | Directional Coupler | 8～40GHz | 20dB | 1.6dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC8G40G30 | Directional Coupler | 8～40GHz | 30dB | 1.6dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDC8M3G06B | Directional Coupler | 0.8～2.5GHz | 6dB | 0.4dB | 20dB | 200W | N | Datasheet |
| RFDC8M3G06D | Directional Coupler | 0.8～2.5GHz | 6dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC8M3G07B | Directional Coupler | 0.8～2.5GHz | 7dB | 0.4dB | 20dB | 200W | N | Datasheet |
| RFDC8M3G10B | Directional Coupler | 0.8～2.5GHz | 10dB | 0.4dB | 20dB | 200W | N | Datasheet |
| RFDC8M3G10D | Directional Coupler | 0.8～2.5GHz | 10dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDC8M3G20A | Directional Coupler | 0.8～2.5GHz | 20dB | 0.4dB | 20dB | 100W | N | Datasheet |

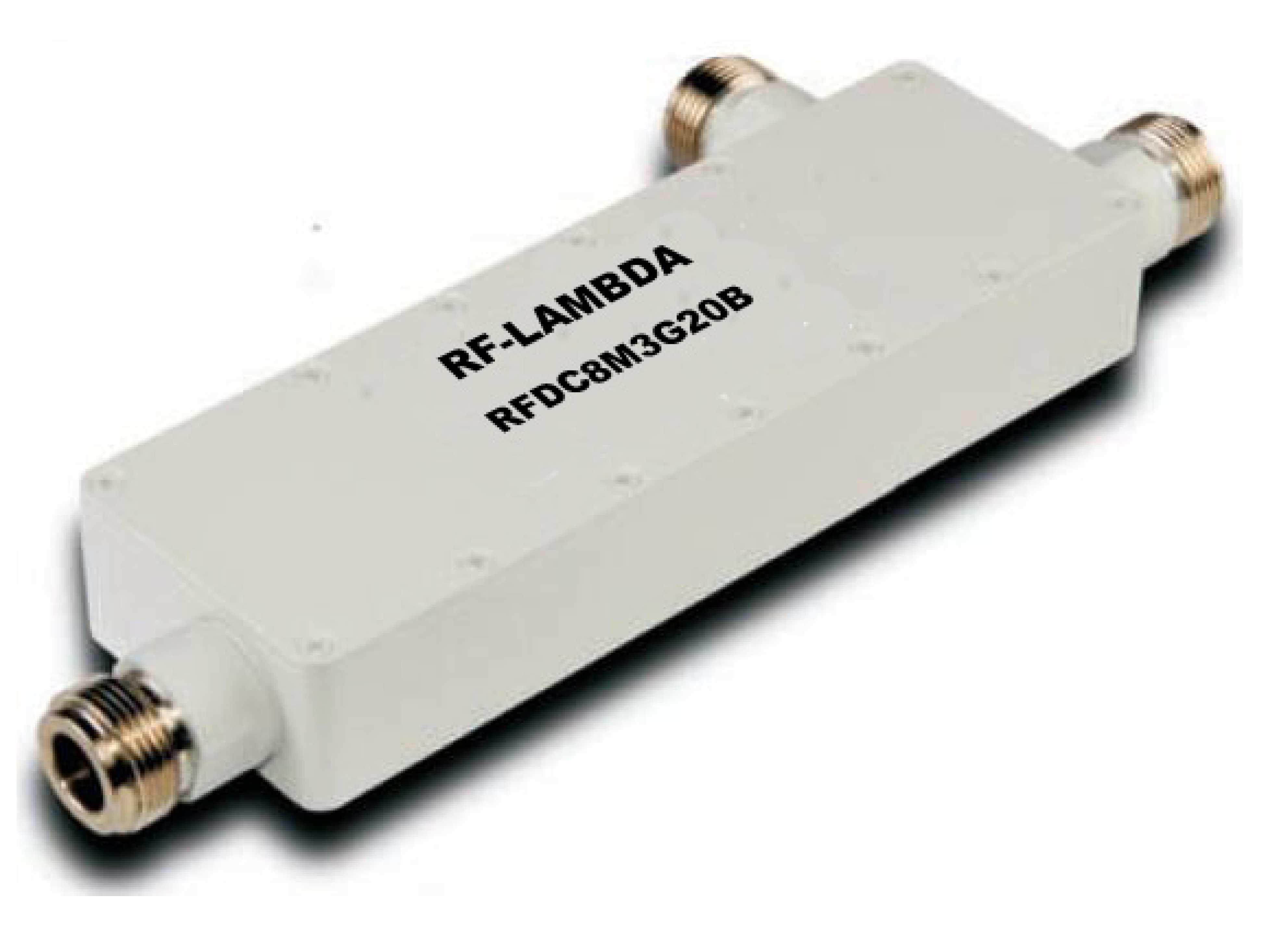

| RFDC8M3G20B | Directional Coupler | 0.8～2.5GHz | 20dB | 0.3dB | 20dB | 200W | N | Datasheet |
| RFDC8M3G20D | Directional Coupler | 0.8～2.5GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDC8M3G30A | Directional Coupler | 0.8～2.5GHz | 30dB | 0.4dB | 20dB | 100W | N | Datasheet |
| RFDC8M3G30B | Directional Coupler | 0.8～2.5GHz | 30dB | 0.3dB | 20dB | 200W | N | Datasheet |
| RFDC8M3G30D | Directional Coupler | 0.8～2.5GHz | 30dB | 0.3dB | 20dB | 50W | SMA | Datasheet |
| RFDC8M4G05A | Directional Coupler | 0.8～3.5GHz | 5dB | 0.4dB | 20dB | 200W | N | Datasheet |
| RFDC8M4G06A | Directional Coupler | 0.8～3.5GHz | 6dB | 0.4dB | 20dB | 200W | N | Datasheet |
| RFDC8M4G07A | Directional Coupler | 0.8～3.5GHz | 7dB | 0.4dB | 20dB | 200W | N | Datasheet |
| RFDC8M4G10A | Directional Coupler | 0.8～3.5GHz | 10dB | 0.4dB | 20dB | 200W | N | Datasheet |
| RFDC8M4G15A | Directional Coupler | 0.8～3.5GHz | 15dB | 0.3dB | 20dB | 200W | N | Datasheet |
| RFDC8M4G20A | Directional Coupler | 0.8～3.5GHz | 20dB | 0.3dB | 20dB | 200W | N | Datasheet |
| RFDC8M4G30A | Directional Coupler | 0.8～3.5GHz | 30dB | 0.3dB | 20dB | 200W | N | Datasheet |
| RFDC9G10G40 | Directional Coupler | 9～10GHz | 40dB | 1.2dB | 10dB | 200W | TNC | Datasheet |
| RFDC9M9G35 | Directional Coupler | 0.9～9GHz | 35dB | 0.5dB | 11dB | 250W | N | Datasheet |
| RFDDC07M10M50 | Dual Directional Coupler | 0.0078～0.0098GHz | 50dB | 0.3dB | 30dB | 20000W | IF110 | Datasheet |
| RFDDC10M22M50 | Dual Directional Coupler | 0.0158～0.0218GHz | 50dB | 0.3dB | 30dB | 20000W | IF110 | Datasheet |
| RFDDC1G18G10 | Dual Directional Coupler | 1～18GHz | 10dB | 0.9dB | 12dB | 50W | SMA | |
| RFDDC1G18G10N | Dual Directional Coupler | 1～18GHz | 10dB | 1.2dB | 10dB | 50W | N | |
| RFDDC1G18G20 | Dual Directional Coupler | 1～18GHz | 20dB | 0.9dB | 12dB | 50W | SMA | Datasheet |
| RFDDC1G18G20N | Dual Directional Coupler | 1～18GHz | 20dB | 1.2dB | 10dB | 50W | N | Datasheet |

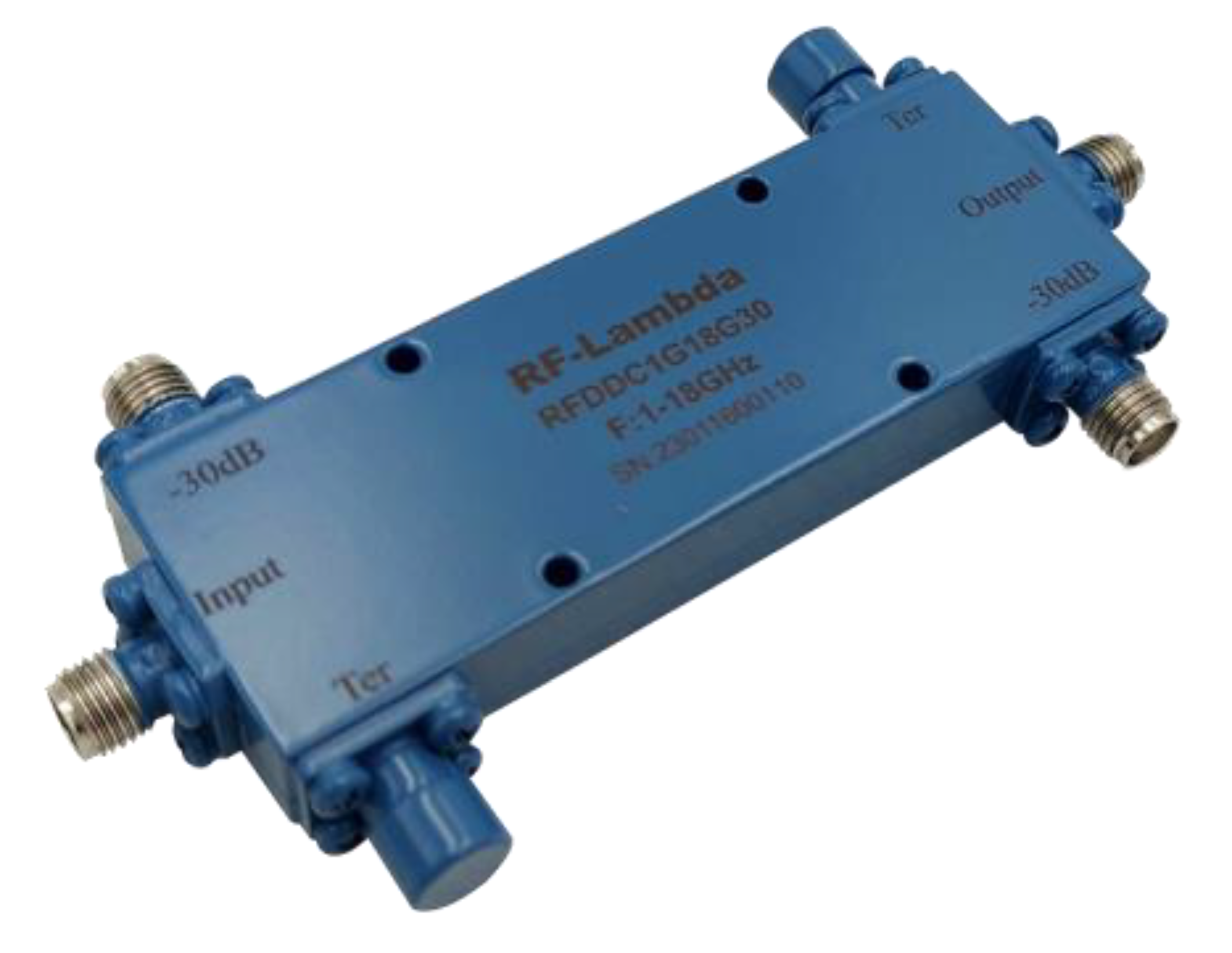

| RFDDC1G18G30 | Dual Directional Coupler | 1～18GHz | 30dB | 1dB | 12dB | 50W | SMA | Datasheet |
| RFDDC1G18G30N | Dual Directional Coupler | 1～18GHz | 30dB | 1.2dB | 10dB | 50W | N | Datasheet |
| RFDDC1G26G10 | Dual Directional Coupler | 1～26.5GHz | 10dB | 2.5dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDDC1G26G20 | Dual Directional Coupler | 1～26.5GHz | 20dB | 2.4dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDDC1G26G30 | Dual Directional Coupler | 1～26.5GHz | 30dB | 2dB | 10dB | 30W | 2.92mm | Datasheet |

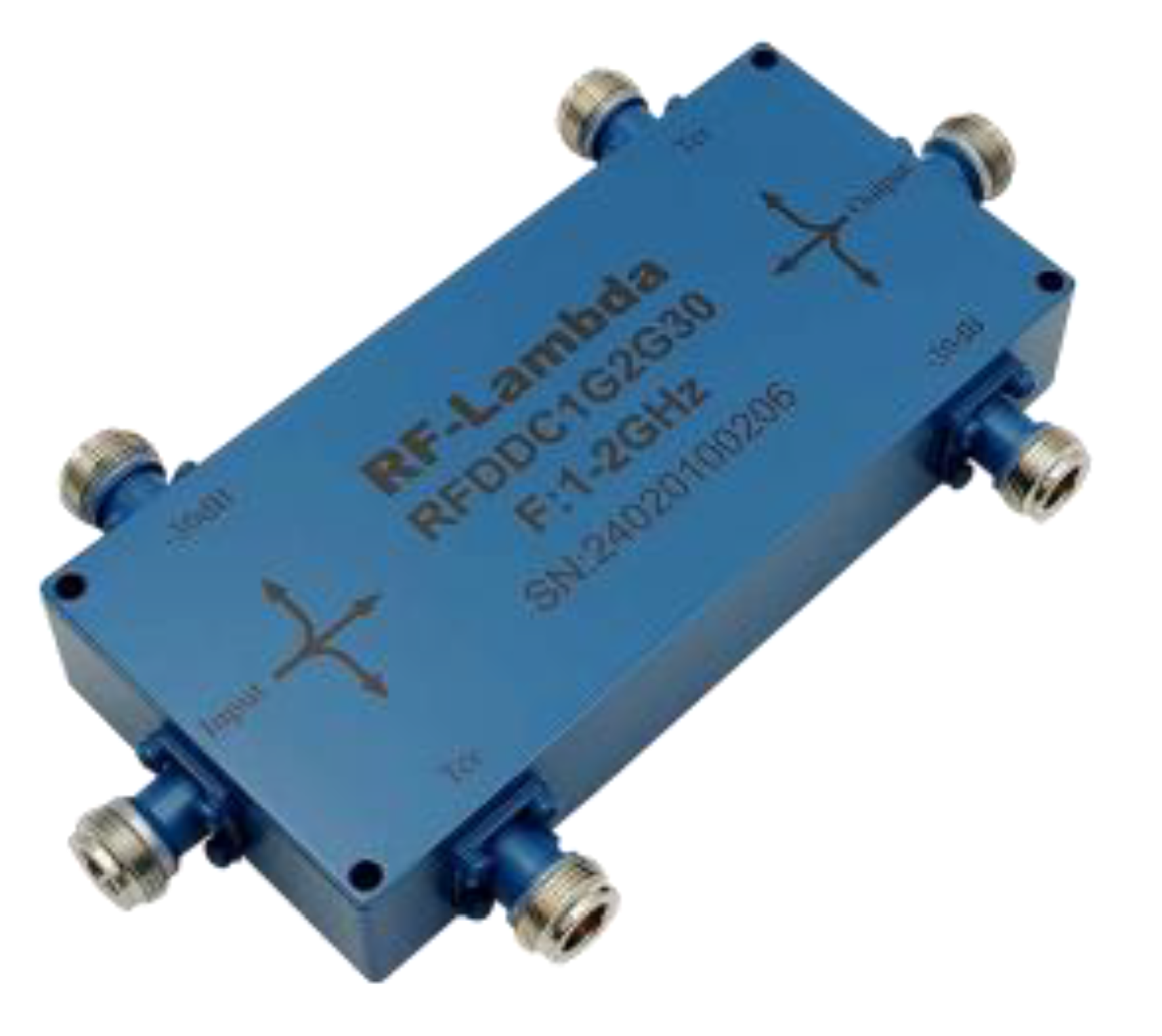

| RFDDC1G2G30 | Dual Directional Coupler | 1～2GHz | 30dB | 0.2dB | 20dB | 500W | N | Datasheet |
| RFDDC1G4G06 | Dual Directional Coupler | 1～4GHz | 6dB | 0.5dB | 20dB | 50W | SMA | |
| RFDDC1G4G06N | Dual Directional Coupler | 1～4GHz | 6dB | 0.6dB | 20dB | 50W | N | |
| RFDDC1G4G10 | Dual Directional Coupler | 1～4GHz | 10dB | 0.5dB | 20dB | 50W | SMA | |
| RFDDC1G4G10N | Dual Directional Coupler | 1～4GHz | 10dB | 0.6dB | 20dB | 50W | N | |
| RFDDC1G4G15 | Dual Directional Coupler | 1～4GHz | 15dB | 0.5dB | 20dB | 50W | SMA | |
| RFDDC1G4G20 | Dual Directional Coupler | 1～4GHz | 20dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDDC1G4G20N | Dual Directional Coupler | 1～4GHz | 20dB | 0.5dB | 20dB | 50W | N | Datasheet |
| RFDDC1G4G20N-HP | Dual Directional Coupler | 1～4GHz | 20dB | 0.5dB | 20dB | 500W | N | Datasheet |
| RFDDC1G4G30 | Dual Directional Coupler | 1～4GHz | 30dB | 0.3dB | 20dB | 50W | SMA | |
| RFDDC1G4G30N | Dual Directional Coupler | 1～4GHz | 30dB | 0.4dB | 18dB | 50W | N | |
| RFDDC1M2G20 | Dual Directional Coupler | 0.11～2GHz | 20dB | 1dB | 20dB | 500W | N | Datasheet |
| RFDDC2G18G10 | Dual Directional Coupler | 2～18GHz | 10dB | 0.7dB | 12dB | 50W | SMA | Datasheet |
| RFDDC2G18G10N | Dual Directional Coupler | 2～18GHz | 10dB | 1dB | 12dB | 50W | N | |
| RFDDC2G18G15 | Dual Directional Coupler | 2～18GHz | 16dB | 0.7dB | 12dB | 50W | SMA | |
| RFDDC2G18G20 | Dual Directional Coupler | 2～18GHz | 20dB | 0.7dB | 10dB | 50W | SMA | Datasheet |
| RFDDC2G18G20N | Dual Directional Coupler | 2～18GHz | 20dB | 0.9dB | 12dB | 50W | N | |
| RFDDC2G18G30 | Dual Directional Coupler | 2～18GHz | 30dB | 0.7dB | 10dB | 50W | SMA | Datasheet |
| RFDDC2G18G30N | Dual Directional Coupler | 2～18GHz | 30dB | 0.9dB | 10dB | 50W | N | Datasheet |
| RFDDC2G26G10 | Dual Directional Coupler | 2～26.5GHz | 10dB | 2dB | 10dB | 30W | 2.92mm | |
| RFDDC2G26G20 | Dual Directional Coupler | 2～26.5GHz | 20dB | 1.7dB | 10dB | 30W | 2.92mm | |
| RFDDC2G26G30 | Dual Directional Coupler | 2～26.5GHz | 30dB | 1.7dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDDC2G3G40D | Dual Directional Coupler | 2.9～3.3GHz | 40dB | 0.4dB | 15dB | 300W | N, 7/16 | Datasheet |
| RFDDC2G4G20 | Dual Directional Coupler | 2～4GHz | 20dB | 0.4dB | 22dB | 500W | N | |
| RFDDC2G4G30 | Dual Directional Coupler | 2～4GHz | 30dB | 0.3dB | 20dB | 200W | N | Datasheet |
| RFDDC2G4G30B | Dual Directional Coupler | 2～4GHz | 30dB | 0.3dB | 20dB | 500W | N | Datasheet |
| RFDDC2G8G06 | Dual Directional Coupler | 2～8GHz | 6dB | 0.4dB | 20dB | 50W | SMA | |
| RFDDC2G8G06N | Dual Directional Coupler | 2～8GHz | 6dB | 0.8dB | 20dB | 50W | N | |
| RFDDC2G8G10 | Dual Directional Coupler | 2～8GHz | 10dB | 0.5dB | 20dB | 50W | SMA | Datasheet |
| RFDDC2G8G10N | Dual Directional Coupler | 2～8GHz | 10dB | 0.6dB | 20dB | 50W | N | |
| RFDDC2G8G15 | Dual Directional Coupler | 2～8GHz | 15dB | 0.5dB | 20dB | 50W | SMA | |
| RFDDC2G8G20 | Dual Directional Coupler | 2～8GHz | 20dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDDC2G8G20N | Dual Directional Coupler | 2～8GHz | 20dB | 0.5dB | 18dB | 50W | N | Datasheet |
| RFDDC2G8G30 | Dual Directional Coupler | 2～8GHz | 30dB | 0.4dB | 20dB | 50W | SMA | Datasheet |
| RFDDC2G8G30N | Dual Directional Coupler | 2～8GHz | 30dB | 0.4dB | 18dB | 50W | N | |
| RFDDC3G11G20 | Dual Directional Coupler | 3.9～11GHz | 20dB | 0.4dB | 12dB | 300W | N | Datasheet |
| RFDDC3G11G40 | Dual Directional Coupler | 3～12GHz | 40dB | 0.3dB | 8dB | 300W | N | Datasheet |
| RFDDC3G11G40B | Dual Directional Coupler | 3～12GHz | 40dB | 0.25dB | 10dB | 400W | N | Datasheet |
| RFDDC4G18G06 | Dual Directional Coupler | 4～18GHz | 6dB | 1.35dB | 10dB | 50W | SMA | |
| RFDDC4G18G10 | Dual Directional Coupler | 4～18GHz | 10dB | 0.6dB | 12dB | 50W | SMA | |
| RFDDC4G18G10N | Dual Directional Coupler | 4～18GHz | 10dB | 0.9dB | 12dB | 50W | N | |
| RFDDC4G18G20 | Dual Directional Coupler | 4～18GHz | 20dB | 0.6dB | 12dB | 50W | SMA | |
| RFDDC4G18G20N | Dual Directional Coupler | 4～18GHz | 20dB | 0.8dB | 12dB | 50W | N | Datasheet |
| RFDDC4G18G30 | Dual Directional Coupler | 4～18GHz | 30dB | 0.6dB | 10dB | 50W | SMA | Datasheet |
| RFDDC4G18G30N | Dual Directional Coupler | 4～18GHz | 30dB | 0.8dB | 10dB | 50W | N | |
| RFDDC5M06G10 | Dual Directional Coupler | 0.5～6GHz | 10dB | 0.7dB | 18dB | 50W | SMA | Datasheet |
| RFDDC5M06G15 | Dual Directional Coupler | 0.5～6GHz | 15dB | 0.7dB | 18dB | 50W | SMA | Datasheet |
| RFDDC5M06G20 | Dual Directional Coupler | 0.5～6GHz | 20dB | 0.5dB | 18dB | 50W | SMA | Datasheet |
| RFDDC5M06G40 | Dual Directional Coupler | 0.5～6GHz | 40dB | 0.5dB | 10dB | 250W | N | Datasheet |
| RFDDC5M06G50 | Dual Directional Coupler | 0.5～6GHz | 50dB | 0.5dB | 10dB | 250W | N | Datasheet |
| RFDDC5M18G10 | Dual Directional Coupler | 0.5～18GHz | 10dB | 1.5dB | 10dB | 50W | SMA | Datasheet |
| RFDDC5M18G10N | Dual Directional Coupler | 0.5～18GHz | 10dB | 1.8dB | 10dB | 50W | N | Datasheet |
| RFDDC5M18G20 | Dual Directional Coupler | 0.5～18GHz | 20dB | 1.3dB | 10dB | 50W | SMA | Datasheet |
| RFDDC5M18G20B | Dual Directional Coupler | 0.5～18GHz | 20dB | 1.3dB | 10dB | 50W | SMA | Datasheet |
| RFDDC5M18G20N | Dual Directional Coupler | 0.5～18GHz | 20dB | 1.5dB | 10dB | 50W | N | Datasheet |
| RFDDC5M18G30 | Dual Directional Coupler | 0.5～18GHz | 30dB | 1dB | 10dB | 50W | SMA | Datasheet |
| RFDDC5M18G30N | Dual Directional Coupler | 0.5～18GHz | 30dB | 1.2dB | 10dB | 50W | N | Datasheet |
| RFDDC5M1G30 | Dual Directional Coupler | 0.5～1GHz | 30dB | 0.3dB | 20dB | 500W | N | Datasheet |
| RFDDC6G18G06 | Dual Directional Coupler | 6～18GHz | 6dB | 0.7dB | 15dB | 50W | SMA | Datasheet |
| RFDDC6G18G10 | Dual Directional Coupler | 6～18GHz | 10dB | 0.6dB | 14dB | 50W | SMA | Datasheet |
| RFDDC6G18G15 | Dual Directional Coupler | 6～18GHz | 15dB | 1dB | 12dB | 50W | SMA | Datasheet |
| RFDDC6G18G20 | Dual Directional Coupler | 6～18GHz | 20dB | 1dB | 12dB | 50W | SMA | Datasheet |
| RFDDC6G18G40 | Dual Directional Coupler | 6～18GHz | 40dB | 0.3dB | 12dB | 300W | N | Datasheet |
| RFDDC8G18G15 | Dual Directional Coupler | 8～18GHz | 15dB | 1.5dB | 10dB | 300W | N | Datasheet |

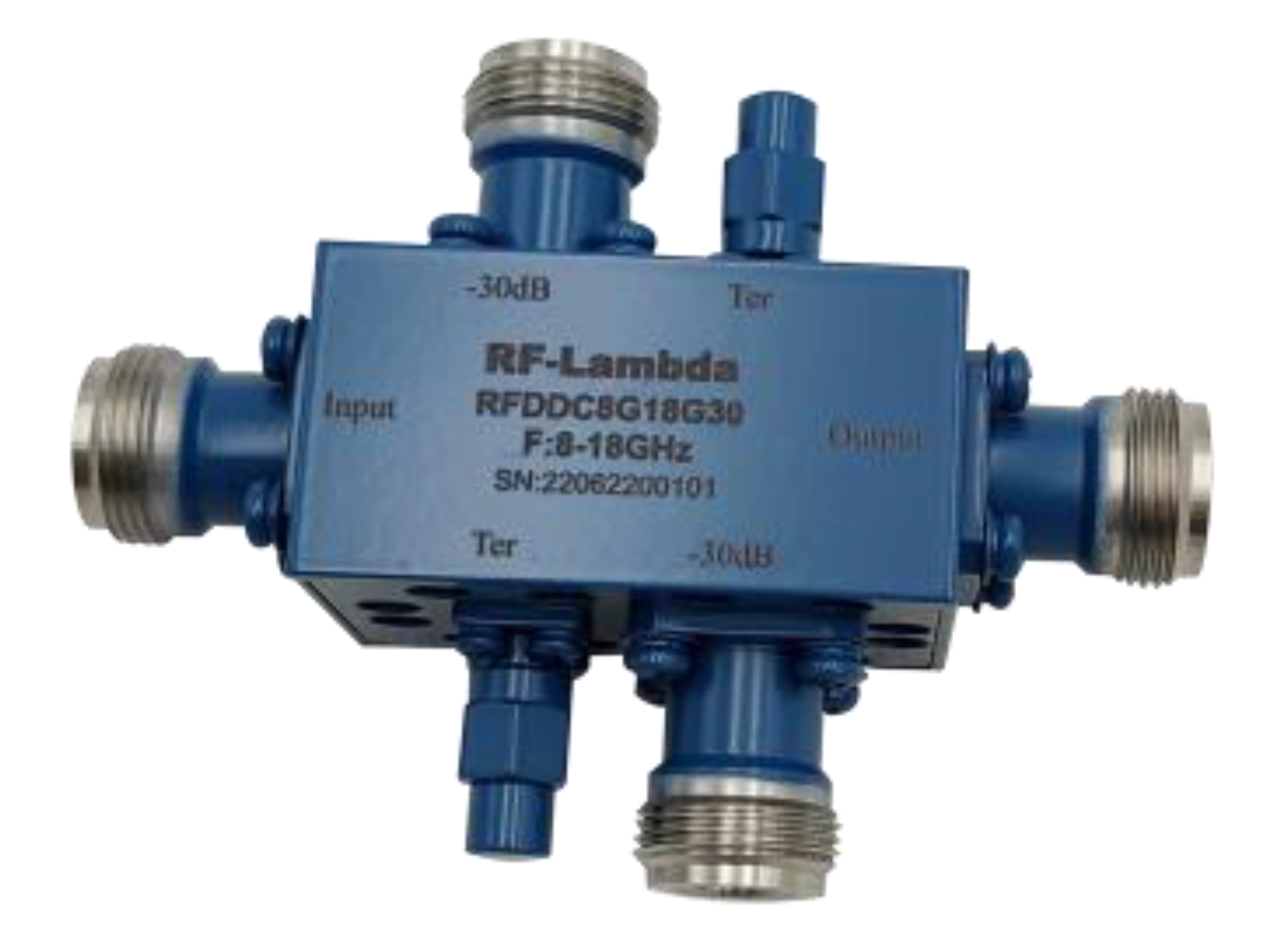

| RFDDC8G18G30 | Dual Directional Coupler | 8～18GHz | 30dB | 0.9dB | 10dB | 300W | N | Datasheet |
| RFDDC8G26G10 | Dual Directional Coupler | 8～26.5GHz | 10dB | 1.6dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDDC8G26G12 | Dual Directional Coupler | 8～26.5GHz | 12dB | 1.6dB | 10dB | 30W | 2.92mm | |
| RFDDC8G26G15 | Dual Directional Coupler | 8～26.5GHz | 15dB | 1.2dB | 12dB | 30W | 2.92mm | Datasheet |
| RFDDC8G26G20 | Dual Directional Coupler | 8～26.5GHz | 20dB | 1.6dB | 10dB | 30W | 2.92mm | |
| RFDDC8G26G30 | Dual Directional Coupler | 8～26.5GHz | 30dB | 1.6dB | 10dB | 30W | 2.92mm | Datasheet |
| RFDDC9G10G40 | Dual Directional Coupler | 9～10GHz | 40dB | 1.2dB | 10dB | 200W | TNC | Datasheet |
| RFDDC9M9G35 | Dual Directional Coupler | 0.9～9GHz | 35dB | 0.5dB | 11dB | 250W | N | Datasheet |
