概要
仕様

導波管数GHz〜最大1THzまでの固定アッテネーターを取り扱っております。
減衰量は一般的に3dB,6dB,10dB,20dB,30dBですが、その他一部カスタム対応可能です。
ハイパワーバージョン等もございますのでお気軽にご相談ください。

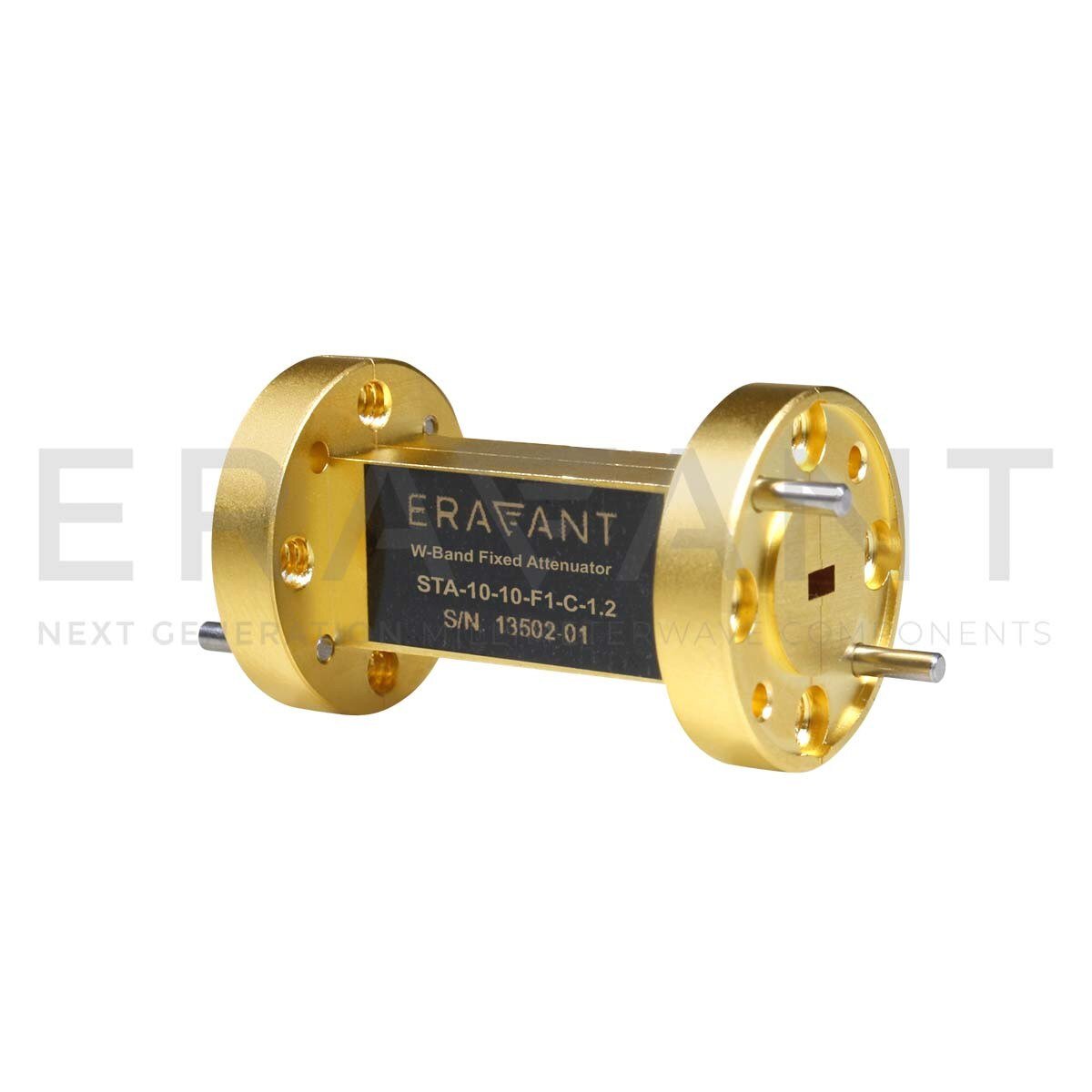

コンパクト固定導波管アッテネーター

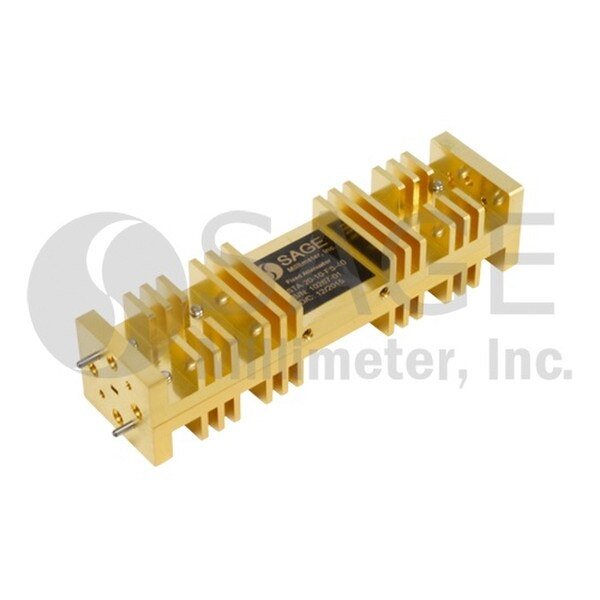

高出力・高精度固定導波管アッテネーター

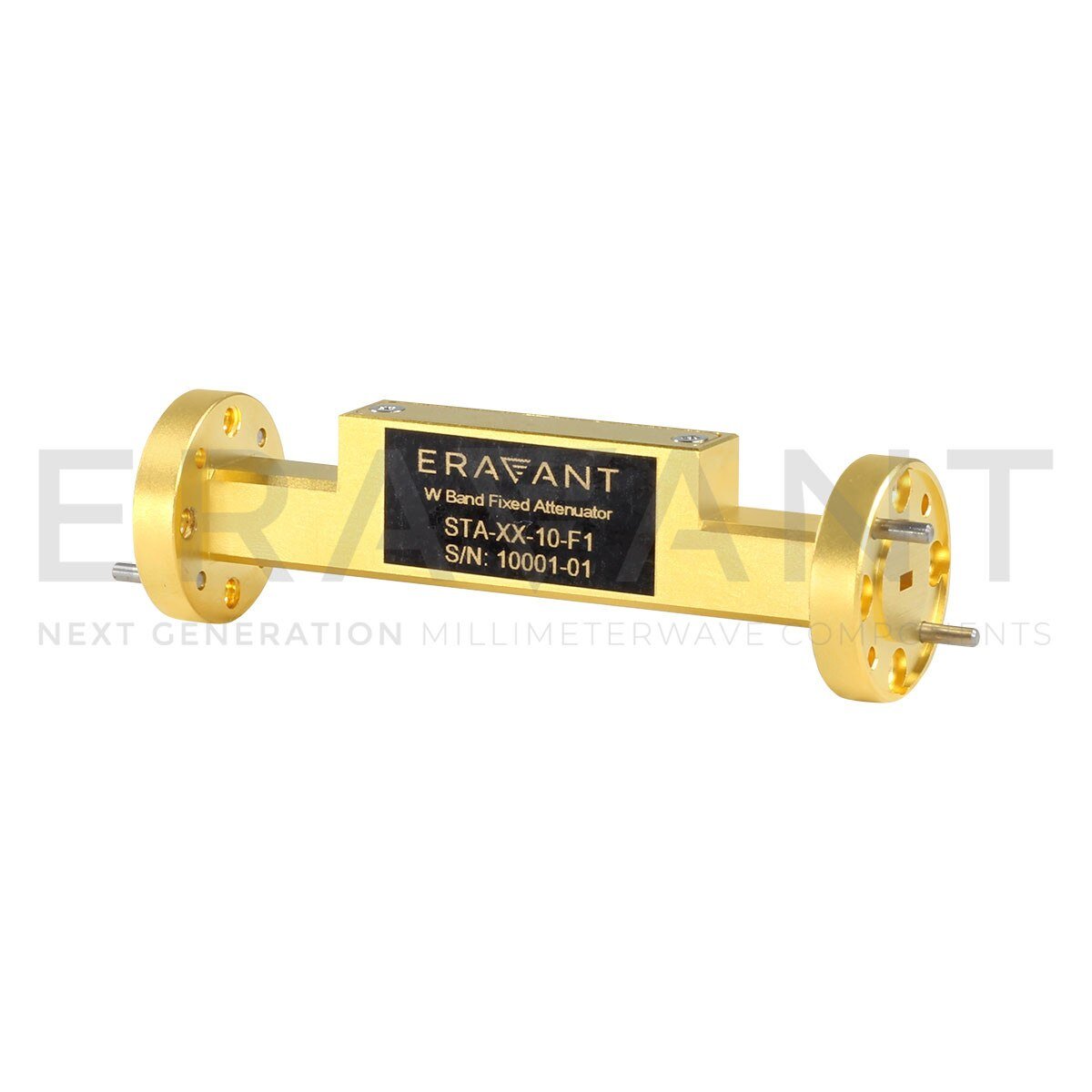

標準固定導波管アッテネーター

製品ラインナップ

CompactWG Fixed Attenuators

Model	Minimum Frequency	Maximum Frequency	Attenuation	Return Loss	Power Handling	RF Port	Attenuator Type	Datasheet
STA-10-06-F1-C-30-1.8	110GHz	170GHz	10dB	18dB	1W	WR-06Waveguide	Fixed	Datasheet STEP File
STA-20-06-F1-C-30-1.8	110GHz	170GHz	20dB	18dB	1W	WR-06Waveguide	Fixed	Datasheet STEP File
STA-10-28-F1-C-2.0	26.5GHz	40GHz	10dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-10-28-F1-C-2.0-V	26.5GHz	40GHz	10dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-20-28-F1-C-2.0	26.5GHz	40GHz	20dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-03-28-F1-C-2.0	26.5GHz	40GHz	3dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-03-28-F1-C-2.0-V	26.5GHz	40GHz	3dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-30-28-F1-C-2.0	26.5GHz	40GHz	30dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-06-28-F1-C-2.0	26.5GHz	40GHz	6dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-06-28-F1-C-2.0-V	26.5GHz	40GHz	6dB @33.25GHz	20dB	0.50W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-10-22-F1-C-1.5	33GHz	50GHz	10dB @41.5GHz	20dB	0.50W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-10-22-F1-C-599-2.0	33GHz	50GHz	10dB @41.5GHz	20dB	1W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-20-22-F1-C-1.5	33GHz	50GHz	20dB @41.5GHz	20dB	0.50W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-20-22-F1-C-599-2.0	33GHz	50GHz	20dB @41.5GHz	20dB	1W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-03-22-F1-C-1.5	33GHz	50GHz	3dB @41.5GHz	20dB	0.50W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-03-22-F1-C-599-2.0	33GHz	50GHz	3dB @41.5GHz	20dB	1W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-30-22-F1-C-1.5	33GHz	50GHz	30dB @41.5GHz	20dB	0.50W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-06-22-F1-C-1.5	33GHz	50GHz	6dB @41.5GHz	20dB	0.50W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-06-22-F1-C-599-2.0	33GHz	50GHz	6dB @41.5GHz	20dB	1W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-10-19-F1-C-2.0	40GHz	60GHz	10dB @50GHz	20dB	0.50W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-20-19-F1-C-2.0	40GHz	60GHz	20dB @50GHz	20dB	0.50W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-03-19-F1-C-2.0	40GHz	60GHz	3dB @50GHz	20dB	0.50W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-30-19-F1-C-2.0	40GHz	60GHz	30dB @50GHz	20dB	0.50W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-06-19-F1-C-2.0	40GHz	60GHz	6dB @50GHz	20dB	0.50W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-10-15-F1-C-1.2	50GHz	75GHz	10dB @62.5GHz	20dB	0.50W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-20-15-F1-C-1.2	50GHz	75GHz	20dB @62.5GHz	20dB	0.50W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-03-15-F1-C-1.2	50GHz	75GHz	3dB @62.5GHz	20dB	0.50W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-30-15-F1-C-1.2	50GHz	75GHz	30dB @62.5GHz	20dB	0.50W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-06-15-F1-C-1.2	50GHz	75GHz	6dB @62.5GHz	20dB	0.50W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-10-12-F1-C-1.2	60GHz	90GHz	10dB @75GHz	20dB	0.50W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-20-12-F1-C-1.2	60GHz	90GHz	20dB @75GHz	20dB	0.50W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-03-12-F1-C-1.2	60GHz	90GHz	3dB @75GHz	20dB	0.50W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-30-12-F1-C-1.2	60GHz	90GHz	30dB @75GHz	20dB	0.50W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-06-12-F1-C-1.2	60GHz	90GHz	6dB @75GHz	20dB	0.50W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-10-10-F1-C-1.2	75GHz	110GHz	10dB @92.5GHz	20dB	0.50W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-20-10-F1-C-1.2	75GHz	110GHz	20dB @92.5GHz	20dB	0.50W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-03-10-F1-C-1.2	75GHz	110GHz	3dB @92.5GHz	20dB	0.50W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-30-10-F1-C-1.2	75GHz	110GHz	30dB @92.5GHz	20dB	0.50W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-06-10-F1-C-1.2	75GHz	110GHz	6dB @92.5GHz	20dB	0.50W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-10-08-F1-C-30-2.0	90GHz	140GHz	10dB	18dB	1W	WR-08Waveguide	Fixed	Datasheet STEP File
STA-20-08-F1-C-30-2.0	90GHz	140GHz	20dB	18dB	1W	WR-08Waveguide	Fixed	Datasheet STEP File
STA-30-22-F1-C-599-2.0	33GHz	50GHz	30dB @41.5GHz	20dB	1W	WR-22Waveguide	Fixed	Datasheet STEP File

High PowerWG Fixed Attenuators

Model	Minimum Frequency	Maximum Frequency	Attenuation	Return Loss	Power Handling	RF Port	Attenuator Type	Datasheet
STA-10-06-F1-C-30-1.8	110GHz	170GHz	10dB	18dB	1W	WR-06Waveguide	Fixed	Datasheet STEP File
STA-20-06-F1-C-30-1.8	110GHz	170GHz	20dB	18dB	1W	WR-06Waveguide	Fixed	Datasheet STEP File
STA-30-28-FS-40	26.5GHz	40GHz	30dB	20dB	10W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-10-22-FS-40	33GHz	50GHz	10dB @41.5GHz	14dB	10W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-20-22-FS-40	33GHz	50GHz	20dB @41.5GHz	14dB	10W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-03-22-FS-40	33GHz	50GHz	3dB @41.5GHz	14dB	10W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-30-22-FS-40	33GHz	50GHz	30dB @41.5GHz	14dB	10W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-40-22-FS-40	33GHz	50GHz	40dB @41.5GHz	14dB	10W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-50-22-FS-40	33GHz	50GHz	50dB @41.5GHz	14dB	10W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-06-22-FS-40	33GHz	50GHz	6dB @41.5GHz	14dB	10W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-10-19-FS-40	40GHz	60GHz	10dB @50GHz	14dB	10W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-20-19-FS-40	40GHz	60GHz	20dB	14dB	10W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-03-19-FS-40	40GHz	60GHz	3dB @50GHz	14dB	10W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-30-19-FS-40	40GHz	60GHz	30dB @50GHz	14dB	10W	WR-19Waveguide	Fixed	Datasheet
STA-40-19-FS-40	40GHz	60GHz	40dB @50GHz	14dB	10W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-50-19-FS-40	40GHz	60GHz	50dB @50GHz	14dB	10W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-06-19-FS-40	40GHz	60GHz	6dB @50GHz	14dB	10W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-10-15-FS-40	50GHz	75GHz	10dB @62.5GHz	20dB	10W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-20-15-FS-40	50GHz	75GHz	20dB @62.5GHz	20dB	10W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-03-15-FS-40	50GHz	75GHz	3dB @62.5GHz	20dB	10W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-30-15-FS-40	50GHz	75GHz	30dB @62.5GHz	20dB	10W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-40-15-FS-40	50GHz	75GHz	40dB @62.5GHz	20dB	10W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-50-15-FS-40	50GHz	75GHz	50dB @62.5GHz	20dB	10W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-06-15-FS-40	50GHz	75GHz	6dB @62.5GHz	20dB	10W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-10-12-FS-40	60GHz	90GHz	10dB @75GHz	20dB	10W	WR-12Waveguide	Fixed	Datasheet
STA-20-12-FS-40	60GHz	90GHz	20dB @75GHz	20dB	10W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-03-12-FS-40	60GHz	90GHz	3dB @75GHz	20dB	10W	WR-12Waveguide	Fixed	Datasheet
STA-30-12-FS-40	60GHz	90GHz	30dB @75GHz	20dB	10W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-40-12-FS-40	60GHz	90GHz	40dB @75GHz	21dB	10W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-50-12-FS-40	60GHz	90GHz	50dB @75GHz	20dB	10W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-06-12-FS-40	60GHz	90GHz	6dB @75GHz	20dB	10W	WR-12Waveguide	Fixed	Datasheet
STA-10-10-FS-40	75GHz	110GHz	10dB @92.5GHz	21dB	10W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-20-10-FS-40	75GHz	110GHz	20dB @92.5GHz	21dB	10W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-03-10-FS-40	75GHz	110GHz	3dB @92.5GHz	21dB	10W	WR-10Waveguide	Fixed	Datasheet
STA-30-10-FS-40	75GHz	110GHz	30dB @92.5GHz	20dB	10W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-40-10-FS-40	75GHz	110GHz	40dB @92.5GHz	21dB	10W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-50-10-FS-40	75GHz	110GHz	50dB @92.5GHz	21dB	10W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-06-10-FS-40	75GHz	110GHz	6dB @92.5GHz	21dB	10W	WR-10Waveguide	Fixed	Datasheet
STA-10-08-F1-C-30-2.0	90GHz	140GHz	10dB	18dB	1W	WR-08Waveguide	Fixed	Datasheet STEP File
STA-20-08-F1-C-30-2.0	90GHz	140GHz	20dB	18dB	1W	WR-08Waveguide	Fixed	Datasheet STEP File

StandardWG Fixed Attenuators

Model	Minimum Frequency	Maximum Frequency	Attenuation	Return Loss	Power Handling	RF Port	Attenuator Type	Datasheet
STA-10-06-F1	110GHz	170GHz	10dB @140GHz	20dB	300mW	WR-06Waveguide	Fixed	Datasheet STEP File
STA-20-06-F1	110GHz	170GHz	20dB @140GHz	20dB	300mW	WR-06Waveguide	Fixed	Datasheet STEP File
STA-03-06-F1	110GHz	170GHz	3dB @140GHz	20dB	300mW	WR-06Waveguide	Fixed	Datasheet STEP File
STA-30-06-F1	110GHz	170GHz	30dB @140GHz	20dB	300mW	WR-06Waveguide	Fixed	Datasheet STEP File
STA-06-06-F1	110GHz	170GHz	6dB @140GHz	20dB	300mW	WR-06Waveguide	Fixed	Datasheet STEP File
STA-10-05-F1	140GHz	220GHz	10dB @180GHz	16dB	100mW	WR-05Waveguide	Fixed	Datasheet STEP File
STA-20-05-F1	140GHz	220GHz	20dB @180GHz	16dB	100mW	WR-05Waveguide	Fixed	Datasheet STEP File
STA-03-05-F1	140GHz	220GHz	3dB @180GHz	16dB	100mW	WR-05Waveguide	Fixed	Datasheet STEP File
STA-30-05-F1	140GHz	220GHz	30dB @180GHz	16dB	100mW	WR-05Waveguide	Fixed	Datasheet STEP File
STA-06-05-F1	140GHz	220GHz	6dB @180GHz	16dB	100mW	WR-05Waveguide	Fixed	Datasheet STEP File
STA-10-04-F1	170GHz	260GHz	10dB @215GHz	16dB	100mW	WR-04Waveguide	Fixed	Datasheet STEP File
STA-20-04-F1	170GHz	260GHz	20dB @215GHz	16dB	100mW	WR-04Waveguide	Fixed	Datasheet STEP File
STA-03-04-F1	170GHz	260GHz	3dB @215GHz	16dB	100mW	WR-04Waveguide	Fixed	Datasheet STEP File
STA-30-04-F1	170GHz	260GHz	30dB @215GHz	16dB	100mW	WR-04Waveguide	Fixed	Datasheet STEP File
STA-06-04-F1	170GHz	260GHz	6dB @215GHz	16dB	100mW	WR-04Waveguide	Fixed	Datasheet STEP File
STA-04-42-F1-H-2	18GHz	26.5GHz	4dB @22.5GHz	14dB	35W	WR-42Waveguide	Fixed	Datasheet
STA-03-42-F1	18GHz	26.5GHz	03dB @22.25GHz	20dB	0.75W	WR-42Waveguide	Fixed	Datasheet STEP File
STA-06-42-F1	18GHz	26.5GHz	06dB @22.25GHz	20dB	0.75W	WR-42Waveguide	Fixed	Datasheet STEP File
STA-10-42-F1	18GHz	26.5GHz	10dB @22.25GHz	20dB	0.75W	WR-42Waveguide	Fixed	Datasheet STEP File
STA-20-42-F1	18GHz	26.5GHz	20dB @22.25GHz	20dB	0.75W	WR-42Waveguide	Fixed	Datasheet STEP File
STA-30-42-F1	18GHz	26.5GHz	30dB @22.25GHz	20dB	0.75W	WR-42Waveguide	Fixed	Datasheet STEP File
STA-40-42-F1	18GHz	26.5GHz	40dB @22.25GHz	20dB	0.75W	WR-42Waveguide	Fixed	Datasheet STEP File
STA-50-42-F1	18GHz	26.5GHz	50dB @22.25GHz	20dB	0.75W	WR-42Waveguide	Fixed	Datasheet STEP File
STA-03-34-F1	22GHz	33GHz	03dB @27.5GHz	20dB	0.75W	WR-34Waveguide	Fixed	Datasheet STEP File
STA-06-34-F1	22GHz	33GHz	06dB @27.5GHz	20dB	0.75W	WR-34Waveguide	Fixed	Datasheet STEP File
STA-10-34-F1	22GHz	33GHz	10dB @27.5GHz	20dB	0.75W	WR-34Waveguide	Fixed	Datasheet STEP File
STA-20-34-F1	22GHz	33GHz	20dB @27.5GHz	20dB	0.75W	WR-34Waveguide	Fixed	Datasheet STEP File
STA-30-34-F1	22GHz	33GHz	30dB @27.5GHz	20dB	0.75W	WR-34Waveguide	Fixed	Datasheet STEP File
STA-40-34-F1	22GHz	33GHz	40dB @27.5GHz	20dB	0.75W	WR-34Waveguide	Fixed	Datasheet STEP File
STA-50-34-F1	22GHz	33GHz	50dB @27.5GHz	20dB	0.75W	WR-34Waveguide	Fixed	Datasheet STEP File
STA-10-03-F1	220GHz	330GHz	10dB @275GHz	16dB	100mW	WR-03Waveguide	Fixed	Datasheet STEP File
STA-20-03-F1	220GHz	330GHz	20dB @275GHz	16dB	100mW	WR-03Waveguide	Fixed	Datasheet STEP File
STA-03-03-F1	220GHz	330GHz	3dB @275GHz	16dB	100mW	WR-03Waveguide	Fixed	Datasheet STEP File
STA-30-03-F1	220GHz	330GHz	30dB @275GHz	16dB	100mW	WR-03Waveguide	Fixed	Datasheet STEP File
STA-06-03-F1	220GHz	330GHz	6dB @275GHz	16dB	100mW	WR-03Waveguide	Fixed	Datasheet STEP File
STA-03-28-F1	26.5GHz	40GHz	03dB @33.25GHz	20dB	0.75W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-06-28-F1	26.5GHz	40GHz	06dB @33.25GHz	20dB	0.75W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-10-28-F1	26.5GHz	40GHz	10dB @33.25GHz	20dB	0.75W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-20-28-F1	26.5GHz	40GHz	20dB @33.25GHz	20dB	0.75W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-30-28-F1	26.5GHz	40GHz	30dB @33.25GHz	20dB	0.75W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-40-28-F1	26.5GHz	40GHz	40dB @33.25GHz	20dB	0.75W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-50-28-F1	26.5GHz	40GHz	50dB @33.25GHz	20dB	0.75W	WR-28Waveguide	Fixed	Datasheet STEP File
STA-10-22-F1	33GHz	50GHz	10dB @41.5GHz	20dB	0.5W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-20-22-F1	33GHz	50GHz	20dB @41.5GHz	20dB	0.5W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-03-22-F1	33GHz	50GHz	3dB @41.5GHz	20dB	0.5W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-30-22-F1	33GHz	50GHz	30dB @41.5GHz	20dB	0.5W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-40-22-F1	33GHz	50GHz	40dB @41.5GHz	20dB	0.5W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-50-22-F1	33GHz	50GHz	50dB @41.5GHz	20dB	0.5W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-06-22-F1	33GHz	50GHz	6dB @41.5GHz	20dB	0.5W	WR-22Waveguide	Fixed	Datasheet STEP File
STA-10-19-F1	40GHz	60GHz	10dB @50GHz	20dB	0.5W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-20-19-F1	40GHz	60GHz	20dB @50GHz	20dB	0.5W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-03-19-F1	40GHz	60GHz	3dB @50GHz	20dB	0.5W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-30-19-F1	40GHz	60GHz	30dB @50GHz	20dB	0.5W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-40-19-F1	40GHz	60GHz	40dB @50GHz	20dB	0.5W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-50-19-F1	40GHz	60GHz	50dB @50GHz	20dB	0.5W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-06-19-F1	40GHz	60GHz	6dB @50GHz	20dB	0.5W	WR-19Waveguide	Fixed	Datasheet STEP File
STA-10-15-F1	50GHz	75GHz	10dB @62.5GHz	20dB	0.5W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-20-15-F1	50GHz	75GHz	20dB @62.5GHz	20dB	0.5W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-03-15-F1	50GHz	75GHz	3dB @62.5GHz	20dB	0.5W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-30-15-F1	50GHz	75GHz	30dB @62.5GHz	20dB	0.5W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-40-15-F1	50GHz	75GHz	40dB @62.5GHz	20dB	0.5W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-50-15-F1	50GHz	75GHz	50dB @62.5GHz	20dB	0.5W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-06-15-F1	50GHz	75GHz	6dB @62.5GHz	20dB	0.5W	WR-15Waveguide	Fixed	Datasheet STEP File
STA-10-12-F1	60GHz	90GHz	10dB @75GHz	20dB	0.5W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-20-12-F1	60GHz	90GHz	20dB @75GHz	20dB	0.5W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-03-12-F1	60GHz	90GHz	3dB @75GHz	20dB	0.5W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-30-12-F1	60GHz	90GHz	30dB @75GHz	20dB	0.5W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-40-12-F1	60GHz	90GHz	40dB @75GHz	20dB	0.5W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-50-12-F1	60GHz	90GHz	50dB @75GHz	20dB	0.5W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-06-12-F1	60GHz	90GHz	6dB @75GHz	20dB	0.5W	WR-12Waveguide	Fixed	Datasheet STEP File
STA-10-10-F1	75GHz	110GHz	10dB @92.5GHz	20dB	0.5W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-20-10-F1	75GHz	110GHz	20dB @92.5GHz	20dB	0.5W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-03-10-F1	75GHz	110GHz	3dB @92.5GHz	20dB	0.5W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-30-10-F1	75GHz	110GHz	30dB @92.5GHz	20dB	0.5W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-40-10-F1	75GHz	110GHz	40dB @92.5GHz	20dB	0.5W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-50-10-F1	75GHz	110GHz	50dB @92.5GHz	20dB	0.5W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-06-10-F1	75GHz	110GHz	6dB @92.5GHz	20dB	0.5W	WR-10Waveguide	Fixed	Datasheet STEP File
STA-10-08-F1	90GHz	140GHz	10dB @115GHz	20dB	300mW	WR-08Waveguide	Fixed	Datasheet STEP File
STA-20-08-F1	90GHz	140GHz	20dB @115GHz	20dB	300mW	WR-08Waveguide	Fixed	Datasheet STEP File
STA-03-08-F1	90GHz	140GHz	3dB @115GHz	20dB	300mW	WR-08Waveguide	Fixed	Datasheet STEP File
STA-30-08-F1	90GHz	140GHz	30dB @115GHz	20dB	300mW	WR-08Waveguide	Fixed	Datasheet STEP File
STA-06-08-F1	90GHz	140GHz	6dB @115GHz	20dB	300mW	WR-08Waveguide	Fixed	Datasheet STEP File

取り扱い製品

コンパクト固定導波管アッテネーター

高出力・高精度固定導波管アッテネーター

標準固定導波管アッテネーター

製品ラインナップ

CompactWG Fixed Attenuators

High PowerWG Fixed Attenuators

StandardWG Fixed Attenuators
