固定減衰器 150W~200W (DC-18GHz)
- カテゴリー
-
- RF、ミリ波、テラヘルツ
- 固定減衰器 150W~200W (DC-18GHz)
RF-LAMBDA
概要文はありません
| Part Number | Description | Frequency (GHz) | Attenuation (dB) | VSWR | Avg. Power CW Watt |
Peak Power Handle (kW) | Packaging | Quote & Order | |
|---|---|---|---|---|---|---|---|---|---|

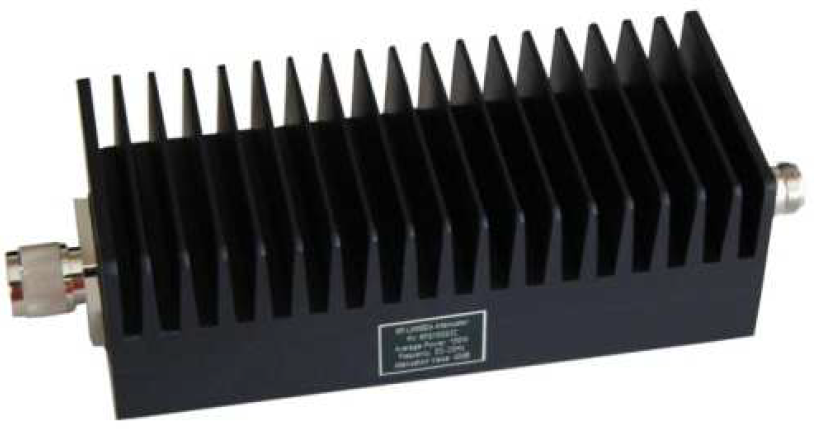

| RFS150G1A | Cubic Attenuator | DC ~ 1 | 10~50 | 1.15 | 150 | 10KW 5μs 0.5% | Coaxial |  |
 |
| RFS150G2A | Cubic Attenuator | DC ~ 2 | 10~50 | 1.2 | 150 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS150G3A | Cubic Attenuator | DC ~ 3 | 10~50 | 1.3 | 150 | 10KW 5μs 0.5% | Coaxial | |
 |
| RFS150G4A | Cubic Attenuator | DC ~ 4 | 10~50 | 1.35 | 150 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS150G6B | Fin Shape Attenuator | DC ~ 6 | 1~50 | 1.3 | 150 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS150G8B | Fin Shape Attenuator | DC ~ 8 | 10~50 | 1.35 | 150 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS150G10B | Fin Shape Attenuator | DC ~ 10 | 10~50 | 1.4 | 150 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS150G12R | Cylinder Attenuator | DC ~ 12.4 | 10~50 | 1.45 | 150 | 1KW 5μs 0.5% | Coaxial | |
|
| RFS150G18R | Cylinder Attenuator | DC ~ 18 | 10~50 | 1.6 | 150 | 1KW 5μs 0.5% | Coaxial | |
|
| RFS200G1A | Cubic Attenuator | DC ~ 1 | 10~50 | 1.15 | 200 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS200G2A | Cubic Attenuator | DC ~ 2 | 10~50 | 1.25 | 200 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS200G3A | Cubic Attenuator | DC ~ 3 | 10~50 | 1.35 | 200 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS200G4A | Cubic Attenuator | DC ~ 4 | 10~50 | 1.4 | 200 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS200G6B | Fin Shape Attenuator | DC ~ 6 | 10~50 | 1.3 | 200 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS200G8B | Fin Shape Attenuator | DC ~ 8 | 10~50 | 1.35 | 200 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS200G10B | Fin Shape Attenuator | DC ~ 10 | 10~50 | 1.45 | 200 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS200G12B | Cylinder Attenuator | DC ~ 12.4 | 10~50 | 1.4 | 200 | 1KW 5μs 0.5% | Coaxial | |
|
| RFS200G18B | Cylinder Attenuator | DC ~ 18 | 10~50 | 1.5 | 200 | 1KW 5μs 0.5% | Coaxial | |
|
