固定減衰器 80W~100W (DC-18GHz)
- カテゴリー
-
- RF、ミリ波、テラヘルツ
- 固定減衰器 80W~100W (DC-18GHz)
RF-LAMBDA
概要文はありません
| Part Number | Description | Frequency (GHz) | Attenuation (dB) | VSWR | Avg. Power CW Watt |
Peak Power Handle (kW) |
Packaging | Quote & Order | |
|---|---|---|---|---|---|---|---|---|---|
| RFS80G1A | Cubic Attenuator | DC ~ 1 | 10~50 | 1.1 | 80 | 10KW 5μs 0.5% | Coaxial |  |
 |
| RFS80G2A | Cubic Attenuator | DC ~ 2 | 10~50 | 1.2 | 80 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS80G3A | Cubic Attenuator | DC ~ 3 | 10~50 | 1.3 | 80 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS80G4A | Cubic Attenuator | DC ~ 4 | 10~50 | 1.35 | 80 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS80G6C | Cubic Attenuator | DC ~ 6 | 10~50 | 1.3 | 80 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS80G8C | Cubic Attenuator | DC ~ 8 | 10~50 | 1.35 | 80 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS80G10C | Cubic Attenuator | DC ~ 10 | 1~50 | 1.4 | 80 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS80G12B | Cylinder Attenuator | DC ~ 12.4 | 10~50 | 1.35 | 80 | 1KW 5μs 0.5% | Coaxial | |
|
| RFS80G18B | Cylinder Attenuator | DC ~ 18 | 10~50 | 1.45 | 80 | 1KW 5μs 0.5% | Coaxial | |
|
| RFS100G1A | Cubic Attenuator | DC ~ 1 | 10~50 | 1.1 | 100 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS100G2A | Cubic Attenuator | DC ~ 2 | 10~50 | 1.2 | 100 | 10KW 5μs 0.5% | Coaxial | |
 |
| RFS100G3A | Cubic Attenuator | DC ~ 3 | 10~50 | 1.3 | 100 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS100G4A | Cubic Attenuator | DC ~ 4 | 10~50 | 1.35 | 100 | 10KW 5μs 0.5% | Coaxial | |
|
| RFS100G6C | Fin Shape Attenuator | DC ~ 6 | 1~50 | 1.3 | 100 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS100G8C | Fin Shape Attenuator | DC ~ 8 | 10~50 | 1.35 | 100 | 5KW 5μs 0.5% | Coaxial | |
|
| RFS100G10C | Fin Shape Attenuator | DC ~ 10 | 10~50 | 1.4 | 100 | 5KW 5μs 0.5% | Coaxial | |
|

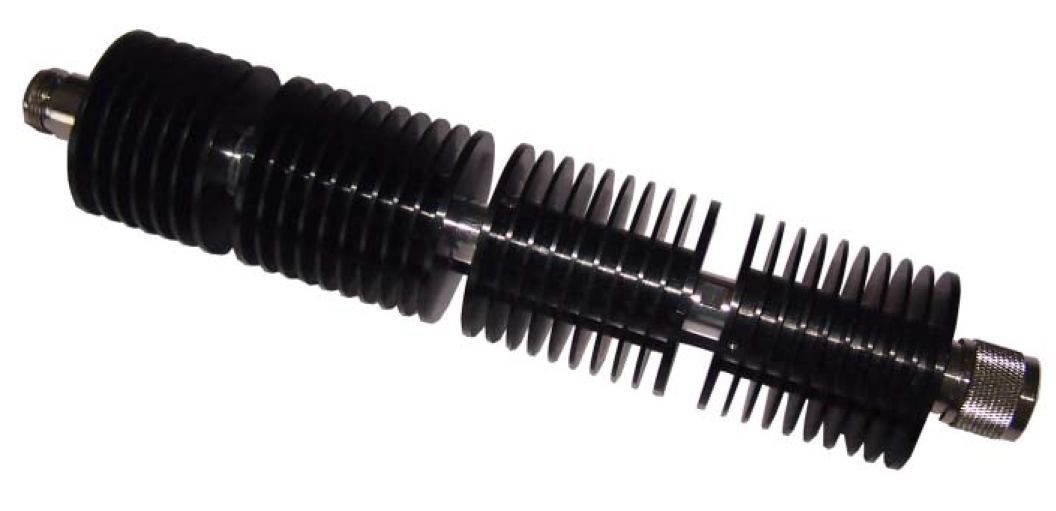

| RFS100G12B | Cylinder Attenuator | DC ~ 12.4 | 10~50 | 1.4 | 100 | 1KW 5μs 0.5% | Coaxial | |
|
| RFS100G18B | Cylinder Attenuator | DC ~ 18 | 10~50 | 1.5 | 100 | 1KW 5μs 0.5% | Coaxial | |
|
