ローノイズアンプ（DC電源）（～110GHz）
RF-LAMBDA社のDCローノイズアンプ（LNA）は広帯域で、低雑音指数と高いIP3値を実現しています。
ご要望に応じて、密閉型オプションもご用意しております。
製品ラインナップ
Low Noise Amplifier（DC Powered）
| Model | Description | Frequency Range | Gain （dB） |
NF （dB） |
P1dB （dBm） |
IP3 （dBm） |
Input Max Power |
Current （mA） |
Connector | Voltage （VDC） |
Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R00M14GSA | Low Noise Amplifier | 0.005～14GHz | 13dB | 3dB | 18.6dBm | 28.6dBm | 460mA | SMA | 4VDC | Datasheet | |
| R00M20G2D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 0.01～20GHz | 15dB | 4.5dB | 14dBm | 28dBm | 10 | 110mA | SMA | 8VDC | |
| R00M20G2D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 0.01～20GHz | 15dB | 4.5dB | 14dBm | 28dBm | 10 | 110mA | SMA | 8VDC | |
| R00M20GSA | Low noise Amplifier | 0.01～20GHz | 16dB | 3dB | 21.5dBm | 0dBm | 20 | 160mA | SMA | 5VDC | Datasheet |
| R00M20GSA-H | Hermetically Sealed Low Noise Amplifier | 0.01～20GHz | 16dB | 3dB | 21.5dBm | 0dBm | 20 | 160mA | SMA | 5VDC | Datasheet |
| R00M20GSMC | Ultra Wide Band LNA | 0.01～26GHz | 12dB | 3.4dB | 28.5dBm | 38dBm | 0 | 400mA | SMA | 10VDC | Datasheet |
| R00M20GSMD | Ultra Wide Band LNA | 0.01～26GHz | 11dB | 3.4dB | 28.5dBm | 38dBm | 0 | 400mA | SMA | 12VDC | Datasheet |
| R00M20GSME | Ultra Wide Band LNA | 0.01～20GHz | 18dB | 6dB | 22.5dBm | 34dBm | 10 | 150mA | SMA | 8VDC | Datasheet |
| R00M20GSME-12V | Ultra Wide Band LNA | 0.01～20GHz | 18dB | 6dB | 22.5dBm | 34dBm | 10 | 150mA | SMA | 12VDC | Datasheet |
| R00M22GSM | Ultra Wide Band LNA | 0.01～22GHz | 14dB | 2.5dB | 18dBm | 27dBm | 0 | 85mA | SMA | 5VDC | Datasheet |
| R00M22GSM-H | Hermetically Sealed Ultra Wide Band LNA | 0.01～22GHz | 14dB | 2.5dB | 18dBm | 27dBm | 0 | 85mA | SMA | 5VDC | Datasheet |
| R00M24GSM | Ultra Wide Band LNA | 0.01～24GHz | 17dB | 2.5dB | 24.5dBm | 32dBm | 0 | 200mA | SMA | 8VDC | Datasheet |
| R00M25GSMA | Ultra Wide Band LNA | 0.01～25GHz | 14dB | 3dB | 16dBm | 28dBm | 0 | 70mA | SMA | 8VDC | Datasheet |
| R00M30GSA | Low noise Amplifier | 0.004～30GHz | 15dB | 3dB | 17dBm | 27dBm | 20 | 150mA | 2.92mm | 5VDC | Datasheet |
| R00M30GSM | Low Noise Amplifier | 0.004～30GHz | 18dB | 3dB | 24dBm | 30dBm | 15 | 260mA | 2.92mm | 8VDC | Datasheet |
| R00M40GSM | Ultra Wide Band LNA | 0.01～40GHz | 14dB | 5dB | 18dBm | 27dBm | 0 | 160mA | 2.92mm | 8VDC | Datasheet |
| R00M43GSA | Low Noise Amplifier | 0.005～43GHz | 12.5dB | 4.85dB | 15.8dBm | 25.8dBm | 80mA | 2.92mm | 12VDC | Datasheet | |
| R00M50GSMA | Low Noise Amplifier | 0.01～50GHz | 15dB | 5dB | 11dBm | 20dBm | 0 | 65mA | 2.4mm | 4VDC | Datasheet |
| R00M50GSMB | Low Noise Amplifier | 0.005～50GHz | 14.5dB | 3.7dB | 16.3dBm | 26.3dBm | 90mA | 2.4mm | 12VDC | Datasheet | |
| R00M65GSA | Low Noise Amplifier-Dual Biasing | 0.01～65GHz | 10dB | 3dB | 12dBm | 18dBm | 0 | 90mA | 1.85mm | 5VDC | Datasheet |
| R00M65GSA-S | Low Noise Amplifier-Single Biasing | 0.01～65GHz | 10dB | 3dB | 12dBm | 18dBm | 0 | 85mA | 1.85mm | 5VDC | Datasheet |
| R00M65GSB | Low Noise Amplifier-Dual Biasing | 0.01～65GHz | 10dB | 5dB | 17dBm | 23dBm | 0 | 150mA | 1.85mm | 7VDC | Datasheet |
| R00M65GSB-S | Low Noise Amplifier-Single Biasing | 0.01～65GHz | 10dB | 5dB | 17dBm | 23dBm | 0 | 150mA | 1.85mm | 7VDC | Datasheet |
| R00M65GSC | Low Noise Amplifier-Dual Biasing | 0.01～65GHz | 10dB | 6dB | 18dBm | 24dBm | 0 | 250mA | 1.85mm | 5VDC | Datasheet |
| R00M65GSC-S | Low Noise Amplifier-Single Biasing | 0.1～65GHz | 10dB | 6dB | 20dBm | 24dBm | 0 | 300mA | 1.85mm | 8VDC | Datasheet |
| R00M70GSA | Low Noise Amplifier | 0.001～70GHz | 13dB | 3dB | 12dBm | 18dBm | 0 | 140mA | 1.85mm | 8VDC | Datasheet |
| R00M70GSB | Low Noise Amplifier | 0.001～70GHz | 12dB | 3dB | 15dBm | 20dBm | 0 | 80mA | 1.85mm | 4.5VDC | Datasheet |
| R01G04GSA | Ultra Low Noise Amplifier | 1.4～4GHz | 16.5dB | 0.95dB | 18.6dBm | 28.6dBm | 160mA | SMA | 12VDC | Datasheet | |
| R01G04GSB | Low Noise Amplifier | 1～4GHz | 27dB | 0.7dB | 13.5dBm | 23dBm | 18 | 60mA | SMA | 12VDC | Datasheet |
| R01G06GSA | Low Noise Amplifier | 1～6GHz | 15dB | 1.75dB | 19.6dBm | 29.6dBm | 200mA | SMA | 12VDC | Datasheet | |
| R01G12GSA | Low Noise Amplifier | 1～12GHz | 17dB | 1.5dB | 19dBm | 28dBm | 7 | 55mA | SMA | 5VDC | Datasheet |
| R01G19GSAA | Low Noise Amplifier | 1～19GHz | 14dB | 2.1dB | 17dBm | 26.6dBm | 6 | 80mA | SMA | 12VDC | Datasheet |
| R01G20GSAA | Low Noise Amplifier | 1～20GHz | 12dB | 2.2dB | 14dBm | 23.6dBm | 5 | 40mA | SMA | 12VDC | Datasheet |
| R01G20GSBA | Low Noise Amplifier | 1～20GHz | 30dB | 2.6dB | 17dBm | 25.6dBm | -8 | 100mA | SMA | 12VDC | Datasheet |
| R01G24GSM | Ultra Wide Band LNA | 1～24GHz | 15dB | 2.5dB | 21.5dBm | 32dBm | 0 | 240mA | SMA | 8VDC | Datasheet |
| R01M04GSQ | Ultra Low Noise Amplifier | 0.1～3.5GHz | 30dB | 0.8dB | 18dBm | 27dBm | 15 | 70mA | SMA | 5VDC | Datasheet |
| R01M04GSQ-28V | Ultra Low Noise Amplifier | 0.1～3.5GHz | 30dB | 0.8dB | 18dBm | 27dBm | 15 | 70mA | SMA | 28VDC | Datasheet |
| R01M04GSR | Low Noise Amplifier | 0.01～3.5GHz | 29.5dB | 1.1dB | 17.6dBm | 27.6dBm | 120mA | SMA | 12VDC | Datasheet | |
| R01M04GSS | Low Noise Amplifier | 0.02～4GHz | 17dB | 2dB | 17dBm | 28dBm | 18 | 50mA | SMA | 12VDC | Datasheet |
| R01M09GSA | Low Noise Amplifier | 0.01～9GHz | 18.5dB | 2.3dB | 21.1dBm | 31.1dBm | 270mA | SMA | 12VDC | Datasheet | |
| R01M10GSA | Low Noise Amplifier | 0.01～10GHz | 18.5dB | 1.8dB | 20.6dBm | 30.6dBm | 240mA | SMA | 12VDC | Datasheet | |
| R01M18GSQ | Low Noise Amplifier | 0.1～18GHz | 15dB | 1.8dB | 13dBm | 23dBm | 15 | 35mA | SMA | 12VDC | Datasheet |
| R01M18GSQ2 | Low Noise Amplifier | 0.1～18GHz | 15dB | 1.8dB | 17dBm | 27dBm | 20 | 40mA | SMA | 12VDC | |
| R01M18GSQ2-28V | Low Noise Amplifier (28V Bias) | 0.1～18GHz | 15dB | 1.8dB | 17dBm | 27dBm | 20 | 55mA | SMA | 28VDC | Datasheet |
| R01M18GSQ-28V | Low Noise Amplifier (28V Bias) | 0.1～18GHz | 15dB | 1.8dB | 13dBm | 23dBm | 15 | 35mA | SMA | 28VDC | Datasheet |
| R01M18GSQ-28V-H | Hermetically Sealed Low Noise Amplifier (28V Bias) | 0.1～18GHz | 15dB | 1.8dB | 13dBm | 23dBm | 15 | 35mA | SMA | 28VDC | Datasheet |
| R01M18GSQ-H | Hermetically Sealed Low Noise Amplifier | 0.1～18GHz | 15dB | 1.8dB | 13dBm | 23dBm | 15 | 35mA | SMA | 12VDC | Datasheet |
| R01M40GSA | Low Noise Amplifier | 0.01～40GHz | 11.5dB | 3.65dB | 17.3dBm | 27.3dBm | 120mA | 2.92mm | 12VDC | Datasheet | |
| R01M46GSA | Low Noise Amplifier | 0.01～46GHz | 14dB | 3dB | 22dBm | 33dBm | 15 | 240mA | 2.4mm | 7VDC | Datasheet |
| R02G04GSQ | Ultra Low Noise Amplifier | 2～4GHz | 29dB | 0.8dB | 6dBm | 16dBm | 15 | 20mA | SMA | 5VDC | Datasheet |
| R02G06GSM | Low Noise Amplifier | 2～6GHz | 14dB | 4.5dB | 13dBm | 23dBm | 0 | 45mA | SMA | 10VDC | Datasheet |
| R02G09GSM | Driver Amplifier | 2～9GHz | 15dB | 4.5dB | 16.5dBm | 23dBm | 0 | 90mA | SMA | 10VDC | Datasheet |
| R02G12GSA | Low Noise Amplifier | 2～12GHz | 15dB | 1.8dB | 13dBm | 25dBm | 3 | 45mA | SMA | 4VDC | Datasheet |
| R02G18GSAA | Low Noise Amplifier | 2～18GHz | 20dB | 2.1dB | 17dBm | 27.1dBm | 0 | 100mA | SMA | 4VDC | Datasheet |
| R02G20GSA | Ultra Wide Band LNA | 2～20GHz | 15dB | 1.7dB | 14dBm | 0dBm | 3 | 40mA | SMA | 12VDC | Datasheet |
| R02G20GSAGC | Ultra Wide Band LNA | 2～20GHz | 14dB | 2.5dB | 16dBm | 28dBm | 7 | 60mA | SMA | 5VDC | Datasheet |
| R02G20GSB | Low Noise Amplifier | 2～20GHz | 11.09dB | 2.86dB | 14.04dBm | 24dBm | 3 | 50mA | SMA | 12VDC | Datasheet |
| R02G20GSMA | Ultra Wide Band LNA | 2～20GHz | 9dB | 4.5dB | 20dBm | 24dBm | 0 | 120mA | SMA | 10VDC | Datasheet |
| R02G20GSMB | Ultra Wide Band LNA | 2～20GHz | 14dB | 5dB | 25dBm | 34dBm | 20 | 360mA | SMA | 8VDC | Datasheet |
| R02G20GSMC | Driver Amplifier | 2～20GHz | 22dB | 6dB | 13.5dBm | 29dBm | 0 | 115mA | SMA | 10VDC | Datasheet |
| R02G22GSM | Ultra Wide Band LNA | 2～22GHz | 13dB | 2.3dB | 20.5dBm | 28dBm | 0 | 80mA | SMA | 5VDC | Datasheet |
| R02G26GSM | Low Noise Amplifier | 2～26GHz | 12dB | 2.3dB | 18.5dBm | 27dBm | 0 | 100mA | 2.92mm | 10VDC | Datasheet |
| R02G32GSA | Low Noise Amplifier | 2～32GHz | 12.9dB | 3.35dB | 14.45dBm | 24.4dBm | 2 | 90mA | 2.92mm | 4VDC | Datasheet |
| R02G47GSA | Low Noise Amplifier | 1.5～47GHz | 13dB | 3.2dB | 16.3dBm | 26.3dBm | 90mA | 2.4mm | 12VDC | Datasheet | |
| R02G50GSA | Low Noise Amplifier | 2～50GHz | 9.5dB | 4.7dB | 15.3dBm | 25.3dBm | 80mA | 2.4mm | 12VDC | Datasheet | |
| R02M01GSA | Low Noise Amplifier | 0.02～1.2GHz | 15.5dB | 1.8dB | 20.7dBm | 30.7dBm | 250mA | SMA | 12VDC | Datasheet | |
| R02M04GSA | Low Noise, High IP3 | 0.2～4GHz | 13dB | 2.3dB | 22dBm | 38dBm | 14 | 110mA | SMA | 5VDC | Datasheet |
| R02M04GSB | Low Noise Amplifier | 0.02～4GHz | 21dB | 1.65dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| R02M12GSA | Low Noise Amplifier | 0.025～12GHz | 15.5dB | 2.9dB | 20.6dBm | 30.6dBm | 240mA | SMA | 12VDC | Datasheet | |
| R03G04GSA | Low Noise Amplifier | 3.3～4.2GHz | 21dB | 1.45dB | 15.1dBm | 25.1dBm | 210mA | SMA | 4VDC | Datasheet | |
| R03G05GSA | Low Noise Amplifier | 3.3～5GHz | 17dB | 2.15dB | 18.6dBm | 28.6dBm | 160mA | SMA | 12VDC | Datasheet | |
| R03M03GSA | Low Noise Amplifier | 0.3～3GHz | 15dB | 1.6dB | 17dBm | 35dBm | 7 | 75mA | SMA | 3VDC | Datasheet |
| R03M03GSB | Low Noise, High IP3 | 0.3～3GHz | 15dB | 1.5dB | 22dBm | 37dBm | 12 | 90mA | SMA | 5VDC | Datasheet |
| R03M06GSA | Low Noise Amplifier | 0.03～6GHz | 21.5dB | 2.45dB | 20.6dBm | 30.6dBm | 240mA | SMA | 12VDC | Datasheet | |
| R03M08GSA | Low Noise Amplifier | 0.03～8GHz | 19dB | 1.55dB | 19.6dBm | 29.6dBm | 200mA | SMA | 12VDC | Datasheet | |
| R03M60MSA | Ultra Low Noise Amplifier | 0.03～0.6GHz | 30dB | 0.9dB | 22.7dBm | 32.7dBm | 390mA | SMA | 12VDC | Datasheet | |
| R04G08GSMA | Low Noise Amplifier | 4～8GHz | 23dB | 1dB | 17.5dBm | 28dBm | 0 | 75mA | SMA | 10VDC | Datasheet |
| R04G08GSMA-H | Hermetically Sealed Low Noise Amplifier | 4～8GHz | 23dB | 1dB | 17.5dBm | 28dBm | 0 | 0mA | SMA | 10VDC | Datasheet |
| R04G08GSMB | Low Noise Amplifier | 1～12GHz | 16dB | 1.6dB | 18dBm | 30dBm | 0 | 40mA | SMA | 5VDC | Datasheet |
| R04G08GSMC | Low Noise Amplifier | 3.5～8GHz | 16dB | 2.2dB | 18.6dBm | 28.6dBm | 160mA | SMA | 12VDC | Datasheet | |
| R04G08GSQ | Ultra Low Noise Amplifier | 4～8GHz | 29dB | 0.9dB | 5dBm | 15dBm | 15 | 20mA | SMA | 5VDC | Datasheet |
| R04G13GSA | Low Noise Amplifier | 4～13GHz | 22.17dB | 1.82dB | 9.58dBm | 19.6dBm | -13 | 40mA | SMA | 4VDC | Datasheet |
| R04G24GSAA | Low Noise Amplifier | 4～24GHz | 23dB | 2.1dB | 15.5dBm | 25.5dBm | -4 | 140mA | SMA | 12VDC | Datasheet |
| R04M96MSA | Low Noise, Dual Output | 0.04～0.96GHz | 5dB | 3.5dB | 12dBm | 27dBm | 12 | 120mA | SMA | 5VDC | Datasheet |
| R05G09GSM | Low Noise Amplifier | 5～9GHz | 22dB | 1.1dB | 21dBm | 30dBm | 0 | 80mA | SMA | 10VDC | Datasheet |
| R05G10GSA | Low Noise Amplifier | 5～10GHz | 20dB | 1.6dB | 16dBm | 28dBm | 1 | 80mA | SMA | 4VDC | Datasheet |
| R05G10GSB | Low Noise Amplifier | 5～10GHz | 19dB | 1.8dB | 16dBm | 28dBm | 2 | 80mA | SMA | 4VDC | Datasheet |
| R05G10GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 5～10GHz | 20dB | 2dB | 16dBm | 27dBm | 10 | 80mA | SMA | 4VDC | Datasheet |
| R05G10GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 5～10GHz | 20dB | 2dB | 16dBm | 27dBm | 10 | 80mA | SMA | 4VDC | Datasheet |
| R05G11G2D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 5～12GHz | 29dB | 1.5dB | 12.5dBm | 23dBm | 20 | 45mA | SMA | 4VDC | Datasheet |
| R05G11GSMA | Low Noise Amplifier | 5～12GHz | 28dB | 1.4dB | 12.5dBm | 25dBm | 0 | 45mA | SMA | 4VDC | Datasheet |
| R05G11GSMB | Low Noise Amplifier | 5～11GHz | 23dB | 1.4dB | 9.5dBm | 22dBm | 0 | 30mA | SMA | 10VDC | Datasheet |
| R05G11GSMC | Low Noise Amplifier | 5～11GHz | 22dB | 1.2dB | 10.5dBm | 23dBm | 0 | 107mA | SMA | 10VDC | Datasheet |
| R05G11GSMD | Low Noise Amplifier | 5～11GHz | 23dB | 1.4dB | 10.5dBm | 23dBm | 0 | 35mA | SMA | 10VDC | Datasheet |
| R05G12GSA | Low Noise Amplifier | 5～12GHz | 12dB | 3.15dB | 18.5dBm | 28.5dBm | 150mA | SMA | 12VDC | Datasheet | |
| R05G15GSA | Low Noise Amplifier | 5～15GHz | 29.12dB | 1.74dB | 15.56dBm | 25.6dBm | -14 | 90mA | SMA | 4VDC | Datasheet |
| R05G18GSA | Low Noise Amplifier | 5～18GHz | 27dB | 1.5dB | 20.5dBm | 30.5dBm | 10 | 150mA | SMA | 5VDC | Datasheet |
| R05G20GSA | Low Noise Amplifier | 5～20GHz | 13dB | 2.2dB | 16dBm | 25dBm | 8 | 30mA | SMA | 5VDC | Datasheet |
| R05G29GSA | Low Noise Amplifier | 5～29GHz | 21.5dB | 2.6dB | 16dBm | 26dBm | 18 | 120mA | 2.92mm | 4VDC | Datasheet |
| R05G29GSAA | Low Noise Amplifier | 5～29GHz | 22dB | 2.6dB | 16dBm | 26.4dBm | -3 | 120mA | 2.92mm | 4VDC | Datasheet |
| R05M01GSA | Low Noise, 75 Ohm | 0.05～1GHz | 14dB | 2.2dB | 19dBm | 39dBm | 10 | 120mA | SMA | 5VDC | Datasheet |
| R05M02GSA | Ultra Low Noise Amplifier | 0.05～2GHz | 19dB | 0.75dB | 19.7dBm | 29.7dBm | 200mA | SMA | 12VDC | Datasheet | |
| R05M04GSA | Low Noise Amplifier | 0.05～4GHz | 21dB | 1.65dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| R05M04GSB | Low Noise Amplifier | 0.05～4GHz | 19.5dB | 1.65dB | 19.6dBm | 29.6dBm | 200mA | SMA | 12VDC | Datasheet | |
| R05M06GSA | Low Noise Amplifier | 0.05～6GHz | 15.5dB | 1dB | 22.1dBm | 32.1dBm | 340mA | SMA | 12VDC | Datasheet | |
| R05M18GSAA | Low Noise Amplifier | 0.05～18GHz | 21dB | 2.4dB | 9dBm | 18.6dBm | -9 | 100mA | SMA | 12VDC | Datasheet |
| R06G12GSA | Low Noise Amplifier | 6～12GHz | 26dB | 1.1dB | 16.5dBm | 26.5dBm | 10 | 80mA | SMA | 12VDC | Datasheet |
| R06G16GSM | Driver Amplifier | 6～16GHz | 20dB | 3.5dB | 19.5dBm | 26dBm | 0 | 95mA | SMA | 10VDC | Datasheet |
| R06G17GSA | Low Noise Amplifier | 6～17GHz | 18dB | 1.7dB | 14dBm | 25dBm | 1 | 80mA | SMA | 4VDC | Datasheet |
| R06G18GSA | Low Noise Amplifier | 6～18GHz | 19dB | 1.6dB | 15dBm | 27dBm | 1 | 90mA | SMA | 4VDC | Datasheet |
| R06G18GSB | Low Noise Amplifier | 6～18GHz | 30dB | 2.1dB | 17.5dBm | 27.5dBm | 10 | 150mA | SMA | 12VDC | Datasheet |
| R06G18GSDD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 6～18GHz | 20dB | 2dB | 15dBm | 25dBm | 10 | 90mA | SMA | 4VDC | Datasheet |
| R06G18GSDD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 6～18GHz | 20dB | 2dB | 15dBm | 25dBm | 10 | 90mA | SMA | 4VDC | Datasheet |
| R06G18GSMA | Low Noise Amplifier | 6～18GHz | 26dB | 1.5dB | 10.5dBm | 23dBm | 0 | 52mA | SMA | 10VDC | Datasheet |
| R06G18GSMB | Low Noise Amplifier | 6～18GHz | 26dB | 1.5dB | 12.5dBm | 27dBm | 0 | 63mA | SMA | 3VDC | Datasheet |
| R06G20GSA | Low Noise Amplifier | 6～20GHz | 22dB | 2.3dB | 10dBm | 20dBm | -7 | 53mA | SMA | 3VDC | Datasheet |
| R06G20GSB | Low Noise Amplifier | 6～20GHz | 21dB | 2.5dB | 10dBm | 20dBm | -6 | 53mA | SMA | 3VDC | Datasheet |
| R06G20GSC | Ultra Wide Band LNA | 6～20GHz | 27dB | 1.6dB | 15.5dBm | 24dBm | 0 | 100mA | SMA | 5VDC | Datasheet |
| R06G20GSDD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 6～20GHz | 22dB | 2.5dB | 10dBm | 20dBm | 0 | 55mA | SMA | 3VDC | Datasheet |
| R06G20GSDD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 6～20GHz | 22dB | 2.5dB | 10dBm | 20dBm | 0 | 55mA | SMA | 3VDC | Datasheet |
| R06G20GSM | Low Noise Amplifier | 6～20GHz | 20dB | 2dB | 15dBm | 26dBm | 0 | 120mA | SMA | 10VDC | Datasheet |
| R06G26GSA | Low Noise Amplifier | 6～26.5GHz | 22dB | 2.5dB | 10dBm | 18dBm | -7 | 45mA | 2.92mm | 3.5VDC | Datasheet |
| R07G13GSA | Low Noise Amplifier | 7～13.5GHz | 17dB | 1.8dB | 12dBm | 24dBm | 0 | 51mA | SMA | 3VDC | Datasheet |
| R07G14GSA | Low Noise Amplifier | 7～14GHz | 17dB | 1.8dB | 13dBm | 25dBm | 1 | 51mA | SMA | 3VDC | Datasheet |
| R07G17GSA | Low Noise Amplifier | 7～17GHz | 21dB | 1.8dB | 15dBm | 20dBm | -1 | 65mA | SMA | 3VDC | Datasheet |
| R07G26GSA | Low Noise Amplifier | 7.5～26.5GHz | 13dB | 2.5dB | 13dBm | 23dBm | 5 | 70mA | 2.92mm | 4VDC | Datasheet |
| R07M01GSA | Low Noise Amplifier | 0.7～1GHz | 15dB | 0.7dB | 21dBm | 36dBm | 11 | 73mA | SMA | 5VDC | Datasheet |
| R07M01GSB | Low Noise Amplifier | 0.7～1GHz | 14dB | 0.9dB | 21dBm | 35dBm | 12 | 90mA | SMA | 5VDC | Datasheet |
| R07M01GSC | Low Noise Amplifier | 0.7～1GHz | 15dB | 1dB | 21dBm | 34dBm | 11 | 100mA | SMA | 5VDC | Datasheet |
| R09G13GSM | Driver Amplifier | 9～13GHz | 15dB | 3.25dB | 15dBm | 20.5dBm | 0 | 38mA | SMA | 10VDC | Datasheet |
| R09G18GSA | Low Noise Amplifier | 9～18GHz | 20dB | 2dB | 14dBm | 25dBm | -1 | 65mA | SMA | 3VDC | Datasheet |
| R09G18GSM | Low Noise Amplifier | 9～18GHz | 22dB | 1.5dB | 13dBm | 22.5dBm | 0 | 93mA | SMA | 10VDC | Datasheet |
| R10G14GSM | Low Noise Amplifier | 10～14GHz | 19dB | 1.05dB | 4.5dBm | 0dBm | 0 | 20mA | SMA | 10VDC | Datasheet |
| R10M04GSAA | Low Noise Amplifier | 0.1～3.5GHz | 28dB | 1dB | 20dBm | 29.7dBm | -5 | 310mA | SMA | 12VDC | Datasheet |
| R10M06GSA | Ultra Low Noise Amplifier | 0.1～6GHz | 20dB | 0.9dB | 22dBm | 32dBm | 0 | 150mA | SMA | 8VDC | Datasheet |
| R10M20GSA | Ultra Wide Band LNA | 0.01～20GHz | 14dB | 2.5dB | 16dBm | 28dBm | 7 | 60mA | SMA | 8VDC | Datasheet |
| R12G20GSQ | Ultra Low Noise Amplifier | 12～20GHz | 25dB | 1.4dB | 3dBm | 13dBm | 15 | 15mA | SMA | 5VDC | Datasheet |
| R12G26GSQ | Ultra Low Noise Amplifier | 12～26GHz | 15.5dB | 1.6dB | 3dBm | 13dBm | 10 | 15mA | SMA | 5VDC | Datasheet |
| R12G33GSQ | Low Noise Amplifier | 12～33GHz | 20dB | 2.5dB | 10dBm | 19dBm | 15 | 65mA | 2.92mm | 5VDC | Datasheet |
| R12M03GSA | Low Noise Amplifier | 1.2～3GHz | 26dB | 1.3dB | 11.5dBm | 21dBm | -9.5 | 21mA | SMA | 5VDC | Datasheet |
| R13G25GSA | Low Noise Amplifier | 13～25GHz | 20dB | 3.5dB | 5dBm | 13dBm | -10 | 41mA | SMA | 3VDC | Datasheet |
| R13G25GSB | Low Noise Amplifier | 13～25GHz | 22dB | 3.5dB | 9dBm | 20dBm | -8 | 43mA | SMA | 3VDC | Datasheet |
| R13M02GSA | Low Noise Amplifier | 1.3～2.9GHz | 34dB | 1dB | 21.5dBm | 39dBm | -7.5 | 272mA | SMA | 5VDC | Datasheet |
| R13M02GSABO | Low Noise Amplifier | 1.3～2.9GHz | 25dB | 1dB | 21.5dBm | 39dBm | 0 | 272mA | SMA | 5VDC | Datasheet |
| R14G27GSA | Low Noise Amplifier | 14～27GHz | 18dB | 2.5dB | 14dBm | 0dBm | 1 | 90mA | 2.92mm | 4VDC | Datasheet |
| R14G27GSB | Low Noise Amplifier | 14～27GHz | 20dB | 2dB | 14dBm | 0dBm | -1 | 90mA | 2.92mm | 4VDC | Datasheet |
| R14G27GSC | Low Noise Amplifier | 14～27GHz | 20dB | 2.2dB | 17dBm | 0dBm | 2.5 | 90mA | 2.92mm | 4VDC | Datasheet |
| R15G22GSA | Low Noise Amplifier | 15～22GHz | 19dB | 2.5dB | 15dBm | 25dBm | 0 | 150mA | 2.92mm | 5VDC | Datasheet |
| R15G45GSA | Low Noise Amplifier | 15～45GHz | 21dB | 3.1dB | 15dBm | 25dBm | 17 | 150mA | 2.40mm | 12VDC | Datasheet |
| R16G23GSA | Low Noise Amplifier | 16～23GHz | 26dB | 1.5dB | 12dBm | 21dBm | 18 | 50mA | SMA | 12VDC | Datasheet |
| R16G26GSM | Low Noise Amplifier | 16～26GHz | 23dB | 2.2dB | 6.5dBm | 18dBm | 0 | 110mA | 2.92mm | 10VDC | Datasheet |
| R17.5G21.5GSA-28V | Low Noise Amplifier | 17.5～21.5GHz | 25dB | 1.8dB | 12dBm | 0dBm | 20 | 0mA | SMA | 28VDC | Datasheet |
| R17G25GSM | Low Noise Amplifier | 17～25GHz | 26dB | 1.4dB | 7.5dBm | 16dBm | 0 | 26mA | 2.92mm | 3VDC | Datasheet |
| R17G26GSA | Low Noise Amplifier | 17～26GHz | 20dB | 2dB | 11dBm | 23dBm | -4 | 65mA | SMA | 3VDC | Datasheet |
| R17G26GSA-28V | Low Noise Amplifier 28V Bias | 17～26GHz | 20dB | 2dB | 11dBm | 23dBm | -4 | 65mA | SMA | 28VDC | Datasheet |
| R17G26GSB | Low Noise Amplifier | 17～26GHz | 19dB | 2.5dB | 13dBm | 23dBm | -1 | 67mA | SMA | 3VDC | Datasheet |
| R17G26GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 17～16GHz | 19dB | 2.2dB | 13dBm | 23dBm | 2 | 65mA | 2.92mm | 3VDC | Datasheet |
| R17G26GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 17～16GHz | 19dB | 2.2dB | 13dBm | 23dBm | 2 | 65mA | 2.92mm | 3VDC | Datasheet |
| R17G26GSQ | Ultra Low Noise Amplifier | 17～26GHz | 26dB | 1.6dB | 4dBm | 14dBm | 15 | 15mA | SMA | 5VDC | Datasheet |
| R17G27GSA | Low Noise Amplifier | 17～27GHz | 25dB | 2.2dB | 13dBm | 25dBm | -7 | 73mA | 2.92mm | 4VDC | Datasheet |
| R17G27GSM | Low Noise Amplifier | 17～27GHz | 21dB | 1.6dB | 17dBm | 26dBm | 0 | 125mA | 2.92mm | 4VDC | Datasheet |
| R18G31GSA | Low Noise Amplifier | 16～33GHz | 14dB | 2.8dB | 14dBm | 23dBm | 2 | 75mA | 2.92mm | 3VDC | Datasheet |
| R18G31GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 18～31GHz | 12dB | 3dB | 12dBm | 19dBm | 8 | 65mA | 2.92mm | 3VDC | Datasheet |
| R18G31GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 18～31GHz | 12dB | 3dB | 12dBm | 19dBm | 8 | 65mA | 2.92mm | 3VDC | Datasheet |
| R18G40GSA | Low Noise Amplifier | 15～48GHz | 8dB | 4dB | 12dBm | 0dBm | 7 | 45mA | 2.92mm | 5VDC | Datasheet |
| R18G40GSB | Low Noise Amplifier | 18～40GHz | 11.01dB | 3.14dB | 9.26dBm | 19.3dBm | -2 | 40mA | 2.92mm | 4VDC | Datasheet |
| R18M66MSA | Low Noise Amplifier | 0.18～0.66GHz | 25dB | 0.3dB | 23dBm | 37dBm | 0 | 115mA | SMA | 5VDC | Datasheet |
| R20G32GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 20～32GHz | 12dB | 3dB | 12dBm | 19dBm | 8 | 65mA | 2.92mm | 3VDC | Datasheet |
| R20G32GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 20～32GHz | 12dB | 3dB | 12dBm | 19dBm | 8 | 65mA | 2.92mm | 3VDC | Datasheet |
| R20G40GSMA | Driver Amplifier | 20～40GHz | 8dB | 4.5dB | 16.5dBm | 27dBm | 0 | 76mA | 2.92mm | 10VDC | Datasheet |
| R20G40GSMB | Driver Amplifier-Dual Biasing | 20～40GHz | 30dB | 6dB | 18dBm | 29dBm | 0 | 270mA | 2.92mm | 4VDC | Datasheet |
| R20G40GSMB-S | Driver Amplifier - Single Biasing | 20～40GHz | 34dB | 5.5dB | 18dBm | 29dBm | 0 | 270mA | 2.92mm | 13VDC | Datasheet |
| R21G29GSA | Low Noise Amplifier | 21～29GHz | 13dB | 2.5dB | 8dBm | 19dBm | 0 | 35mA | 2.92mm | 3VDC | Datasheet |
| R21M02GSA | Low Noise Amplifier | 2.1～2.9GHz | 19dB | 0.9dB | 19dBm | 33dBm | 5 | 95mA | SMA | 5VDC | Datasheet |
| R22G26GSA | Low Noise Amplifier | 22～26.5GHz | 25dB | 3dB | 12dBm | 0dBm | -8 | 54mA | 2.92mm | 3VDC | Datasheet |
| R22G30GSQ | Ultra Low Noise Amplifier | 22～30GHz | 25dB | 1.7dB | 10dBm | 20dBm | 10 | 20mA | 2.92mm | 5VDC | Datasheet |
| R22G48GSA | Low Noise Amplifier | 22～48GHz | 18.32dB | 3.34dB | 12.16dBm | 22.2dBm | -6 | 70mA | 2.40mm | 4VDC | Datasheet |
| R22M02GSA | Low Noise Amplifier | 2.2～2.5GHz | 19dB | 1.7dB | 6dBm | 12dBm | -8 | 8.50mA | SMA | 3VDC | Datasheet |
| R23M02GSA | Low Noise Amplifier | 2.3～2.7GHz | 19dB | 0.75dB | 16.5dBm | 29.5dBm | 2.5 | 59mA | SMA | 5VDC | Datasheet |
| R23M02GSB | Low Noise with Bypass | 2.3～2.7GHz | 20dB | 1.1dB | 17dBm | 31dBm | 2 | 74mA | SMA | 5VDC | Datasheet |
| R23M66MSA | Low Noise Amplifier | 0.23～0.66GHz | 23dB | 0.8dB | 21dBm | 37dBm | 2 | 115mA | SMA | 5VDC | Datasheet |
| R24G28GSA | Low Noise Amplifier | 24～28GHz | 25dB | 2.5dB | 13dBm | 26dBm | -7 | 70mA | 2.92mm | 3VDC | Datasheet |
| R24G29GSB-A | Low Noise Amplifier | 24.5～29.5GHz | 24dB | 3dB | 9dBm | 16dBm | 0 | 75mA | 2.92mm | 5VDC | Datasheet |
| R24G30GSA | Low Noise Amplifier | 24～30GHz | 13dB | 2.5dB | 6dBm | 16dBm | -2 | 30mA | 2.92mm | 3VDC | Datasheet |
| R24G32GSA | Low Noise Amplifier | 24～32GHz | 21dB | 2dB | 7dBm | 0dBm | -9 | 75mA | 2.92mm | 5VDC | Datasheet |
| R24G36GSA | Low Noise Amplifier | 24～36GHz | 22dB | 2dB | 8dBm | 17dBm | -9 | 58mA | 2.92mm | 3VDC | Datasheet |
| R24G36GSB | Low Noise Amplifier | 24～36GHz | 20dB | 2.2dB | 8dBm | 18dBm | -7 | 58mA | 2.92mm | 3VDC | Datasheet |
| R24G36GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 24～36GHz | 21dB | 2.5dB | 5dBm | 15dBm | -5 | 68mA | 2.92mm | 3VDC | Datasheet |
| R24G36GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 24～36GHz | 21dB | 2.5dB | 5dBm | 15dBm | -5 | 68mA | 2.92mm | 3VDC | Datasheet |
| R24G40GSA | Low Noise Amplifier | 24～40GHz | 12dB | 3.5dB | 13dBm | 0dBm | 6 | 45mA | 2.92mm | 4VDC | Datasheet |
| R24G40GSB | Low Noise Amplifier-Single Biasing | 24～40GHz | 22dB | 2dB | 11dBm | 0dBm | -6 | 73mA | 2.92mm | 5VDC | Datasheet |
| R24G40GSC | Low Noise Amplifier | 24～40GHz | 12dB | 3.5dB | 11.3dBm | 19dBm | 8.5 | 60mA | 2.92mm | 4VDC | Datasheet |
| R24G43GSA | Low Noise Amplifier | 24～43.5GHz | 25dB | 2.7dB | 12dBm | 22dBm | -5 | 70mA | 2.92mm | 2.5VDC | Datasheet |
| R24G44GSA | Low Noise Amplifier | 24～44GHz | 15.85dB | 2.82dB | 10.18dBm | 20.2dBm | -6 | 60mA | 2.40mm | 4VDC | Datasheet |
| R26G34GSMA | Low Noise Amplifier | 26～34GHz | 21dB | 2dB | 7dBm | 14dBm | 20 | 50mA | 2.92mm | 3VDC | Datasheet |
| R26G34GSMB | Low Noise Amplifier | 26～34GHz | 19dB | 1.8dB | 5.5dBm | 15dBm | 20 | 40mA | 2.92mm | 12VDC | Datasheet |
| R26G35GSMA | Wide Band Low Noise Amplifier | 26～35GHz | 14dB | 4dB | 17dBm | 22dBm | 10 | 70mA | 2.92mm | 10VDC | Datasheet |
| R26G35GSMB | Driver Amplifier | 26～35GHz | 15dB | 4.4dB | 20.5dBm | 26dBm | 0 | 90mA | 2.92mm | 10VDC | Datasheet |
| R27G33GSA | Low Noise Amplifier | 27～33GHz | 20dB | 3dB | 12dBm | 0dBm | -3 | 52mA | 2.92mm | 3VDC | Datasheet |
| R28G36GSA | Low Noise Amplifier | 28～36GHz | 21dB | 2.8dB | 12dBm | 24dBm | -4 | 82mA | 2.92mm | 5VDC | Datasheet |
| R28G36GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 28～36GHz | 21dB | 2.5dB | 9dBm | 15dBm | -1 | 66mA | 2.92mm | 5VDC | Datasheet |
| R28G36GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 28～36GHz | 22dB | 2.5dB | 9dBm | 15dBm | -1 | 66mA | 2.92mm | 5VDC | Datasheet |
| R28G46GSA | Low Noise Amplifier | 28～46GHz | 19.76dB | 2.67dB | 8.13dBm | 18.1dBm | -12 | 40mA | 2.40mm | 4VDC | Datasheet |
| R28G50GSA | Low Noise Amplifier | 28～50GHz | 16dB | 3.5dB | 11dBm | 21dBm | 10 | 110mA | 2.40mm | 4VDC | Datasheet |
| R29G36GSA | Low Noise Amplifier | 29～36GHz | 20dB | 2.8dB | 12dBm | 23.5dBm | -3 | 80mA | 2.92mm | 3VDC | Datasheet |
| R29G36GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 29～36GHz | 22dB | 3dB | 12dBm | 23dBm | 5 | 80mA | 2.92mm | 3VDC | Datasheet |
| R29G36GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 29～36GHz | 22dB | 3dB | 12dBm | 23dBm | 5 | 80mA | 2.92mm | 3VDC | Datasheet |
| R30G65GSA | Ultra Wide Band LNA | 30～65GHz | 15dB | 7dB | 15dBm | 25dBm | 5 | 400mA | 1.85mm | 4VDC | Datasheet |
| R30M20GSA | Ultra Wide Band LNA | 0.3～20GHz | 14dB | 1.7dB | 15dBm | 27dBm | 4 | 70mA | SMA | 7VDC | Datasheet |
| R30M50MSA | Low Noise Amplifier | 0.03～0.5GHz | 60dB | 1.5dB | 20dBm | 35dBm | -30 | 300mA | SMA | 12VDC | Datasheet |
| R31M03GSA | Low Noise Amplifier | 3.1～3.9GHz | 18dB | 1dB | 19dBm | 33dBm | 6 | 65mA | SMA | 5VDC | Datasheet |
| R33G45GSM | Low Noise Amplifier | 33～45GHz | 25dB | 2.5dB | 4dBm | 13dBm | 0 | 25mA | 2.4mm | 5VDC | Datasheet |
| R33M03GSA | Low Noise with Bypass | 3.3～3.8GHz | 19dB | 1.2dB | 16dBm | 29dBm | 2 | 40mA | SMA | 5VDC | Datasheet |
| R34M04GSA | Low Noise with Bypass | 3.4～3.8GHz | 16dB | 2dB | 7dBm | 18dBm | -4 | 9mA | SMA | 3VDC | Datasheet |
| R35G45GSA | Low Noise Amplifier | 35～45GHz | 16dB | 2dB | 6dBm | 0dBm | -5 | 87mA | 2.92mm | 4VDC | Datasheet |
| R35G45GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 35～45GHz | 16dB | 2.5dB | 5dBm | 15dBm | -5 | 87mA | 2.92mm | 4VDC | Datasheet |
| R35G45GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 35～45GHz | 16dB | 2.5dB | 5dBm | 15dBm | -5 | 87mA | 2.92mm | 4VDC | Datasheet |
| R35G70GSA | Ultra Broadband Amplifier | 35～70GHz | 18dB | 7dB | 17dBm | 26dBm | 20 | 320mA | 1.85mm | 5VDC | Datasheet |
| R35G70GSC | Low Noise Amplifier | 35～70GHz | 20dB | 8dB | 19dBm | 28dBm | 5 | 320mA | 1.85mm | 12VDC | Datasheet |
| R35G86GSA | Ultra Broadband Amplifier | 35～86GHz | 23dB | 5dB | 10dBm | 22dBm | 13 | 100mA | 1.00mm | 3VDC | Datasheet |
| R35M07GSA | Low Noise Amplifier | 3.5～7GHz | 15dB | 2.5dB | 14dBm | 24.5dBm | 4 | 43mA | SMA | 5VDC | Datasheet |
| R35M07GSB | Low Noise Amplifier | 3.5～7GHz | 16dB | 2.4dB | 16dBm | 28dBm | 5.5 | 50mA | SMA | 5VDC | Datasheet |
| R35M07GSC | Low Noise Amplifier | 3.5～7GHz | 16dB | 2.4dB | 16dBm | 28dBm | 5 | 65mA | SMA | 5VDC | Datasheet |
| R35M55MSA | Low Noise Amplifier | 0.35～0.55GHz | 17dB | 1dB | 21dBm | 38dBm | 9 | 104mA | SMA | 5VDC | Datasheet |
| R37G42GSA | Low Noise Amplifier | 37～42GHz | 22dB | 3.5dB | 12dBm | 0dBm | -5 | 52mA | 2.92mm | 3VDC | Datasheet |
| R40G80GSA | Ultra Broadband Amplifier | 40～80GHz | 17dB | 6dB | 20dBm | 30dBm | 10 | 550mA | 1.00mm | 5VDC | Datasheet |
| R40G90GSA | Ultra Broadband Amplifier | 40～90GHz | 18dB | 5dB | 12dBm | 23dBm | 15 | 200mA | 1.00mm | 3VDC | Datasheet |
| R40M35GSA | Wide Band Low Noise Amplifier | 0.05～3.3GHz | 17dB | 2dB | 19dBm | 35dBm | 20 | 90mA | SMA | 5VDC | Datasheet |
| R40M35GSA-H | Hermetically Sealed LNA | 0.05～3.3GHz | 17dB | 2dB | 19dBm | 35dBm | 20 | 90mA | SMA | 5VDC | Datasheet |
| R48M06GSA | Low Noise Amplifier with Bypass | 4.8～6GHz | 15dB | 1.5dB | 14dBm | 26dBm | 4 | 42mA | SMA | 5VDC | Datasheet |
| R48M06GSB | Low Noise Amplifier | 4.8～6GHz | 17dB | 1.1dB | 18.5dBm | 31.5dBm | 7 | 73mA | SMA | 5VDC | Datasheet |
| R50G69GSA | Low Noise Amplifier - Dual Biasing | 50～69GHz | 16dB | 3.8dB | 17dBm | 25dBm | 0 | 220mA | 1.85mm/WR15 | 5VDC | Datasheet |
| R50G69GSA-S | Low Noise Amplifier-Single Biasing | 50～69GHz | 16dB | 3.8dB | 17dBm | 25dBm | 0 | 220mA | 1.85mm/WR15 | 5VDC | Datasheet |
| R50G69GSB | Low Noise Amplifier | 50～69GHz | 22dB | 7dB | 15dBm | 25dBm | 0 | 100mA | 1.85mm | 12VDC | Datasheet |
| R50G69GSC | Low Noise Amplifier-Dual Biasing | 50～69GHz | 40dB | 6dB | 16dBm | 25dBm | 0 | 220mA | 1.85mm/WR15 | 5VDC | Datasheet |
| R50G69GSC-S | Low Noise Amplifier-Single Biasing | 50～69GHz | 38dB | 6dB | 16dBm | 25dBm | 0 | 200mA | 1.85mm/WR15 | 5VDC | Datasheet |
| R55M01GSB | Low Noise Amplifier | 0.55～1.2GHz | 16dB | 0.7dB | 19dBm | 37dBm | 10 | 88mA | SMA | 5VDC | Datasheet |
| R60M01GSA | Low Noise Amplifier | 0.6～1.4GHz | 32dB | 0.9dB | 21.5dBm | 40dBm | -5.5 | 254mA | SMA | 5VDC | Datasheet |
| R60M04GSA | Low Noise Amplifier | 0.6～4.2GHz | 19dB | 1dB | 21.3dBm | 31.3dBm | 290mA | SMA | 12VDC | Datasheet | |
| R60M06GSA | Low Noise Amplifier | 0.6～6GHz | 20.5dB | 1.25dB | 18.6dBm | 28.6dBm | 160mA | SMA | 12VDC | Datasheet | |
| R6G12GSQ | Ultra Low Noise Amplifier | 6～12GHz | 21dB | 1.2dB | 10dBm | 20dBm | 15 | 40mA | SMA | 5VDC | Datasheet |
| R70M01GSA | Low Noise with Failsafe Bypass | 0.7～1.2GHz | 16dB | 0.9dB | 13dBm | 33dBm | 2 | 57mA | SMA | 5VDC | Datasheet |
| R70M02GSA | Low Noise Amplifier | 0.7～2.2GHz | 22dB | 1.7dB | 21dBm | 30dBm | 16 | 230mA | SMA | 5VDC | Datasheet |
| R70M02GSA-28V | Low Noise Amplifier (28V) | 0.7～2.2GHz | 22dB | 1.7dB | 21dBm | 30dBm | 16 | 60mA | SMA | 28VDC | Datasheet |
| R71G76GSA | Q/V/W Band RF Amplifier | 71～76GHz | 24dB | 10dB | 17dBm | 25dBm | 3 | 160mA | WR12 | 5VDC | Datasheet |
| R71G86GSA | Q/V/W Band RF Amplifier | 71～86GHz | 19dB | 5.5dB | 11dBm | 21dBm | -10 | 50mA | WR12 | 5VDC | Datasheet |
| R71G86GSB | Low Noise Amplifier | 71～86GHz | 13dB | 5dB | 7dBm | 0dBm | -1 | 30mA | WR12 | 2VDC | Datasheet |
| R75G110GSA | Low Noise Amplifier | 75～110GHz | 20dB | 7.5dB | 1dBm | 0dBm | -10 | 40mA | WR10 | 5VDC | Datasheet |
| R80M18GSA | Low Noise Amplifier | 0.8～18GHz | 15.5dB | 2.15dB | 17.5dBm | 27.5dBm | 120mA | SMA | 12VDC | Datasheet | |
| R81G86GSA | Q/V/W Band RF Amplifier | 81～86GHz | 21dB | 10dB | 17dBm | 25dBm | 3 | 160mA | WR12 | 5VDC | Datasheet |
| R84G100GSA | Low Noise Amplifier | 84～100GHz | 16dB | 5dB | 1dBm | 10dBm | 0 | 150mA | WR10 | 2VDC | |
| R90G100GSA | Low Noise Amplifier | 90～100GHz | 20dB | 5dB | 16.5dBm | 23dBm | 0 | 200mA | WR10 | 4VDC | |
| R92G96GSA | Low Noise Amplifier | 92～96GHz | 12dB | 5dB | 19dBm | 25dBm | 0 | 280mA | WR10 | 4VDC | |
| R92G96GSB | Low Noise Amplifier | 92～96GHz | 20dB | 5dB | 20.5dBm | 27dBm | 0 | 400mA | WR10 | 4VDC | |
| RFLUPA0823GMB | Low Noise Amplifier | 0.8～2.3GHz | 22dB | 2.5dB | 29dBm | 38dBm | 12 | 450mA | SMA | 15VDC | Datasheet |
| RLNA0006GA | Low Noise Amplifier | 0.03～6GHz | 45dB | 1.5dB | 20dBm | 30dBm | 0 | 140mA | SMA | 12VDC | Datasheet |

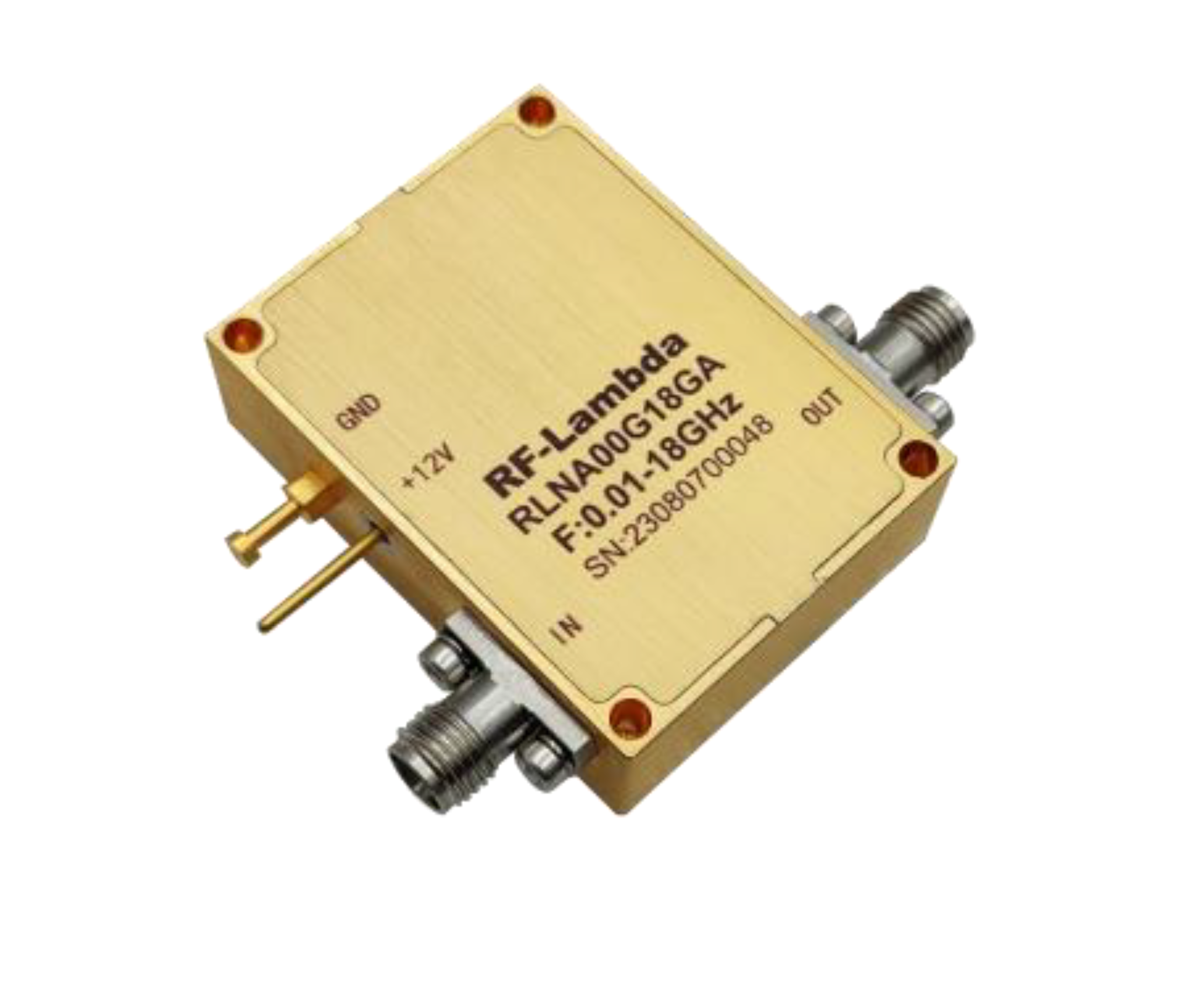

| RLNA00G18GA | Ultra Wide Band LNA | 0.01～18GHz | 30dB | 3dB | 25dBm | 32dBm | 0 | 600mA | SMA | 12VDC | Datasheet |
| RLNA00G18GA-H | Hermetically Sealed Low Noise Amplifier | 0.01～18GHz | 30dB | 3dB | 25dBm | 32dBm | 0 | 600mA | SMA | 12VDC | Datasheet |
| RLNA00G20GA | Ultra Wide Band LNA | 0.01～22GHz | 28dB | 3dB | 26dBm | 38dBm | 4 | 580mA | SMA | 12VDC | Datasheet |
| RLNA00G30GA | Ultra Wide Band LNA | 0.01～30GHz | 40dB | 3dB | 28dBm | 36dBm | -2 | 550mA | 2.92mm | 12VDC | Datasheet |
| RLNA00M06G | Low Noise Amplifier | 0.08～6GHz | 40dB | 3dB | 25dBm | 35dBm | 0 | 380mA | SMA | 12VDC | Datasheet |
| RLNA00M06G-H | Hermetically Sealed Low Noise Amplifier | 0.08～6GHz | 40dB | 3dB | 25dBm | 35dBm | 0 | 380mA | SMA | 12VDC | Datasheet |
| RLNA00M09M | Narrow Band LNA | 0.82～0.83GHz | 40dB | 1dB | 22dBm | 32dBm | -13 | 350mA | SMA | 12VDC | Datasheet |
| RLNA00M10GA | Low Noise Amplifier | 0.005～18GHz | 37dB | 1.9dB | 28dBm | 38dBm | 0 | 1000mA | SMA | 12VDC | Datasheet |
| RLNA00M10GB | Low Noise Amplifier | 0.005～10GHz | 36.5dB | 2.35dB | 29.4dBm | 39.4dBm | 1900mA | SMA | 12VDC | Datasheet | |
| RLNA00M10GC | Low Noise Amplifier | 0.005～10GHz | 55.5dB | 2.3dB | 29.3dBm | 39.3dBm | 1800mA | SMA | 12VDC | Datasheet | |
| RLNA00M12GA | Low Noise Amplifier | 0.005～12GHz | 31dB | 2.35dB | 14.5dBm | 24.5dBm | 60mA | SMA | 12VDC | Datasheet | |
| RLNA00M12GB | Low Noise Amplifier | 0.005～12GHz | 48dB | 1.9dB | 25.7dBm | 35.7dBm | 800mA | SMA | 12VDC | Datasheet | |
| RLNA00M12GC | Low Noise Amplifier | 0.005～12GHz | 40dB | 2.6dB | 17.2dBm | 27.2dBm | 110mA | SMA | 12VDC | Datasheet | |
| RLNA00M14GA | Low Noise Amplifier | 0.005～14GHz | 30dB | 1.85dB | 18.2dBm | 28.2dBm | 140mA | SMA | 12VDC | Datasheet | |
| RLNA00M14GB | Low Noise Amplifier | 0.005～14GHz | 32.5dB | 2.35dB | 18.5dBm | 28.5dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA00M14GC | Low Noise Amplifier | 0.005～14GHz | 40dB | 1.85dB | 17.2dBm | 27.2dBm | 110mA | SMA | 12VDC | Datasheet | |
| RLNA00M15GA | Low Noise Amplifier | 0.005～15GHz | 30dB | 1.95dB | 17dBm | 27dBm | -5 | 150mA | SMA | 12VDC | Datasheet |
| RLNA00M15GB | Low Noise Amplifier | 0.005～15GHz | 35dB | 2.3dB | 26.3dBm | 36.3dBm | 900mA | SMA | 12VDC | Datasheet | |
| RLNA00M15GC | Low Noise Amplifier | 0.005～15GHz | 54.5dB | 1.85dB | 26.9dBm | 36.9dBm | 1100mA | SMA | 12VDC | Datasheet | |
| RLNA00M16GA | Low Noise Amplifier | 0.005～16GHz | 30dB | 1.9dB | 18.2dBm | 28.2dBm | 140mA | SMA | 12VDC | Datasheet | |
| RLNA00M16GB | Low Noise Amplifier | 0.005～16GHz | 32.5dB | 2.35dB | 18.5dBm | 28.5dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA00M16GC | Low Noise Amplifier | 0.005～16GHz | 40dB | 2.7dB | 24.3dBm | 34.3dBm | 600mA | SMA | 12VDC | Datasheet | |
| RLNA00M18GA | Low Noise Amplifier | 0.005～18GHz | 36dB | 2.4dB | 23dBm | 32dBm | 0 | 400mA | SMA | 12VDC | Datasheet |
| RLNA00M18GB | Low Noise Amplifier | 0.005～18GHz | 52dB | 1.9dB | 24.4dBm | 34.4dBm | 600mA | SMA | 12VDC | Datasheet | |
| RLNA00M18GC | Low Noise Amplifier | 0.005～18GHz | 42.5dB | 2.15dB | 24.1dBm | 34.1dBm | 600mA | SMA | 12VDC | Datasheet | |
| RLNA00M20GA | Low Noise Amplifier | 0.005～20GHz | 39.5dB | 1.9dB | 16.9dBm | 26.9dBm | 110mA | SMA | 12VDC | Datasheet | |
| RLNA00M20GB | Low Noise Amplifier | 0.005～20GHz | 57dB | 2.4dB | 27dBm | 39dBm | 0 | 650mA | SMA | 12VDC | Datasheet |
| RLNA00M22GA | Low Noise Amplifier | 0.005～30GHz | 27dB | 2.8dB | 24.5dBm | 34.5dBm | 0 | 400mA | 2.92mm | 12VDC | Datasheet |
| RLNA00M22GB | Low Noise Amplifier | 0.005～22GHz | 34.5dB | 2.65dB | 16.6dBm | 26.6dBm | 100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M22GC | Low Noise Amplifier | 0.005～22GHz | 44.5dB | 1.95dB | 29dBm | 39dBm | 1700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M22GD | Low Noise Amplifier | 0.005～22GHz | 51dB | 1.9dB | 24.7dBm | 34.7dBm | 700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M24GA | Low Noise Amplifier | 0.005～24GHz | 33.5dB | 1.95dB | 24dBm | 34dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M24GB | Low Noise Amplifier | 0.005～24GHz | 48.5dB | 1.95dB | 27.2dBm | 37.2dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M24GC | Low Noise Amplifier | 0.005～24GHz | 49.5dB | 1.95dB | 25.8dBm | 35.8dBm | 800mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M24GD | Low Noise Amplifier | 0.005～24GHz | 39dB | 2.65dB | 24.3dBm | 34.3dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M25GA | Low Noise Amplifier | 0.005～25GHz | 33.5dB | 1.95dB | 21.2dBm | 31.2dBm | 280mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M25GC | Low Noise Amplifier | 0.005～25GHz | 48.5dB | 1.95dB | 26.9dBm | 36.9dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M25GD | Low Noise Amplifier | 0.005～25GHz | 51.5dB | 1.95dB | 24.8dBm | 34.8dBm | 700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M25GE | Low Noise Amplifier | 0.005～25GHz | 39.5dB | 1.95dB | 17dBm | 27dBm | 110mA | 2.92mm | 12VDC | Datasheet | |

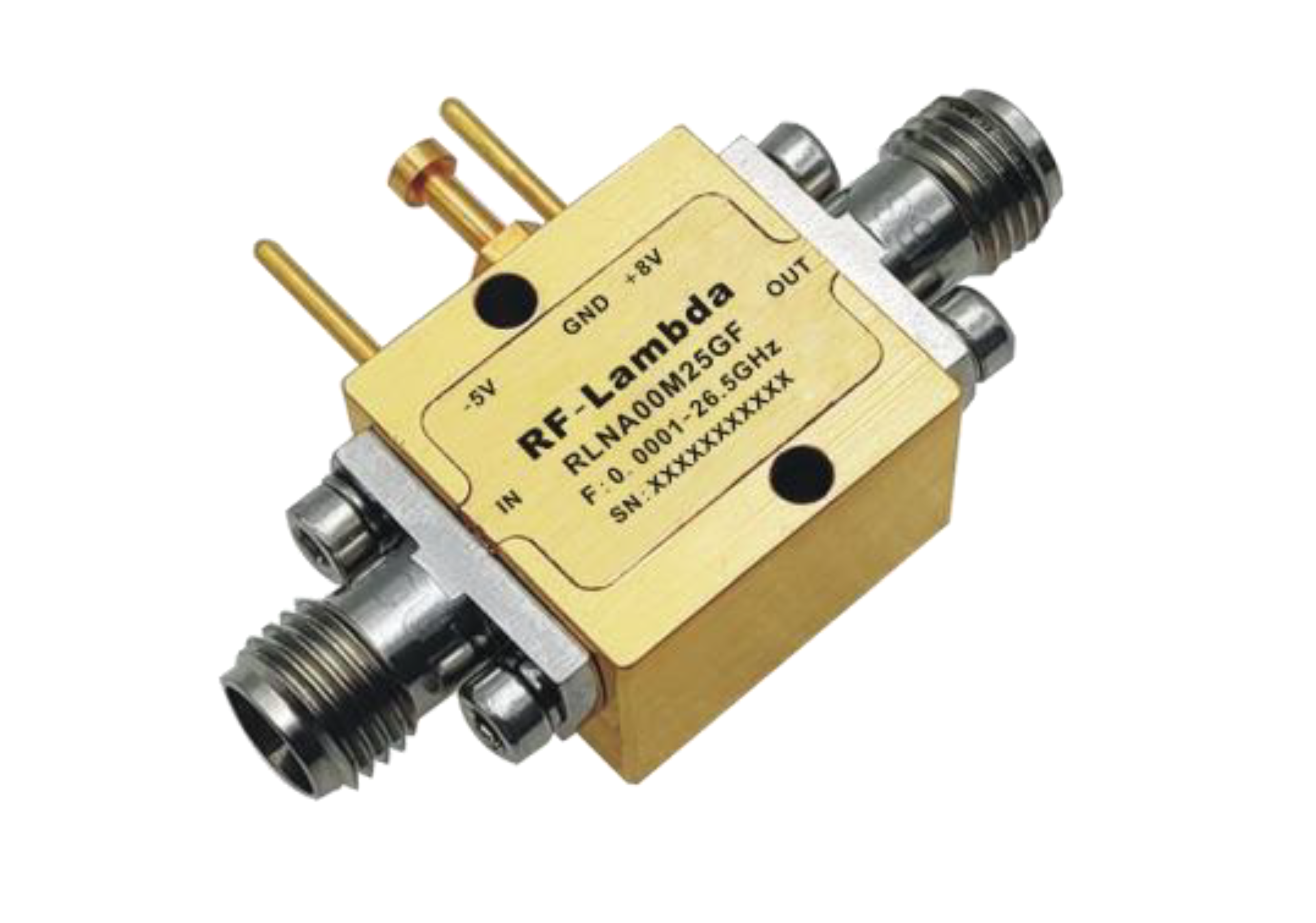

| RLNA00M25GF | Low Noise Amplifier | 0～26.5GHz | 15dB | 3dB | 14.5dBm | 25.5dBm | 12 | 80mA | 2.92mm | 8VDC | Datasheet |
| RLNA00M26GA | Low Noise Amplifier | 0.005～26GHz | 30.5dB | 2dB | 24.3dBm | 34.3dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M26GB | Low Noise Amplifier | 0.005～26GHz | 33.5dB | 1.95dB | 21.7dBm | 31.7dBm | 310mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M26GC | Low Noise Amplifier | 0.005～26GHz | 48.5dB | 1.95dB | 27dBm | 37dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M26GD | Low Noise Amplifier | 0.005～26GHz | 49.5dB | 1.95dB | 25.7dBm | 35.7dBm | 800mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M27GA | Low Noise Amplifier | 0.005～27GHz | 34dB | 2.4dB | 24.4dBm | 34.4dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M27GB | Low Noise Amplifier | 0.01～35GHz | 27dB | 2.8dB | 16dBm | 26dBm | -2 | 100mA | 2.92mm | 12VDC | Datasheet |
| RLNA00M27GC | Low Noise Amplifier | 0.005～27GHz | 48.5dB | 2.4dB | 27.2dBm | 37.2dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M27GD | Low Noise Amplifier | 0.005～27GHz | 49dB | 2.45dB | 25.8dBm | 35.8dBm | 800mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M27GE | Low Noise Amplifier | 0.01～26.5GHz | 42dB | 3dB | 27dBm | 38dBm | -3 | 550mA | 2.92mm | 12VDC | Datasheet |
| RLNA00M28GA | Low Noise Amplifier | 0.005～28GHz | 31.5dB | 2dB | 24.9dBm | 34.9dBm | 700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M28GB | Low Noise Amplifier | 0.005～28GHz | 27.5dB | 2.4dB | 22.2dBm | 32.2dBm | 350mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M28GC | Low Noise Amplifier | 0.005～28GHz | 33dB | 2.1dB | 20.7dBm | 30.7dBm | 250mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M28GD | Low Noise Amplifier | 0.005～28GHz | 47.5dB | 2.1dB | 26.8dBm | 36.8dBm | 1000mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M28GE | Low Noise Amplifier | 0.005～28GHz | 38.5dB | 2.2dB | 24.8dBm | 34.8dBm | 700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M30GD | Low Noise Amplifier | 0.01～30GHz | 15dB | 3.5dB | 24dBm | 34dBm | 15 | 200mA | 2.92mm | 8VDC | Datasheet |
| RLNA00M31GA | Low Noise Amplifier | 0.005～31GHz | 32dB | 3.7dB | 20.7dBm | 30.7dBm | 250mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M31GB | Low Noise Amplifier | 0.005～31GHz | 44.5dB | 3.7dB | 21.2dBm | 31.2dBm | 280mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M40GA | Low Noise Amplifier | 0.01～40GHz | 30dB | 3dB | 21dBm | 33dBm | 2 | 490mA | 2.92mm | 12VDC | Datasheet |
| RLNA00M40GB | Low Noise Amplifier | 0.005～40GHz | 25.5dB | 4.1dB | 22.5dBm | 32.5dBm | 380mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M40GC | Low Noise Amplifier | 0.005～40GHz | 37dB | 4.1dB | 23.5dBm | 33.5dBm | 470mA | 2.92mm | 12VDC | Datasheet | |

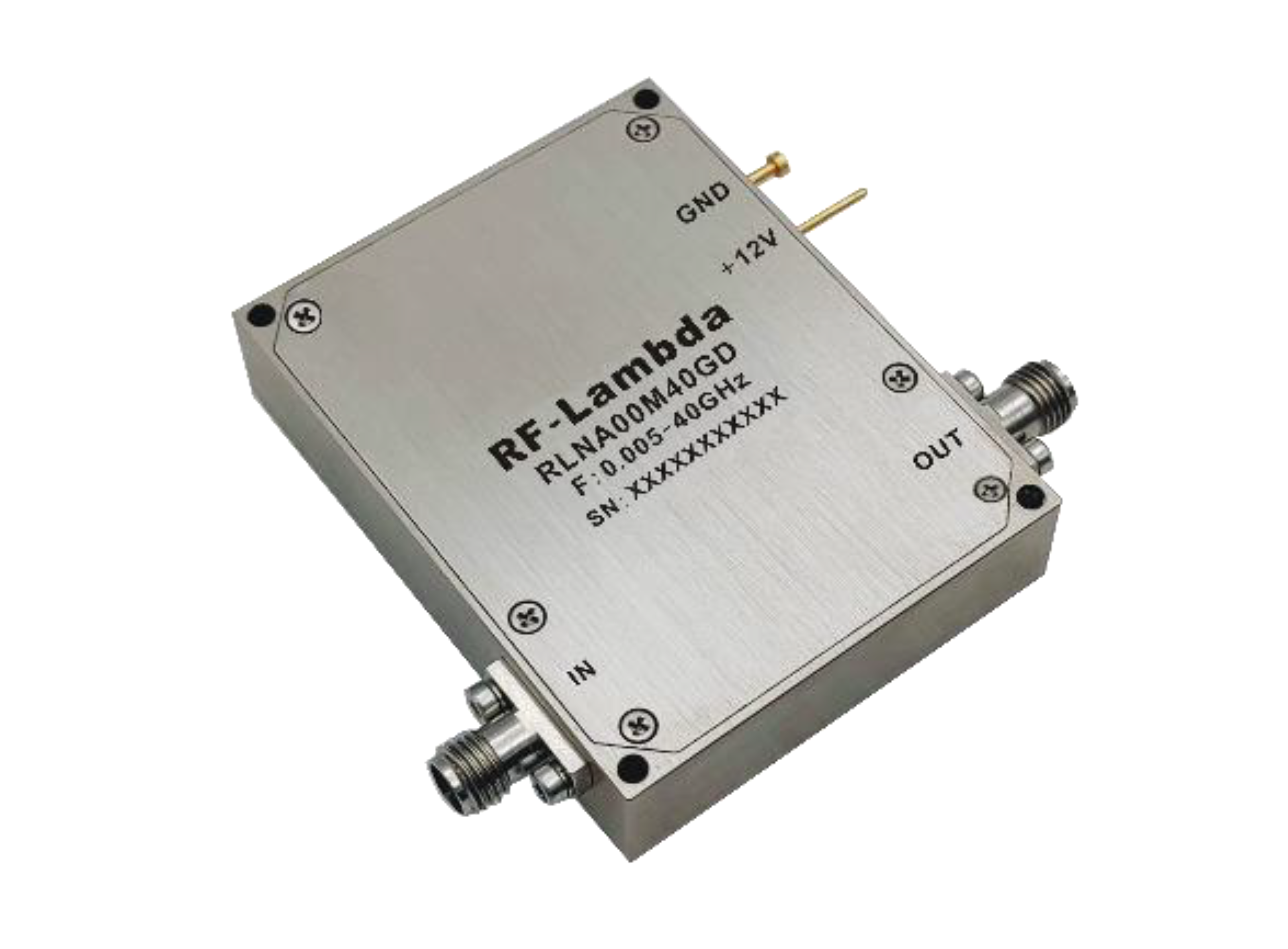

| RLNA00M40GD | Low Noise Amplifier | 0.005～40GHz | 60dB | 3dB | 22.5dBm | 32.5dBm | -30 | 380mA | 2.92mm | 12VDC | Datasheet |
| RLNA00M40GE | Low Noise Amplifier | 0.005～40GHz | 52dB | 3.15dB | 23.5dBm | 33.5dBm | 470mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M40GF | Low Noise Amplifier | 0.005～40GHz | 14dB | 3dB | 16dBm | 27dBm | 12 | 70mA | 2.92mm | 6VDC | Datasheet |
| RLNA00M43GA | Low Noise Amplifier | 0.005～43GHz | 28dB | 3.75dB | 15.7dBm | 25.7dBm | 80mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M43GB | Low Noise Amplifier | 0.005～43GHz | 44dB | 3.75dB | 20.9dBm | 30.9dBm | 260mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M43GC | Low Noise Amplifier | 0.005～43GHz | 39.5dB | 3.75dB | 19.5dBm | 29.5dBm | 190mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M43GD | Low Noise Amplifier | 0.005～43GHz | 60dB | 3.1dB | 20.9dBm | 30.9dBm | 260mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M43GE | Low Noise Amplifier | 0.005～43GHz | 52dB | 3.2dB | 21.2dBm | 31.2dBm | 280mA | 2.92mm | 12VDC | Datasheet | |
| RLNA00M44GA | Low Noise Amplifier | 0.005～44GHz | 30dB | 4.1dB | 21dBm | 31dBm | 270mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M44GB | Low Noise Amplifier | 0.005～44GHz | 46dB | 3.7dB | 21dBm | 31dBm | 270mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M44GC | Low Noise Amplifier | 0.005～44GHz | 62dB | 3.1dB | 21dBm | 31dBm | 270mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M44GD | Low Noise Amplifier | 0.005～44GHz | 53dB | 3.3dB | 21.2dBm | 31.2dBm | 280mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M45GA | Ultra Wide Band LNA | 0.01～45GHz | 37dB | 5dB | 23dBm | 33.5dBm | -3 | 500mA | 2.92mm | 12VDC | Datasheet |
| RLNA00M45GB | Low Noise Amplifier | 0.005～45GHz | 24.5dB | 3.8dB | 15.5dBm | 25.5dBm | 80mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M45GC | Low Noise Amplifier | 0.005～45GHz | 40.5dB | 3.75dB | 19.6dBm | 29.6dBm | 200mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M45GD | Low Noise Amplifier | 0.005～45GHz | 32.5dB | 3.9dB | 19.4dBm | 29.4dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M45GE | Low Noise Amplifier | 0.005～45GHz | 56.5dB | 3.1dB | 19.6dBm | 29.6dBm | 200mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M46GA | Ultra Wide Band LNA | 0.05～46GHz | 30dB | 2.5dB | 20dBm | 28dBm | -5 | 360mA | 2.4mm | 12VDC | Datasheet |
| RLNA00M46GST | Ultra Wide Band LNA | 0.05～46GHz | 16dB | 2.5dB | 20dBm | 28dBm | 9 | 180mA | 2.4mm | 5VDC | |
| RLNA00M48GA | Low Noise Amplifier | 0.005～48GHz | 25.5dB | 4.15dB | 19.6dBm | 29.6dBm | 200mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M48GB | Low Noise Amplifier | 0.005～48GHz | 41dB | 3.75dB | 19.6dBm | 29.6dBm | 200mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M48GC | Low Noise Amplifier | 0.005～48GHz | 34dB | 3.8dB | 19.2dBm | 29.2dBm | 180mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M48GD | Low Noise Amplifier | 0.005～48GHz | 57.5dB | 3.1dB | 19.6dBm | 29.6dBm | 200mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M50GA | Ultra Wide Band LNA | 0.01～50GHz | 40dB | 5.5dB | 19dBm | 25dBm | -12 | 570mA | 2.4mm | 12VDC | Datasheet |
| RLNA00M50GA2 | Ultra Wide Band LNA (Tighter Performance) | 0.01～50GHz | 33dB | 4dB | 15dBm | 25dBm | -6 | 550mA | 2.40mm | 12VDC | Datasheet |
| RLNA00M50GA3 | Low Noise Amplifier | 0.005～50GHz | 29dB | 3.8dB | 19dBm | 29dBm | 170mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M50GA4 | Low Noise Amplifier | 0.005～50GHz | 45dB | 3.75dB | 20dBm | 30dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M50GA5 | Low Noise Amplifier | 0.005～50GHz | 38dB | 3.85dB | 19.8dBm | 29.8dBm | 200mA | 2.4mm | 12VDC | Datasheet | |
| RLNA00M50GA6 | Low Noise Amplifier | 0.005～50GHz | 62dB | 3dB | 20dBm | 30dBm | -40 | 800mA | 2.4mm | 12VDC | Datasheet |
| RLNA00M50GA7 | Low Noise Amplifier | 0.005～50GHz | 55dB | 3dB | 21dBm | 31dBm | -30 | 650mA | 2.4mm | 12VDC | Datasheet |
| RLNA00M50GB | Low Noise Amplifier | 0.01～50GHz | 16dB | 5dB | 20dBm | 32dBm | 12 | 210mA | 2.40mm | 8VDC | Datasheet |
| RLNA00M54GA | Ultra Wide Band LNA | 0.05～54GHz | 34dB | 3dB | 14dBm | 22dBm | -15 | 300mA | 1.85mm | 12VDC | Datasheet |
| RLNA00M54GSD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 0.05～54GHz | 13dB | 3dB | 10dBm | 18dBm | 0 | 100mA | 2.4mm | 5VDC | Datasheet |
| RLNA00M54GSD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 0.05～54GHz | 13dB | 3dB | 10dBm | 18dBm | 0 | 100mA | 2.4mm | 5VDC | Datasheet |
| RLNA00M54GST | Ultra Wide Band LNA | 0.05～54GHz | 13dB | 3dB | 14dBm | 22dBm | 6 | 100mA | 1.85mm | 5VDC | Datasheet |
| RLNA00M55GA | Low Noise Amplifier | 0.005～55GHz | 24.5dB | 4.75dB | 16.9dBm | 26.9dBm | 110mA | 1.85mm | 12VDC | Datasheet | |
| RLNA00M55GB | Low Noise Amplifier | 0.005～55GHz | 20.5dB | 4.3dB | 15.6dBm | 25.6dBm | 80mA | 1.85mm | 12VDC | Datasheet | |
| RLNA00M55GC | Low Noise Amplifier | 0.005～55GHz | 36.5dB | 3.85dB | 16.9dBm | 26.9dBm | 110mA | 1.85mm | 12VDC | Datasheet | |
| RLNA00M55GD | Low Noise Amplifier | 0.005～55GHz | 30dB | 3.95dB | 16.3dBm | 26.3dBm | 90mA | 1.85mm | 12VDC | Datasheet | |
| RLNA00M55GE | Low Noise Amplifier | 0.005～55GHz | 51dB | 3.15dB | 17dBm | 27dBm | 110mA | 1.85mm | 12VDC | Datasheet | |
| RLNA00M55GF | Low Noise Amplifier | 0.005～55GHz | 44.5dB | 3.15dB | 16.9dBm | 26.9dBm | 110mA | 1.85mm | 12VDC | Datasheet | |
| RLNA00M55GG | Low Noise Amplifier | 0～55GHz | 13.56dB | 3.72dB | 20.28dBm | 12 | 230mA | 1.85mm | Datasheet | ||
| RLNA00M65GA | Low Noise Amplifier | 0.03～65GHz | 40dB | 3dB | 20dBm | 26dBm | 0 | 500mA | 1.85mm | 12VDC | Datasheet |
| RLNA00M65GB | Low Noise Amplifier | 0～65GHz | 10.4dB | 6.3dB | 9.2dBm | 12 | 60mA | 1.85mm | Datasheet | ||
| RLNA00M65GC | Low Noise Amplifier | 0.03～65GHz | 30dB | 3dB | 20dBm | 26dBm | 0 | 400mA | 1.85mm | 12VDC | Datasheet |
| RLNA00M65GD | Low Noise Amplifier | 0.03～65GHz | 19dB | 4dB | 10dBm | 20dBm | 0 | 300mA | 1.85mm | 12VDC | Datasheet |
| RLNA00M65GJ | Low Noise Amplifier | 0～65GHz | 12.4dB | 3.8dB | 17.2dBm | 12 | 110mA | 1.85mm | Datasheet | ||
| RLNA00M68GA | Broadband Low Noise Amplifier | 0.1～67.5GHz | 45dB | 6dB | 17dBm | 29dBm | -5 | 600mA | 1.85mm | 12VDC | Datasheet |

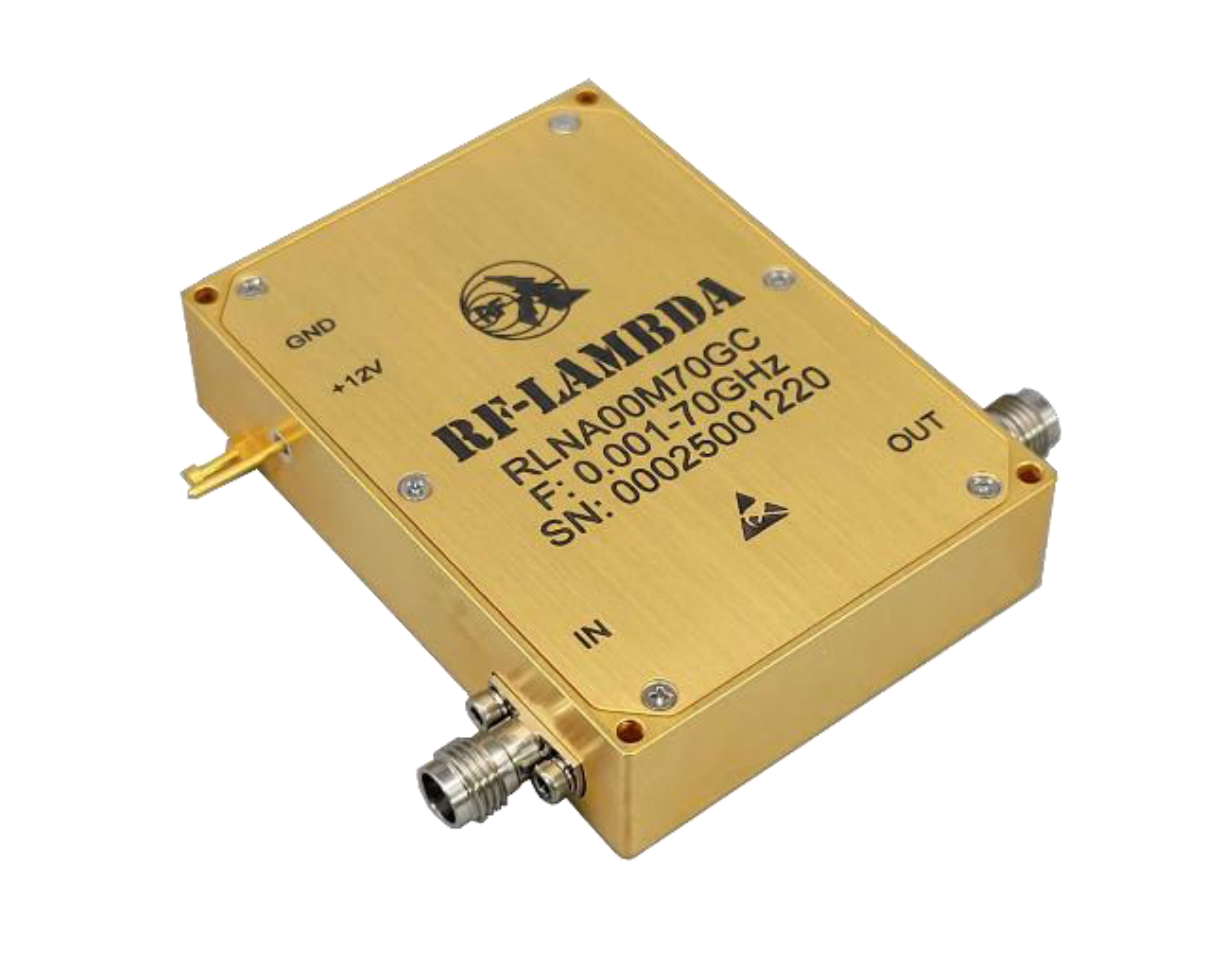

| RLNA00M70GC | Low Noise Amplifier | 0.001～70GHz | 45dB | 5dB | 18dBm | 20dBm | -18 | 500mA | 1.85mm | 12VDC | Datasheet |
| RLNA01G02G60 | Ultra Low Noise Figure Amplifier | 1～2GHz | 60dB | 0.7dB | 19dBm | 28dBm | 0 | 230mA | SMA | 15VDC | Datasheet |
| RLNA01G02G60-28V | Low Noise Amplifier 28V Supply | 1～2GHz | 60dB | 0.7dB | 19dBm | 28dBm | 0 | 150mA | SMA | 28VDC | Datasheet |
| RLNA01G02G60-BT | Low Noise Figure Amplifier (RF Port Bias-T Feedthrough) | 1～2GHz | 60dB | 0.3dB | 13dBm | 23dBm | 0 | 250mA | SMA | 11.75VDC | Datasheet |
| RLNA01G02GA | Low Noise Amplifier | 1～2GHz | 22dB | 4dB | 25dBm | 33dBm | 8 | 150mA | SMA | 15VDC | Datasheet |
| RLNA01G02GB | Ultra Low Noise Amplifier | 1.2～2.2GHz | 65dB | 0.85dB | 28.5dBm | 38.5dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA01G02GC | Low Noise Amplifier | 1.4～2GHz | 54.5dB | 1.95dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA01G04GA | Low Noise Amplifier | 1～3.5GHz | 54dB | 1.35dB | 19.3dBm | 29.3dBm | 180mA | SMA | 12VDC | Datasheet | |
| RLNA01G04GB | Low Noise Amplifier | 1～3.5GHz | 68dB | 1.1dB | 19.3dBm | 29.3dBm | 180mA | SMA | 12VDC | Datasheet | |
| RLNA01G04GC | Ultra Low Noise Amplifier | 1.4～4GHz | 39.5dB | 0.7dB | 18.5dBm | 28.5dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA01G04GD | Ultra Low Noise Amplifier | 1.4～4GHz | 29.5dB | 0.95dB | 22.6dBm | 32.6dBm | 380mA | SMA | 12VDC | Datasheet | |
| RLNA01G04GE | Ultra Low Noise Amplifier | 1.4～4GHz | 45dB | 0.95dB | 29.1dBm | 39.1dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA01G04GF | Ultra Low Noise Amplifier | 1.4～4GHz | 54dB | 0.85dB | 28.3dBm | 38.3dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA01G06GA | Low Noise Amplifier | 1～6GHz | 69.5dB | 1.15dB | 16.6dBm | 26.6dBm | 100mA | SMA | 12VDC | Datasheet | |
| RLNA01G06GB | Low Noise Amplifier | 1～6GHz | 69.91dB | 0.87dB | 27.23dBm | 37.2dBm | -43 | 420mA | SMA | 12VDC | Datasheet |
| RLNA01G08GA | Ultra Wide Band LNA | 1～12GHz | 32dB | 2dB | 23dBm | 30dBm | -10 | 280mA | SMA | 12VDC | Datasheet |
| RLNA01G08GB | Wide Band LNA | 0.1～10GHz | 35dB | 1.8dB | 20.5dBm | 33dBm | 0 | 150mA | SMA | 12VDC | Datasheet |
| RLNA01G08GB-H | Hermetically Sealed Wide Band LNA | 0.1～10GHz | 35dB | 1.8dB | 20.5dBm | 33dBm | 0 | 150mA | SMA | 12VDC | Datasheet |
| RLNA01G08GB-L | Wide Band LNA (With Limiter) | 0.1～10GHz | 35dB | 1.8dB | 10dBm | 20dBm | 0 | 150mA | SMA | 12VDC | Datasheet |
| RLNA01G08GB-MF | Wide Band LNA | 0.1～10GHz | 35dB | 1.8dB | 20.5dBm | 33dBm | 0 | 150mA | SMA | 12VDC | Datasheet |
| RLNA01G08GC | Low Noise Amplifier | 1～8GHz | 65dB | 1.9dB | 28.6dBm | 38.6dBm | 800mA | SMA | 24VDC | Datasheet | |
| RLNA01G09GA | Low Noise Amplifier | 1～9GHz | 38.5dB | 1.3dB | 28.4dBm | 38.4dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA01G09GB | Low Noise Amplifier | 1～9GHz | 66dB | 1.1dB | 25.5dBm | 35.5dBm | 0 | 400mA | SMA | 12VDC | Datasheet |
| RLNA01G09GC | Low Noise Amplifier | 1～9GHz | 29.28dB | 1.26dB | 14.64dBm | 12 | 70mA | SMA | Datasheet | ||
| RLNA01G11GA | Low Noise Amplifier | 1～11GHz | 40dB | 2dB | 26.1dBm | 36.1dBm | 900mA | SMA | 12VDC | Datasheet | |
| RLNA01G12GA | Ultra Wide Band LNA | 1～12GHz | 32dB | 1.5dB | 26dBm | 35dBm | -1 | 220mA | SMA | 12VDC | Datasheet |
| RLNA01G12GB | Low Noise Amplifier | 1～12GHz | 64.5dB | 1.9dB | 28.6dBm | 38.6dBm | 1600mA | SMA | 12VDC | Datasheet | |
| RLNA01G12GC | Low Noise Amplifier | 1～12GHz | 16.23dB | 1.68dB | 18.12dBm | 12 | 140mA | SMA | Datasheet | ||
| RLNA01G16GA | Ultra Wide Band LNA | 1～21GHz | 27dB | 2dB | 17dBm | 28dBm | -9 | 220mA | SMA | 12VDC | Datasheet |
| RLNA01G18GA | Ultra Wide Band LNA | 1～18GHz | 28dB | 3.5dB | 15dBm | 24dBm | -8 | 220mA | SMA | 12VDC | Datasheet |
| RLNA01G18GB | Ultra Wide Band LNA | 0.05～20GHz | 28dB | 1.8dB | 24dBm | 30dBm | -8 | 210mA | SMA | 12VDC | Datasheet |
| RLNA01G18GB-1 | Ultra Wide Band LNA | 0.05～20GHz | 28dB | 1.8dB | 24dBm | 30dBm | -8 | 210mA | SMA | 12VDC | Datasheet |
| RLNA01G18GC | Low Noise Amplifier | 1～18GHz | 64.5dB | 1.95dB | 28.4dBm | 38.4dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA01G18GD | Low Noise Amplifier | 1～18GHz | 30dB | 1.6dB | 23dBm | 33dBm | 3 | 210mA | SMA | 12VDC | Datasheet |
| RLNA01G18GQ | Low Noise Amplifier | 1～18GHz | 50dB | 2dB | 25dBm | 35dBm | -20 | 450mA | SMA | 12VDC | Datasheet |

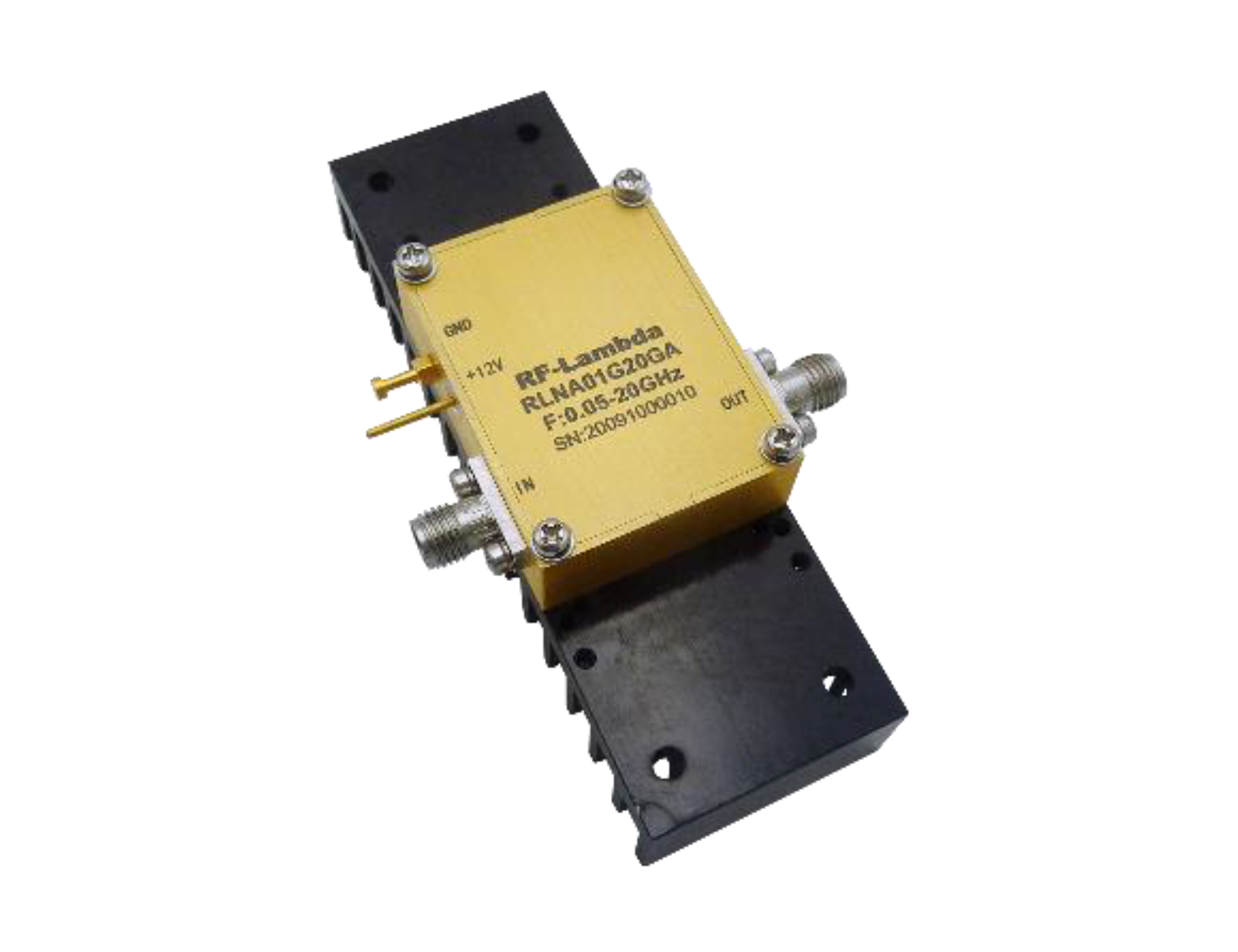

| RLNA01G20GA | Ultra Wide Band LNA | 0.05～22GHz | 28dB | 1.8dB | 18dBm | 24dBm | -6 | 150mA | SMA | 12VDC | Datasheet |
| RLNA01G20GB | Low Noise Amplifier | 1～20GHz | 17.6dB | 2.45dB | 15.55dBm | 12 | 80mA | SMA | Datasheet | ||
| RLNA01G24GA | Low Noise Amplifier | 1～24GHz | 32dB | 1.95dB | 22dBm | 32dBm | 340mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01G24GB | Low Noise Amplifier | 1～24GHz | 29dB | 2.1dB | 22.9dBm | 32.9dBm | 410mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01G24GC | Low Noise Amplifier | 1～24GHz | 47dB | 1.95dB | 27dBm | 37dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01G24GD | Low Noise Amplifier | 1～24GHz | 47.5dB | 1.95dB | 25.3dBm | 35.3dBm | 800mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01G24GE | Low Noise Amplifier | 1～24GHz | 40dB | 2.2dB | 23dBm | 33dBm | 420mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01M01GNDC | Ultra Wide Band LNA (hermetically sealed ) | 0.1～4GHz | 15dB | 1.8dB | 21dBm | 35dBm | 0 | 100mA | SMA | 5VDC | Datasheet |

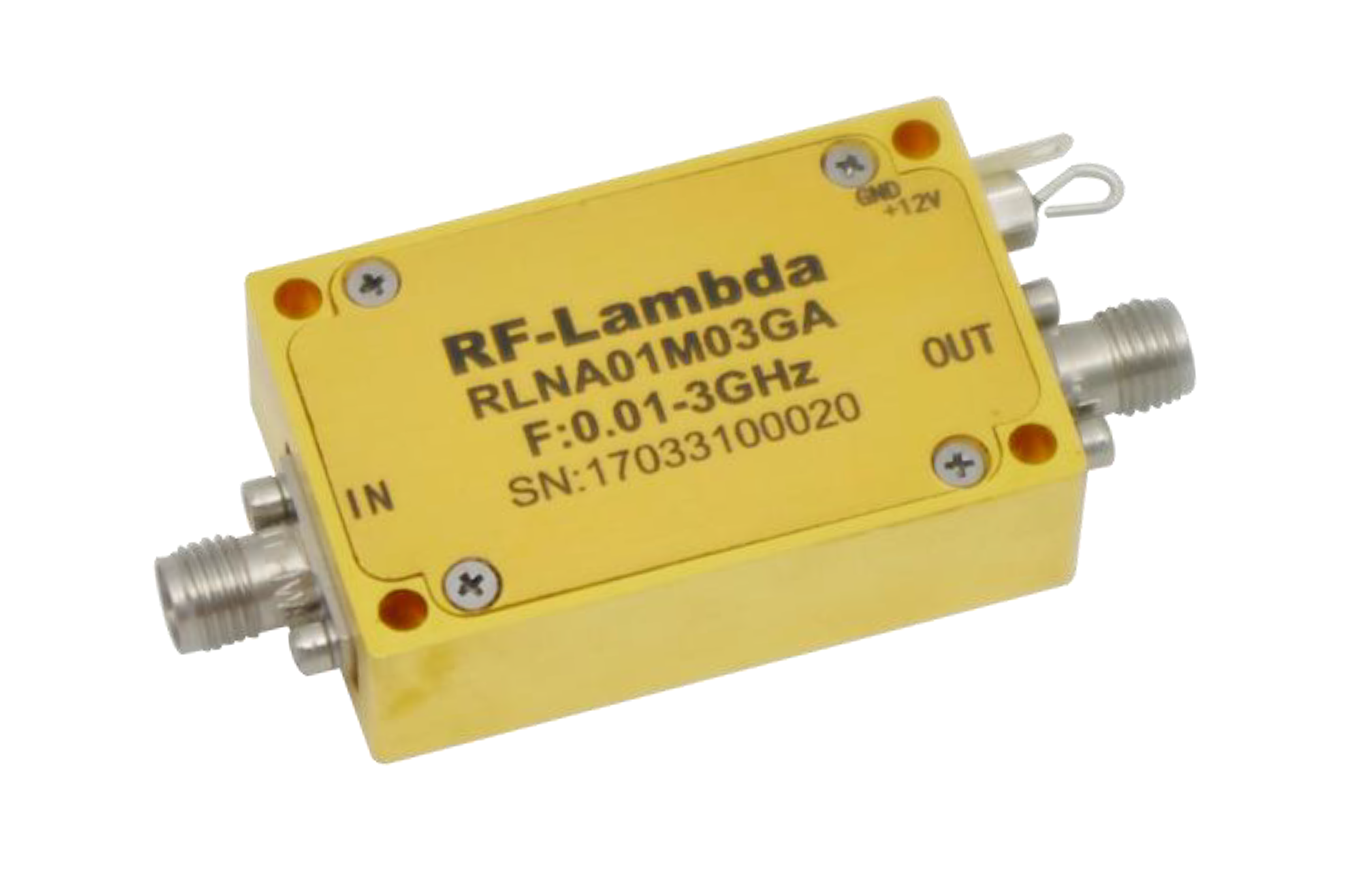

| RLNA01M03GA | Ultra Wide Band LNA | 0.01～3GHz | 35dB | 1.5dB | 20dBm | 32dBm | -10 | 300mA | SMA | 12VDC | Datasheet |
| RLNA01M03GB | Ultra Wide Band LNA | 0.1～3GHz | 38dB | 2dB | 20dBm | 32dBm | -13 | 300mA | SMA | 12VDC | Datasheet |
| RLNA01M03GC | Ultra Wide Band LNA | 0.1～3GHz | 30dB | 2dB | 22dBm | 34dBm | -3 | 300mA | SMA | 12VDC | Datasheet |
| RLNA01M03GD | Low Noise Amplifier | 0.01～3GHz | 54dB | 1.4dB | 21.3dBm | 31.3dBm | 290mA | SMA | 12VDC | Datasheet | |
| RLNA01M03GE | Low Noise Amplifier | 0.01～3GHz | 67dB | 1.1dB | 19.9dBm | 29.9dBm | 210mA | SMA | 12VDC | Datasheet | |
| RLNA01M04GA | Ultra Wide Band LNA | 0.01～4GHz | 38dB | 2dB | 15dBm | 25dBm | -18 | 200mA | SMA | 12VDC | Datasheet |
| RLNA01M04GB | Ultra Wide Band LNA | 0.1～4GHz | 35dB | 1.5dB | 21dBm | 31dBm | -10 | 200mA | SMA | 12VDC | Datasheet |
| RLNA01M04GC | Ultra Wide Band LNA | 0.1～4GHz | 38dB | 2dB | 23dBm | 33dBm | -10 | 250mA | SMA | 12VDC | Datasheet |
| RLNA01M04GQ | Low Noise Amplifier | 0.01～4GHz | 38dB | 1.7dB | 16dBm | 26dBm | 10 | 120mA | SMA | 5VDC | Datasheet |
| RLNA01M04GR | Low Noise Amplifier | 0.01～3.5GHz | 66.5dB | 1.1dB | 22dBm | 32dBm | 340mA | SMA | 12VDC | Datasheet | |
| RLNA01M06GB | Ultra Wide Band LNA | 0.1～6GHz | 32dB | 3.5dB | 24dBm | 34dBm | -3 | 350mA | SMA | 12VDC | Datasheet |
| RLNA01M06GE | Ultra Wide Band LNA | 0.5～6GHz | 35dB | 2.5dB | 24dBm | 33dBm | 2 | 350mA | SMA | 12VDC | Datasheet |
| RLNA01M06GF | Low Noise Amplifier | 0.01～6GHz | 38dB | 1.8dB | 18.6dBm | 28.6dBm | 160mA | SMA | 12VDC | Datasheet | |
| RLNA01M07GA | Ultra Wide Band LNA | 0.1～15GHz | 30dB | 3dB | 25dBm | 30dBm | 0 | 400mA | SMA | 12VDC | Datasheet |
| RLNA01M08GA | Low Noise Amplifier | 0.01～8GHz | 40dB | 2.15dB | 19.4dBm | 29.4dBm | 190mA | SMA | 12VDC | Datasheet | |
| RLNA01M09GA | Low Noise Amplifier | 0.01～9GHz | 38dB | 1.8dB | 21dBm | 31dBm | 270mA | SMA | 12VDC | Datasheet | |
| RLNA01M10GA | Ultra Wide Band LNA | 0.1～20GHz | 30dB | 2.5dB | 25dBm | 30dBm | 4 | 260mA | SMA | 12VDC | Datasheet |
| RLNA01M10GB | Ultra Wide Band LNA | 0.1～20GHz | 32dB | 2.2dB | 26dBm | 35dBm | 5 | 320mA | SMA | 12VDC | Datasheet |
| RLNA01M10GC | Not Recommended for New Designs - Replaced with RLNA01M10GE | 0.01～10GHz | 30dB | 2.8dB | 15dBm | 25dBm | -10 | 190mA | SMA | 12VDC | Datasheet |
| RLNA01M10GD | Low Noise Amplifier | 0.01～10GHz | 36.5dB | 1.85dB | 29dBm | 39dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA01M10GE | Ultra Wide Band LNA | 0.01～20GHz | 30dB | 2.8dB | 15dBm | 25dBm | -10 | 190mA | SMA | 12VDC | Datasheet |
| RLNA01M12GA | Low Noise Amplifier | 0.01～12GHz | 50.5dB | 1.9dB | 25dBm | 35dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA01M12GB | Low Noise Amplifier | 0.01～12GHz | 53dB | 2.35dB | 25dBm | 35dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA01M12GC | Low Noise Amplifier | 0.01～12GHz | 52.5dB | 2.75dB | 25dBm | 35dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA01M12GD | Low Noise Amplifier | 0.01～12GHz | 39.5dB | 2.1dB | 16.4dBm | 26.4dBm | 100mA | SMA | 12VDC | Datasheet | |
| RLNA01M15GA | Ultra Wide Band LNA | 0.1～15GHz | 30dB | 2.8dB | 26dBm | 30dBm | 1 | 500mA | SMA | 12VDC | Datasheet |
| RLNA01M15GB | Low Noise Amplifier | 0.01～15GHz | 40dB | 3dB | 24.6dBm | 34.6dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA01M15GC | Low Noise Amplifier | 0.01～15GHz | 55.5dB | 2.6dB | 24dBm | 34dBm | 600mA | SMA | 12VDC | Datasheet | |
| RLNA01M20GA | Low Noise Amplifier | 0.01～20GHz | 53dB | 1.9dB | 26dBm | 34dBm | 0 | 600mA | SMA | 12VDC | Datasheet |
| RLNA01M26GA | Low Noise Amplifier | 0.01～26.5GHz | 44.5dB | 1.95dB | 16.1dBm | 26.1dBm | 90mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01M26GB | Low Noise Amplifier | 0.01～26.5GHz | 52dB | 1.95dB | 24dBm | 34dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01M28GA | Low Noise Amplifier | 0.01～28GHz | 25dB | 2.25dB | 18.9dBm | 28.9dBm | 170mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01M28GB | Low Noise Amplifier | 0.01～28GHz | 44.5dB | 2.1dB | 26dBm | 36dBm | 900mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01M40GA | Low Noise Amplifier | 0.01～40GHz | 29dB | 2.75dB | 21dBm | 31dBm | 0 | 370mA | 2.92mm | 12VDC | Datasheet |
| RLNA01M40GB | Low Noise Amplifier | 0.01～40GHz | 59dB | 2.05dB | 21.1dBm | 31.1dBm | 270mA | 2.92mm | 12VDC | Datasheet | |
| RLNA01M46GA | Low Noise Amplifier | 0.01～46GHz | 46dB | 2.7dB | 20.2dBm | 30.2dBm | 220mA | 2.4mm | 12VDC | Datasheet | |
| RLNA01M46GB | Low Noise Amplifier | 0.01～46GHz | 62dB | 2.05dB | 20dBm | 30dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA01M46GC | Low Noise Amplifier | 0.01～46GHz | 54.5dB | 2.1dB | 20.2dBm | 30.2dBm | 220mA | 2.4mm | 12VDC | Datasheet | |
| RLNA01M50GQ | Low Noise Amplifier | 0.1～50GHz | 30dB | 6dB | 10dBm | 20dBm | -20 | 450mA | 1.85mm | 12VDC | Datasheet |
| RLNA01M54GA | Low Noise Amplifier | 0.01～54GHz | 25dB | 4.2dB | 16.9dBm | 26.9dBm | 110mA | 1.85mm | 12VDC | Datasheet | |
| RLNA01M54GB | Low Noise Amplifier | 0.01～54GHz | 32.5dB | 3.5dB | 16.7dBm | 26.7dBm | 100mA | 1.85mm | 12VDC | Datasheet | |
| RLNA01M54GC | Low Noise Amplifier | 0.01～54GHz | 52dB | 2.6dB | 17.1dBm | 27.1dBm | 110mA | 1.85mm | 12VDC | Datasheet | |
| RLNA01M54GD | Low Noise Amplifier | 0.01～54GHz | 39dB | 2.8dB | 16.7dBm | 26.7dBm | 100mA | 1.85mm | 12VDC | Datasheet | |
| RLNA01M54GE | Low Noise Amplifier | 0.01～54GHz | 46dB | 2.75dB | 17dBm | 27dBm | 110mA | 1.85mm | 12VDC | Datasheet | |
| RLNA02G02G | Narrow Band LNA | 2～2.7GHz | 45dB | 1dB | 7dBm | 17dBm | -33 | 240mA | SMA | 12VDC | Datasheet |
| RLNA02G02GA | Ultra Low Noise Amplifier | 1.5～2.3GHz | 40dB | 0.7dB | 20.3dBm | 30.3dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA02G02GB | Ultra Low Noise Amplifier | 1.5～2.3GHz | 54.5dB | 0.95dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA02G02GC | Ultra Low Noise Amplifier | 1.5～2.3GHz | 63.5dB | 0.85dB | 28.5dBm | 38.5dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA02G02GD | Ultra Low Noise Amplifier | 1.7～2.5GHz | 69.5dB | 0.75dB | 26.2dBm | 36.2dBm | 900mA | SMA | 12VDC | Datasheet | |
| RLNA02G02GE | Ultra Low Noise Amplifier | 1.7～2.5GHz | 59.5dB | 0.85dB | 28.6dBm | 38.6dBm | 1600mA | SMA | 12VDC | Datasheet | |
| RLNA02G03G | Narrow Band LNA | 2.5～3.5GHz | 42dB | 1.5dB | 23dBm | 33dBm | -14 | 300mA | SMA | 12VDC | Datasheet |
| RLNA02G03GA | Ultra Low Noise Amplifier | 1.7～2.7GHz | 60.5dB | 0.85dB | 28.6dBm | 38.6dBm | 1600mA | SMA | 12VDC | Datasheet | |
| RLNA02G03GB | Ultra Low Noise Amplifier | 1.7～2.7GHz | 69.5dB | 0.85dB | 28.5dBm | 38.5dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA02G04G | Wide Band LNA | 2～4GHz | 44dB | 1.8dB | 22dBm | 32dBm | -8 | 220mA | SMA | 12VDC | Datasheet |
| RLNA02G04G60 | Ultra Low Noise Figure Amplifier | 2～4GHz | 55dB | 0.6dB | 10dBm | 20dBm | 0 | 250mA | SMA | 15VDC | Datasheet |
| RLNA02G04G60D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 2～4GHz | 52dB | 1dB | 13dBm | 26dBm | -35 | 200mA | SMA | 8～15VDC | Datasheet |
| RLNA02G04G60D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 2～4GHz | 52dB | 1dB | 13dBm | 26dBm | -35 | 200mA | SMA | 8～15VDC | Datasheet |
| RLNA02G04GQ | Ultra Low Noise Amplifier | 2～4GHz | 42dB | 0.8dB | 19dBm | 29dBm | 10 | 120mA | SMA | 12VDC | Datasheet |
| RLNA02G05GA | Low Noise Amplifier | 1.8～5GHz | 43dB | 1.25dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA02G05GB | Ultra Low Noise Amplifier | 1.8～5GHz | 49dB | 0.95dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA02G05GC | Ultra Low Noise Amplifier | 1.8～5GHz | 65dB | 0.85dB | 28.9dBm | 38.9dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA02G06G | Wide Band LNA | 0.5～6GHz | 40dB | 2.8dB | 20dBm | 30dBm | -5 | 140mA | SMA | 12VDC | Datasheet |
| RLNA02G06GA | Low Noise Amplifier | 2～6.5GHz | 54dB | 1.9dB | 25.8dBm | 35.8dBm | 800mA | SMA | 12VDC | Datasheet | |
| RLNA02G06GB | Low Noise Amplifier | 2～6GHz | 28.31dB | 0.94dB | 18.66dBm | 12 | 160mA | SMA | Datasheet | ||
| RLNA02G06GC | Low Noise Amplifier | 2～6GHz | 27.31dB | 1.04dB | 16.66dBm | 12 | 100mA | SMA | Datasheet | ||
| RLNA02G06GD | Low Noise Amplifier | 2～6GHz | 70dB | 1.19dB | 26.02dBm | 12 | 900mA | SMA | Datasheet | ||
| RLNA02G06GF | Low Noise Amplifier | 2～6GHz | 69.99dB | 1.08dB | 28.55dBm | 38.5dBm | -38 | 1100mA | SMA | 12VDC | Datasheet |
| RLNA02G06GGA | Low Noise Amplifier | 2～6GHz | 68dB | 1.1dB | 39dBm | 48.5dBm | -26 | 800mA | SMA | 24VDC | Datasheet |
| RLNA02G08G30 | Ultra Low Noise Figure Amplifier | 2～8GHz | 33dB | 0.6dB | 10dBm | 20dBm | 0 | 200mA | SMA | 11VDC | Datasheet |
| RLNA02G08G30-28V | Ultra Low Noise Figure Amplifier | 2～8GHz | 33dB | 0.6dB | 10dBm | 20dBm | 0 | 200mA | SMA | 28VDC | Datasheet |
| RLNA02G08G30D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 2～8GHz | 36dB | 1.1dB | 7dBm | 18dBm | -25 | 130mA | SMA | 8～15VDC | Datasheet |
| RLNA02G08G30D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 2～8GHz | 36dB | 1.1dB | 7dBm | 18dBm | -25 | 130mA | SMA | 8～15VDC | Datasheet |
| RLNA02G08G30S | Ultra Low Noise Figure Amplifier | 1～9GHz | 27dB | 1dB | 13dBm | 22dBm | 0 | 100mA | SMA | 12VDC | Datasheet |
| RLNA02G08G30-SMD | Ultra Low Noise Figure Amplifier | 2～8GHz | 33dB | 0.6dB | 10dBm | 20dBm | 0 | 200mA | SMD | 11VDC | |
| RLNA02G09GA | Low Noise Amplifier | 2～9GHz | 41.5dB | 1.25dB | 16.3dBm | 26.3dBm | 90mA | SMA | 12VDC | Datasheet | |
| RLNA02G09GB | Low Noise Amplifier | 2～9GHz | 60.5dB | 1.25dB | 23.8dBm | 33.8dBm | 500mA | SMA | 12VDC | Datasheet | |
| RLNA02G09GCA | Low Noise Amplifier | 2～9GHz | 28dB | 0.9dB | 18dBm | 28.3dBm | -7 | 140mA | SMA | 12VDC | Datasheet |
| RLNA02G10GA | Ultra Wide Band LNA | 2～10GHz | 30dB | 1.5dB | 17dBm | 25dBm | -8 | 250mA | SMA | 12VDC | Datasheet |
| RLNA02G12GA | Low Noise Amplifier | 2～12GHz | 61.5dB | 2.25dB | 15.5dBm | 25.5dBm | 80mA | SMA | 12VDC | Datasheet | |
| RLNA02G12GB | Low Noise Amplifier | 2～12GHz | 67.5dB | 2.3dB | 15.5dBm | 25.5dBm | 230mA | SMA | 4VDC | Datasheet | |
| RLNA02G12GC | Low Noise Amplifier | 2～12GHz | 18.22dB | 4.39dB | 25.61dBm | 12 | 800mA | SMA | Datasheet | ||
| RLNA02G18GA | Ultra Wide Band LNA | 2～20GHz | 30dB | 4dB | 26dBm | 31dBm | 6 | 300mA | SMA | 12VDC | Datasheet |
| RLNA02G18GB | Ultra Wide Band LNA | 2～18GHz | 15dB | 4dB | 26dBm | 34dBm | 0 | 200mA | SMA | 15VDC | Datasheet |
| RLNA02G18GB-H | Hermetically Sealed Wide Band LNA | 2～18GHz | 15dB | 4dB | 26dBm | 34dBm | 0 | 200mA | SMA | 15VDC | Datasheet |
| RLNA02G18GC | Low Noise Amplifier | 2～18GHz | 63dB | 1.5dB | 25dBm | 35dBm | 0 | 350mA | SMA | 12VDC | Datasheet |
| RLNA02G18GD | Low Noise Amplifier | 2～18GHz | 69dB | 1.2dB | 25dBm | 33dBm | 0 | 310mA | SMA | 12VDC | Datasheet |
| RLNA02G18GE | Low Noise Amplifier | 2～18.25GHz | 22dB | 2.5dB | 22dBm | 34dBm | 0 | 350mA | SMA | 12VDC | Datasheet |
| RLNA02G18GHA | Low Noise Amplifier | 2～18GHz | 23dB | 1.4dB | 15dBm | 25dBm | 15 | 80mA | SMA | 12VDC | Datasheet |
| RLNA02G20GB | Ultra Wide Band LNA | 2～20GHz | 30dB | 2.5dB | 26dBm | 30dBm | 1 | 350mA | SMA | 12VDC | Datasheet |
| RLNA02G20GB-H | Hermetically Sealed LNA | 2～20GHz | 30dB | 2.5dB | 26dBm | 30dBm | 0 | 350mA | SMA | 12VDC | Datasheet |
| RLNA02G20GC | Low Noise Amplifier | 2～20GHz | 61dB | 1.95dB | 25dBm | 35dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA02G20GD | Low Noise Amplifier | 2～20GHz | 67dB | 2.1dB | 25dBm | 35dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA02G22GA | Low Noise Amplifier | 2～22GHz | 35dB | 2.55dB | 17dBm | 27dBm | 110mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G22GB | Low Noise Amplifier | 2～22GHz | 50.5dB | 2.25dB | 24.4dBm | 34.4dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GA | Low Noise Amplifier | 2～28GHz | 34dB | 2dB | 19.3dBm | 29.3dBm | 180mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GB | Low Noise Amplifier | 2～28GHz | 31.5dB | 2.2dB | 19.3dBm | 29.3dBm | 180mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GC | Low Noise Amplifier | 2～28GHz | 31dB | 2.7dB | 19.2dBm | 29.2dBm | 180mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GD | Low Noise Amplifier | 2～28GHz | 31dB | 2dB | 16.3dBm | 26.3dBm | 90mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GE | Low Noise Amplifier | 2～28GHz | 24dB | 2.75dB | 16.4dBm | 26.4dBm | 100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GF | Low Noise Amplifier | 2～28GHz | 48.5dB | 2dB | 26.6dBm | 36.6dBm | 1000mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GG | Low Noise Amplifier | 2～28GHz | 49.5dB | 2dB | 25dBm | 35dBm | 700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GH | Low Noise Amplifier | 2～28GHz | 37.5dB | 2.65dB | 22.7dBm | 32.7dBm | 390mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GI | Low Noise Amplifier | 2～28GHz | 51dB | 2dB | 20.8dBm | 30.8dBm | 260mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G28GJ | Low Noise Amplifier | 2～28GHz | 43dB | 2.15dB | 26.2dBm | 36.2dBm | 900mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G30GA | Low Noise Amplifier | 2～30GHz | 28.5dB | 2.7dB | 24.1dBm | 34.1dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G30GB | Low Noise Amplifier | 2～30GHz | 26dB | 2.65dB | 18.8dBm | 28.8dBm | 160mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G30GC | Low Noise Amplifier | 2～30GHz | 30.5dB | 2.65dB | 16.3dBm | 26.3dBm | 90mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G30GD | Low Noise Amplifier | 2～30GHz | 45dB | 2.65dB | 25.9dBm | 35.9dBm | 900mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G30GE | Low Noise Amplifier | 2～30GHz | 39.5dB | 2.65dB | 26.1dBm | 36.1dBm | 900mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G35GA | Low Noise Amplifier | 2～35GHz | 27dB | 2.65dB | 17.3dBm | 27.3dBm | 120mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G35GB | Low Noise Amplifier | 2～35GHz | 26dB | 3.85dB | 21dBm | 31dBm | 270mA | 2.92mm | 12VDC | Datasheet | |
| RLNA02G47GA | Low Noise Amplifier | 1.5～47GHz | 28dB | 3.9dB | 20dBm | 30dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G47GB | Low Noise Amplifier | 1.5～47GHz | 35dB | 3.9dB | 19.9dBm | 29.9dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G47GC | Low Noise Amplifier | 1.5～47GHz | 43.5dB | 3.3dB | 20dBm | 30dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G47GD | Low Noise Amplifier | 1.5～47GHz | 60dB | 2.6dB | 20dBm | 30dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G47GE | Low Noise Amplifier | 1.5～47GHz | 50dB | 2.6dB | 19.9dBm | 29.9dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G50GA | Low Noise Amplifier | 2～50GHz | 43dB | 3.9dB | 19.4dBm | 29.4dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G50GB | Low Noise Amplifier | 2～50GHz | 39.5dB | 4.05dB | 19.4dBm | 29.4dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G50GC | Low Noise Amplifier | 2～50GHz | 25dB | 4.85dB | 16.1dBm | 26.1dBm | 90mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G50GD | Low Noise Amplifier | 2～50GHz | 59.5dB | 3.1dB | 19.4dBm | 29.4dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G50GE | Low Noise Amplifier | 2～50GHz | 59dB | 3.5dB | 19.4dBm | 29.4dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02G50GF | Low Noise Amplifier | 2～50GHz | 48.5dB | 2.7dB | 19.9dBm | 29.9dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA02M01GA | Low Noise Amplifier | 0.02～1GHz | 41dB | 1.65dB | 19.2dBm | 29.2dBm | 180mA | SMA | 12VDC | Datasheet | |
| RLNA02M01GB | Low Noise Amplifier | 0.02～1GHz | 61.5dB | 1.65dB | 22.6dBm | 32.6dBm | 380mA | SMA | 12VDC | Datasheet | |
| RLNA02M01GC | Low Noise Amplifier | 0.02～1.2GHz | 46dB | 1.05dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA02M01GD | Low Noise Amplifier | 0.02～1.2GHz | 53.5dB | 1.25dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA02M01GE | Low Noise Amplifier | 0.02～1.2GHz | 59dB | 2.05dB | 17.6dBm | 27.6dBm | 120mA | SMA | 12VDC | Datasheet | |
| RLNA02M01GF | Low Noise Amplifier | 0.02～1.2GHz | 66dB | 1.05dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA02M01GG | Low Noise Amplifier | 0.02～1.4GHz | 61.5dB | 1.65dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA02M02GA | Low Noise Amplifier | 0.02～2GHz | 63dB | 1.65dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA02M04GA | Low Noise Amplifier | 0.02～4GHz | 33.5dB | 1.65dB | 19dBm | 29dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA02M04GB | Low Noise Amplifier | 0.02～4GHz | 40dB | 1.65dB | 20.6dBm | 30.6dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA02M04GC | Low Noise Amplifier | 0.02～4GHz | 58.5dB | 1.65dB | 28.1dBm | 38.1dBm | 1400mA | SMA | 12VDC | Datasheet | |
| RLNA02M04GD | Low Noise Amplifier | 0.02～4GHz | 55dB | 1.65dB | 26.6dBm | 36.6dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA02M06G | Wide Band LNA | 2～6GHz | 42dB | 2.9dB | 20dBm | 30dBm | -17 | 200mA | SMA | 12VDC | Datasheet |
| RLNA02M06GA | Low Noise Amplifier | 0.02～6GHz | 37dB | 1.8dB | 17.6dBm | 27.6dBm | 120mA | SMA | 12VDC | Datasheet | |
| RLNA02M06GB | Low Noise Amplifier | 0.02～6GHz | 33dB | 1.8dB | 15.9dBm | 25.9dBm | 90mA | SMA | 12VDC | Datasheet | |
| RLNA02M06GC | Low Noise Amplifier | 0.02～6GHz | 54dB | 1.8dB | 27.6dBm | 37.6dBm | 1200mA | SMA | 12VDC | Datasheet | |
| RLNA02M06GD | Low Noise Amplifier | 0.02～6GHz | 56.5dB | 1.8dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA02M06GE | Low Noise Amplifier | 0.02～6GHz | 58.5dB | 1.8dB | 19.1dBm | 29.1dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA02M06GF | Low Noise Amplifier | 0.02～6GHz | 44dB | 2.2dB | 26.1dBm | 36.1dBm | 900mA | SMA | 12VDC | Datasheet | |
| RLNA02M12GA | Low Noise Amplifier | 0.025～12GHz | 33dB | 1.85dB | 20.3dBm | 30.3dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA02M12GB | Low Noise Amplifier | 0.025～12GHz | 35dB | 2.35dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA02M12GC | Low Noise Amplifier | 0.025～12GHz | 50.5dB | 1.85dB | 24.9dBm | 34.9dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA02M50MA | Low Noise Amplifier | 0.02～0.5GHz | 40.5dB | 1.65dB | 20dBm | 30dBm | 210mA | SMA | 12VDC | Datasheet | |
| RLNA03G03G | Narrow Band LNA | 3.2～3.8GHz | 35dB | 1.8dB | 23dBm | 33dBm | -7 | 320mA | SMA | 12VDC | Datasheet |
| RLNA03G04G | Narrow Band LNA | 3.7～4.5GHz | 31dB | 1.5dB | 20dBm | 30dBm | -6 | 250mA | SMA | 12VDC | Datasheet |
| RLNA03G04GA | Ultra Low Noise Amplifier | 3～4.5GHz | 67.5dB | 0.85dB | 23.1dBm | 33.1dBm | 430mA | SMA | 12VDC | Datasheet | |
| RLNA03G04GB | Low Noise Amplifier | 2.6～3.8GHz | 70dB | 1.06dB | 24.96dBm | 12 | 700mA | SMA | Datasheet | ||
| RLNA03G05GA | Ultra Low Noise Amplifier | 3～5GHz | 68dB | 0.8dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA03G05GB | Ultra Low Noise Amplifier | 3.3～5GHz | 59.5dB | 0.75dB | 27.3dBm | 37.3dBm | 1200mA | SMA | 12VDC | Datasheet | |
| RLNA03G09GA | Low Noise Amplifier | 3～9GHz | 69.41dB | 0.88dB | 28.12dBm | 38.1dBm | -41 | 1300mA | SMA | 12VDC | Datasheet |
| RLNA03M03GA | Low Noise Amplifier | 0.03～3GHz | 53.5dB | 1.65dB | 29.1dBm | 39.1dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA03M06GA | Low Noise Amplifier | 0.03～6GHz | 56dB | 1.8dB | 28.7dBm | 38.7dBm | 1600mA | SMA | 12VDC | Datasheet | |
| RLNA03M06GB | Low Noise Amplifier | 0.03～6GHz | 66.5dB | 1.8dB | 17.7dBm | 27.7dBm | 130mA | SMA | 12VDC | Datasheet | |
| RLNA03M08GA | Low Noise Amplifier | 0.03～8GHz | 56dB | 1.8dB | 29dBm | 39dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA03M60MA | Ultra Low Noise Amplifier | 0.03～0.6GHz | 47.5dB | 0.9dB | 22.1dBm | 32.1dBm | 340mA | SMA | 12VDC | Datasheet | |
| RLNA03M60MB | Low Noise Amplifier | 0.03～0.6GHz | 60.5dB | 1.05dB | 22.7dBm | 32.7dBm | 390mA | SMA | 12VDC | Datasheet | |
| RLNA03M60MC | Ultra Low Noise Amplifier | 0.03～0.6GHz | 67.5dB | 0.9dB | 21.9dBm | 31.9dBm | 330mA | SMA | 12VDC | Datasheet | |
| RLNA04G05G | Narrow Band LNA | 4.2～5.2GHz | 29dB | 1.8dB | 21dBm | 31dBm | -3 | 270mA | SMA | 12VDC | Datasheet |
| RLNA04G07GA | Low Noise Amplifier | 3.5～7GHz | 45dB | 1.4dB | 18.4dBm | 28.4dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA04G07GB | Low Noise Amplifier | 3.5～7GHz | 30dB | 2.15dB | 18.9dBm | 28.9dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA04G07GC | Low Noise Amplifier | 3.5～7GHz | 36dB | 1.6dB | 18.5dBm | 28.5dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA04G07GD | Low Noise Amplifier | 3.5～7GHz | 62dB | 1.2dB | 28.8dBm | 38.8dBm | 1600mA | SMA | 12VDC | Datasheet | |
| RLNA04G07GE | Low Noise Amplifier | 3.5～7GHz | 53.5dB | 1.3dB | 19.4dBm | 29.4dBm | 190mA | SMA | 12VDC | Datasheet | |
| RLNA04G08G | Wide Band LNA | 4～8GHz | 42dB | 2.8dB | 24dBm | 34dBm | -13 | 280mA | SMA | 12VDC | Datasheet |
| RLNA04G08G50 | Ultra Low Noise Figure Amplifier | 4～8GHz | 50dB | 0.9dB | 10dBm | 20dBm | 0 | 200mA | SMA | 15VDC | Datasheet |
| RLNA04G08G50D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 4～8GHz | 48dB | 1.1dB | 13dBm | 25dBm | -30 | 200mA | SMA | 8～15VDC | Datasheet |
| RLNA04G08G50D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 4～8GHz | 48dB | 1.1dB | 13dBm | 25dBm | -30 | 200mA | SMA | 8～15VDC | Datasheet |
| RLNA04G08GA | Wide Band LNA | 3.5～8.5GHz | 44dB | 2dB | 27dBm | 34dBm | 0 | 400mA | SMA | 12VDC | Datasheet |
| RLNA04G08GB | Low Noise Amplifier | 4～8GHz | 49dB | 1.05dB | 27.5dBm | 37.5dBm | -18 | 420mA | SMA | 12VDC | Datasheet |
| RLNA04G08GC | Low Noise Amplifier | 4～8GHz | 68.5dB | 1.1dB | 28.5dBm | 38.5dBm | -37 | 900mA | SMA | 12VDC | Datasheet |
| RLNA04G08GDA | Low Noise Amplifier | 4～8GHz | 66.5dB | 1dB | 29.5dBm | 39.5dBm | -34 | 800mA | SMA | 12VDC | Datasheet |
| RLNA04G08GQ | Ultra Low Noise Amplifier | 4～8GHz | 40dB | 0.9dB | 19dBm | 29dBm | 10 | 130mA | SMA | 5VDC | Datasheet |
| RLNA04G08GQ2 | Ultra Low Noise Amplifier | 4～8GHz | 48dB | 1dB | 22dBm | 32dBm | 10 | 210mA | SMA | 5VDC | Datasheet |
| RLNA04G08GQ3 | Low Noise Amplifier | 3.5～8GHz | 30dB | 2.35dB | 19.4dBm | 29.4dBm | 190mA | SMA | 12VDC | Datasheet | |
| RLNA04G08GQ4 | Low Noise Amplifier | 3.5～8GHz | 35.5dB | 1.8dB | 18.5dBm | 28.5dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA04G10GA | Low Noise Amplifier | 4～10GHz | 57dB | 1.9dB | 24.9dBm | 34.9dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA04G11GA | Low Noise Amplifier | 4～11GHz | 58.5dB | 1.95dB | 19.4dBm | 29.4dBm | 600mA | SMA | 4VDC | Datasheet | |
| RLNA04G14GA | Low Noise Amplifier | 4～14GHz | 45.5dB | 1.55dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA04G14GB | Low Noise Amplifier | 4～14GHz | 58dB | 1.9dB | 21dBm | 30dBm | 260mA | SMA | 12VDC | Datasheet | |
| RLNA04G14GC | Low Noise Amplifier | 4～14GHz | 44.5dB | 2.55dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA04G14GD | Low Noise Amplifier | 4～14GHz | 40dB | 3.2dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA04G14GE | Low Noise Amplifier | 4～14GHz | 38.5dB | 3.3dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA04G14GF | Low Noise Amplifier | 4～14GHz | 69.5dB | 1.45dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA04G20GA | Low Noise Amplifier | 4～20GHz | 32dB | 2dB | 18.3dBm | 28.3dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA04G20GB | Low Noise Amplifier | 4～20GHz | 46.5dB | 2.25dB | 20.3dBm | 30.3dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA04G20GC | Low Noise Amplifier | 4～20GHz | 43dB | 3.25dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA04G20GD | Low Noise Amplifier | 4～20GHz | 41.5dB | 3.35dB | 20.4dBm | 30.4dBm | 230mA | SMA | 12VDC | Datasheet | |
| RLNA04G20GE | Low Noise Amplifier | 4～20GHz | 65dB | 2.1dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA04M01GA | Low Noise Amplifier | 0.045～1.218GHz | 34.5dB | 1.55dB | 23.2dBm | 33.2dBm | 440mA | SMA | 12VDC | Datasheet | |
| RLNA04M01GB | Low Noise Amplifier | 0.045～1.218GHz | 40.5dB | 1.55dB | 22.5dBm | 32.5dBm | 380mA | SMA | 12VDC | Datasheet | |
| RLNA04M01GC | Low Noise Amplifier | 0.045～1.218GHz | 49.5dB | 1.55dB | 23.6dBm | 33.6dBm | 480mA | SMA | 12VDC | Datasheet | |
| RLNA04M06GETS | Automatic Level Control Amplifier | 0.1～6GHz | 60dB | 2.5dB | 10dBm | 18dBm | -45 | 600mA | SMA | 5VDC | Datasheet |
| RLNA05G01G35 | Ultra Low Noise Figure Amplifier | 0.5～1GHz | 50dB | 0.45dB | 10dBm | 20dBm | 0 | 175mA | SMA | 15VDC | Datasheet |
| RLNA05G04GA2 | Low Noise Amplifier | 0.5～4GHz | 35dB | 0.9dB | 20dBm | 35dBm | -10 | 160mA | SMA | 12VDC | Datasheet |
| RLNA05G04GA2-24V | Low Noise Amplifier | 0.5～4GHz | 35dB | 0.9dB | 20dBm | 35dBm | -10 | 160mA | SMA | 24VDC | Datasheet |
| RLNA05G04GA2-32V | Low Noise Amplifier | 0.5～4GHz | 35dB | 0.9dB | 20dBm | 35dBm | -10 | 160mA | SMA | 32VDC | Datasheet |
| RLNA05G04GA2-32VH | Hermetically Sealed Low Noise Amplifier | 0.5～4GHz | 35dB | 0.9dB | 20dBm | 35dBm | -10 | 160mA | SMA | 32VDC | Datasheet |
| RLNA05G04GA3 | Low Noise Amplifier | 0.5～4GHz | 40dB | 0.9dB | 25dBm | 33dBm | -15 | 300mA | SMA | 12VDC | Datasheet |
| RLNA05G05G | Narrow Band LNA | 5.2～5.9GHz | 30dB | 1.8dB | 22dBm | 32dBm | -3 | 270mA | SMA | 12VDC | Datasheet |
| RLNA05G06GA | Ultra Low Noise Amplifier | 4.8～6GHz | 32.5dB | 0.7dB | 17.5dBm | 27.5dBm | 120mA | SMA | 12VDC | Datasheet | |
| RLNA05G07GAA | Low Noise Amplifier | 5～7GHz | 41dB | 0.9dB | 19dBm | 28.6dBm | -19 | 210mA | SMA | 12VDC | Datasheet |
| RLNA05G07GB | Low Noise Amplifier | 5～7GHz | 60.91dB | 0.9dB | 28.22dBm | 38.2dBm | -30 | 900mA | SMA | 12VDC | Datasheet |
| RLNA05G09GA | Low Noise Amplifier | 5～9GHz | 49dB | 1.7dB | 27.6dBm | 37.6dBm | 1200mA | SMA | 12VDC | Datasheet | |
| RLNA05G11GA | Low Noise Amplifier | 4.7～11.3GHz | 27.5dB | 3.25dB | 23.8dBm | 33.8dBm | 500mA | SMA | 12VDC | Datasheet | |
| RLNA05G15GA | Low Noise Amplifier | 5～15GHz | 60dB | 1.55dB | 24.9dBm | 34.9dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA05G17GA | Low Noise Amplifier | 5～17GHz | 52.5dB | 1.6dB | 22.4dBm | 32.4dBm | 370mA | SMA | 12VDC | Datasheet | |
| RLNA05G18GA | Low Noise Amplifier | 5～18GHz | 52dB | 2dB | 23.4dBm | 33.4dBm | 460mA | SMA | 12VDC | Datasheet | |
| RLNA05G20GA | Low Noise Amplifier | 5～20GHz | 25dB | 2.8dB | 19.9dBm | 29.9dBm | 210mA | SMA | 12VDC | Datasheet | |
| RLNA05G21GA | Low Noise Amplifier | 5～21GHz | 31dB | 2.1dB | 18.7dBm | 28.7dBm | 160mA | 2.92mm | 12VDC | Datasheet | |
| RLNA05G21GB | Low Noise Amplifier | 5～21GHz | 29.5dB | 2.7dB | 18.7dBm | 28.7dBm | 160mA | 2.92mm | 12VDC | Datasheet | |
| RLNA05G21GC | Low Noise Amplifier | 5～21GHz | 40dB | 2.75dB | 23.1dBm | 33.1dBm | 430mA | 2.92mm | 12VDC | Datasheet | |
| RLNA05M01GA | Low Noise Amplifier | 0.05～1GHz | 26dB | 1.25dB | 19dBm | 29dBm | 0 | 135mA | SMA | 12VDC | Datasheet |
| RLNA05M01GB | Ultra Low Noise Amplifier | 0.05～1GHz | 52.5dB | 0.75dB | 18.5dBm | 28.5dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA05M02GA | Low Noise Amplifier | 0.05～1.5GHz | 32.5dB | 1dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA05M02GB | Ultra Low Noise Amplifier | 0.05～1.5GHz | 38dB | 0.9dB | 29.2dBm | 39.2dBm | 1800mA | SMA | 12VDC | Datasheet | |
| RLNA05M02GC | Low Noise Amplifier | 0.05～1.5GHz | 44dB | 1.15dB | 29.4dBm | 39.4dBm | 1900mA | SMA | 12VDC | Datasheet | |
| RLNA05M02GD | Ultra Low Noise Amplifier | 0.05～2GHz | 34dB | 0.8dB | 23.4dBm | 33.4dBm | 460mA | SMA | 12VDC | Datasheet | |
| RLNA05M02GE | Ultra Low Noise Amplifier | 0.05～2GHz | 41dB | 0.8dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA05M02GF | Ultra Low Noise Amplifier | 0.05～2GHz | 59dB | 0.8dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GA | Low Noise Amplifier | 0.05～2.7GHz | 31.5dB | 1.65dB | 19.1dBm | 29.1dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GB | Low Noise Amplifier | 0.05～2.7GHz | 55.5dB | 1.05dB | 19dBm | 29dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GC | Low Noise Amplifier | 0.05～2.7GHz | 40dB | 1.3dB | 19dBm | 29dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GD | Low Noise Amplifier | 0.05～2.7GHz | 61dB | 1.65dB | 19dBm | 29dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GE | Low Noise Amplifier | 0.05～3GHz | 37.5dB | 1.6dB | 19.6dBm | 29.6dBm | 200mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GF | Low Noise Amplifier | 0.05～3GHz | 40dB | 1.65dB | 19.6dBm | 29.6dBm | 200mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GG | Low Noise Amplifier | 0.05～3GHz | 27dB | 1.45dB | 18.4dBm | 28.4dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GH | Low Noise Amplifier | 0.05～3GHz | 49.5dB | 1.1dB | 27.8dBm | 37.8dBm | 1300mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GI | Low Noise Amplifier | 0.05～3GHz | 56dB | 1.1dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA05M03GJ | Low Noise Amplifier | 0.05～3GHz | 61.5dB | 1.65dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA05M04GA | Low Noise Amplifier | 0.05～4GHz | 37.5dB | 1dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA05M04GB | Low Noise Amplifier | 0.03～6GHz | 35dB | 1dB | 22dBm | 32dBm | 0 | 340mA | SMA | 12VDC | Datasheet |
| RLNA05M04GC | Low Noise Amplifier | 0.05～4GHz | 43dB | 1.65dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA05M04GD | Low Noise Amplifier | 0.05～4GHz | 52.5dB | 1dB | 28.1dBm | 38.1dBm | 1400mA | SMA | 12VDC | Datasheet | |
| RLNA05M04GE | Low Noise Amplifier | 0.05～4GHz | 50dB | 1.1dB | 26.8dBm | 36.8dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA05M04GF | Low Noise Amplifier | 0.05～4GHz | 61dB | 1.05dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA05M04GG | Low Noise Amplifier | 0.05～4GHz | 66.5dB | 1.65dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA05M06GA | Low Noise Amplifier | 0.05～6GHz | 32.5dB | 1.1dB | 28.3dBm | 38.3dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA05M06GB | Low Noise Amplifier | 0.05～6GHz | 34.5dB | 1.7dB | 27dBm | 37dBm | 1100mA | SMA | 12VDC | Datasheet | |
| RLNA05M06GC | Low Noise Amplifier | 0.05～6GHz | 48dB | 1.1dB | 29.5dBm | 39.5dBm | 1900mA | SMA | 12VDC | Datasheet | |
| RLNA05M06GD | Low Noise Amplifier | 0.05～6GHz | 56.5dB | 1.1dB | 27.7dBm | 37.7dBm | 1300mA | SMA | 12VDC | Datasheet | |
| RLNA05M12GA | Ultra Wide Band LNA | 0.5～12GHz | 30dB | 2.5dB | 14dBm | 23dBm | -11 | 220mA | SMA | 12VDC | Datasheet |
| RLNA05M20GA | Ultra Wide Band LNA | 0.05～20GHz | 28dB | 3dB | 16dBm | 30dBm | -7 | 220mA | SMA | 12VDC | Datasheet |
| RLNA05M20GB | Ultra Broad LNA (Discontinued replaced by RLNA01G18GB) | 0.05～20GHz | 28dB | 2.8dB | 22dBm | 30dBm | 10 | 0mA | SMA | 12VDC | Datasheet |
| RLNA05M46GA | Ultra Wide Band LNA | 0.005～46GHz | 36dB | 4dB | 18dBm | 25dBm | -15 | 370mA | 2.4mm | 12VDC | Datasheet |
| RLNA05M46GST | Ultra Wide Band LNA | 0.5～50GHz | 15dB | 3dB | 18dBm | 25dBm | 8 | 200mA | 2.4mm | 7VDC | Datasheet |
| RLNA05M46GSTK | Ultra Wide Band LNA | 0.5～46GHz | 15dB | 3dB | 18dBm | 25dBm | 0 | 200mA | 2.92mm | 7VDC | Datasheet |
| RLNA05M50MA | Low Noise Amplifier | 0.05～0.5GHz | 37.5dB | 1.35dB | 19.6dBm | 29.6dBm | 200mA | SMA | 12VDC | Datasheet | |
| RLNA05M50MB | Ultra Low Noise Amplifier | 0.05～0.5GHz | 69.5dB | 0.9dB | 22dBm | 32dBm | 340mA | SMA | 12VDC | Datasheet | |
| RLNA05M50MC | Low Noise Amplifier | 0.05～0.5GHz | 55.5dB | 1.3dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA05M54GA | Ultra Wide Band LNA | 0.05～54GHz | 25dB | 4dB | 13dBm | 18dBm | 0 | 100mA | 1.85mm | 12VDC | Datasheet |
| RLNA05M70GA | Ultra Wide Band LNA | 0.5～70GHz | 27dB | 7dB | 11dBm | 20dBm | -9 | 150mA | 1.85mm | 12VDC | Datasheet |
| RLNA05M70GB | Ultra Wide Band LNA | 0.5～70GHz | 28dB | 7dB | 11dBm | 20dBm | -17 | 200mA | 1.85mm | 12VDC | Datasheet |
| RLNA05M70GC | Ultra Wide Band LNA | 0.5～70GHz | 35dB | 7dB | 11dBm | 20dBm | -24 | 260mA | 1.85mm | 12VDC | Datasheet |
| RLNA05M80GA | Ultra Wide Band LNA | 0.5～80GHz | 20dB | 7dB | 11dBm | 20dBm | -9 | 150mA | 1.00mm | 12VDC | Datasheet |
| RLNA05M80GB | Ultra Wide Band LNA | 0.5～80GHz | 25dB | 7dB | 13dBm | 20dBm | -17 | 250mA | 1.00mm | 12VDC | Datasheet |
| RLNA05M80GC | Ultra Wide Band LNA | 0.5～80GHz | 35dB | 7dB | 11dBm | 20dBm | -24 | 260mA | 1.00mm | 12VDC | Datasheet |
| RLNA05M85MA | Ultra Low Noise Amplifier | 0.05～0.85GHz | 39dB | 0.8dB | 19.6dBm | 29.6dBm | 200mA | SMA | 12VDC | Datasheet | |
| RLNA05M85MB | Low Noise Amplifier | 0.05～0.85GHz | 27.5dB | 1.35dB | 18.6dBm | 28.6dBm | 160mA | SMA | 12VDC | Datasheet | |
| RLNA0618G45B | Low Noise Amplifier | 6～18GHz | 40dB | 1.5dB | 17dBm | 30dBm | 10 | 100mA | SMA | 12VDC | Datasheet |
| RLNA06G07G | Narrow Band LNA | 6～7.9GHz | 42dB | 2dB | 20dBm | 30dBm | -17 | 250mA | SMA | 12VDC | Datasheet |
| RLNA06G10GA | Low Noise Amplifier | 5.9～9.5GHz | 51.5dB | 2dB | 26.7dBm | 36.7dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA06G12GC | Low Noise Amplifier | 6～12GHz | 69.66dB | 1.14dB | 28.5dBm | 38.5dBm | -38 | 1400mA | SMA | 12VDC | Datasheet |
| RLNA06G12GQ | Ultra Low Noise Amplifier | 6～12GHz | 33dB | 1.3dB | 20dBm | 30dBm | 10 | 120mA | SMA | 12VDC | Datasheet |
| RLNA06G12GQ2 | Ultra Low Noise Amplifier | 6～12GHz | 23dB | 0.9dB | 13dBm | 23dBm | 10 | 35mA | SMA | 12VDC | Datasheet |
| RLNA06G12GQ3 | Ultra Low Noise Amplifier | 6～12GHz | 45dB | 0.9dB | 13dBm | 23dBm | -10 | 70mA | SMA | 5VDC | Datasheet |
| RLNA06G12GQ3-28V | Ultra Low Noise Amplifier | 6～12GHz | 46dB | 0.9dB | 13dBm | 23dBm | -10 | 70mA | SMA | 28VDC | Datasheet |
| RLNA06G15GA | Wide Band LNA | 6～15GHz | 25dB | 1.8dB | 18dBm | 28dBm | 0 | 120mA | SMA | 3.5VDC | Datasheet |
| RLNA06G18G30 | Ultra Low Noise Figure Amplifier | 6～18GHz | 44dB | 1.3dB | 27dBm | 33dBm | 15 | 480mA | SMA | 12VDC | Datasheet |
| RLNA06G18G45 | Ultra Low Noise Figure Amplifier | 6～18GHz | 43dB | 1.3dB | 14dBm | 20dBm | -30 | 275mA | SMA | 15VDC | Datasheet |
| RLNA06G18G45D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 6～18GHz | 50dB | 1.3dB | 19dBm | 20dBm | -30 | 250mA | SMA | 15VDC | Datasheet |
| RLNA06G18G45D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 6～18GHz | 50dB | 1.3dB | 19dBm | 31dBm | -30 | 250mA | SMA | 15VDC | Datasheet |
| RLNA06G18GA | Ultra Wide Band LNA | 6～18GHz | 32dB | 4dB | 25dBm | 34dBm | -2 | 600mA | SMA | 12VDC | Datasheet |
| RLNA06G18GB | Ultra Wide Band LNA | 6～18GHz | 32dB | 2dB | 28dBm | 36dBm | 1 | 750mA | SMA | 12VDC | Datasheet |
| RLNA06G18GC | Ultra Wide Band LNA | 6～18GHz | 40dB | 3dB | 22dBm | 30dBm | -13 | 750mA | SMA | 12VDC | Datasheet |
| RLNA06G18GI | Low Noise Amplifier | 6～18GHz | 21.06dB | 2.07dB | 1.53dBm | 11.5dBm | -17 | 20mA | SMA | 12VDC | Datasheet |
| RLNA06G23GA | Low Noise Amplifier | 5.5～23GHz | 34.5dB | 2.05dB | 17.4dBm | 27.4dBm | 120mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G23GB | Low Noise Amplifier | 5.5～23GHz | 31.5dB | 2.75dB | 17.3dBm | 27.3dBm | 120mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G23GC | Low Noise Amplifier | 5.5～23GHz | 50dB | 2.05dB | 25.2dBm | 35.2dBm | 700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G23GD | Low Noise Amplifier | 5.5～23GHz | 52dB | 2.05dB | 24.1dBm | 34.1dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G23GE | Low Noise Amplifier | 5.5～23GHz | 50dB | 2.05dB | 23dBm | 33dBm | 420mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G23GF | Low Noise Amplifier | 5.5～23GHz | 52dB | 2.05dB | 21.7dBm | 31.7dBm | 310mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G23GG | Low Noise Amplifier | 5.5～23GHz | 52.5dB | 2.05dB | 19.3dBm | 29.3dBm | 180mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G23GH | Low Noise Amplifier | 5.5～23GHz | 44.5dB | 2.2dB | 17.4dBm | 27.4dBm | 120mA | 2.92mm | 12VDC | Datasheet | |
| RLNA06G26GA | Low Noise Amplifier | 6～26.5GHz | 50.5dB | 2dB | 16.2dBm | 26.2dBm | 90mA | 2.92mm | 12VDC | Datasheet | |
| RLNA07G08GA | Low Noise Amplifier | 7.1～7.9GHz | 63.5dB | 1.6dB | 28.5dBm | 38.5dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA07G08GB | Low Noise Amplifier | 7.1～8.5GHz | 60.5dB | 2.15dB | 15.5dBm | 25.5dBm | 80mA | SMA | 12VDC | Datasheet | |
| RLNA07G09G | Narrow Band LNA | 7.7～9.2GHz | 35dB | 2dB | 23dBm | 33dBm | -7 | 280mA | SMA | 12VDC | Datasheet |
| RLNA07G13GC | Low Noise Amplifier | 7～13GHz | 68.73dB | 1.44dB | 19.41dBm | 29.4dBm | -46 | 330mA | SMA | 12VDC | Datasheet |
| RLNA07G21GA | Low Noise Amplifier | 7～21GHz | 62.5dB | 2.1dB | 16.4dBm | 26.4dBm | 100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA07M06GA | Ultra Wide Band LNA | 0.7～6GHz | 41dB | 2.5dB | 23dBm | 43dBm | -13 | 250mA | SMA | 12VDC | Datasheet |
| RLNA0812G25 | Wide Band LNA | 8～12GHz | 32dB | 2dB | 18dBm | 28dBm | -2 | 180mA | SMA | 12VDC | Datasheet |
| RLNA0812G25D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 8～12GHz | 32dB | 2dB | 17dBm | 25dBm | -10 | 200mA | SMA | 6～12VDC | Datasheet |
| RLNA0812G25D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 8～12GHz | 32dB | 2dB | 17dBm | 25dBm | -10 | 200mA | SMA | 6～12VDC | Datasheet |
| RLNA08G09GA | Low Noise Amplifier | 7.5～9GHz | 60dB | 1.8dB | 27.7dBm | 37.7dBm | 1300mA | SMA | 12VDC | Datasheet | |
| RLNA08G11G | Wide Band LNA | 8～11GHz | 45dB | 4dB | 27dBm | 37dBm | -13 | 390mA | SMA | 12VDC | Datasheet |
| RLNA08G12G51 | Ultra Low Noise Figure Amplifier | 8～12GHz | 50dB | 0.9dB | 10dBm | 20dBm | 0 | 250mA | SMA | 15VDC | Datasheet |
| RLNA08G12G51D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 8～12GHz | 55dB | 1.4dB | 15dBm | 20dBm | -30 | 200mA | SMA | 8～15VDC | Datasheet |
| RLNA08G12G51D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 8～12GHz | 55dB | 1.4dB | 15dBm | 20dBm | -30 | 200mA | SMA | 8～15VDC | Datasheet |
| RLNA08G12GA | Low Noise Amplifier | 8～12GHz | 69.46dB | 1.99dB | 30.4dBm | 12 | 2300mA | SMA | Datasheet | ||
| RLNA08G12GQ | Ultra Low Noise Amplifier | 8～12GHz | 36dB | 1.2dB | 17dBm | 26dBm | 10 | 130mA | SMA | 12VDC | Datasheet |
| RLNA08G16GA | Ultra Wide Band LNA | 8～16GHz | 35dB | 2.2dB | 13dBm | 24dBm | -17 | 200mA | SMA | 12VDC | Datasheet |
| RLNA08G16GD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 8～16GHz | 40dB | 1.8dB | 16dBm | 28dBm | -10 | 180mA | SMA | 6～12VDC | Datasheet |
| RLNA08G16GD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 8～16GHz | 40dB | 1.8dB | 16dBm | 28dBm | -10 | 180mA | SMA | 6～12VDC | Datasheet |
| RLNA08G25G60 | Ultra Low Noise Figure Amplifier | 0.1～3.5GHz | 60dB | 0.8dB | 18.5dBm | 31dBm | 0 | 230mA | SMA | 15VDC | Datasheet |
| RLNA08G26GA | Low Noise Amplifier | 7.5～26.5GHz | 46.5dB | 2dB | 23.6dBm | 33.6dBm | 480mA | 2.92mm | 12VDC | Datasheet | |
| RLNA08G26GB | Low Noise Amplifier | 7.5～26.5GHz | 40dB | 2.65dB | 16.6dBm | 26.6dBm | 100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA08M02G | Narrow Band LNA | 0.8～2.2GHz | 47dB | 1.2dB | 18dBm | 29dBm | -20 | 280mA | SMA | 12VDC | Datasheet |
| RLNA08M02G-H | Hermetically Sealed Narrow Band LNA | 0.8～2.2GHz | 47dB | 1.2dB | 18dBm | 29dBm | -20 | 280mA | SMA | 12VDC | Datasheet |
| RLNA08M09M | Narrow Band LNA | 0.8～0.9GHz | 36dB | 1dB | 22dBm | 32dBm | -9 | 230mA | SMA | 12VDC | Datasheet |
| RLNA09G10G | Narrow Band LNA | 9.5～10.8GHz | 33dB | 1.5dB | 10dBm | 20dBm | -18 | 150mA | SMA | 12VDC | Datasheet |
| RLNA09G18GB | Low Noise Amplifier | 9～18GHz | 68.48dB | 1.39dB | 28.45dBm | 38.5dBm | -37 | 1500mA | SMA | 12VDC | Datasheet |
| RLNA09M01G | Narrow Band LNA | 0.9～1.3GHz | 37dB | 1.2dB | 23dBm | 33dBm | -9 | 308mA | SMA | 12VDC | Datasheet |
| RLNA10G11G | Narrow Band LNA | 10.7～11.7GHz | 33dB | 1.5dB | 10dBm | 20dBm | -18 | 150mA | SMA | 12VDC | Datasheet |
| RLNA10G12GA | Low Noise Amplifier | 10～12GHz | 69.73dB | 1.31dB | 30.21dBm | 40.2dBm | -37 | 7400mA | SMA | 12VDC | Datasheet |
| RLNA10G13GA | Low Noise Amplifier | 10～13.3GHz | 68.5dB | 1.65dB | 25dBm | 35dBm | 700mA | SMA | 12VDC | Datasheet | |
| RLNA10G14GA | Low Noise Amplifier | 10～14GHz | 19dB | 1.4dB | 4.5dBm | 22dBm | 0 | 30mA | SMA | 24VDC | Datasheet |
| RLNA10G17GA | Low Noise Amplifier | 10～17GHz | 25dB | 1.3dB | 1dBm | 0dBm | 20 | 30mA | SMA | 24VDC | Datasheet |
| RLNA10G18GA | Low Noise Amplifier | 10～18GHz | 30dB | 1.65dB | 19.1dBm | 29.1dBm | 170mA | SMA | 12VDC | Datasheet | |
| RLNA10G18GB | Low Noise Amplifier | 10～18GHz | 68.5dB | 1.7dB | 29.2dBm | 39.2dBm | 1800mA | SMA | 12VDC | Datasheet | |
| RLNA10G20GA | Low Noise Amplifier | 10～20GHz | 50dB | 1.8dB | 19.4dBm | 29.4dBm | 190mA | SMA | 12VDC | Datasheet | |
| RLNA10G20GB | Low Noise Amplifier | 10～20GHz | 69.5dB | 1.75dB | 27.2dBm | 37.2dBm | 1100mA | SMA | 12VDC | Datasheet | |
| RLNA10G21GA | Low Noise Amplifier | 10～21GHz | 33.5dB | 2.1dB | 19.3dBm | 29.3dBm | 180mA | 2.92mm | 12VDC | Datasheet | |
| RLNA10G40GA | Low Noise Amplifier | 10～40GHz | 22.5dB | 2.9dB | 17.9dBm | 27.9dBm | 130mA | 2.92mm | 12VDC | Datasheet | |
| RLNA10G40GB | Low Noise Amplifier | 10～40GHz | 22.5dB | 3.85dB | 17.4dBm | 27.4dBm | 120mA | 2.92mm | 12VDC | Datasheet | |
| RLNA10G40GC | Low Noise Amplifier | 10～40GHz | 38dB | 2.9dB | 20dBm | 30dBm | 360mA | 2.92mm | 12VDC | Datasheet | |
| RLNA10G40GD | Low Noise Amplifier | 10～40GHz | 34.5dB | 2.9dB | 18.9dBm | 28.9dBm | 170mA | 2.92mm | 12VDC | Datasheet | |
| RLNA10G40GE | Low Noise Amplifier | 2～40GHz | 55dB | 2.5dB | 22dBm | 32dBm | -25 | 480mA | 2.92mm | 12VDC | Datasheet |
| RLNA10G40GF | Low Noise Amplifier | 10～40GHz | 54.5dB | 2.6dB | 20.1dBm | 30.1dBm | 220mA | 2.92mm | 12VDC | Datasheet | |
| RLNA10G40GG | Low Noise Amplifier | 10～40GHz | 44.5dB | 2.2dB | 20.8dBm | 30.8dBm | 260mA | 2.92mm | 12VDC | Datasheet | |
| RLNA10M03GA | Low Noise Amplifier | 0.1～3GHz | 43dB | 1.05dB | 28.6dBm | 38.6dBm | 1600mA | SMA | 12VDC | Datasheet | |
| RLNA10M03GB | Low Noise Amplifier | 0.1～3GHz | 33.5dB | 1.2dB | 26.8dBm | 36.8dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA10M03GC | Ultra Low Noise Amplifier | 0.1～3GHz | 52.5dB | 0.8dB | 29dBm | 39dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA10M03GD | Ultra Low Noise Amplifier | 0.1～3GHz | 66.5dB | 0.85dB | 28.5dBm | 38.5dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GA | Low Noise Amplifier | 0.1～3.5GHz | 45dB | 1.25dB | 19.5dBm | 29.5dBm | 190mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GB | Ultra Low Noise Amplifier | 0.1～3.5GHz | 49.5dB | 0.65dB | 28.3dBm | 38.3dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GC | Ultra Low Noise Amplifier | 0.1～3.5GHz | 49.5dB | 0.65dB | 26.7dBm | 36.7dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GD | Ultra Low Noise Amplifier | 0.1～3.5GHz | 66dB | 0.95dB | 20.5dBm | 30.5dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GE | Low Noise Amplifier | 0.1～4GHz | 25dB | 1.2dB | 23dBm | 33dBm | 420mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GF | Ultra Low Noise Amplifier | 0.1～4GHz | 46.5dB | 0.65dB | 28.2dBm | 38.2dBm | 1400mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GG | Low Noise Amplifier | 0.1～4GHz | 47dB | 1.7dB | 26.8dBm | 36.8dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA10M04GH | Low Noise Amplifier | 0.1～4GHz | 27.37dB | 1.01dB | 20.69dBm | 12 | 250mA | SMA | Datasheet | ||
| RLNA10M06GA | Ultra Low Noise Amplifier | 0.1～6GHz | 35dB | 1dB | 28dBm | 38dBm | 0 | 1500mA | SMA | 12VDC | Datasheet |
| RLNA10M06GB | Low Noise Amplifier | 0.1～6GHz | 37dB | 1.05dB | 27dBm | 37dBm | 1100mA | SMA | 12VDC | Datasheet | |
| RLNA10M06GC | Ultra Low Noise Amplifier | 0.1～6GHz | 50.5dB | 0.7dB | 29.5dBm | 39.5dBm | 1900mA | SMA | 12VDC | Datasheet | |
| RLNA10M18GA | Low Noise Amplifier | 0.1～18GHz | 56dB | 2.1dB | 23.1dBm | 33.1dBm | 430mA | SMA | 12VDC | Datasheet | |
| RLNA10M20GA | Low Noise Amplifier | 0.1～20GHz | 49.5dB | 2.05dB | 24.2dBm | 34.2dBm | 600mA | SMA | 12VDC | Datasheet | |
| RLNA10M20GB | Low Noise Amplifier | 0.1～20GHz | 55dB | 2dB | 29.5dBm | 38.8dBm | -20 | 600mA | SMA | 12VDC | Datasheet |
| RLNA10M20GC | Low Noise Amplifier | 0.1～20GHz | 64dB | 2.05dB | 23dBm | 33dBm | 420mA | SMA | 12VDC | Datasheet | |
| RLNA11M01G | Narrow Band LNA | 1.1～1.7GHz | 31dB | 1.2dB | 20dBm | 30dBm | -6 | 180mA | SMA | 12VDC | Datasheet |
| RLNA1218G14 | Wide Band LNA | 12～18GHz | 14dB | 2dB | 10dBm | 0dBm | 1 | 90mA | SMA | 12VDC | Datasheet |
| RLNA1218G22 | Wide Band LNA | 6～18GHz | 27dB | 2dB | 20dBm | 25dBm | -1 | 190mA | SMA | 12VDC | Datasheet |
| RLNA1218G22D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 12～18GHz | 27dB | 2.2dB | 15dBm | 25dBm | -8 | 200mA | SMA | 6～12VDC | Datasheet |
| RLNA1218G22D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 12～18GHz | 27dB | 2.2dB | 15dBm | 25dBm | -8 | 200mA | SMA | 6～12VDC | Datasheet |
| RLNA1218G22-H | Hermetically Sealed Wide Band LNA | 6～18GHz | 27dB | 2dB | 20dBm | 25dBm | -1 | 190mA | SMA | 12VDC | Datasheet |
| RLNA1218G25 | Wide Band LNA | 12～18GHz | 25dB | 2dB | 10dBm | 0dBm | -10 | 190mA | SMA | 12VDC | Datasheet |
| RLNA1218G31 | Wide Band LNA | 12～18GHz | 31dB | 2dB | 18dBm | 28dBm | -8 | 190mA | SMA | 12VDC | Datasheet |
| RLNA1218G31D | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 12～18GHz | 32dB | 2dB | 17dBm | 25dBm | -10 | 200mA | SMA | 6～12VDC | Datasheet |
| RLNA1218G31D-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 12～18GHz | 32dB | 2dB | 17dBm | 25dBm | -10 | 200mA | SMA | 6～12VDC | Datasheet |
| RLNA12G15G | Wide Band LNA | 12～15GHz | 30dB | 2dB | 15dBm | 25dBm | -10 | 270mA | SMA | 12VDC | Datasheet |
| RLNA12G16GA | Ultra Low Noise Figure Amplifier | 1.2～1.6GHz | 41dB | 0.7dB | 20dBm | 31dBm | 0 | 220mA | 28VDC | Datasheet | |
| RLNA12G18GA | Low Noise Amplifier | 12～18GHz | 59dB | 1.65dB | 22dBm | 32dBm | 340mA | SMA | 12VDC | Datasheet | |
| RLNA12G18GB | Low Noise Amplifier | 12～18GHz | 69.33dB | 1.48dB | 30.04dBm | 40dBm | -36 | 7400mA | SMA | 12VDC | Datasheet |
| RLNA12G19GA | Low Noise Amplifier | 12～19GHz | 60dB | 1.95dB | 27.3dBm | 37.3dBm | 1200mA | SMA | 12VDC | Datasheet | |
| RLNA12G20GQ | Ultra Low Noise Amplifier | 12～20GHz | 42dB | 1.4dB | 16dBm | 26dBm | 10 | 80mA | SMA | 5VDC | Datasheet |
| RLNA12G20GQ2 | Ultra Low Noise Amplifier | 12～20GHz | 46dB | 1.5dB | 21dBm | 31dBm | 10 | 160mA | SMA | 5VDC | Datasheet |
| RLNA12G20GQ3 | Low Noise Amplifier | 12～20GHz | 58.5dB | 1.85dB | 28.2dBm | 38.2dBm | 1400mA | SMA | 12VDC | Datasheet | |
| RLNA12G20GQ4 | Low Noise Amplifier | 12～20GHz | 64dB | 1.9dB | 28.9dBm | 38.9dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA12G21GB | Wide Band LNA | 12～21GHz | 42dB | 1.35dB | 25dBm | 35dBm | 0 | 300mA | SMA | 12VDC | Datasheet |
| RLNA12G26GQ | Low Noise Amplifier | 12～26GHz | 31dB | 1.6dB | 3dBm | 13dBm | -5 | 30mA | SMA | 5VDC | Datasheet |
| RLNA12G26GQ2 | Low Noise Amplifier | 12～26GHz | 44dB | 1.6dB | 15dBm | 25dBm | -10 | 100mA | SMA | 12VDC | Datasheet |
| RLNA12G30GB | Low Noise Amplifier | 12～33GHz | 34dB | 2.6dB | 24dBm | 35dBm | 0 | 380mA | 2.92mm | 12VDC | Datasheet |
| RLNA12G30GC | Low Noise Amplifier | 12.5～30GHz | 56.5dB | 2.65dB | 26.7dBm | 36.7dBm | 1000mA | 2.92mm | 12VDC | Datasheet | |
| RLNA12G30GD | Low Noise Amplifier | 12.5～30GHz | 57.5dB | 2.65dB | 25dBm | 35dBm | 700mA | 2.92mm | 12VDC | Datasheet | |
| RLNA12G30GE | Low Noise Amplifier | 12.5～30GHz | 44.5dB | 2.65dB | 18.9dBm | 28.9dBm | 170mA | 2.92mm | 12VDC | Datasheet | |
| RLNA12G30GF | Low Noise Amplifier | 12.5～30GHz | 65dB | 2.65dB | 18dBm | 32dBm | 0 | 390mA | 2.92mm | 12VDC | Datasheet |
| RLNA13G25GA | Low Noise Amplifier | 13～25GHz | 51dB | 2.25dB | 17.8dBm | 27.8dBm | 130mA | 2.92mm | 12VDC | Datasheet | |
| RLNA14G15G | Narrow Band LNA | 14.2～15.8GHz | 30dB | 1.8dB | 13dBm | 23dBm | -12 | 150mA | SMA | 12VDC | Datasheet |
| RLNA14G15GD | Miniature Drop-in / Coaxial / Embedded Ultra Low Noise Figure Amplifier | 6～18GHz | 38dB | 2dB | 16dBm | 26dBm | -10 | 180mA | SMA | 6～13VDC | Datasheet |
| RLNA14G15GD-H | Hermetically Sealed Miniature Embedded Ultra Low Noise Amplifier | 6～18GHz | 38dB | 2dB | 16dBm | 26dBm | -10 | 180mA | SMA | 6～13VDC | Datasheet |
| RLNA14G27GA | Low Noise Amplifier | 14～27GHz | 50dB | 2.1dB | 25.7dBm | 35.7dBm | 800mA | 2.92mm | 12VDC | Datasheet | |
| RLNA15G15G | Narrow Band LNA | 15.1～15.4GHz | 30dB | 1.8dB | 10dBm | 20dBm | -15 | 140mA | SMA | 12VDC | Datasheet |
| RLNA15G43GA | Low Noise Amplifier | 15～43GHz | 34dB | 3.35dB | 28dBm | 38dBm | -3 | 1500mA | 2.92mm | 12VDC | Datasheet |
| RLNA15G43GB | Low Noise Amplifier | 15～43GHz | 49.5dB | 2.85dB | 28dBm | 38dBm | 1400mA | 2.92mm | 12VDC | Datasheet | |
| RLNA15G43GC | Low Noise Amplifier | 15～43GHz | 40dB | 4.2dB | 28.1dBm | 38.1dBm | 1400mA | 2.92mm | 12VDC | Datasheet | |
| RLNA15G43GD | Low Noise Amplifier | 15～43GHz | 68.5dB | 2.05dB | 28.2dBm | 38.2dBm | 1400mA | 2.92mm | 12VDC | Datasheet | |
| RLNA15G43GE | Low Noise Amplifier | 15～43GHz | 69.5dB | 2.6dB | 28.4dBm | 38.4dBm | 1500mA | 2.92mm | 12VDC | Datasheet | |
| RLNA15G43GF | Low Noise Amplifier | 15～43GHz | 60dB | 2.15dB | 28.4dBm | 38.4dBm | 1500mA | 2.92mm | 12VDC | Datasheet | |
| RLNA15G50GA | Low Noise Amplifier | 15～50GHz | 32dB | 4.3dB | 17.6dBm | 27.6dBm | 120mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GB | Low Noise Amplifier | 15～50GHz | 48dB | 3.9dB | 17.6dBm | 27.6dBm | 120mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GC | Low Noise Amplifier | 15～50GHz | 46dB | 4dB | 17.4dBm | 27.4dBm | 120mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GD | Low Noise Amplifier | 15～50GHz | 47.5dB | 4.3dB | 19.9dBm | 29.9dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GE | Low Noise Amplifier | 15～50GHz | 40dB | 3.5dB | 17.5dBm | 27.5dBm | 120mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GF | Low Noise Amplifier | 15～50GHz | 63.5dB | 3.1dB | 19.9dBm | 29.9dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GG | Low Noise Amplifier | 15～50GHz | 61.5dB | 3.2dB | 19.9dBm | 29.9dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GH | Low Noise Amplifier | 15～50GHz | 55.5dB | 2.7dB | 19.9dBm | 29.9dBm | 210mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15G50GI | Low Noise Amplifier | 15～50GHz | 69dB | 3.5dB | 17.6dBm | 27.6dBm | 120mA | 2.4mm | 12VDC | Datasheet | |
| RLNA15M06GA | Ultra Low Noise Amplifier | 0.15～6GHz | 68dB | 0.7dB | 20.6dBm | 30.6dBm | 240mA | SMA | 12VDC | Datasheet | |
| RLNA16G17G | Narrow Band LNA | 16～17.3GHz | 27dB | 2dB | 15dBm | 25dBm | -7 | 150mA | SMA | 12VDC | Datasheet |
| RLNA16G24GA | Wide Band LNA | 16～24GHz | 25dB | 1.3dB | 20dBm | 30dBm | 20 | 90mA | SMA | 3.5VDC | Datasheet |
| RLNA16G24GB | Wide Band LNA | 16～24GHz | 42dB | 1.35dB | 23dBm | 30dBm | -20 | 200mA | SMA | 12VDC | Datasheet |
| RLNA16G31GA | Low Noise Amplifier | 16～31GHz | 57dB | 3.2dB | 28.5dBm | 38.5dBm | 1500mA | 2.92mm | 12VDC | Datasheet | |
| RLNA16G32G | Wide Band LNA | 12～33GHz | 35dB | 2.5dB | 24dBm | 33dBm | -1 | 400mA | 2.92mm | 12VDC | Datasheet |
| RLNA16G32GB | Low Noise Amplifier | 16～33GHz | 30dB | 2.5dB | 20dBm | 30dBm | 0 | 400mA | 2.92mm | 12VDC | Datasheet |
| RLNA16G32GC | Low Noise Amplifier | 16～32GHz | 56.5dB | 3.2dB | 18.1dBm | 28.1dBm | 140mA | 2.92mm | 12VDC | Datasheet | |
| RLNA16G40GQ | Low Noise Amplifier | 16～40GHz | 40dB | 3.5dB | 16dBm | 26dBm | 0 | 300mA | 2.92mm | 12VDC | Datasheet |
| RLNA16G45GA | Wide Band LNA | 16～45GHz | 38dB | 4.5dB | 23dBm | 28dBm | -10 | 300mA | 2.92mm | 12VDC | Datasheet |
| RLNA16G45GB | Ultra Wide Band LNA | 16～45GHz | 22dB | 8dB | 22dBm | 27dBm | 0 | 300mA | 2.92mm | 4.8VDC | Datasheet |
| RLNA16G45GC | Ultra Wide Band LNA | 16～45GHz | 30dB | 4.5dB | 22dBm | 33.5dBm | 0 | 210mA | 2.92mm | 12VDC | Datasheet |
| RLNA16G50GB | Ultra Wide Band LNA | 18～50GHz | 22dB | 7dB | 22dBm | 27dBm | 0 | 300mA | 2.4mm | 5VDC | Datasheet |
| RLNA16G50GC | Ultra Wide Band LNA | 18～50GHz | 30dB | 5dB | 22dBm | 33.5dBm | 0 | 370mA | 2.4mm | 12VDC | Datasheet |
| RLNA17G21G | Narrow Band LNA | 17～26GHz | 55dB | 2.5dB | 10dBm | 20dBm | -40 | 390mA | 2.92mm | 12VDC | Datasheet |
| RLNA17G25GB | Wide Band LNA | 15～27GHz | 33dB | 2.5dB | 29dBm | 38dBm | 1 | 500mA | 2.92mm | 12VDC | Datasheet |
| RLNA17G26GQ | Low Noise Amplifier | 17～26GHz | 44dB | 1.7dB | 17dBm | 26dBm | 10 | 200mA | SMA | 5VDC | Datasheet |
| RLNA17G26GQ2 | Low Noise Amplifier | 17～26GHz | 50dB | 1.8dB | 24dBm | 34dBm | 10 | 250mA | SMA | 12VDC | Datasheet |
| RLNA17G27GA | Wide Band LNA | 16～27GHz | 35dB | 2.2dB | 24dBm | 33dBm | -6 | 500mA | 2.92mm | 5VDC | Datasheet |
| RLNA17G27GA-H | Hermetically Sealed Wide Band LNA | 16～27GHz | 35dB | 2.2dB | 24dBm | 33dBm | -6 | 500mA | 2.92mm | 5VDC | Datasheet |
| RLNA17G44GA | Low Noise Amplifier | 17～44GHz | 57.5dB | 3.05dB | 21.2dBm | 31.2dBm | 280mA | 2.4mm | 12VDC | Datasheet | |
| RLNA17G44GB | Low Noise Amplifier | 17～44GHz | 65.5dB | 3.1dB | 21dBm | 31dBm | 270mA | 2.4mm | 12VDC | Datasheet | |
| RLNA17G45GA | Low Noise Amplifier | 17～45GHz | 37dB | 3.1dB | 19.5dBm | 29.5dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA17G45GB | Low Noise Amplifier | 17～45GHz | 52.5dB | 2.85dB | 19.5dBm | 29.5dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA17G45GC | Low Noise Amplifier | 17～45GHz | 59dB | 3.1dB | 19.5dBm | 29.5dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA17G45GD | Low Noise Amplifier | 17～45GHz | 69.5dB | 2.45dB | 19.4dBm | 29.4dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA17M02G | Narrow Band LNA | 1.7～2.5GHz | 37dB | 1.4dB | 23dBm | 33dBm | -9 | 270mA | SMA | 12VDC | Datasheet |
| RLNA17M17M | Narrow Band LNA | 1.75～1.78GHz | 27dB | 1dB | 24dBm | 34dBm | 2 | 350mA | SMA | 12VDC | Datasheet |
| RLNA18G20G | Narrow Band LNA | 17～26GHz | 33dB | 1.8dB | 21dBm | 27dBm | 0 | 160mA | SMA | 12VDC | Datasheet |
| RLNA18G40GA | Ultra Wide Band LNA | 16～44GHz | 34dB | 2.8dB | 14dBm | 25dBm | -5 | 150mA | 2.92mm | 12VDC | Datasheet |
| RLNA18G40GQ | Low Noise Amplifier | 18～40GHz | 45dB | 2.5dB | 14dBm | 25dBm | -25 | 180mA | 2.92mm | 12VDC | Datasheet |
| RLNA18G40GQ2 | Low Noise Amplifier | 18～40GHz | 35dB | 2.5dB | 14dBm | 25dBm | -15 | 130mA | 2.92mm | 12VDC | Datasheet |
| RLNA18G40GQ3 | Low Noise Amplifier | 18～40GHz | 50dB | 2.5dB | 20dBm | 26dBm | -25 | 350mA | 2.92mm | 12VDC | Datasheet |
| RLNA18M19M | Narrow Band LNA | 1.8～1.9GHz | 27dB | 1dB | 24dBm | 34dBm | 2 | 350mA | SMA | 12VDC | Datasheet |
| RLNA20G34GA | Low Noise Amplifier | 20～34GHz | 42dB | 1.8dB | 22dBm | 32dBm | 0 | 200mA | 2.92mm | 5VDC | Datasheet |
| RLNA20G34GA-28V | Low Noise Amplifier | 20～34GHz | 42dB | 1.8dB | 22dBm | 32dBm | 0 | 200mA | 2.92mm | 28VDC | Datasheet |
| RLNA20G45GA | Low Noise Amplifier | 20～45GHz | 39.5dB | 3.25dB | 26dBm | 36dBm | 900mA | 2.4mm | 12VDC | Datasheet | |
| RLNA20G45GB | Low Noise Amplifier | 20～45GHz | 62.5dB | 3.25dB | 28.8dBm | 38.8dBm | 1600mA | 2.4mm | 12VDC | Datasheet | |
| RLNA20G45GC | Low Noise Amplifier | 20～45GHz | 48.5dB | 2.85dB | 27.3dBm | 37.3dBm | 1200mA | 2.4mm | 12VDC | Datasheet | |
| RLNA20G45GD | Low Noise Amplifier | 20～45GHz | 69.5dB | 3.25dB | 22.6dBm | 32.6dBm | 380mA | 2.4mm | 12VDC | Datasheet | |
| RLNA20G50G01EBV | Ultra Low Noise Amplifier | 20～50GHz | 37dB | 2.5dB | 18dBm | 25dBm | 0 | 250mA | 2.4mm | 12VDC | Datasheet |
| RLNA20G54GA | Low Noise Amplifier | 20～54GHz | 33dB | 4.05dB | 16.7dBm | 26.7dBm | 100mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G54GB | Low Noise Amplifier | 20～54GHz | 29.5dB | 3.95dB | 15.3dBm | 25.3dBm | 80mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G54GC | Low Noise Amplifier | 20～54GHz | 50dB | 4.05dB | 27.9dBm | 37.9dBm | 1300mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G54GD | Low Noise Amplifier | 20～54GHz | 41.5dB | 3.5dB | 16.1dBm | 26.1dBm | 90mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G54GE | Low Noise Amplifier | 20～54GHz | 68dB | 4dB | 29dBm | 39dBm | -40 | 1600mA | 1.85mm | 12VDC | Datasheet |
| RLNA20G54GF | Low Noise Amplifier | 20～54GHz | 59.5dB | 2.65dB | 27.8dBm | 37.8dBm | 1300mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G55GA | Low Noise Amplifier | 20～55GHz | 58.5dB | 3.15dB | 16.7dBm | 26.7dBm | 100mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G55GB | Low Noise Amplifier | 20～55GHz | 60dB | 4dB | 16.7dBm | 26.7dBm | 100mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G55GC | Low Noise Amplifier | 20～55GHz | 57.5dB | 4.65dB | 16.7dBm | 26.7dBm | 100mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20G55GD | Low Noise Amplifier | 20～55GHz | 55dB | 3.15dB | 15.3dBm | 25.3dBm | 80mA | 1.85mm | 12VDC | Datasheet | |
| RLNA20M03GA | Ultra Low Noise Amplifier | 0.2～3GHz | 64.5dB | 0.7dB | 28.2dBm | 38.2dBm | 1400mA | SMA | 12VDC | Datasheet | |
| RLNA20M03GB | Low Noise Amplifier | 0.2～3GHz | 63.5dB | 1.65dB | 28.2dBm | 38.2dBm | 1400mA | SMA | 12VDC | Datasheet | |
| RLNA20M03GC | Low Noise Amplifier | 0.2～3GHz | 42.5dB | 1.4dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA20M03GD | Ultra Low Noise Amplifier | 0.2～3GHz | 49dB | 0.85dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA20M03GE | Ultra Low Noise Amplifier | 0.2～3GHz | 55dB | 0.85dB | 22dBm | 32dBm | 340mA | SMA | 12VDC | Datasheet | |
| RLNA20M04GC | Ultra Low Noise Amplifier | 0.2～4GHz | 50.5dB | 0.7dB | 27.9dBm | 37.9dBm | 1300mA | SMA | 12VDC | Datasheet | |
| RLNA20M04GD | Ultra Low Noise Amplifier | 0.2～4GHz | 57dB | 0.7dB | 21.4dBm | 31.4dBm | 290mA | SMA | 12VDC | Datasheet | |
| RLNA20M22GA | Low Noise Amplifier | 0.2～22GHz | 47dB | 1.95dB | 27.2dBm | 37.2dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA20M22GB | Low Noise Amplifier | 0.2～22GHz | 47dB | 2.35dB | 27.1dBm | 37.1dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA20M22GC | Low Noise Amplifier | 0.2～22GHz | 45dB | 2.75dB | 27.3dBm | 37.3dBm | 1200mA | 2.92mm | 12VDC | Datasheet | |
| RLNA20M22GD | Low Noise Amplifier | 0.2～22GHz | 38.5dB | 2.2dB | 26.7dBm | 36.7dBm | 1000mA | 2.92mm | 12VDC | Datasheet | |
| RLNA20M24GA | Low Noise Amplifier | 0.2～24GHz | 31.5dB | 2.1dB | 24.5dBm | 34.5dBm | 600mA | 2.92mm | 12VDC | Datasheet | |
| RLNA20M24GB | Low Noise Amplifier | 0.2～24GHz | 46.5dB | 2.1dB | 27.2dBm | 37.2dBm | 1100mA | 2.92mm | 12VDC | Datasheet | |
| RLNA20M24GC | Low Noise Amplifier | 0.2～24GHz | 47.5dB | 2.1dB | 25.8dBm | 35.8dBm | 800mA | 2.92mm | 12VDC | Datasheet | |
| RLNA21G24G | Narrow Band LNA | 21.7～24.5GHz | 30dB | 2.8dB | 19dBm | 29dBm | -6 | 350mA | SMA | 12VDC | Datasheet |
| RLNA22G30GQ | Low Noise Amplifier | 22～30GHz | 50dB | 1.7dB | 10dBm | 20dBm | -15 | 40mA | 2.92mm | 5VDC | Datasheet |
| RLNA25G50G01EBV | Ultra Low Noise Amplifier | 20～50GHz | 55dB | 2.5dB | 17dBm | 25dBm | 0 | 360mA | 2.4mm | 12VDC | Datasheet |
| RLNA25G50G01EBV-W19 | Waveguide WR19 Low Noise Amplifier | 40～50GHz | 45dB | 2.5dB | 17dBm | 25dBm | 0 | 360mA | WR19 | 12VDC | Datasheet |
| RLNA25G50G01EBV-WG | Waveguide WR22 Low Noise Amplifier | 33～50GHz | 55dB | 2.5dB | 17dBm | 25dBm | 0 | 360mA | WR22 | 12VDC | Datasheet |
| RLNA25M04GA | Ultra Low Noise Amplifier | 0.25～4GHz | 53dB | 0.7dB | 29.3dBm | 39.3dBm | 1800mA | SMA | 12VDC | Datasheet | |
| RLNA26G40GB | Wide Band LNA | 20～40GHz | 45dB | 4dB | 21dBm | 28dBm | -19 | 300mA | 2.92mm | 12VDC | Datasheet |
| RLNA26G40GB2 | Ultra Wide Band LNA | 26～40GHz | 23dB | 7dB | 22dBm | 27dBm | 0 | 300mA | 2.92mm | 4.8VDC | Datasheet |
| RLNA26G40GB3 | Ultra Wide Band LNA | 26～40GHz | 30dB | 5dB | 22dBm | 26dBm | 0 | 210mA | 2.92mm | 12VDC | Datasheet |
| RLNA26G40GC | Low Noise Amplifier | 22～43.5GHz | 50dB | 2.5dB | 21dBm | 19dBm | 0 | 150mA | 2.92mm | 12VDC | Datasheet |
| RLNA27M31MB | Low Noise Amplifier (hermetic seal) | 2.7～4GHz | 29dB | 0.65dB | 13dBm | 23dBm | 0 | 125mA | SMA | 11VDC | Datasheet |
| RLNA30G33GA | Narrow Band LNA | 30～33GHz | 18dB | 3dB | 10dBm | 18dBm | -3 | 400mA | 2.92mm | 12VDC | Datasheet |
| RLNA30G65GSA | Ultra Wide Band LNA | 30～65GHz | 28dB | 7dB | 15dBm | 25dBm | 0 | 400mA | 1.85mm | 12VDC | Datasheet |
| RLNA30M03GA | Ultra Low Noise Amplifier | 0.3～3GHz | 32dB | 0.65dB | 19dBm | 31.5dBm | 0 | 92mA | SMA | 12VDC | Datasheet |
| RLNA30M20GA | Low Noise Amplifier | 0.3～20GHz | 55.5dB | 2.1dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA32G42GA | Low Noise Amplifier | 32～42GHz | 57.5dB | 2.6dB | 23.2dBm | 33.2dBm | 440mA | 2.92mm | 12VDC | Datasheet | |
| RLNA32G42GB | Low Noise Amplifier | 32～42GHz | 69.5dB | 1.75dB | 23.5dBm | 33.5dBm | 470mA | 2.92mm | 12VDC | Datasheet | |
| RLNA32G48GA | Ultra Wide Band LNA | 32～48GHz | 56dB | 3.5dB | 26dBm | 36dBm | 0 | 500mA | 2.4mm | 12VDC | Datasheet |
| RLNA32G52GA | Low Noise Amplifier | 32～52GHz | 58.5dB | 2.8dB | 16.6dBm | 26.6dBm | 100mA | 1.85mm | 12VDC | Datasheet | |
| RLNA32G52GB | Low Noise Amplifier | 32～52GHz | 68dB | 1.85dB | 27.8dBm | 37.8dBm | 1300mA | 1.85mm | 12VDC | Datasheet | |
| RLNA32G54GA | Low Noise Amplifier | 32～54GHz | 18.06dB | 3.77dB | 9.03dBm | 19dBm | -6 | 70mA | 1.85mm | 3VDC | Datasheet |
| RLNA33G50GA | Wide Band LNA | 33～50GHz | 25dB | 3.5dB | 10dBm | 18dBm | -10 | 450mA | 2.4mm | 12VDC | Datasheet |
| RLNA35G36GA | Narrow Band LNA | 35～36GHz | 18dB | 3dB | 10dBm | 18dBm | -3 | 400mA | 2.92mm | 12VDC | Datasheet |
| RLNA35G45GA | Low Noise Amplifier | 35～45GHz | 53.5dB | 3.65dB | 28.4dBm | 38.4dBm | 1500mA | 2.4mm | 12VDC | Datasheet | |
| RLNA35G45GB | Low Noise Amplifier | 35～45GHz | 66dB | 2.75dB | 19.4dBm | 29.4dBm | 190mA | 2.4mm | 12VDC | Datasheet | |
| RLNA35G70GA | Ultra Broadband Amplifier | 35～70GHz | 35dB | 8dB | 17dBm | 26dBm | 0 | 650mA | 1.85mm | 5VDC | Datasheet |
| RLNA4060GW19A | Low noise Amplifier | 40～60GHz | 25dB | 8dB | 20dBm | 30dBm | 0 | 700mA | WR19 | 8VDC | Datasheet |
| RLNA4060GW19B | Low noise Amplifier | 40～60GHz | 35dB | 8dB | 20dBm | 30dBm | -10 | 1100mA | WR19 | 8VDC | Datasheet |
| RLNA40G80GA2 | Ultra Broadband Amplifier | 40～80GHz | 35dB | 6dB | 20dBm | 30dBm | -5 | 1200mA | 1.00mm | 5VDC | Datasheet |
| RLNA40G80GA3 | Ultra Broadband Amplifier | 40～80GHz | 50dB | 6dB | 20dBm | 30dBm | -20 | 1800mA | 1.00mm | 5VDC | Datasheet |
| RLNA40G80GA4 | Low Noise Amplifier | 40～80GHz | 53.5dB | 5.3dB | 20.6dBm | 30.6dBm | 240mA | 1.00mm | 12VDC | Datasheet | |
| RLNA40M18GA | Low Noise Amplifier | 0.4～18GHz | 35dB | 2dB | 28dBm | 38dBm | 0 | 600mA | SMA | 12VDC | Datasheet |
| RLNA40M35GA | Wide Band Low Noise Amplifier | 0.05～3.3GHz | 33dB | 2dB | 23dBm | 33dBm | 0 | 150mA | SMA | 12VDC | Datasheet |
| RLNA46G52GA | Low Noise Amplifier | 46～52GHz | 54dB | 4.75dB | 28dBm | 38dBm | 1400mA | 1.85mm | 12VDC | Datasheet | |
| RLNA5075GW15A | Low noise Amplifier | 50～75GHz | 25dB | 6dB | 20dBm | 30dBm | 0 | 700mA | WR15 | 8VDC | Datasheet |
| RLNA5075GW15B | Low noise Amplifier | 50～75GHz | 35dB | 6dB | 20dBm | 30dBm | -10 | 1100mA | WR15 | 8VDC | Datasheet |
| RLNA50G95GA | Ultra Broadband Amplifier | 50～95GHz | 40dB | 6dB | 12dBm | 18dBm | 0 | 460mA | 1.00mm | 12VDC | Datasheet |
| RLNA50G95GC | Ultra Broadband Amplifier | 50～95GHz | 40dB | 6dB | 17dBm | 24dBm | -13 | 900mA | 1.00mm | 5VDC | Datasheet |
| RLNA50M05G43 | Ultra Low Noise Figure Amplifier | 0.05～0.5GHz | 50dB | 0.45dB | 19dBm | 29dBm | 0 | 135mA | SMA | 15VDC | Datasheet |
| RLNA50M18GA | Low Noise Amplifier | 0.5～18GHz | 15.14dB | 1.93dB | 16.57dBm | 12 | 100mA | SMA | Datasheet | ||
| RLNA6080GW12A | Low noise Amplifier | 60～80GHz | 25dB | 6dB | 20dBm | 30dBm | 0 | 700mA | WR12 | 8VDC | Datasheet |
| RLNA6080GW12B | Low noise Amplifier | 60～80GHz | 35dB | 6dB | 20dBm | 30dBm | -10 | 1100mA | WR12 | 8VDC | Datasheet |
| RLNA60M01GA | Ultra Low Noise Amplifier | 0.6～1GHz | 56.5dB | 0.85dB | 26.9dBm | 36.9dBm | 1100mA | SMA | 12VDC | Datasheet | |
| RLNA60M03GA | Ultra Low Noise Amplifier | 0.6～2.7GHz | 69.5dB | 0.9dB | 24.4dBm | 34.4dBm | 600mA | SMA | 12VDC | Datasheet | |
| RLNA60M04GA | Low Noise Amplifier | 0.6～4.2GHz | 37dB | 1.05dB | 28.3dBm | 38.3dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA60M04GB | Low Noise Amplifier | 0.6～4.2GHz | 40.5dB | 1.05dB | 26.8dBm | 36.8dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA60M04GC | Ultra Low Noise Amplifier | 0.6～4.2GHz | 46dB | 0.9dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA60M04GD | Low Noise Amplifier | 0.6～4.2GHz | 56dB | 1.05dB | 29.4dBm | 39.4dBm | 1900mA | SMA | 12VDC | Datasheet | |
| RLNA60M04GE | Ultra Low Noise Amplifier | 0.6～4.2GHz | 69.5dB | 0.85dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA60M06GA | Low Noise Amplifier | 0.6～6GHz | 37.5dB | 1.3dB | 27.8dBm | 37.8dBm | 1300mA | SMA | 12VDC | Datasheet | |
| RLNA60M06GB | Low Noise Amplifier | 0.6～6GHz | 39.5dB | 1.45dB | 26.7dBm | 36.7dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNA60M06GC | Low Noise Amplifier | 0.6～6GHz | 60dB | 1.25dB | 28.9dBm | 38.9dBm | 1700mA | SMA | 12VDC | Datasheet | |
| RLNA60M06GD | Low Noise Amplifier | 0.6～6GHz | 49.5dB | 1.15dB | 28.5dBm | 38.5dBm | 1500mA | SMA | 12VDC | Datasheet | |
| RLNA60M06GE | Ultra Low Noise Amplifier | 0.6～6GHz | 68dB | 0.85dB | 21.6dBm | 31.6dBm | 310mA | SMA | 12VDC | Datasheet | |
| RLNA71G76GA | Q/V/W Band RF Amplifier | 71～76GHz | 37dB | 8dB | 28dBm | 33dBm | -3 | 950mA | WR12 | 5VDC | Datasheet |
| RLNA71G76GB | Q/V/W Band RF Amplifier | 71～76GHz | 35dB | 7dB | 25dBm | 30dBm | -5 | 600mA | WR12 | 5VDC | Datasheet |
| RLNA71G76GC | Low Noise Amplifier | 71～76GHz | 50dB | 4.7dB | 25.9dBm | 35.9dBm | 900mA | 1.00mm | 12VDC | Datasheet | |
| RLNA71G76GD | Low Noise Amplifier | 71～76GHz | 60dB | 4.85dB | 26.5dBm | 36.5dBm | 2800mA | 1.00mm | 4VDC | Datasheet | |
| RLNA71G76GE | Low Noise Amplifier | 71～76GHz | 69dB | 4.85dB | 27.5dBm | 37.5dBm | 1200mA | 1.00mm | 12VDC | Datasheet | |
| RLNA71G86GA | Low Noise Amplifier | 71～86GHz | 46dB | 4.9dB | 27dBm | 37dBm | 1100mA | 1.00mm | 12VDC | Datasheet | |
| RLNA71G86GB | Low Noise Amplifier | 71～86GHz | 37dB | 4.9dB | 23dBm | 33dBm | 1300mA | 1.00mm | 4VDC | Datasheet | |
| RLNA71G86GC | Low Noise Amplifier | 71～86GHz | 37dB | 4.9dB | 20.6dBm | 30.6dBm | 800mA | 1.00mm | 4VDC | Datasheet | |
| RLNA71G86GD | Low Noise Amplifier | 71～86GHz | 35dB | 4.9dB | 18.6dBm | 28.6dBm | 460mA | 1.00mm | 4VDC | Datasheet | |
| RLNA71G86GE | Low Noise Amplifier | 71～86GHz | 54dB | 4.9dB | 24.3dBm | 34.3dBm | 1700mA | 1.00mm | 4VDC | Datasheet | |
| RLNA71G86GF | Low Noise Amplifier | 71～86GHz | 60dB | 4.9dB | 27.3dBm | 37.3dBm | 1200mA | 1.00mm | 12VDC | Datasheet | |
| RLNA71G86GG | Low Noise Amplifier | 71～86GHz | 66dB | 4.8dB | 27.2dBm | 37.2dBm | 1100mA | 1.00mm | 12VDC | Datasheet | |
| RLNA71G86GH | Low Noise Amplifier | 71～86GHz | 69.5dB | 3.35dB | 24.1dBm | 34.1dBm | 1700mA | 1.00mm | 4VDC | Datasheet | |
| RLNA75G110GR10 | Ultra Wide Band Low Noise Amplifier | 75～110GHz | 25dB | 7.5dB | 3dBm | 0dBm | -30 | 70mA | WR10 | 5VDC | Datasheet |
| RLNA80G105GA | Low Noise Amplifier | 80～105GHz | 35.5dB | 4.6dB | 3dBm | 13dBm | 30mA | 1.00mm | 2VDC | Datasheet | |
| RLNA80G105GB | Low Noise Amplifier | 80～105GHz | 51.5dB | 4.6dB | 3.1dBm | 13.1dBm | 30mA | 1.00mm | 2VDC | Datasheet | |
| RLNA80G105GC | Low Noise Amplifier | 80～105GHz | 57.5dB | 4.6dB | 3dBm | 13dBm | 30mA | 1.00mm | 2VDC | Datasheet | |
| RLNA80G105GD | Low Noise Amplifier | 80～105GHz | 69.5dB | 2.85dB | 3.1dBm | 13.1dBm | 30mA | 1.00mm | 2VDC | Datasheet | |
| RLNA80M02GA | Low Noise Amplifier | 0.8～1.6GHz | 34.4dB | 0.7dB | 13.2dBm | 23.2dBm | -18 | 80mA | SMA | 12VDC | Datasheet |
| RLNA80M04GA | Low Noise Amplifier | 0.8～3.5GHz | 62.5dB | 1.35dB | 21.3dBm | 31.3dBm | 290mA | SMA | 12VDC | Datasheet | |
| RLNA80M18GA | Low Noise Amplifier | 0.8～18GHz | 32dB | 1.9dB | 19dBm | 30dBm | 0 | 200mA | SMA | 12VDC | Datasheet |
| RLNA80M18GB | Low Noise Amplifier | 0.8～18GHz | 25dB | 2.4dB | 18.4dBm | 28.4dBm | 150mA | SMA | 12VDC | Datasheet | |
| RLNA80M18GC | Low Noise Amplifier | 0.8～18GHz | 38dB | 2.05dB | 17.1dBm | 27.1dBm | 110mA | SMA | 12VDC | Datasheet | |
| RLNA80M18GD | Low Noise Amplifier | 0.8～18GHz | 56dB | 2.05dB | 24.2dBm | 34.2dBm | 600mA | SMA | 12VDC | Datasheet | |
| RLNA80M20GA | Low Noise Amplifier | 0.8～20GHz | 29dB | 3dB | 17.5dBm | 27.5dBm | 120mA | SMA | 12VDC | Datasheet | |
| RLNA80M20GB | Low Noise Amplifier | 0.8～20GHz | 52dB | 1.9dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA80M20GC | Low Noise Amplifier | 0.8～20GHz | 58dB | 2.1dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA80M20GD | Low Noise Amplifier | 0.8～20GHz | 54dB | 2.7dB | 23.5dBm | 33.5dBm | 470mA | SMA | 12VDC | Datasheet | |
| RLNA80M20GE | Low Noise Amplifier | 0.8～20GHz | 38.5dB | 2.6dB | 16.6dBm | 26.6dBm | 100mA | SMA | 12VDC | Datasheet | |
| RLNA81G86GA | Q/V/W Band RF Amplifier | 81～86GHz | 34dB | 8dB | 27.5dBm | 32dBm | -3 | 950mA | WR12 | 5VDC | Datasheet |
| RLNA81G86GB | Q/V/W Band RF Amplifier | 81～86GHz | 35dB | 7dB | 25dBm | 29dBm | -5 | 600mA | WR12 | 5VDC | Datasheet |
| RLNA90M02GA | Ultra Low Noise Amplifier | 0.9～1.5GHz | 64dB | 0.85dB | 29.6dBm | 39.6dBm | 2000mA | SMA | 12VDC | Datasheet | |
| RLNA90M02GB | Ultra Low Noise Amplifier | 0.9～1.5GHz | 60dB | 0.85dB | 26.6dBm | 36.6dBm | 1000mA | SMA | 12VDC | Datasheet | |
| RLNAW10E | WR10 Low Noise Amplifier | 77～90GHz | 13dB | 5dB | 10dBm | 0dBm | 0 | 400mA | WR10 | 12VDC | Datasheet |
| RLNAW112 | WR112 Low Noise Amplifier | 7.05～10GHz | 42dB | 1.2dB | 10dBm | 18dBm | 0 | 80mA | WR112 | 12VDC | Datasheet |
| RLNAW137 | WR137 Low Noise Amplifier | 5.85～8.2GHz | 42dB | 1.2dB | 10dBm | 18dBm | 0 | 120mA | WR137 | 12VDC | Datasheet |
| RLNAW159 | WR159 Low Noise Amplifier | 4.9～7.05GHz | 42dB | 1.1dB | 10dBm | 18dBm | 0 | 150mA | WR159 | 12VDC | Datasheet |
| RLNAW15A | WR15 Low Noise Amplifier | 50～66GHz | 19dB | 5dB | 19dBm | 0dBm | 0 | 880mA | WR15 | 12VDC | Datasheet |
| RLNAW15B | WR15 Low Noise Amplifier | 50～64GHz | 20dB | 4.5dB | 12dBm | 0dBm | 0 | 400mA | WR15 | 12VDC | |
| RLNAW229 | WR229 Low Noise Amplifier | 3.3～4.9GHz | 60dB | 2.2dB | 19dBm | 30dBm | -20 | 150mA | WR229 | 12VDC | Datasheet |
| RLNAW22A | WR22 Low Noise Amplifier | 33～50GHz | 60dB | 2dB | 20dBm | 9dBm | 0 | 100mA | WR22 | 12VDC | |
| RLNAW22B | WR22 Low Noise Amplifier | 33～50GHz | 30dB | 2dB | 15dBm | 0dBm | 0 | 400mA | WR22 | 12VDC | |
| RLNAW22C | WR22 Low Noise Amplifier | 33～50GHz | 22dB | 6dB | 10dBm | 0dBm | 0 | 200mA | WR22 | 12VDC | Datasheet |
| RLNAW28A | WR28 Low Noise Amplifier | 26.5～40GHz | 19dB | 8dB | 29dBm | 0dBm | 0 | 2200mA | WR28 | 12VDC | Datasheet |
| RLNAW28B | WR28 Low Noise Amplifie | 26.5～40GHz | 45dB | 3dB | 21dBm | 0dBm | 0 | 150mA | WR28 | 12VDC | Datasheet |
| RLNAW34 | WR34 Low Noise Amplifier | 22～33GHz | 50dB | 2.8dB | 10dBm | 13dBm | -20 | 130mA | WR34 | 12VDC | Datasheet |
| RLNAW42 | WR42 Low Noise Amplifier | 18～26.5GHz | 60dB | 2dB | 16dBm | 26dBm | 0 | 260mA | WR42 | 12VDC | Datasheet |
| RLNAW75 | WR75 Low Noise Amplifier | 10～15GHz | 60dB | 1.7dB | 10dBm | 18dBm | 0 | 150mA | WR75 | 12VDC | Datasheet |
| RSD10M20GSB | Ultra Wide Band LNA - Single Biasing | 0.1～20GHz | 20dB | 3dB | 22dBm | 32dBm | 0 | 300mA | SMA | 8VDC | Datasheet |
| RSD10M20GSB-D | Ultra Broadband LNA - Dual Biasing | 0.1～20GHz | 20dB | 3dB | 22dBm | 32dBm | 23 | 300mA | SMA | 8VDC | Datasheet |
