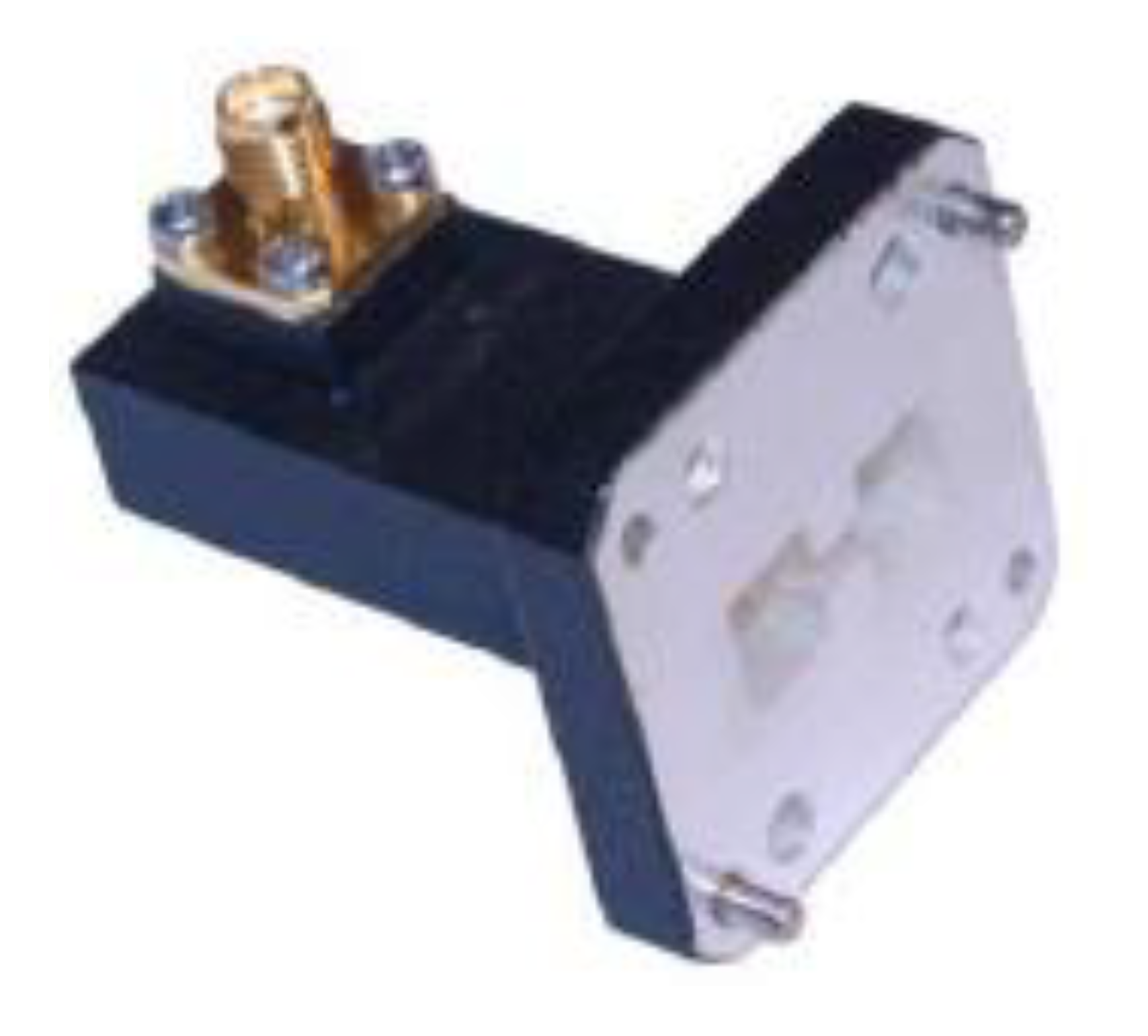

導波管アダプター（RFWA/RFWTシリーズ）
RF-LAMBDA社の導波管アダプター製品群は、導波管インターフェースを同軸インターフェースに変換するために使用されます。
様々な周波数、コネクターオプション、材質の製品が用意されており、低挿入損失と低VSWR、そして高電力処理能力を実現しています。
製品ラインナップ
Waveguide Adapter（RFWA/RFWT Series）
| Model | Description | Frequency Range | Waveguide Type | Coaxial Type | Degrees | Flange Type | Material | VSWR | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| RFWA10V9COBS | Waveguide Coaxial Adapter WR10 | 73.8～80GHz | WR10 | 1.00mm | 90° | COVER | Brass | 2 | Datasheet |
| RFWA10V9MM10 | Waveguide Coaxial Adapter WR10 | 75～110GHz | WR10 | 1.0mm | 90° | UG387/U | Copper | 1.6 | Datasheet |
| RFWA112A0CFAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | SMA | 0° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA112A0COBS | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | SMA | 0° | COVER | Brass | 1.25 | Datasheet |
| RFWA112A9CFAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | SMA | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA112A9CFBS | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | SMA | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA112A9COAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | SMA | 90° | COVER | Aluminum | 1.25 | |
| RFWA112A9COBS | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | SMA | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA112B0CFAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | N | 0° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA112B9CFAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA112B9CFBS | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | N | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA112B9CKAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | N | 90° | CHOKE | Aluminum | 1.25 | Datasheet |
| RFWA112B9COAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | N | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA112B9COBS | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | N | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA112C9CFAL | Waveguide Coaxial Adapter WR112 | 7.05～10GHz | WR112 | TNC | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA1150A9CFAL | Waveguide Coaxial Adapter WR1150 | 0.64～0.96GHz | WR1150 | SMA | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA1150B9CFAL | Waveguide Coaxial Adapter WR1150 | 0.64～0.96GHz | WR1150 | N | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA1150C9CFAL | Waveguide Coaxial Adapter WR1150 | 0.64～0.96GHz | WR1150 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA1150D9CFAL | Waveguide Coaxial Adapter WR1150 | 0.64～0.96GHz | WR1150 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA12V9COBS | Waveguide Coaxial Adapter WR12 | 60～75GHz | WR12 | 1.85mm | 90° | UG385 | Brass | 1.8 | Datasheet |
| RFWA12V9MM10 | Waveguide Coaxial Adapter WR12 | 60～90GHz | WR12 | 1.0mm | 90° | UG387/U | Copper | 1.6 | Datasheet |
| RFWA137A9CFAL | Waveguide Coaxial Adapter WR137 | 5.85～8.2GHz | WR137 | SMA | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA137A9CFBS | Waveguide Coaxial Adapter WR137 | 5.85～8.2GHz | WR137 | SMA | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA137B9CFAL | Waveguide Coaxial Adapter WR137 | 5.85～8.2GHz | WR137 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA137B9CFBS | Waveguide Coaxial Adapter WR137 | 5.85～8.2GHz | WR137 | N | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA137B9CFBS2 | Waveguide Coaxial Adapter WR137 | 5.85～8.17GHz | WR137 | N | 90° | CPRF | Brass | 1.25 | |
| RFWA137B9CGAL | Waveguide Coaxial Adapter WR137 | 5.85～8.2GHz | WR137 | N | 90° | CPRG | Aluminum | 1.25 | Datasheet |
| RFWA137C9CFAL | Waveguide Coaxial Adapter WR137 | 5.85～8.2GHz | WR137 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA137D9CFAL | Waveguide Coaxial Adapter WR137 | 5.85～8.2GHz | WR137 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA1500A9CFAL | Waveguide Coaxial Adapter WR1500 | 0.49～0.74GHz | WR1500 | SMA | 90° | CPRF | Aluminum | 1.2 | |
| RFWA1500B9CFAL | Waveguide Coaxial Adapter WR1500 | 0.49～0.74GHz | WR1500 | N | 90° | CPRF | Aluminum | 1.2 | |
| RFWA1500C9CFAL | Waveguide Coaxial Adapter WR1500 | 0.49～0.74GHz | WR1500 | TNC | 90° | CPRF | Aluminum | 1.2 | |
| RFWA1500D9CFAL | Waveguide Coaxial Adapter WR1500 | 0.49～0.74GHz | WR1500 | 7/16 | 90° | CPRF | Aluminum | 1.2 | |
| RFWA159A9CFAL | Waveguide Coaxial Adapter WR159 | 4.9～7.05GHz | WR159 | SMA | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA159A9CFBS | Waveguide Coaxial Adapter WR159 | 4.9～7.05GHz | WR159 | SMA | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA159B0CGAL | Waveguide Coaxial Adapter WR159 | 4.9～7.05GHz | WR159 | N | 0° | CPRG | Aluminum | 1.25 | Datasheet |
| RFWA159B9CFAL | Waveguide Coaxial Adapter WR159 | 4.9～7.05GHz | WR159 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA159B9CFBS | Waveguide Coaxial Adapter WR159 | 4.9～7.05GHz | WR159 | N | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA159C9CFAL | Waveguide Coaxial Adapter WR159 | 4.9～7.05GHz | WR159 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA159D9CFAL | Waveguide Coaxial Adapter WR159 | 4.9～7.05GHz | WR159 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA15V9UGBS | Waveguide Coaxial Adapter WR15 | 49.8～75.8GHz | WR15 | 1.85mm | 90° | COVER | Brass | 1.5 | Datasheet |
| RFWA15V9UGBS-M | Waveguide Coaxial Adapter WR15 | 49.8～75.8GHz | WR15 | 1.85mm-M | 90° | COVER | Brass | 1.8 | Datasheet |
| RFWA1800A9CFAL | Waveguide Coaxial Adapter WR1800 | 0.41～0.62GHz | WR1800 | SMA | 90° | CPRF | Aluminum | 1.2 | |
| RFWA1800B9CFAL | Waveguide Coaxial Adapter WR1800 | 0.41～0.62GHz | WR1800 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA1800C9CFAL | Waveguide Coaxial Adapter WR1800 | 0.41～0.62GHz | WR1800 | TNC | 90° | CPRF | Aluminum | 1.2 | |
| RFWA1800D9CFAL | Waveguide Coaxial Adapter WR1800 | 0.41～0.62GHz | WR1800 | 7/16 | 90° | CPRF | Aluminum | 1.2 | |
| RFWA187A9CFAL | Waveguide Coaxial Adapter WR187 | 3.95～5.85GHz | WR187 | SMA | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA187A9CFBS | Waveguide Coaxial Adapter WR187 | 3.95～5.85GHz | WR187 | SMA | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA187A9COAL | Waveguide Coaxial Adapter WR187 | 3.95～5.85GHz | WR187 | SMA | 90° | ROUND COVER | Aluminum | 1.25 | Datasheet |
| RFWA187B9CFAL | Waveguide Coaxial Adapter WR187 | 3.95～5.85GHz | WR187 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA187B9CFBS | Waveguide Coaxial Adapter WR187 | 3.95～5.85GHz | WR187 | N | 90° | CPRF | Brass | 1.25 | Datasheet |

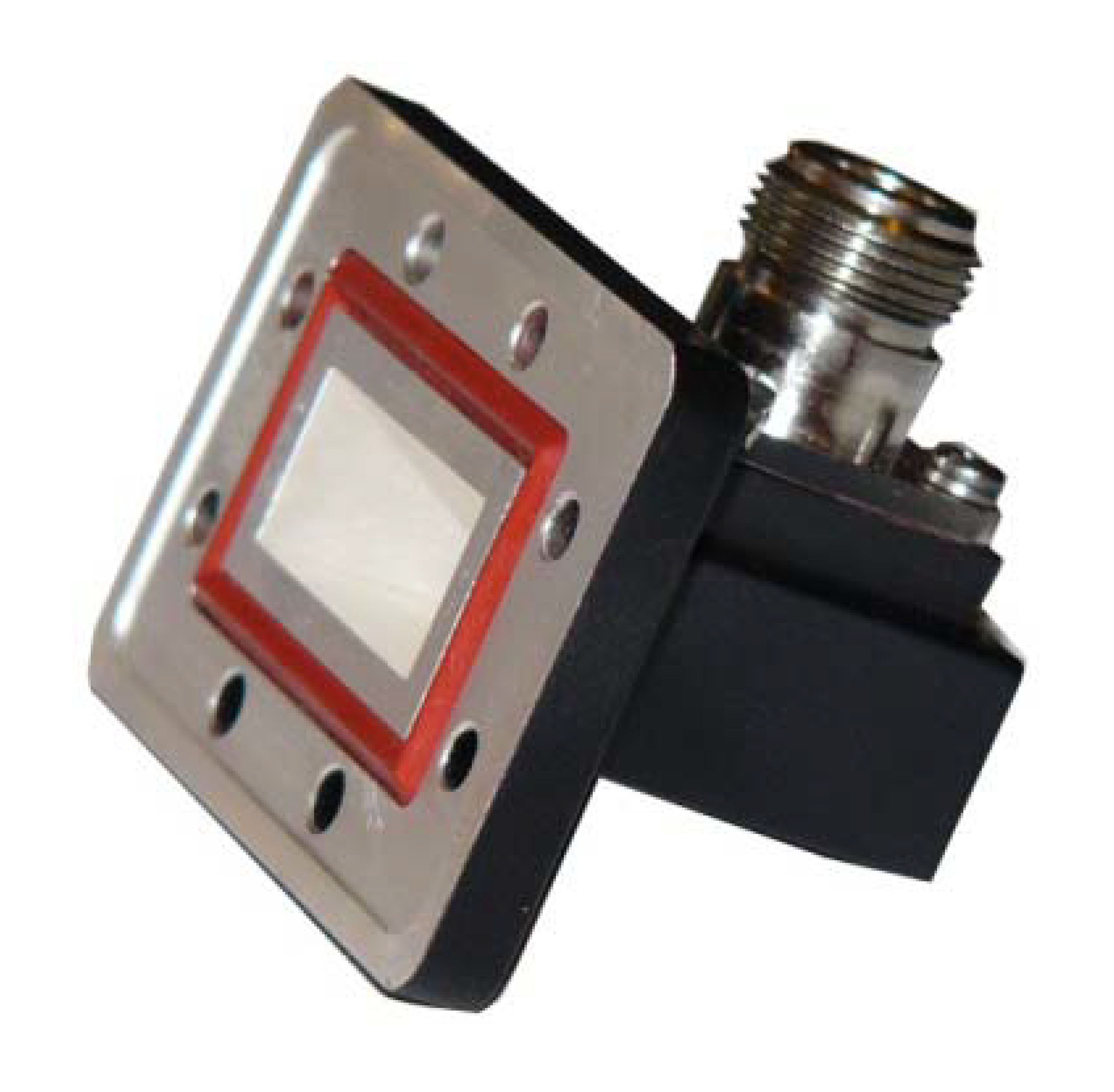

| RFWA187C9CFAL | Waveguide Coaxial Adapter WR187 | 3.95～5.85GHz | WR187 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA187D9CFAL | Waveguide Coaxial Adapter WR187 | 3.95～5.85GHz | WR187 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA19K9UGBS | Waveguide Coaxial Adapter WR19 | 39.2～59.6GHz | WR19 | 2.4mm | 90° | UG383/UM | Brass | 1.5 | Datasheet |
| RFWA19V0COAL | Waveguide Coaxial Adapter WR19 | 40～60GHz | WR19 | 1.85mm | 0° | COVER | Aluminum | 1.3 | Datasheet |
| RFWA19V0COBS | Waveguide Coaxial Adapter WR19 | 40～60GHz | WR19 | 1.85mm | 0° | COVER | Brass | 1.8 | Datasheet |
| RFWA19VUGBS | Waveguide Coaxial Adapter WR19 | 40～60GHz | WR19 | 1.85mm | 90° | COVER | Brass | 2 | Datasheet |
| RFWA2100A9CFAL | Waveguide Coaxial Adapter WR2100 | 0.35～0.53GHz | WR2100 | SMA | 90° | CPRF | Aluminum | 1.2 | |

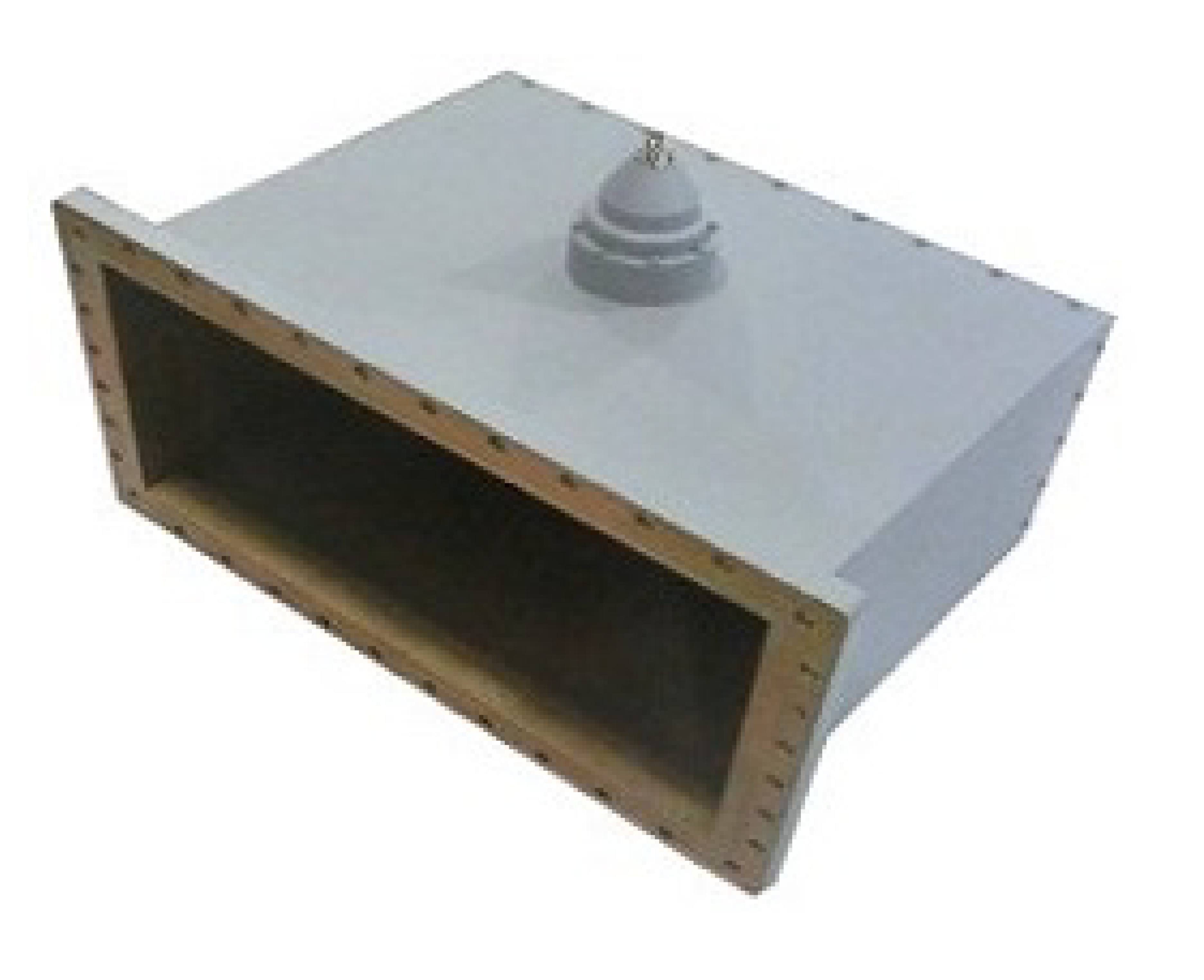

| RFWA2100B9CFAL | Waveguide Coaxial Adapter WR2100 | 0.35～0.53GHz | WR2100 | N | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA2100C9CFAL | Waveguide Coaxial Adapter WR2100 | 0.35～0.53GHz | WR2100 | TNC | 90° | CPRF | Aluminum | 1.2 | |
| RFWA2100D9CFAL | Waveguide Coaxial Adapter WR2100 | 0.35～0.53GHz | WR2100 | 7/16 | 90° | CPRF | Aluminum | 1.2 | |
| RFWA229A0CFSS | Waveguide Coaxial Adapter WR229 | 3.3～4.9GHz | WR229 | SMA | 0° | CPRF | Stainless | 1.25 | Datasheet |
| RFWA229A9CFAL | Waveguide Coaxial Adapter WR229 | 3.3～4.9GHz | WR229 | SMA | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA229A9CFBS | Waveguide Coaxial Adapter WR229 | 3.3～4.9GHz | WR229 | SMA | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA229B9CFAL | Waveguide Coaxial Adapter WR229 | 3.3～4.9GHz | WR229 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA229B9CFBS | Waveguide Coaxial Adapter WR229 | 3.3～4.9GHz | WR229 | N | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA229C9CFAL | Waveguide Coaxial Adapter WR229 | 3.3～4.9GHz | WR229 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA229D9CFAL | Waveguide Coaxial Adapter WR229 | 3.3～4.9GHz | WR229 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA22K0UGBS | Waveguide Coaxial Adapter WR22 | 32.9～50.1GHz | WR22 | 2.4mm | 0° | UG-383/U | Brass | 1.5 | Datasheet |
| RFWA22K9COAL | Waveguide Coaxial Adapter WR22 | 32.9～50.1GHz | WR22 | 2.4mm | 90° | COVER | Aluminum | 1.6 | Datasheet |
| RFWA22K9COBS | Waveguide Coaxial Adapter WR22 | 32.9～50.1GHz | WR22 | 2.4mm | 90° | COVER | Brass | 1.6 | Datasheet |
| RFWA22K9U383BS | Waveguide Coaxial Adapter WR22 | 32.9～50.1GHz | WR22 | 2.4mm | 90° | UG383 | Brass | 1.6 | Datasheet |
| RFWA2300A9CFAL | Waveguide Coaxial Adapter WR2300 | 0.32～0.49GHz | WR2300 | SMA | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA2300B9CFAL | Waveguide Coaxial Adapter WR2300 | 0.32～0.49GHz | WR2300 | N | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA2300C9CFAL | Waveguide Coaxial Adapter WR2300 | 0.32～0.49GHz | WR2300 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA2300D9CFAL | Waveguide Coaxial Adapter WR2300 | 0.32～0.49GHz | WR2300 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA284A0CFAL | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | SMA | 0° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA284A9CFAL | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | SMA | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA284A9CFBS | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | SMA | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA284B0CFAL | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | N | 0° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA284B9CFAL | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA284B9CFA-L | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA284B9CFBS | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | N | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA284C9CFAL | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA284D0CFAL | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | 7/16 | 0° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA284D9CFAL | Waveguide Coaxial Adapter WR284 | 2.6～3.95GHz | WR284 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA28A0COBS | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 0° | COVER | Brass | 1.5 | Datasheet |
| RFWA28E0COAL | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 0° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA28E0COBS | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 0° | COVER | Brass | 1.3 | Datasheet |
| RFWA28E0COCO | Waveguide Coaxial Adapter - 50W WR28 | 26.5～32GHz | WR28 | 2.92mm | 0° | Grooved COVER | Copper | 1.2 | Datasheet |
| RFWA28E0COCO-M | Waveguide Coaxial Adapter - 50W WR28 | 26.5～32GHz | WR28 | 2.92mm | 0° | Grooved COVER | Copper | 1.2 | Datasheet |
| RFWA28E0F | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 0° | COVER | Aluminum | 1.2 | Datasheet |
| RFWA28E9CKAL | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 90° | CHOKE | Aluminum | 1.25 | Datasheet |
| RFWA28E9COAL | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA28E9COBS | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA28E9COCO | Waveguide Coaxial Adapter (Low VSWR) WR28 | 26.5～40GHz | WR28 | 2.92mm | 90° | Copper | 1.15 | ||
| RFWA28E9F | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.92mm | 90° | COVER | Aluminum | 1.2 | Datasheet |
| RFWA28W0COBS | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.4mm | 0° | COVER | Brass | 1.3 | Datasheet |
| RFWA28W9COBS | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.4mm | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA28W9F | Waveguide Coaxial Adapter WR28 | 26.5～40GHz | WR28 | 2.4mm | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA340A9CFAL | Waveguide Coaxial Adapter WR340 | 2.2～3.3GHz | WR340 | SMA | 90° | CPRF | Aluminum | 1.5 | Datasheet |
| RFWA340A9CFBS | Waveguide Coaxial Adapter WR340 | 2.2～3.3GHz | WR340 | SMA | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA340B0CFAL | Waveguide Coaxial Adapter WR340 | 2.2～3.3GHz | WR340 | N | 0° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA340B9CFAL | Waveguide Coaxial Adapter WR340 | 2.2～3.3GHz | WR340 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA340B9CFBS | Waveguide Coaxial Adapter WR340 | 2.2～3.3GHz | WR340 | N | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA340C9CFAL | Waveguide Coaxial Adapter WR340 | 2.2～3.3GHz | WR340 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA340D9CFAL | Waveguide Coaxial Adapter WR340 | 2.2～3.3GHz | WR340 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |

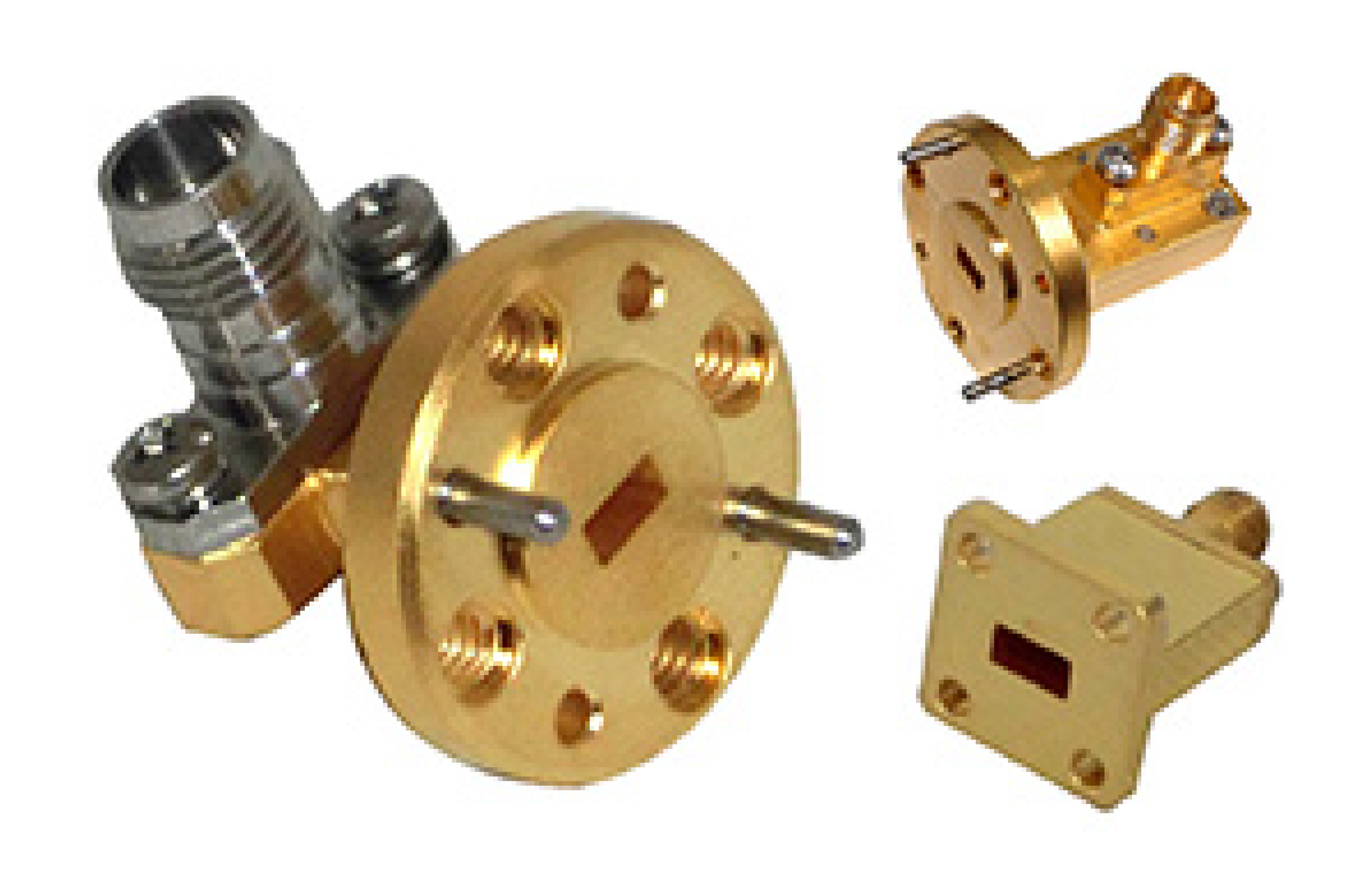

| RFWA34E0COBS | Waveguide Coaxial Adapter WR34 | 22～33GHz | WR34 | 2.92mm | 0° | UBR260 | Brass | 1.25 | Datasheet |
| RFWA34E0COBS-EIA | Waveguide Coaxial Adapter WR34 | 22～33GHz | WR34 | 2.92mm | 0° | COVER | Brass | 1.25 | Datasheet |
| RFWA34E9COAL | Waveguide Coaxial Adapter WR34 | 22～33GHz | WR34 | 2.92mm | 90° | UBR260 | Aluminum | 1.35 | Datasheet |
| RFWA34E9COAL-EIA | Waveguide Coaxial Adapter WR34 | 22～33GHz | WR34 | 2.92mm | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA34E9COBS | Waveguide Coaxial Adapter WR34 | 22～33GHz | WR34 | 2.92mm | 90° | UBR260 | Brass | 1.35 | Datasheet |
| RFWA34E9COBS-EIA | Waveguide Coaxial Adapter WR34 | 22～33GHz | WR34 | 2.92mm | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA34E9COCO-EIA | Waveguide Coaxial Adapter (Low VSWR) WR34 | 22～33GHz | WR34 | 2.92mm | 90° | COVER | Copper | 1.15 | |
| RFWA34EUS | Waveguide Coaxial Adapter WR34 | 22～33GHz | WR34 | 2.92mm | 90° | UBR260 | Aluminum | 1.25 | Datasheet |
| RFWA42A0COAL | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | SMA | 0° | COVER | Aluminum | 1.5 | Datasheet |
| RFWA42A0COBS | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | SMA | 0° | COVER | Brass | 1.5 | Datasheet |
| RFWA42A9COAL | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | SMA | 90° | COVER | Aluminum | 1.5 | Datasheet |
| RFWA42A9COBS | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | SMA | 90° | COVER | Brass | 1.5 | Datasheet |
| RFWA42E0COAL | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | 2.92mm | 0° | COVER | Aluminum | 1.35 | Datasheet |
| RFWA42E0F | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | 2.92mm | 0° | COVER | Aluminum | 1.2 | Datasheet |
| RFWA42E9CKAL | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | 2.92mm | 90° | CHOKE | Aluminum | 1.5 | Datasheet |
| RFWA42E9COAL | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | 2.92mm | 90° | COVER | Aluminum | 1.35 | Datasheet |
| RFWA42E9COBS | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | 2.92mm | 90° | COVER | Brass | 1.35 | Datasheet |
| RFWA42E9COCO | Waveguide Coaxial Adapter (Low VSWR) WR42 | 18～26.5GHz | WR42 | 2.92mm | 90° | COVER | Copper | 1.15 | Datasheet |
| RFWA42E9F | Waveguide Coaxial Adapter WR42 | 18～26.5GHz | WR42 | 3.5mm | 90° | COVER | Aluminum | 1.15 | Datasheet |
| RFWA430A9CFAL | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | SMA | 90° | CPRF | Aluminum | 1.5 | Datasheet |
| RFWA430A9CFBS | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | SMA | 90° | CPRF | Brass | 1.5 | Datasheet |
| RFWA430A9CGAL | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | SMA | 90° | CPRG | Aluminum | 1.5 | Datasheet |
| RFWA430B9CFAL | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA430B9CFBS | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | N | 90° | CPRF | Brass | 1.25 | Datasheet |
| RFWA430B9CGAL | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | N | 90° | CPRG | Aluminum | 1.25 | Datasheet |

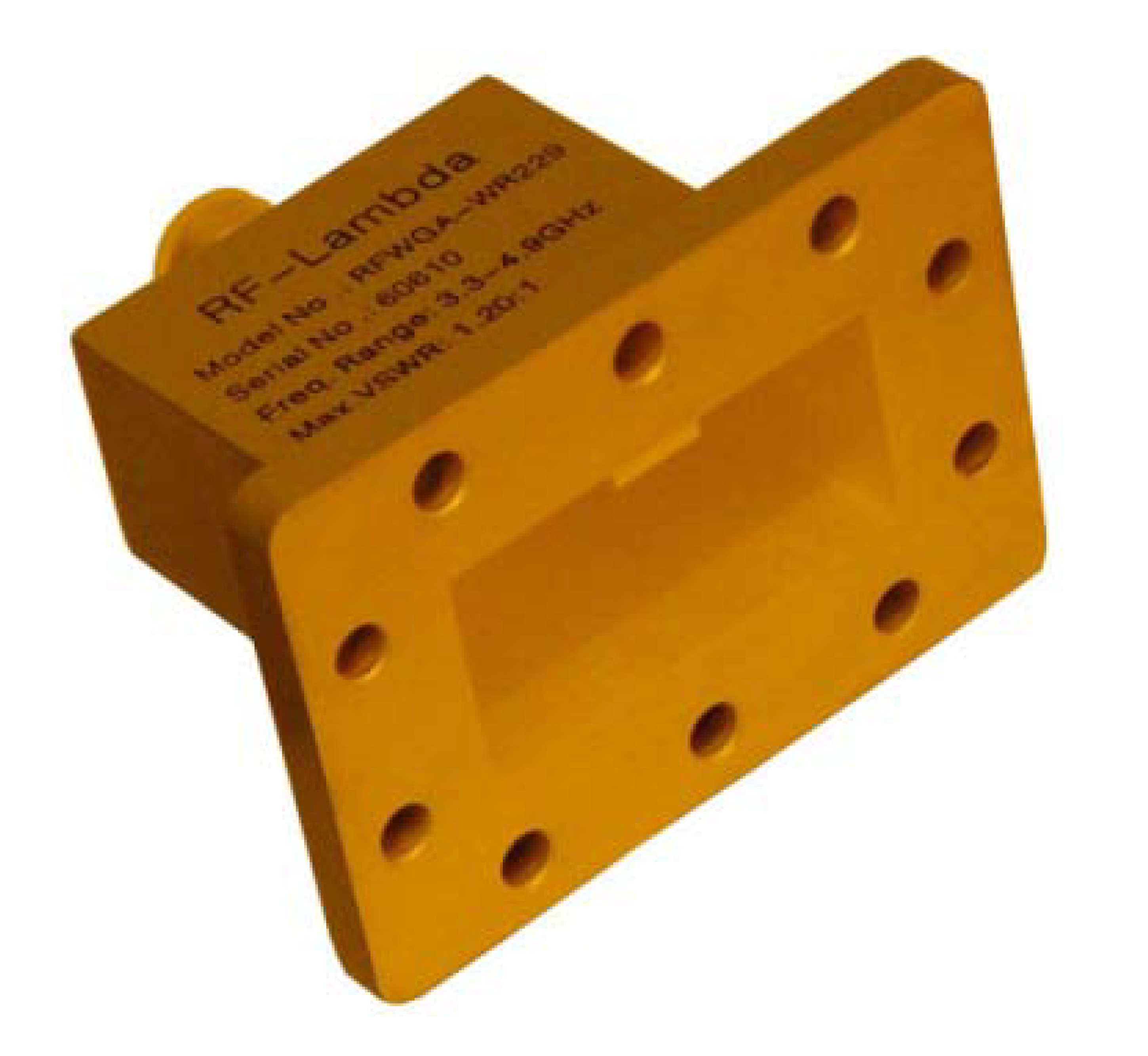

| RFWA430C9CFAL | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA430D0CGAC | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | 7/16 | 0° | CPRG | Alloyed Cuprum | 1.25 | Datasheet |
| RFWA430D0CGAL | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | 7/16 | 0° | CPRG | Aluminum | 1.25 | Datasheet |
| RFWA430D9CFAL | Waveguide Coaxial Adapter WR430 | 1.7～2.6GHz | WR430 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA510B9CFAL | Waveguide Coaxial Adapter WR510 | 1.45～2.2GHz | WR510 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA51A0COAL | Waveguide Coaxial Adapter - 30.2mm Square Flange WR51 | 15～22GHz | WR51 | SMA | 0° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA51A0COBS | Waveguide Coaxial Adapter - 30.2mm Square Flange WR51 | 15～22GHz | WR51 | SMA | 0° | COVER | Brass | 1.25 | Datasheet |
| RFWA51A9COAL | Waveguide Coaxial Adapter - 30.2mm Square Flange WR51 | 15～22GHz | WR51 | SMA | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA51A9COBS | Waveguide Coaxial Adapter - 30.2mm Square Flange WR51 | 15～22GHz | WR51 | SMA | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA51A9COBSA | Waveguide Coaxial Adapter - 1.31" Square Flange WR51 | 15～22GHz | WR51 | SMA | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA62A0CKAL | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | SMA | 0° | CHOKE | Aluminum | 1.25 | Datasheet |
| RFWA62A0COBS | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | SMA | 0° | COVER | Brass | 1.25 | Datasheet |
| RFWA62A9CKAL | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | SMA | 90° | CHOKE | Aluminum | 1.25 | Datasheet |
| RFWA62A9COAL | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | SMA | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA62A9COBS | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | SMA | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA62B0COBS | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | N | 0° | COVER | Brass | 1.25 | Datasheet |
| RFWA62B9COAL | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | N | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA62B9COBS | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | N | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA62C0COBS | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | TNC | 0° | COVER | Brass | 1.2 | |
| RFWA62C9COAL | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | TNC | 90° | COVER | Aluminum | 1.2 | Datasheet |
| RFWA62C9COBS | Waveguide Coaxial Adapter WR62 | 12.4～18GHz | WR62 | TNC | 90° | COVER | Aluminum | 1.2 | Datasheet |
| RFWA650A9CFAL | Waveguide Coaxial Adapter WR650 | 1.12～1.7GHz | WR650 | SMA | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA650B9CFAL | Waveguide Coaxial Adapter WR650 | 1.12～1.7GHz | WR650 | N | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA650C9CFAL | Waveguide Coaxial Adapter WR650 | 1.12～1.7GHz | WR650 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA650D9CFAL | Waveguide Coaxial Adapter WR650 | 1.12～1.7GHz | WR650 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA75A0CKBS | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | SMA | 0° | CHOKE | Brass | 1.25 | |
| RFWA75A0CKSS | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | SMA | 0° | CHOKE | Stainless Steel | 1.25 | Datasheet |
| RFWA75A0COAL | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | SMA | 0° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA75A9CKAL | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | SMA | 90° | CHOKE | Aluminum | 1.25 | Datasheet |
| RFWA75A9COAL | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | SMA | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA75A9COBS | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | SMA | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA75B0COAL | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | N | 0° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA75B0COBS | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | N | 0° | COVER | Brass | 1.25 | Datasheet |
| RFWA75B9COAL | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | N | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA75B9COBS | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | N | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA75B9COCO | Waveguide Coaxial Adapter (150W Power Handling) WR75 | 10～15GHz | WR75 | N | 90° | COVER | Copper | 1.25 | Datasheet |
| RFWA75C9COAL | Waveguide Coaxial Adapter WR75 | 10～15GHz | WR75 | TNC | 90° | COVER | Aluminum | 1.2 | Datasheet |
| RFWA770A9CFAL | Waveguide Coaxial Adapter WR770 | 0.96～1.5GHz | WR770 | SMA | 90° | CPRF | Aluminum | 1.2 | |
| RFWA770B9CFAL | Waveguide Coaxial Adapter WR770 | 0.96～1.5GHz | WR770 | N | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA770C9CFAL | Waveguide Coaxial Adapter WR770 | 0.96～1.5GHz | WR770 | TNC | 90° | CPRF | Aluminum | 1.2 | |
| RFWA770D9CFAL | Waveguide Coaxial Adapter WR770 | 0.96～1.5GHz | WR770 | 7/16 | 90° | CPRF | Aluminum | 1.2 | |
| RFWA90A0CFAL | Waveguide Coaxial Adapter WR90 | 8～11GHz | WR90 | SMA | 0° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA90A0COAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | SMA | 0° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA90A0COBS | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | SMA | 0° | COVER | Brass | 1.25 | Datasheet |

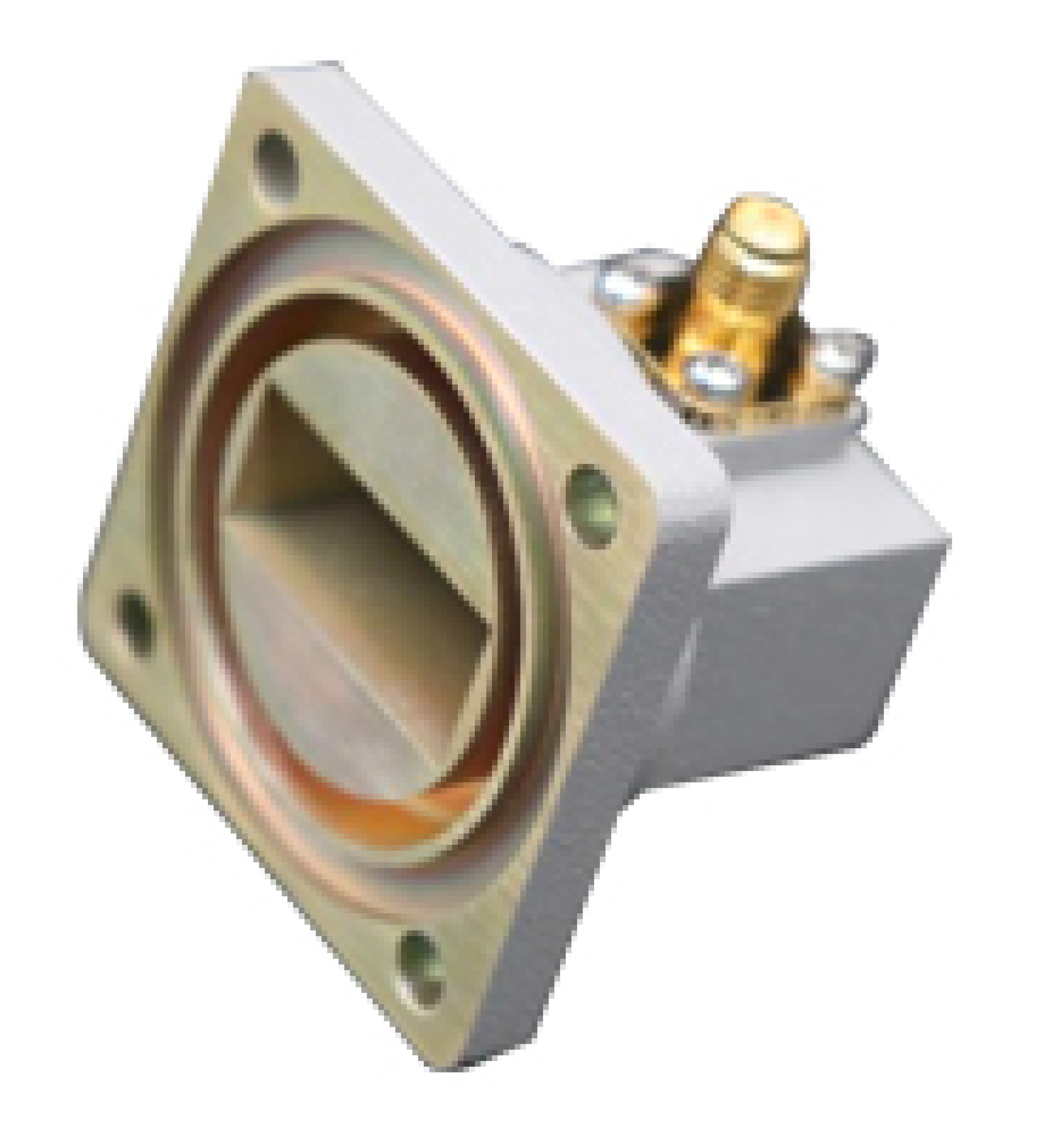

| RFWA90A9CKAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | SMA | 90° | CHOKE | Aluminum | 1.25 | Datasheet |
| RFWA90A9COAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | SMA | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA90A9COBS | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | SMA | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA90B0COAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | N | 0° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA90B0COAL-HP | Waveguide Coaxial Adapter - 300W WR90 | 8.2～12.4GHz | WR90 | N | COVER | Aluminum | 1.25 | ||
| RFWA90B0COBS | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | N | 0° | COVER | Brass | 1.25 | Datasheet |
| RFWA90B9CKAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | N | 90° | Choke | Aluminum | 1.25 | Datasheet |
| RFWA90B9COAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | N | 90° | COVER | Aluminum | 1.25 | Datasheet |
| RFWA90B9COBS | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | N | 90° | COVER | Brass | 1.25 | Datasheet |
| RFWA90B9CPR90FAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |
| RFWA90CCOAL | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | TNC | 90° | COVER | Aluminum | 1.45 | Datasheet |
| RFWA90V9COBS | Waveguide Coaxial Adapter WR90 | 8.2～12.4GHz | WR90 | 3.5mm | 90° | COVER | Brass | 1.25 | Datasheet |

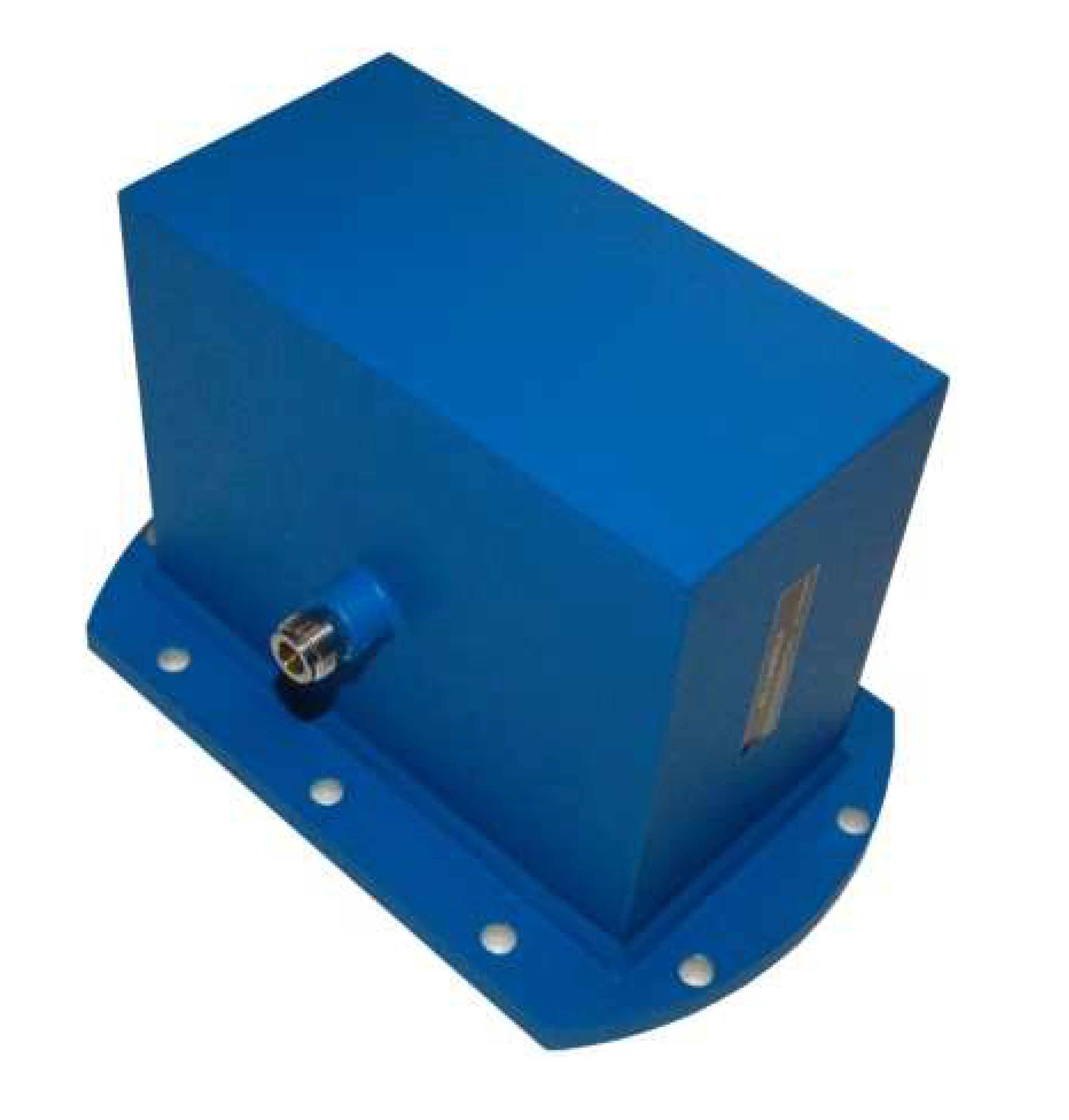

| RFWA975A9CFAL | Waveguide Coaxial Adapter WR975 | 0.75～1.15GHz | WR975 | SMA | 90° | CPRF | Aluminum | 1.2 | Datasheet |

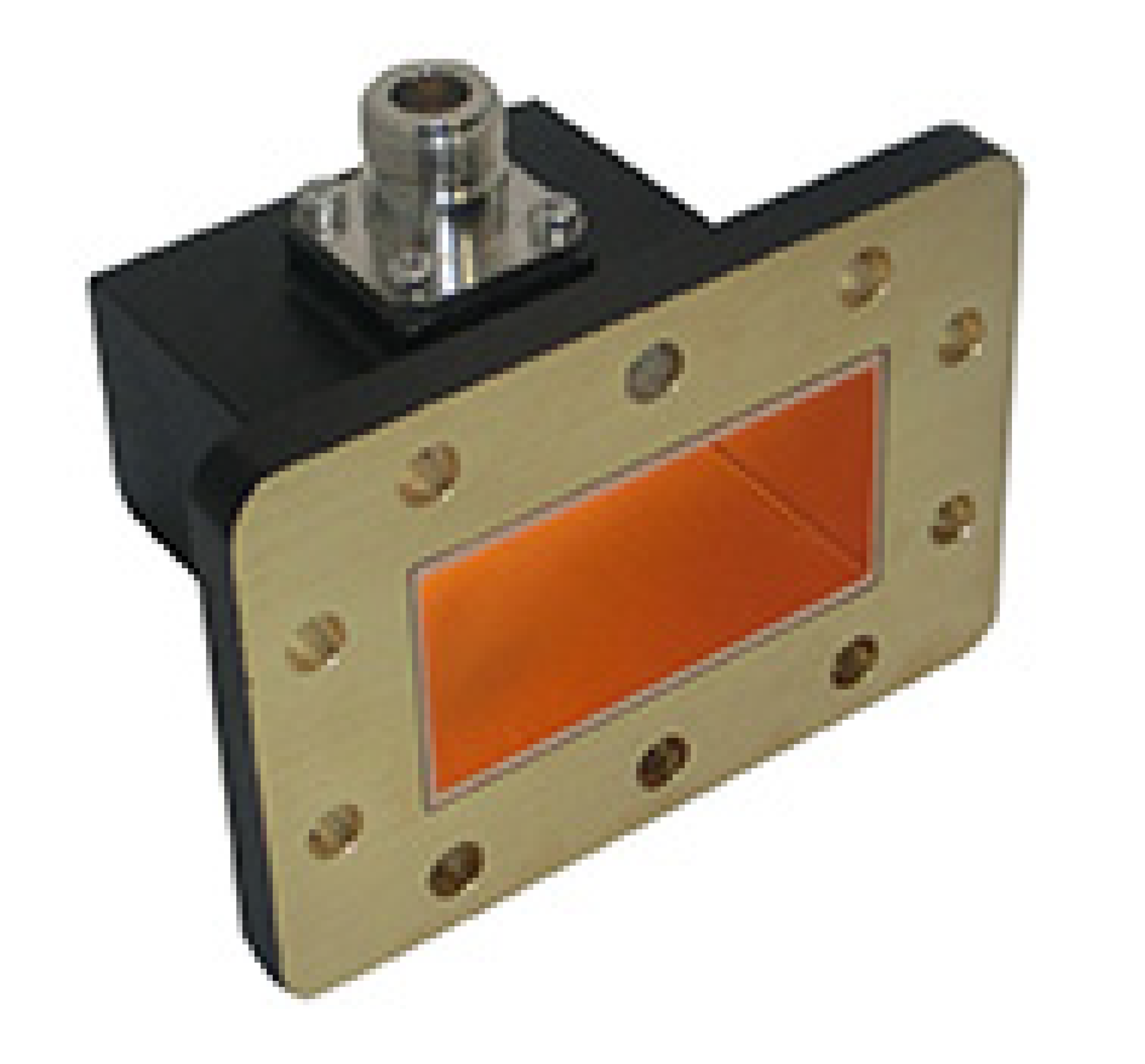

| RFWA975B9CFAL | Waveguide Coaxial Adapter WR975 | 0.75～1.15GHz | WR975 | N | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA975C9CFAL | Waveguide Coaxial Adapter WR975 | 0.75～1.15GHz | WR975 | TNC | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWA975D9CFAL | Waveguide Coaxial Adapter WR975 | 0.75～1.15GHz | WR975 | 7/16 | 90° | CPRF | Aluminum | 1.2 | Datasheet |
| RFWAD180E0COBS | Waveguide Coaxial Adapter WRD180 | 18～40GHz | WRD180 | 2.92mm | 0° | WRD180C24 | Brass | 1.6 | Datasheet |
| RFWAD180K9COBS | Waveguide Coaxial Adapter WRD180 | 18～40GHz | WRD180 | 2.4mm | 90° | WRD180C24 | Brass | 1.6 | |
| RFWAD500D36WR112 | Waveguide Adapter | 7.05～10GHz | WRD500D36 / WR112 | 0° | WRD500D36 / WR112 | Aluminum | 1.5 | Datasheet | |
| RFWAD580A9CFAL | Double Ridge Waveguide Coaxial Adapter WRD580 | 5.8～16GHz | WRD580 | SMA | 90° | CPRF | Aluminum | 1.18 | Datasheet |
| RFWAD580B9CFAL | Double Ridge Waveguide Coaxial Adapter WRD580 | 5.8～16GHz | WRD580 | N | 90° | CPRF | Aluminum | 1.25 | Datasheet |

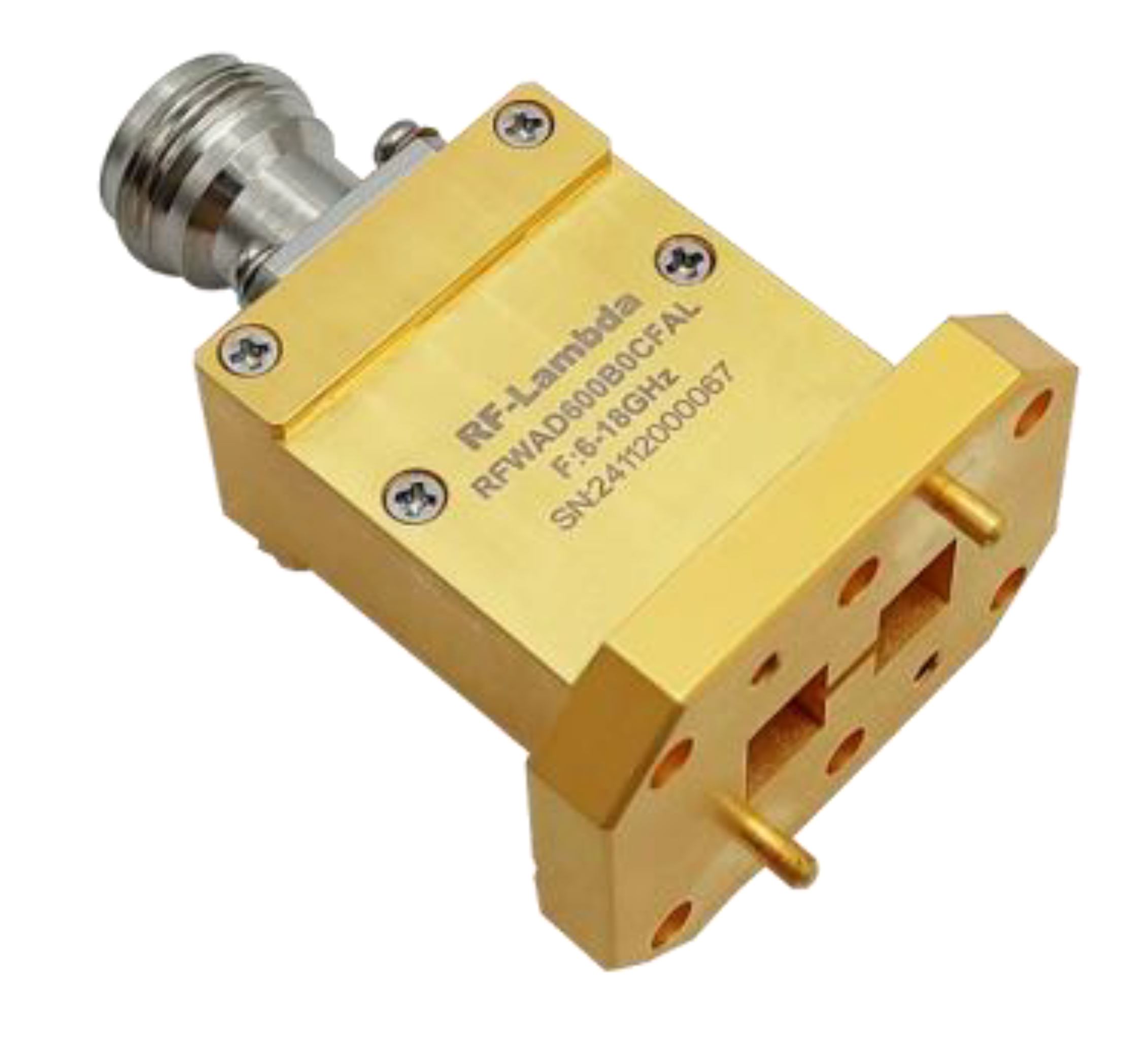

| RFWAD600B0CFAL | Double Ridge Waveguide Coaxial Adapter WRD500D36 | 6～18GHz | WRD500D36 | N | 0° | WRD500D36 | Copper / Brass | 1.5 | Datasheet |
| RFWAD600B9CFAL | Double Ridge Waveguide Coaxial Adapter WRD500D36 | 5～18GHz | WRD500D36 | N | 90° | WRD500D36 | Copper / Brass | 1.5 | Datasheet |
| RFWAD650A9COAL | Double Ridge Waveguide Coaxial Adapter WRD650 | 6.5～18GHz | WRD650 | SMA | 90° | COVER | Aluminum | 1.5 | Datasheet |
| RFWAD650A9COBS | Double Ridge Waveguide Coaxial Adapter WRD650 | 6.5～18GHz | WRD650 | SMA | 90° | COVER | Brass | 1.5 | Datasheet |
| RFWAD650B9COAL | Double Ridge Waveguide Coaxial Adapter WRD650 | 6.5～18GHz | WRD650 | N | 90° | COVER | Aluminum | 1.5 | Datasheet |
| RFWAD650B9COBS | Double Ridge Waveguide Coaxial Adapter WRD650 | 6.5～18GHz | WRD650 | N | 90° | COVER | Brass | 1.5 | Datasheet |
| RFWAD650C9COAL | Double Ridge Waveguide Coaxial Adapter WRD650 | 6.5～18GHz | WRD650 | TNC | 90° | COVER | Aluminum | 1.5 | Datasheet |
| RFWAD650C9COAL-TNCM | Double Ridge Waveguide Coaxial Adapter WRD650 | 6.5～18GHz | WRD650 | TNCM | 90° | COVER | Aluminum | 1.5 | |
| RFWAD650D9COAL | Double Ridge Waveguide Coaxial Adapter WRD650 | 6.5～7.5GHz | WRD650 | 7/16 | 90° | COVER | Aluminum | 1.5 | Datasheet |
| RFWAD750A9COAL | Double Ridge Waveguide Coaxial Adapter WRD750 | 7.5～18GHz | WRD750 | SMA | 90° | COVER | Aluminum | 1.7 | Datasheet |
| RFWAD750B0COAL | Double Ridge Waveguide Coaxial Adapter WRD750 | 7.5～18GHz | WRD750 | N | 0° | COVER | Aluminum | 1.5 | Datasheet |
| RFWAD750B9COAL | Double Ridge Waveguide Coaxial Adapter WRD750 | 7.5～18GHz | WRD750 | N | 90° | COVER | Aluminum | 1.7 | Datasheet |
| RFWAD750B9COBS | Double Ridge Waveguide Coaxial Adapter WRD750 | 7.5～18GHz | WRD750 | N | 90° | COVER | Brass | 1.5 | Datasheet |
| RFWAD750C9COAL | Double Ridge Waveguide Coaxial Adapter WRD750 | 7.5～18GHz | WRD750 | TNC | 90° | COVER | Aluminum | 1.7 | Datasheet |
| RFWAD750D9COAL | Double Ridge Waveguide Coaxial Adapter WRD750 | 7.5～18GHz | WRD750 | 7/16 | 90° | COVER | Aluminum | 1.7 | Datasheet |
| RFWTRWRD180WR28 | WRD180 to WR28 Transition Adapter WRD180 / WR28 | 26.5～40GHz | WRD180 / WR28 | 0° | Cover | 0 | Datasheet | ||
| RFWTRWRD180WR42 | WRD180 to WR42 Transition Adapter WRD180 / WR42 | 18～26.5GHz | WRD180 / WR42 | 0° | Cover | 0 | Datasheet | ||
| RFWTRWRD500WRD650 | WRD500 to WRD650 Transition Adapter | 6～18GHz | WRD500D36 / WRD650D28 | 0° | Cover | Copper / Brass | 1.5 | Datasheet | |
| RFWTWWRD180C24 | WRD180 Twist Adapter WRD180 | 18～40GHz | WRD180 | N/A | 0° | WRD180C24 | 0 | Datasheet |
