導波管ターミネーション（RFWT/RFWDTシリーズ）
RF-LAMBDA社の導波管ターミネーションは、RF信号経路の終端で使用され、良好な50Ω整合を実現し、RFエネルギーを熱として放散します。
様々な電力レベルに対応し、低VSWRを実現しています。
製品ラインナップ
RF Waveguide Load（RFWT/RFWDT Series）
| Model | Description | Frequency Range | Waveguide Type | VSWR | Average Power CWWatt | Datasheet |
|---|---|---|---|---|---|---|
| RFWDT180A | Double Ridge Waveguide Termination WRD180 | 18～40GHz | WRD180 | 1.35max | 100W | Datasheet |
| RFWDT250A | Double Ridge Waveguide Termination WRD250 | 2.5～7.5GHz | WRD250 | 1.25max | 500W | Datasheet |
| RFWDT250B | Double Ridge Waveguide Termination WRD250 | 2.5～7.5GHz | WRD250 | 1.25max | 1500W | Datasheet |
| RFWDT650A | Double Ridge Waveguide Termination WRD650 | 6.5～18GHz | WRD650 | 1.25max | 400W | Datasheet |
| RFWDT650B | Double Ridge Waveguide Termination WRD650 | 6.5～18GHz | WRD650 | 1.25max | 500W | Datasheet |
| RFWDT750A | Double Ridge Waveguide Termination WRD750 | 7.5～18GHz | WRD750 | 1.2max | 500W | Datasheet |
| RFWDT750B | Double Ridge Waveguide Termination WRD750 | 7.5～18GHz | WRD750 | 1.2max | 1500W | Datasheet |
| RFWDT750C | Double Ridge Waveguide Termination WRD750 | 7.5～18GHz | WRD750 | 1.2max | 250W | Datasheet |
| RFWT10A | Waveguide Termination WR10 | 75～110GHz | WR10 | 1.1max | 50W | Datasheet |
| RFWT10B | Waveguide Termination WR10 | 75～110GHz | WR10 | 1.1max | 1W | Datasheet |
| RFWT112A | Waveguide Termination WR112 | 7.05～10GHz | WR112 | 1.2max | 50W | Datasheet |
| RFWT112B | Waveguide Termination WR112 | 7.05～10GHz | WR112 | 1.2max | 250W | Datasheet |
| RFWT112C | Waveguide Termination WR112 | 7.05～10GHz | WR112 | 1.1max | 300W | Datasheet |
| RFWT112D | Waveguide Termination WR112 | 7.05～10GHz | WR112 | 1.2max | 500W | Datasheet |
| RFWT112E | Waveguide Termination WR112 | 6.57～9.99GHz | WR112 | 1.03max | 5W | Datasheet |

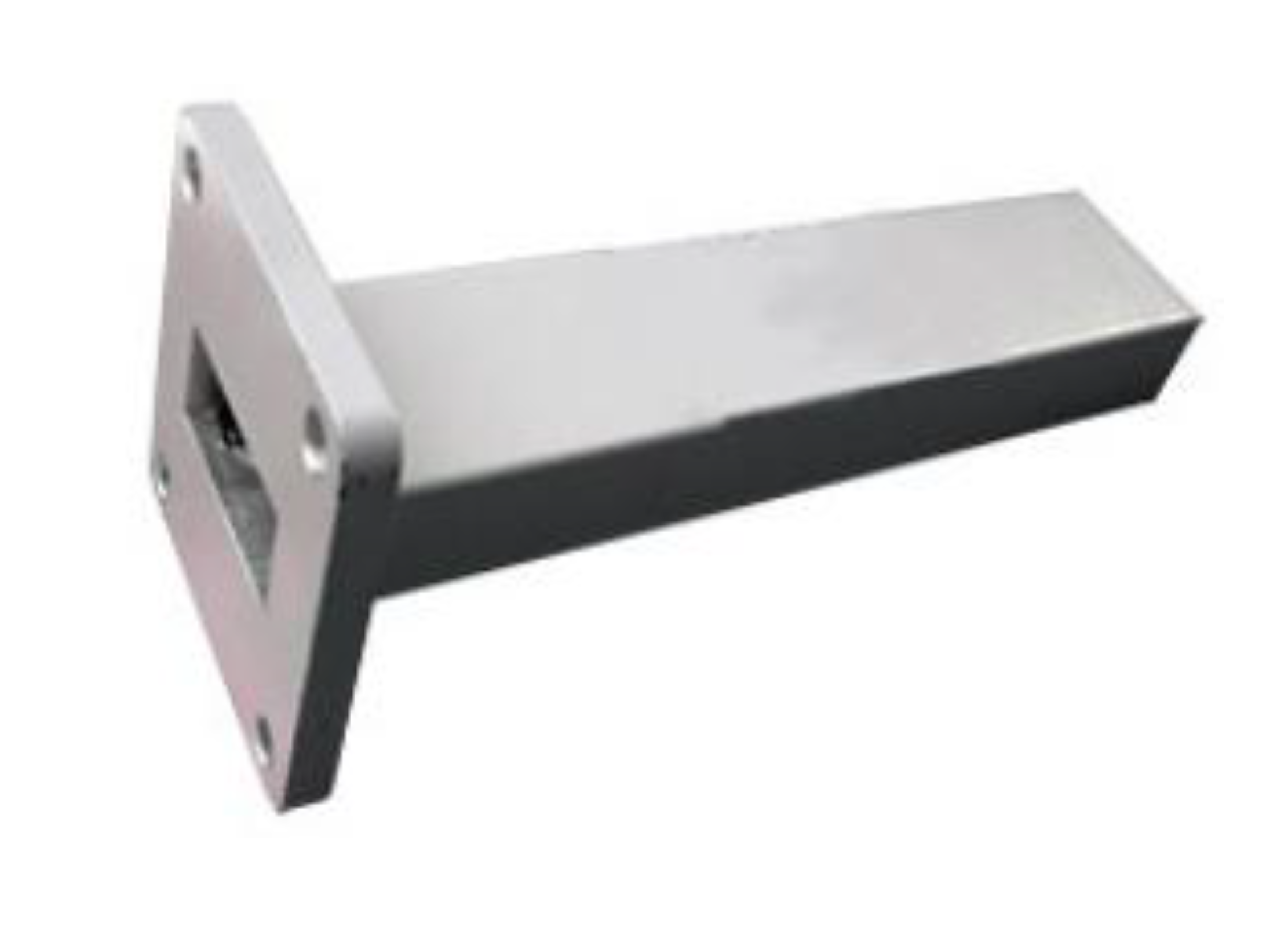

| RFWT1150A | Waveguide Termination WR1150 | 0.75～1.15GHz | WR1150 | 1.03max | 15W | Datasheet |
| RFWT12A | Waveguide Termination WR12 | 70.65～86.35GHz | WR12 | 1.15max | 0.5W | Datasheet |
| RFWT137A | Waveguide Termination WR137 | 5.85～8.2GHz | WR137 | 1.1max | 50W | |
| RFWT137B | Waveguide Termination WR137 | 5.85～8.2GHz | WR137 | 1.2max | 75W | Datasheet |
| RFWT137C | Waveguide Termination WR137 | 5.85～8.2GHz | WR137 | 1.2max | 500W | Datasheet |
| RFWT137D | Waveguide Termination WR137 | 5.85～8.2GHz | WR137 | 1.25max | 5000W | Datasheet |
| RFWT137E | Waveguide Termination WR137 | 5.38～8.17GHz | WR137 | 1.03max | 5W | Datasheet |
| RFWT1500A | Waveguide Termination WR1500 | 0.64～0.98GHz | WR1500 | 1.05max | 15W | |

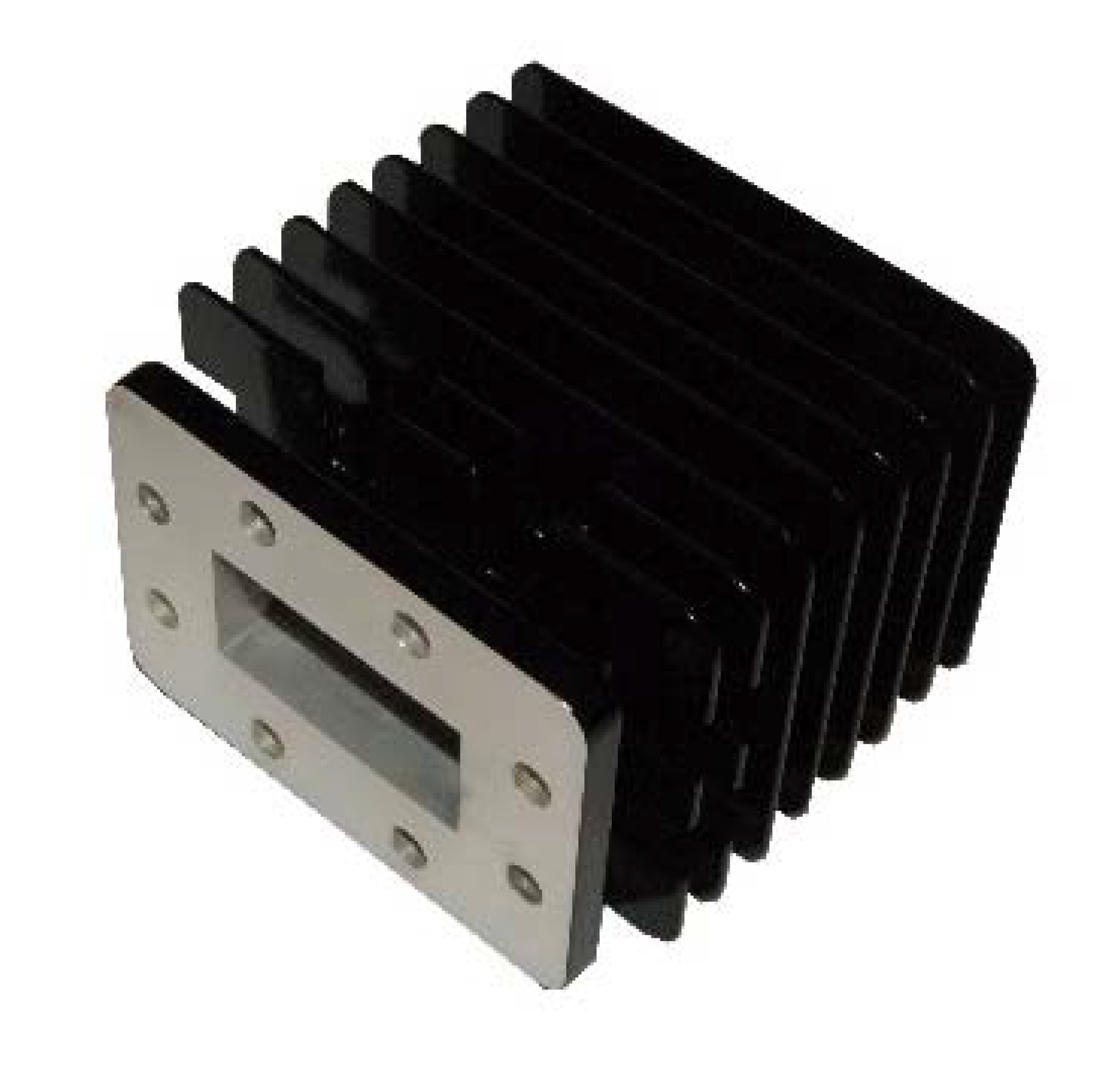

| RFWT159A | Waveguide Termination WR159 | 4.9～7.05GHz | WR159 | 1.1max | 100W | Datasheet |
| RFWT159B | Waveguide Termination WR159 | 4.9～7.05GHz | WR159 | 1.15max | 500W | Datasheet |
| RFWT159C | Waveguide Termination WR159 | 4.64～7.05GHz | WR159 | 1.03max | 5W | Datasheet |

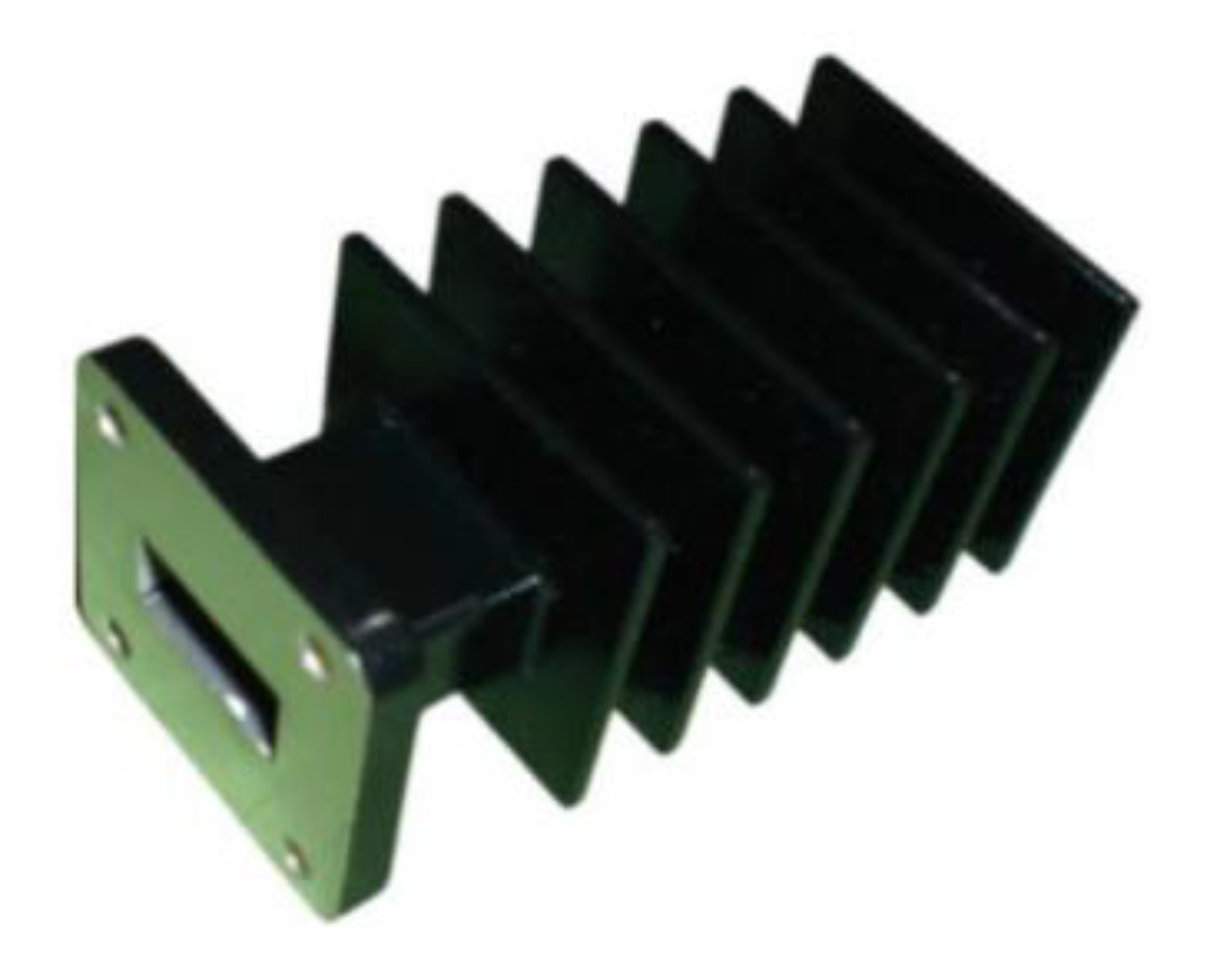

| RFWT159D | Waveguide Termination WR159 | 4.64～7.05GHz | WR159 | 1.25max | 1000W | Datasheet |
| RFWT15A | Waveguide Termination WR15 | 50～75GHz | WR15 | 1.25max | 1W | Datasheet |
| RFWT1800A | Waveguide Termination WR1800 | 0.41～0.62GHz | WR1800 | 1.05max | 15W | Datasheet |
| RFWT187A | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.1max | 10W | Datasheet |
| RFWT187B | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.1max | 10W | Datasheet |
| RFWT187C | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.1max | 300W | Datasheet |
| RFWT187D | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.15max | 100W | Datasheet |
| RFWT187E | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.15max | 500W | Datasheet |
| RFWT187F | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.15max | 500W | Datasheet |
| RFWT187G | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.1max | 1000W | |
| RFWT187H | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.15max | 1000W | Datasheet |
| RFWT187I | Waveguide Termination WR187 | 3.95～5.85GHz | WR187 | 1.15max | 1000W | Datasheet |
| RFWT187J | Waveguide Termination WR187 | 3.94～5.99GHz | WR187 | 1.03max | 5W | Datasheet |
| RFWT19A | Waveguide Termination WR19 | 39.2～59.6GHz | WR19 | 1.15max | 0.5W | Datasheet |
| RFWT2100A | Waveguide Termination WR2100 | 0.35～0.5GHz | WR2100 | 1.05max | 15W | |
| RFWT229A | Waveguide Termination WR229 | 3.3～4.9GHz | WR229 | 1.1max | 20W | Datasheet |
| RFWT229B | Waveguide Termination WR229 | 3.22～4.9GHz | WR229 | 1.03max | 5W | Datasheet |
| RFWT22A | Waveguide Termination WR22 | 32.9～50.1GHz | WR22 | 1.15max | 7.5W | Datasheet |
| RFWT2300A | Waveguide Termination WR2300 | 0.32～0.49GHz | WR2300 | 1.05max | 20W | |
| RFWT284A | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.25max | 100W | Datasheet |
| RFWT284B | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.25max | 1000W | Datasheet |

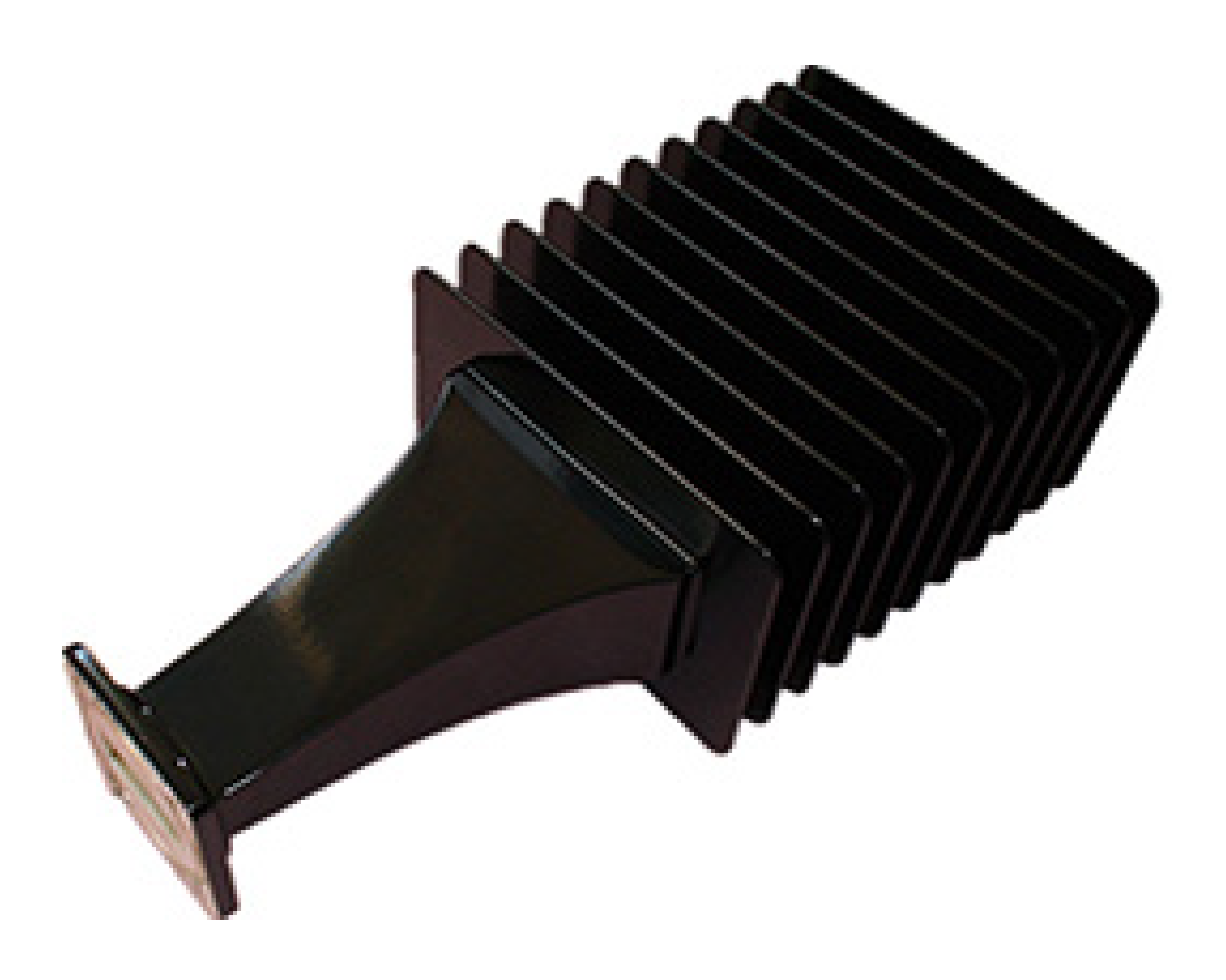

| RFWT284C | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.1max | 3000W | Datasheet |
| RFWT284D | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.1max | 3000W | Datasheet |
| RFWT284E | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.1max | 3000W | Datasheet |

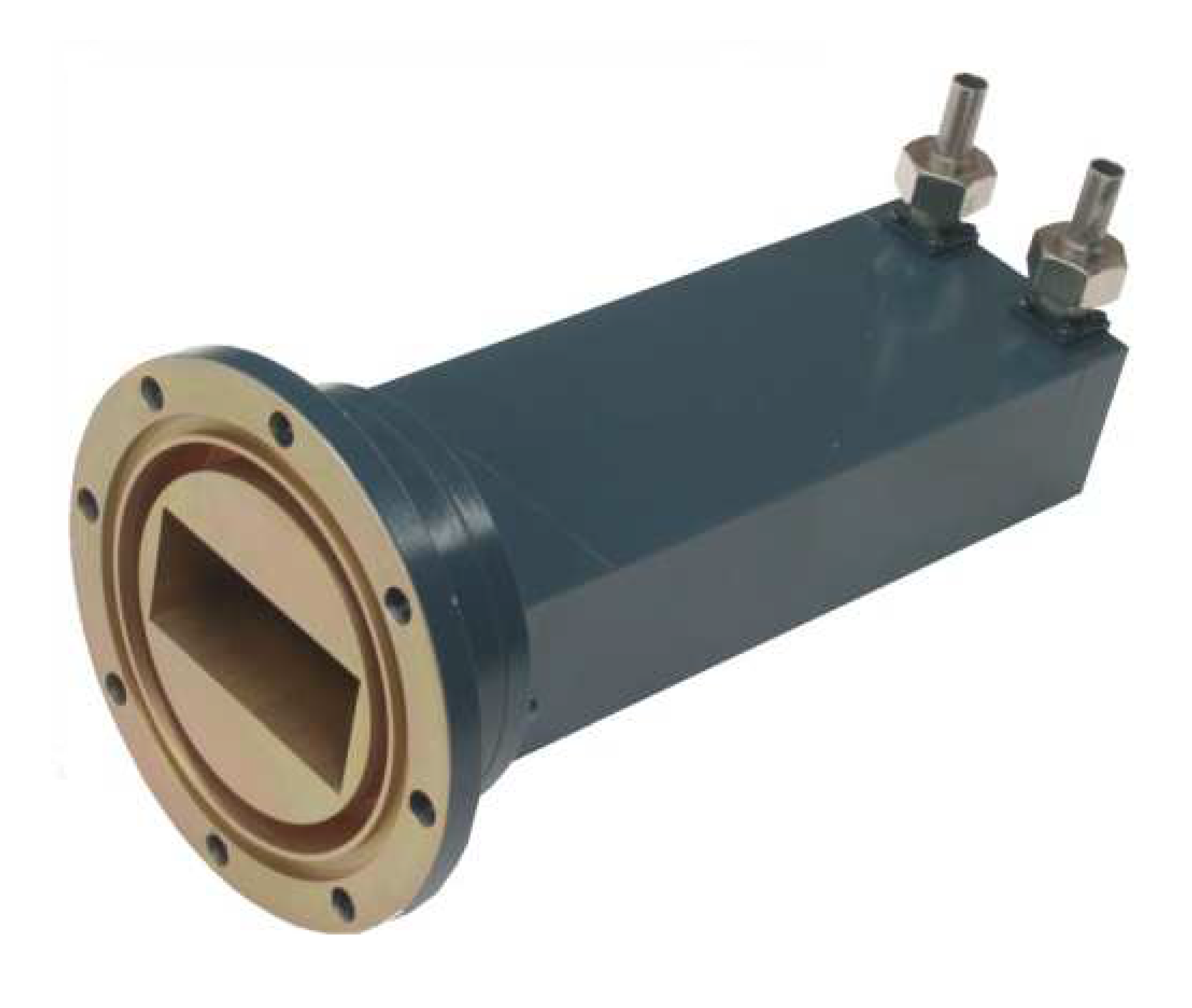

| RFWT284F | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.1max | 5000W | Datasheet |
| RFWT284G | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.25max | 1500W | Datasheet |
| RFWT284H | Waveguide Termination WR284 | 2.6～3.95GHz | WR284 | 1.03max | 5W | Datasheet |
| RFWT28A | Waveguide Termination WR28 | 26.5～40GHz | WR28 | 1.1max | 10W | |
| RFWT28B | Waveguide Termination WR28 | 26.5～40GHz | WR28 | 1.1max | 50W | Datasheet |
| RFWT28C | Waveguide Termination WR28 | 26.5～40GHz | WR28 | 1.1max | 100W | Datasheet |
| RFWT28D | Waveguide Termination WR28 | 26.5～40GHz | WR28 | 1.03max | 1W | Datasheet |
| RFWT28E | Waveguide Termination WR28 | 29～31GHz | WR28 | 1.25max | 50W | Datasheet |
| RFWT28G | Waveguide Termination WR28 | 26.5～40GHz | WR28 | 1.2max | 200W | Datasheet |
| RFWT340A | Waveguide Termination WR340 | 2.17～3.3GHz | WR340 | 1.2max | 30W | Datasheet |
| RFWT340B | Waveguide Termination WR340 | 2.17～3.3GHz | WR340 | 1.1max | 100W | |
| RFWT340C | Waveguide Termination WR340 | 2.17～3.3GHz | WR340 | 1.25max | 1000W | Datasheet |
| RFWT340D | Waveguide Termination WR340 | 2.17～3.3GHz | WR340 | 1.2max | 2000W | Datasheet |
| RFWT340E | Waveguide Termination WR340 | 2.17～3.3GHz | WR340 | 1.1max | 3000W | |
| RFWT340F | Waveguide Termination WR340 | 2.17～3.36GHz | WR340 | 1.03max | 5W | Datasheet |
| RFWT340W20HQ | 1/4 Height Waveguide Termination WR340 | 2.17～3.3GHz | WR340 | 1.25max | 100W | Datasheet |
| RFWT34A | Waveguide Termination - UBR260 WR34 | 22～33GHz | WR34 | 1.2max | 100W | Datasheet |
| RFWT34B | Waveguide Termination WR34 | 21.7～33GHz | WR34 | 1.03max | 1W | Datasheet |
| RFWT34D | Waveguide Termination WR34 | 21.7～33GHz | WR34 | 1.25max | 500W | Datasheet |
| RFWT34E | Waveguide Termination - UG1530 WR34 | 22～33GHz | WR34 | 1.2max | 100W | Datasheet |
| RFWT34F | Waveguide Termination WR34 | 21.7～33GHz | WR34 | 1.25max | 1000W | Datasheet |
| RFWT34G | Waveguide Termination WR34 | 21.7～33GHz | WR34 | 1.25max | 3000W | Datasheet |
| RFWT3A | Waveguide Termination WR3 | 217～330GHz | WR3 | 1.25max | 0.3W | |
| RFWT42A | Waveguide Termination WR42 | 18～26.5GHz | WR42 | 1.1max | 10W | Datasheet |
| RFWT42B | Waveguide Termination WR42 | 18～26.5GHz | WR42 | 1.1max | 50W | |
| RFWT42D | Waveguide Termination WR42 | 17.6～26.7GHz | WR42 | 1.03max | 1W | Datasheet |
| RFWT42E | Waveguide Termination WR42 | 18～26.5GHz | WR42 | 1.25max | 100W | Datasheet |
| RFWT430A | Waveguide Termination WR430 | 1.7～2.6GHz | WR430 | 1.2max | 30W | Datasheet |
| RFWT430B | Waveguide Termination WR430 | 1.7～2.6GHz | WR430 | 1.1max | 100W | |
| RFWT430C | Waveguide Termination WR430 | 1.7～2.6GHz | WR430 | 1.2max | 300W | Datasheet |
| RFWT430D | Waveguide Termination WR430 | 1.7～2.6GHz | WR430 | 1.2max | 500W | Datasheet |
| RFWT430E | Waveguide Termination WR430 | 1.7～2.6GHz | WR430 | 1.1max | 1000W | |
| RFWT430F | Waveguide Termination WR430 | 1.7～2.6GHz | WR430 | 1.25max | 3000W | Datasheet |
| RFWT430G | Waveguide Termination WR430 | 1.72～2.61GHz | WR430 | 1.03max | 10W | Datasheet |
| RFWT4A | Waveguide Termination WR4 | 172～261GHz | WR4 | 1.25max | 0.3W | |
| RFWT510A | Waveguide Termination WR510 | 1.45～2.2GHz | WR510 | 1.03max | 10W | Datasheet |
| RFWT51A | Waveguide Termination WR51 | 14.5～22GHz | WR51 | 1.2max | 500W | Datasheet |
| RFWT51B | Waveguide Termination WR51 | 14.5～22GHz | WR51 | 1.2max | 50W | Datasheet |
| RFWT51B-UBR180 | Waveguide Termination WR51 | 14.5～22GHz | WR51 | 1.2max | 50W | Datasheet |
| RFWT51C | Waveguide Termination WR51 | 14.5～22GHz | WR51 | 1.2max | 250W | Datasheet |
| RFWT51D | Waveguide Termination - UBR180 WR51 | 14.5～22GHz | WR51 | 1.03max | 2W | Datasheet |
| RFWT51E | Waveguide Termination WR51 | 14.5～22GHz | WR51 | 1.03max | 2W | Datasheet |
| RFWT51F | Waveguide Termination WR51 | 14.5～22GHz | WR51 | 1.25max | 1000W | Datasheet |
| RFWT51G | Waveguide Termination WR51 | 14.5～22GHz | WR51 | 1.25max | 1500W | Datasheet |
| RFWT5A | Waveguide Termination WR5 | 145～220GHz | WR5 | 1.25max | 0.3W | Datasheet |
| RFWT62A | Waveguide Termination WR62 | 12.4～18GHz | WR62 | 1.2max | 10W | Datasheet |
| RFWT62B | Waveguide Termination WR62 | 12.4～18GHz | WR62 | 1.25max | 150W | Datasheet |
| RFWT62C | Waveguide Termination WR62 | 12.4～18GHz | WR62 | 1.25max | 100W | Datasheet |
| RFWT62D | Waveguide Termination WR62 | 12.4～18GHz | WR62 | 1.2max | 400W | Datasheet |
| RFWT62E | Waveguide Termination WR62 | 12.4～18GHz | WR62 | 1.2max | 500W | Datasheet |
| RFWT62F | Waveguide Termination WR62 | 12.4～18GHz | WR62 | 1.2max | 1000W | Datasheet |
| RFWT62G | Waveguide Termination WR62 | 11.9～18GHz | WR62 | 1.03max | 2W | Datasheet |
| RFWT650A | Waveguide Termination WR650 | 1.12～1.7GHz | WR650 | 1.25max | 500W | Datasheet |

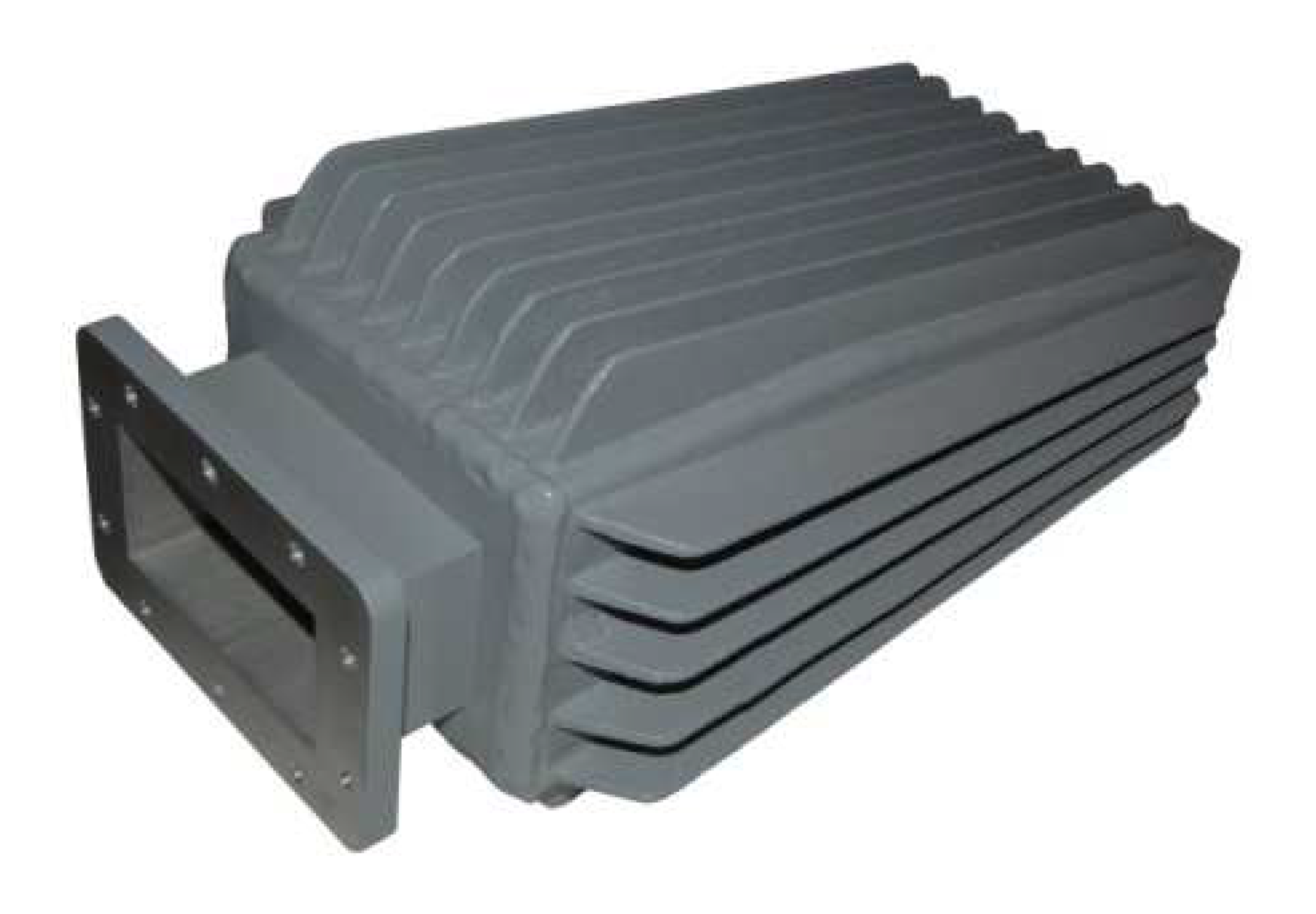

| RFWT650B | Waveguide Termination WR650 | 1.12～1.7GHz | WR650 | 1.2max | 1500W | Datasheet |
| RFWT650C | Waveguide Termination WR650 | 1.13～1.73GHz | WR650 | 1.03max | 10W | Datasheet |
| RFWT75A | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.2max | 10W | Datasheet |

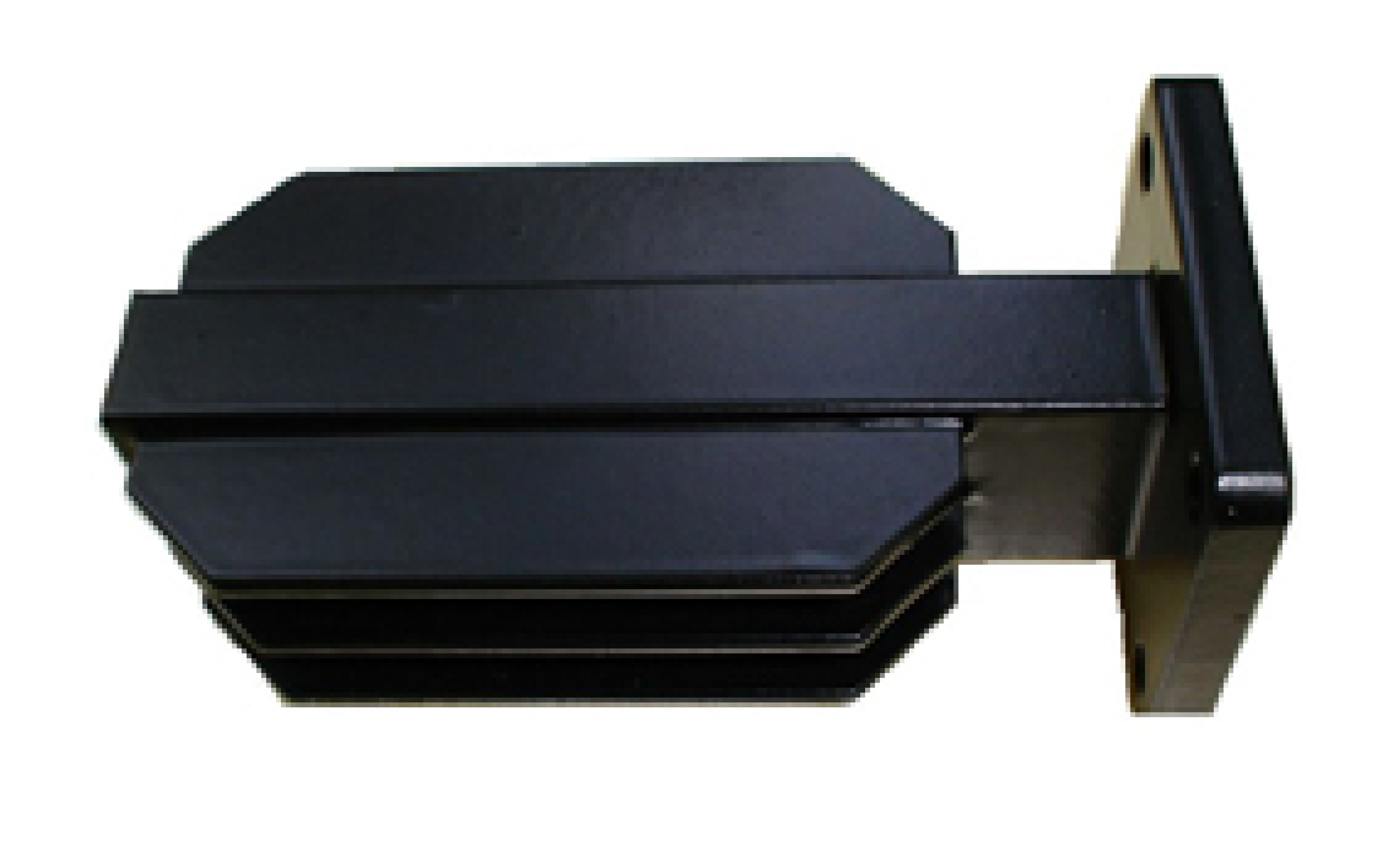

| RFWT75B | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.25max | 30W | Datasheet |
| RFWT75C | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.1max | 75W | Datasheet |
| RFWT75D | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.2max | 75W | Datasheet |
| RFWT75E | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.25max | 100W | Datasheet |
| RFWT75F | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.15max | 200W | Datasheet |
| RFWT75G | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.15max | 50W | Datasheet |
| RFWT75H | Waveguide Termination WR75 | 10～15GHz | WR75 | 1.1max | 75W | Datasheet |
| RFWT75I | Waveguide Termination WR75 | 9.84～15GHz | WR75 | 1.03max | 2W | Datasheet |
| RFWT75I-G | Waveguide Termination - Groove Flange WR75 | 9.84～15GHz | WR75 | 1.03max | 2W | Datasheet |
| RFWT75J | Waveguide Termination WR75 | 9.84～15GHz | WR75 | 1.25max | 350W | Datasheet |
| RFWT7A | Waveguide Termination WR7 | 113～220GHz | WR7 | 1.2max | 0.3W | |
| RFWT8A | Waveguide Termination WR8 | 92.2～140GHz | WR8 | 1.2max | 0.3W | |
| RFWT90A | Waveguide Termination WR90 | 8.2～12.4GHz | WR90 | 1.2max | 50W | Datasheet |
| RFWT90B | Waveguide Termination WR90 | 8.2～12.4GHz | WR90 | 1.2max | 75W | Datasheet |
| RFWT90C | Waveguide Termination WR90 | 8.2～12.4GHz | WR90 | 1.2max | 100W | Datasheet |
| RFWT90D | Waveguide Termination WR90 | 8.2～12.4GHz | WR90 | 1.25max | 150W | Datasheet |
| RFWT90E | Waveguide Termination WR90 | 8.2～12.4GHz | WR90 | 1.1max | 300W | Datasheet |

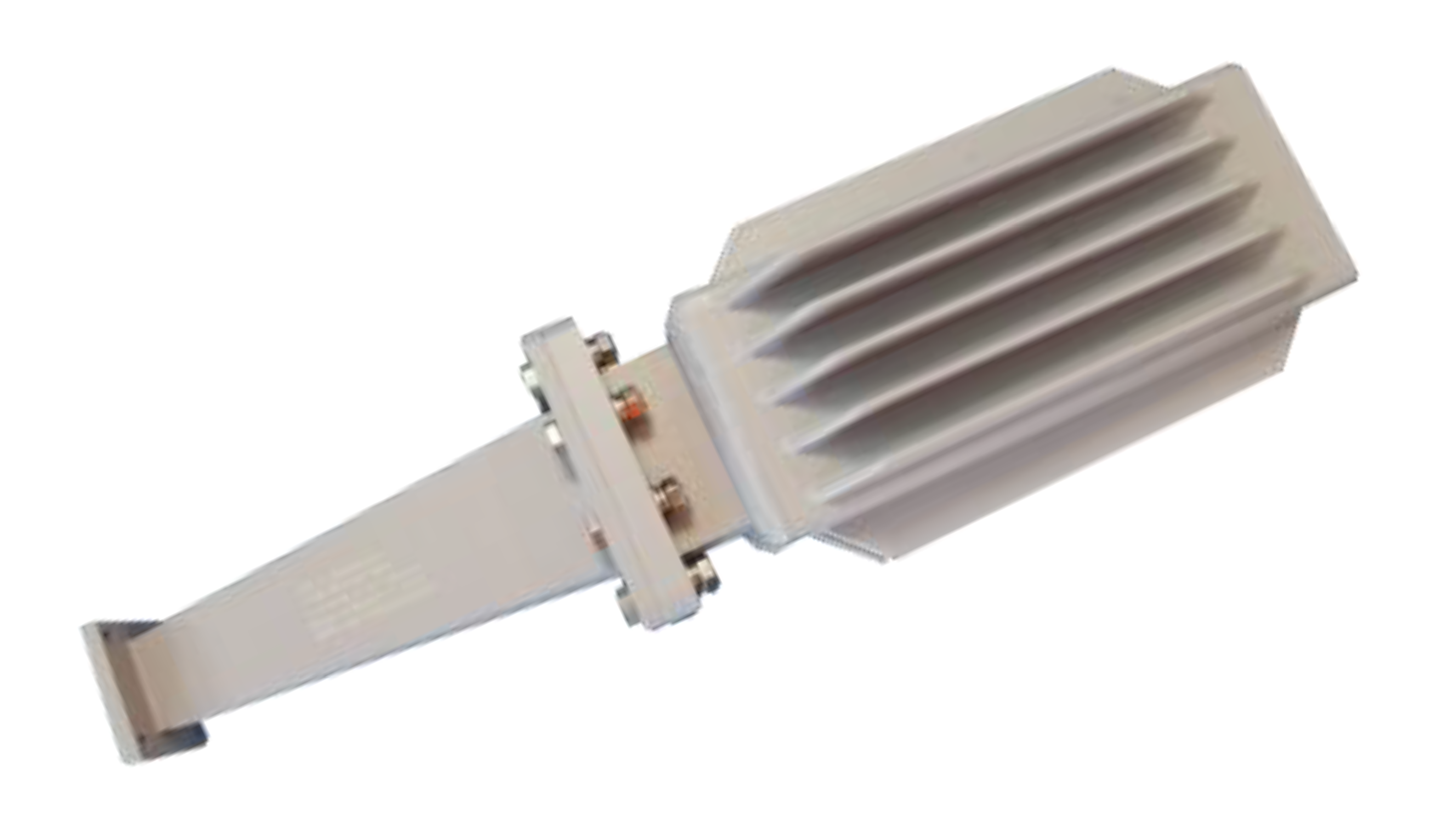

| RFWT90F | Waveguide Termination WR90 | 8.2～12.4GHz | WR90 | 1.25max | 500W | Datasheet |
| RFWT90G | Waveguide Termination WR90 | 8.2～12.4GHz | WR90 | 1.03max | 2W | Datasheet |
| RFWT975A | Waveguide Termination WR975 | 0.75～1.15GHz | WR975 | 1.03max | 10W | Datasheet |
