導波管バンドパスフィルター（RWBPFシリーズ）
RF-LAMBDA社の導波管フィルターは、幅広い周波数帯域に対応しており、極めて高い除去比と選択性を実現しています。
製品ラインナップ
Waveguide Filter（RWBPF Series）
| Model | Description | Frequency Range | Waveguide Type | Insertion Loss | Power | Packaging | Datasheet |
|---|---|---|---|---|---|---|---|
| RWBPF10B | Band Pass FilterWR10 | 75～110GHz | WR10 | 3.2dB | 10W | Waveguide | Datasheet |
| RWBPF112A | Band Pass FilterWR112 | 7.35～8.1GHz | WR112 | 0.41dB | 1000W | Waveguide | Datasheet |
| RWBPF112B | Band Pass FilterWR112 | 7.644～8.684GHz | WR112 | 0.65dB | 1000W | Waveguide | Datasheet |
| RWBPF112C | Band Pass FilterWR112 | 7.7～8.3GHz | WR112 | 0.7dB | 1000W | Waveguide | Datasheet |
| RWBPF112D | Band Pass FilterWR112 | 7.9～8.5GHz | WR112 | 0.34dB | 1000W | Waveguide | Datasheet |
| RWBPF15B | Band Pass FilterWR15 | 50～75GHz | WR15 | 2.5dB | 10W | Waveguide | |
| RWBPF19B | Band Pass FilterWR19 | 40～60GHz | WR19 | 2.2dB | 10W | Waveguide | |
| RWBPF229A | Band Pass FilterWR229 | 3.7～4.2GHz | WR229 | 0.8dB | 1000W | Waveguide | Datasheet |
| RWBPF229N | Band Pass FilterWR229 | 3.4～4.2GHz | WR229 | 0.45dB | 1000W | Waveguide | Datasheet |
| RWBPF22B | Band Pass FilterWR22 | 33～50GHz | WR22 | 1.8dB | 5W | Waveguide | |

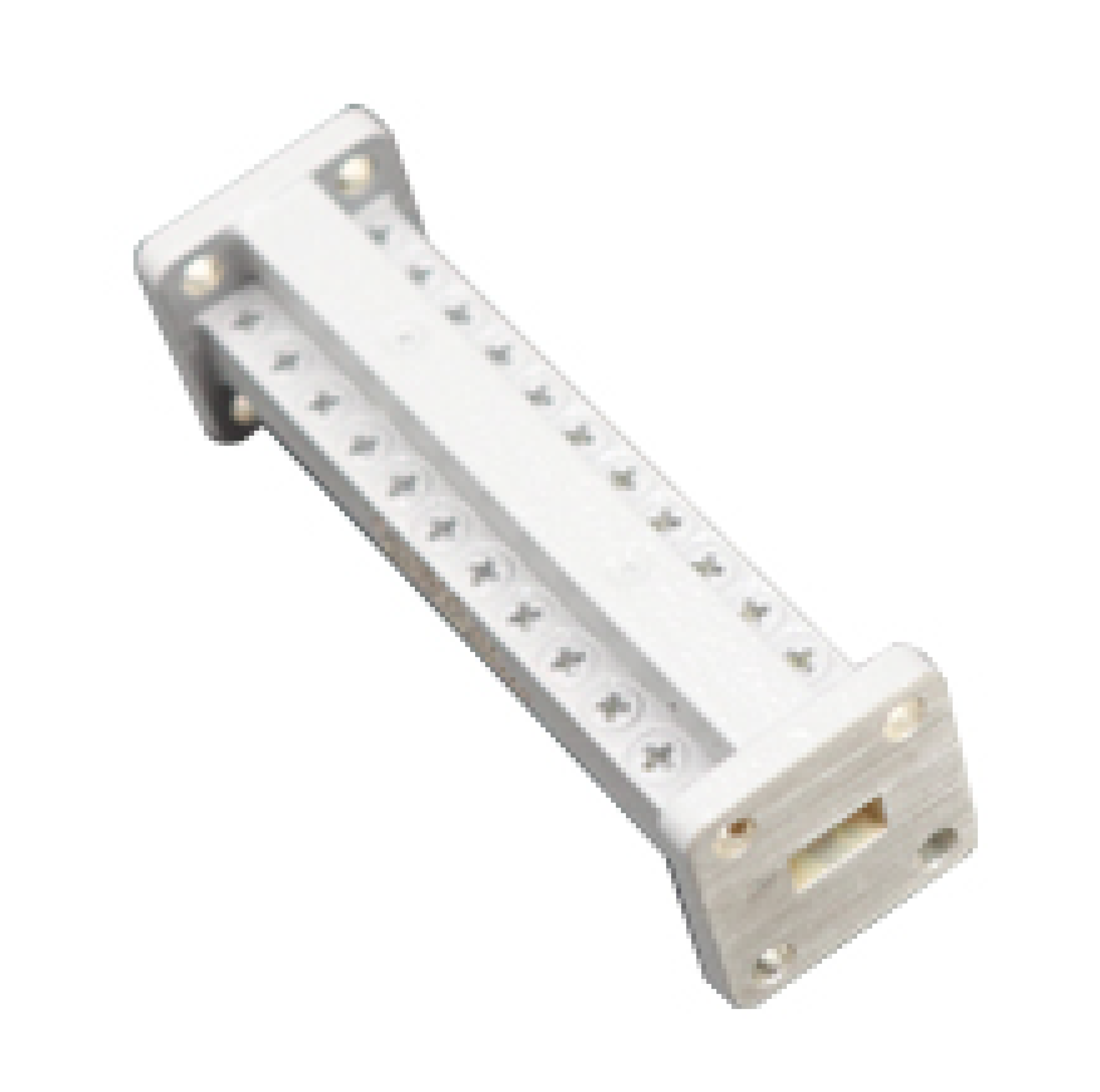

| RWBPF28A | Band Pass FilterWR28 | 36.8～37.2GHz | WR28 | 1.3dB | 100W | Waveguide | Datasheet |
| RWBPF28B | Band Pass FilterWR28 | 37.685～38.315GHz | WR28 | 1.3dB | 100W | Waveguide | |
| RWBPF28C | Band Pass FilterWR28 | 37.1～38.1GHz | WR28 | 0.5dB | 10W | Waveguide | |
| RWBPF28D | Band Pass FilterWR28 | 38～40GHz | WR28 | 1dB | 10W | Waveguide | Datasheet |
| RWBPF28E | Band Pass FilterWR28 | 30.9～31.5GHz | WR28 | 1dB | 10W | Waveguide | Datasheet |
| RWBPF42A | Band Pass FilterWR42 | 18～18.8GHz | WR42 | 0.5dB | 30W | Waveguide | Datasheet |
| RWBPF62A | Band Pass FilterWR62 | 13.74～14.52GHz | WR62 | 0.3dB | 300W | Waveguide | Datasheet |

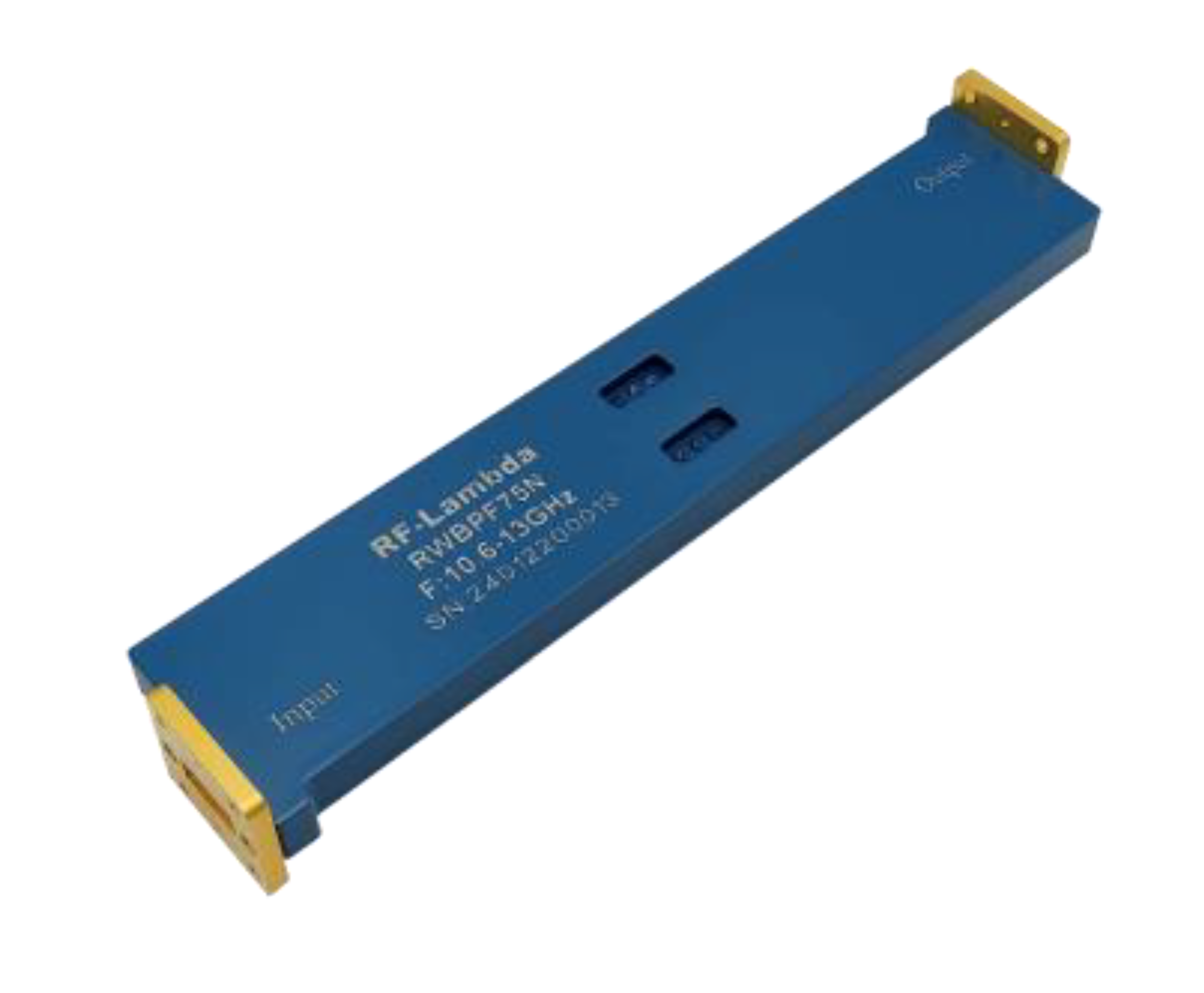

| RWBPF75N | Band Pass FilterWR75 | 10.6～13GHz | WR75 | 0.3dB | 500W | Waveguide | Datasheet |
| RWBPF90A | Band Pass FilterWR90 | 9.45～9.95GHz | WR90 | 0.3dB | 500W | Waveguide | Datasheet |

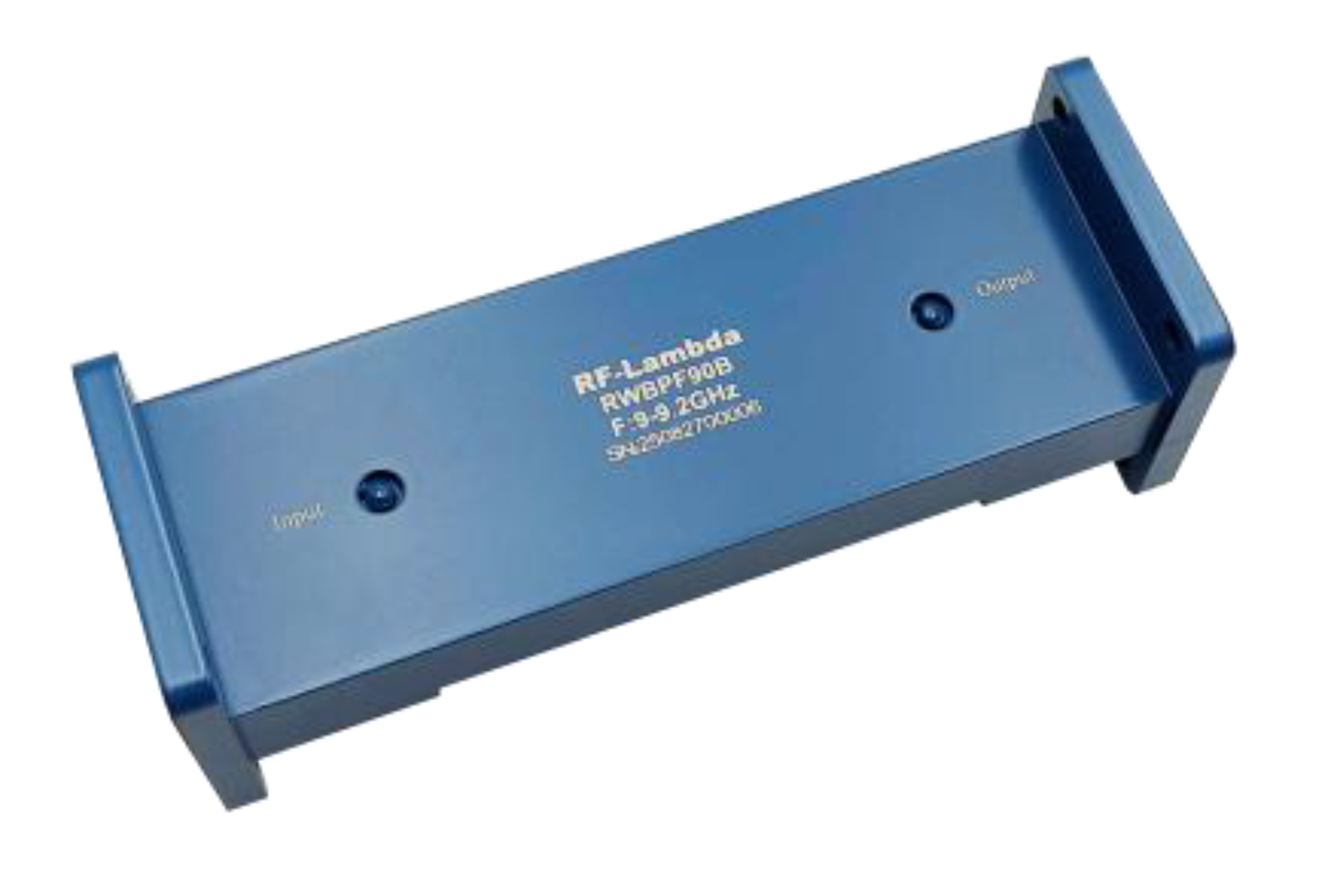

| RWBPF90B | Band Pass FilterWR90 | 9～9.2GHz | WR90 | 0.4dB | 500W | Waveguide | Datasheet |
